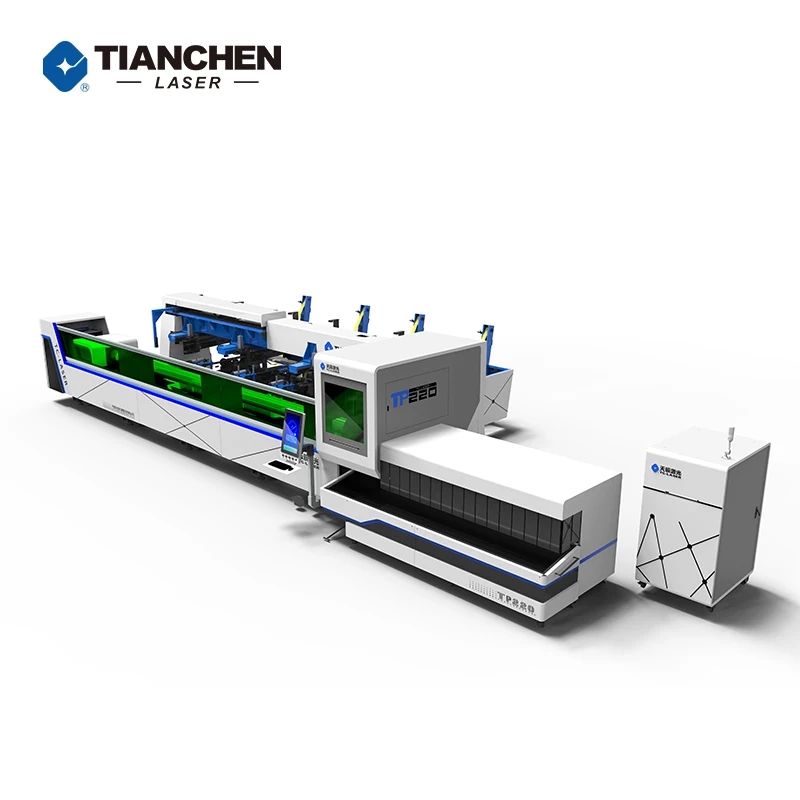

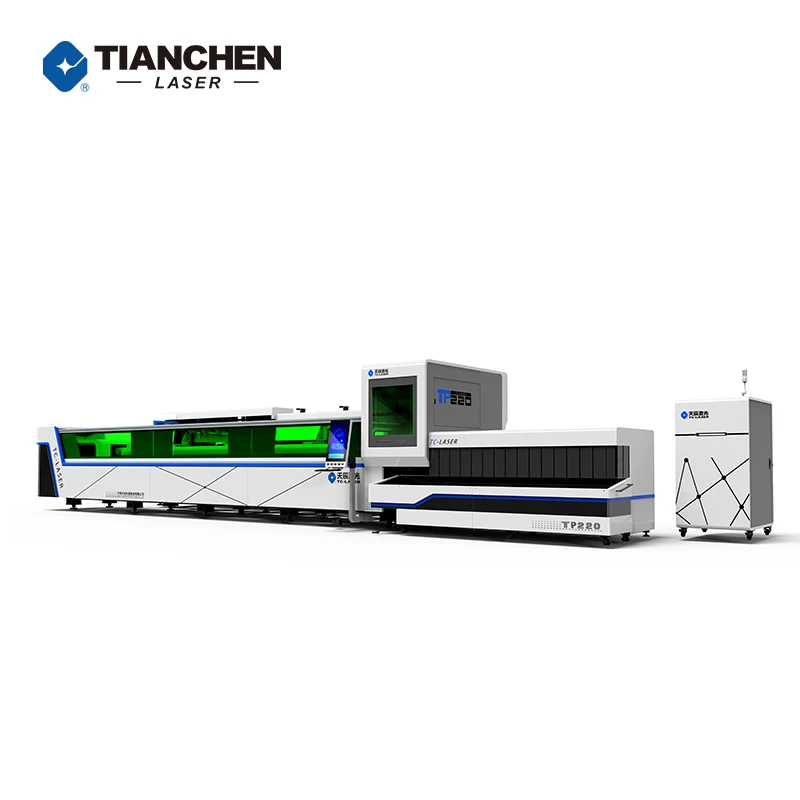

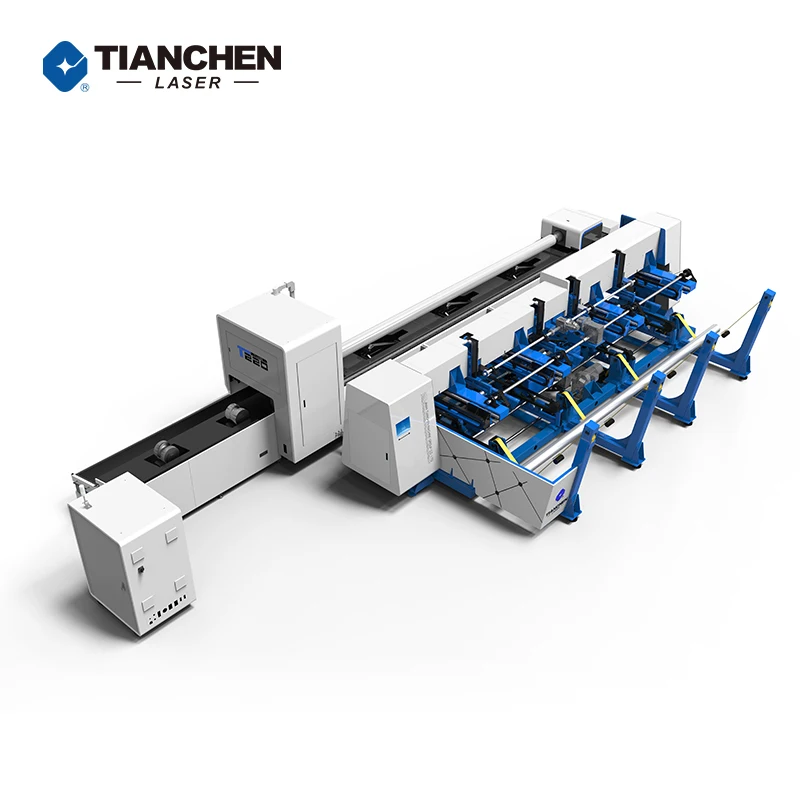

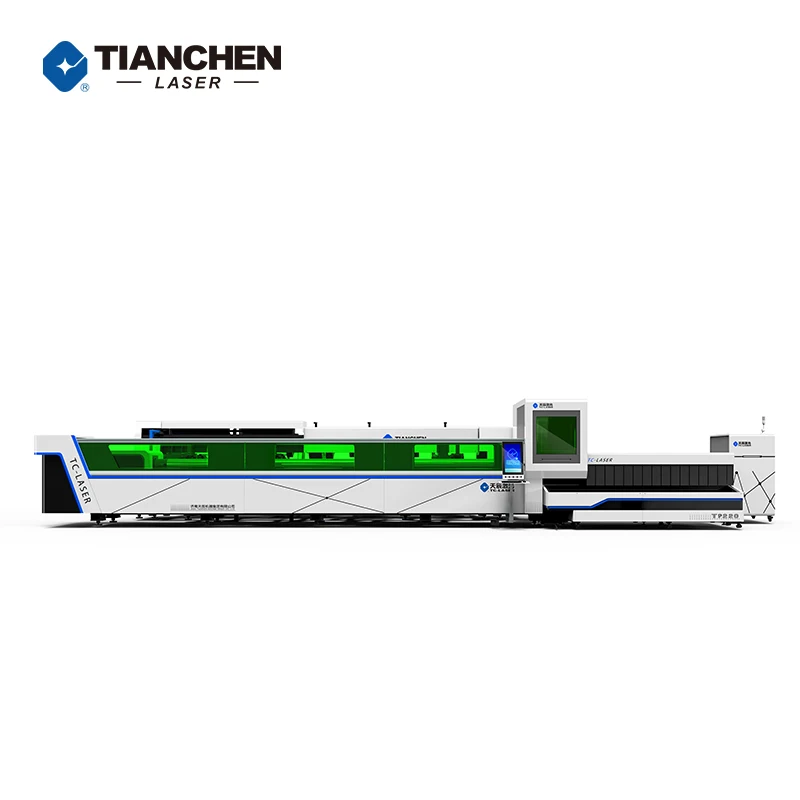

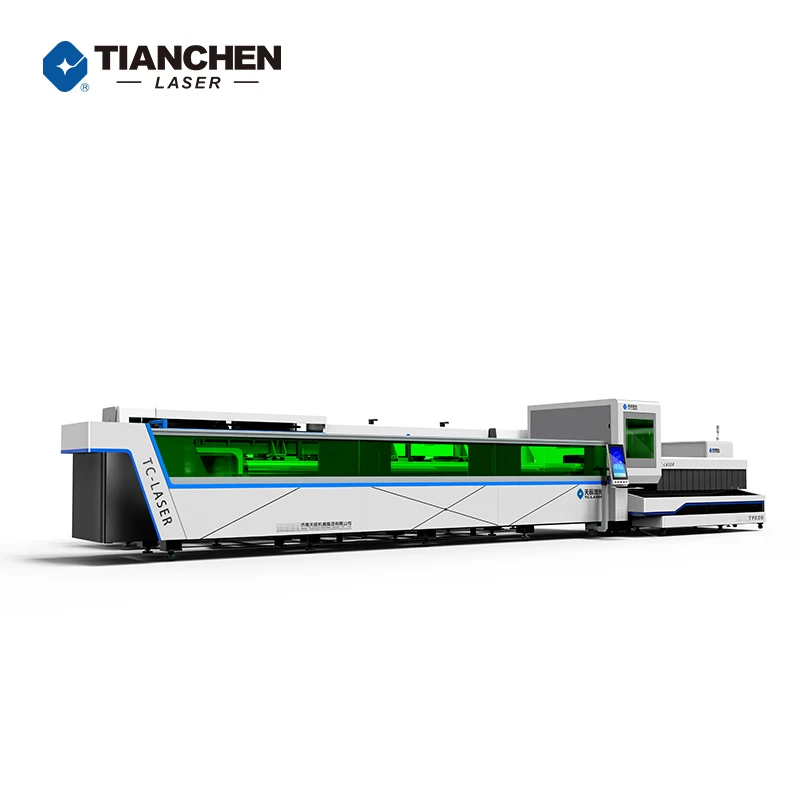

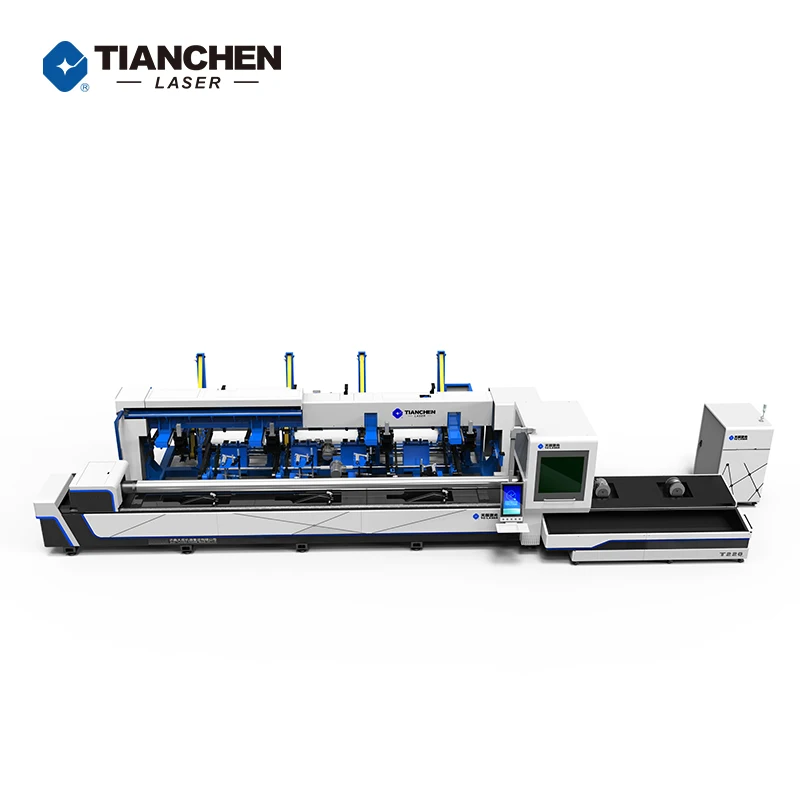

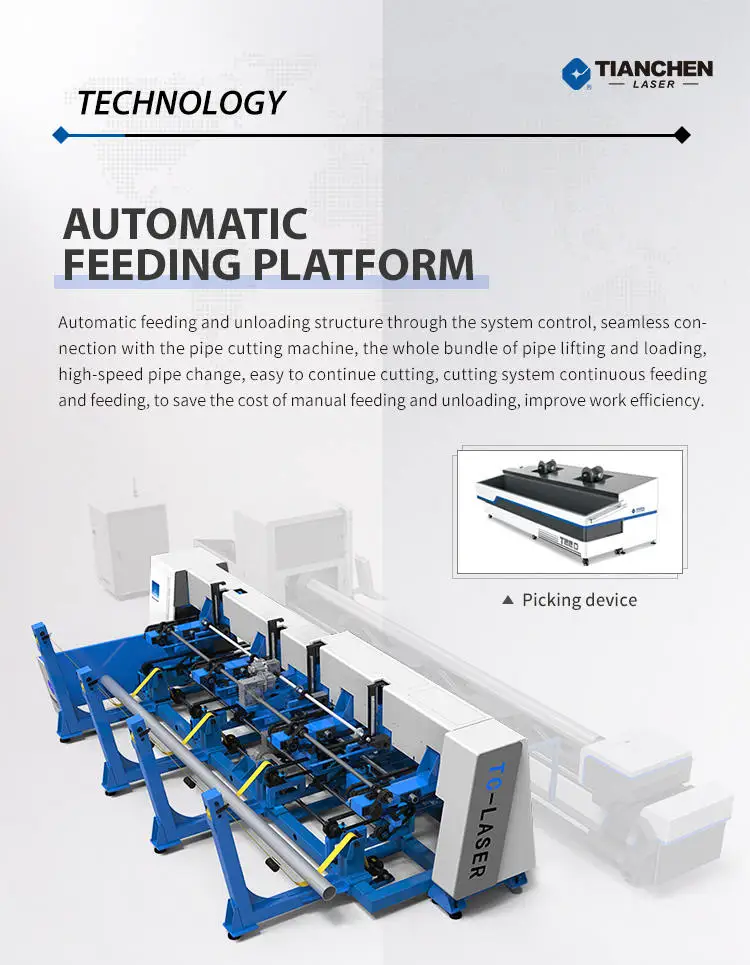

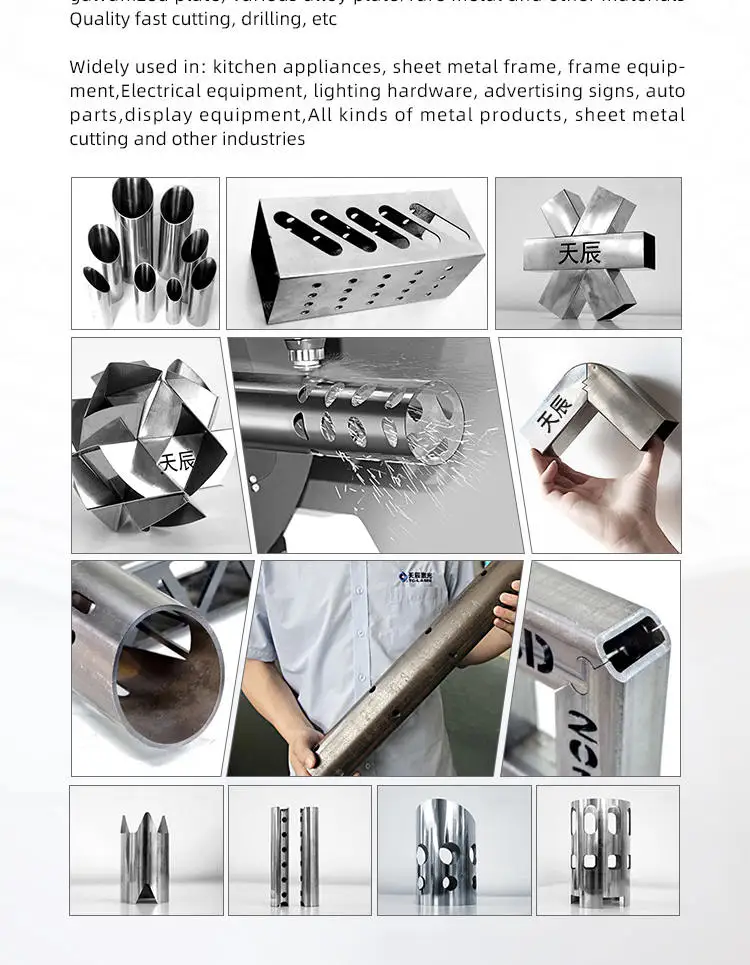

4KW Tube Fiber Laser Cutting Machine with Automatic Loading System

Model

Parameter

TC-T220A

Basic parameter

X axis travelling distance (mm)

6600

Y axis travelling distance (mm)

250

Z axis travelling distance(mm)

185

Chuck clamping maximum diameter(mm)

15~220

Maximum processing length of pipe (mm)

6300

Feeding tube max length

3000

B axis Rotation angle(°)

No limited

B axis max rotation speed

105

B axis Slewing accuracy(mm)

≤0.05

Repeat positioning accuracy(mm/m)

≤0.03

X axis max moving speed( m/min)

100

X-axis maximum acceleration(G)

0.7

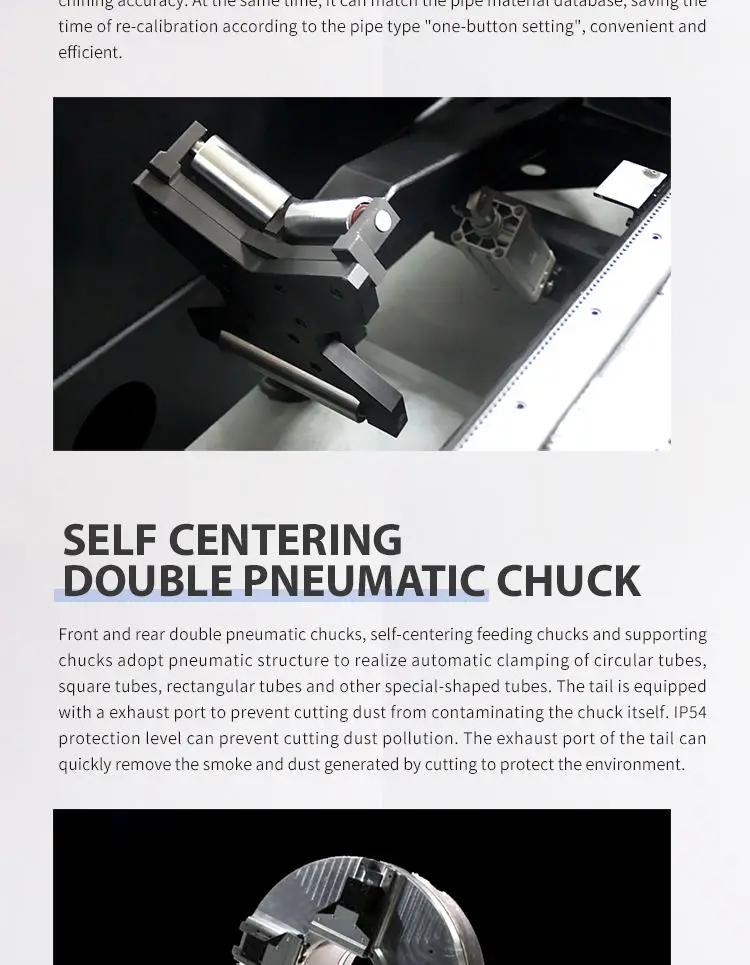

Chuck movement

Adjustable pneumatic (0.4-0.9Mpa)

Chuck max loading ( kg/m)

28/40

Key spare parts parameter

U axis rail guide

Original Hiwin 35#

Y axis rail guide

Original Hiwin 30#

Z axis rail guide

Original Hiwin 20#

Pinion

Original YYC

Y axis ball screw

PMI3210

Z axis ball screw

PMI3210

Motor reducer

Japan Shimpo

Laser protection full cover system

Included

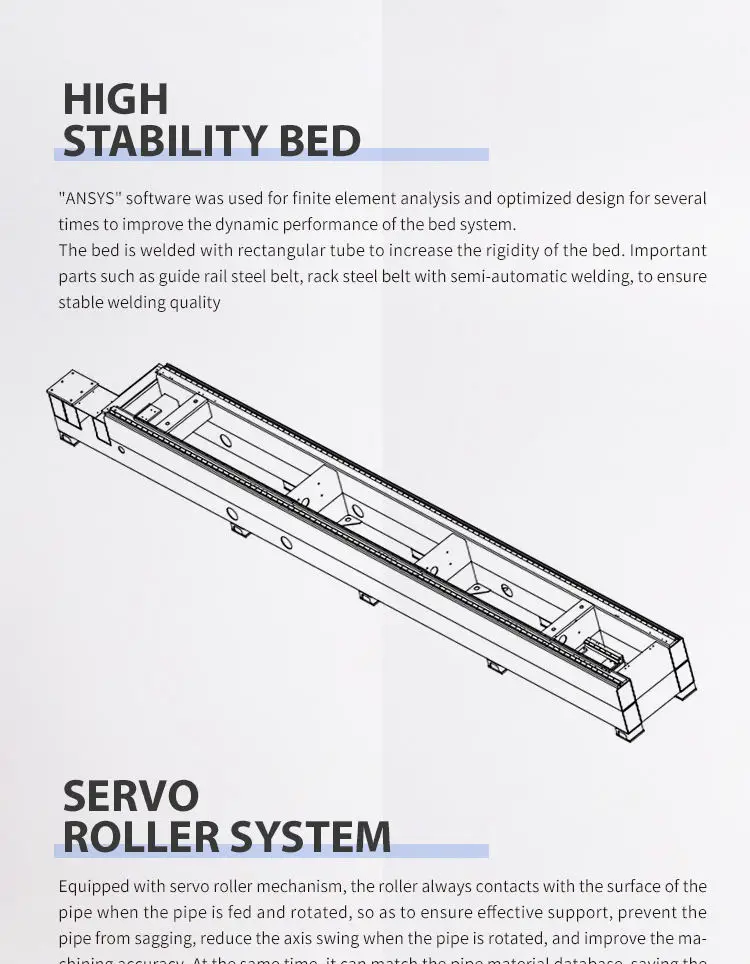

Machine Beam

Carbon steel welding

Gantry

Cast aluminum

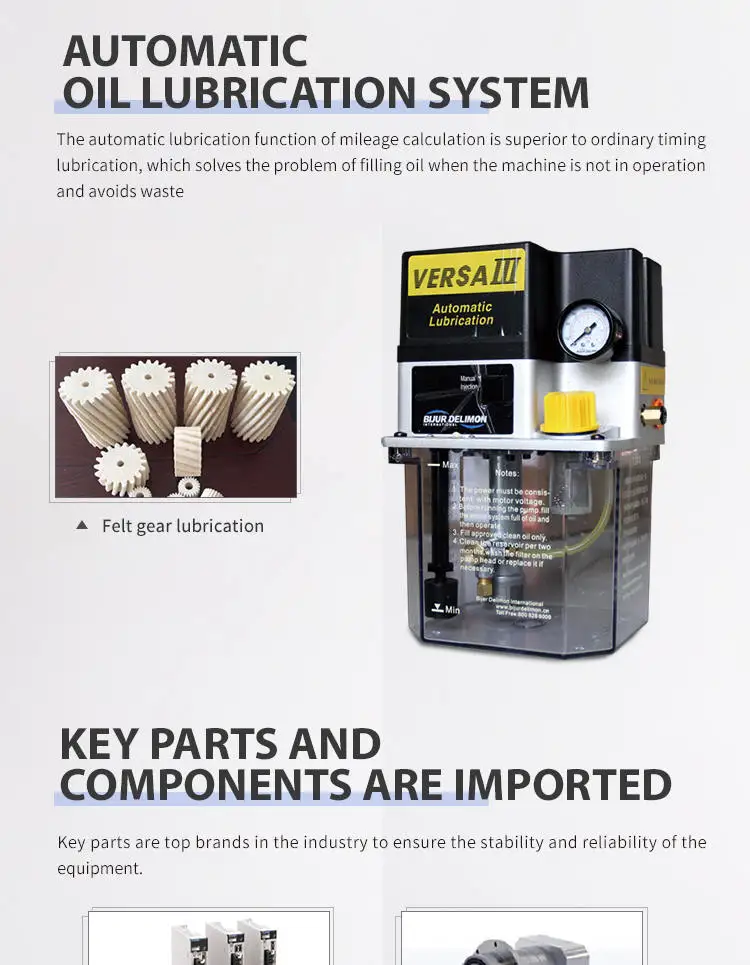

Lubrication system

Automatic lubrication system

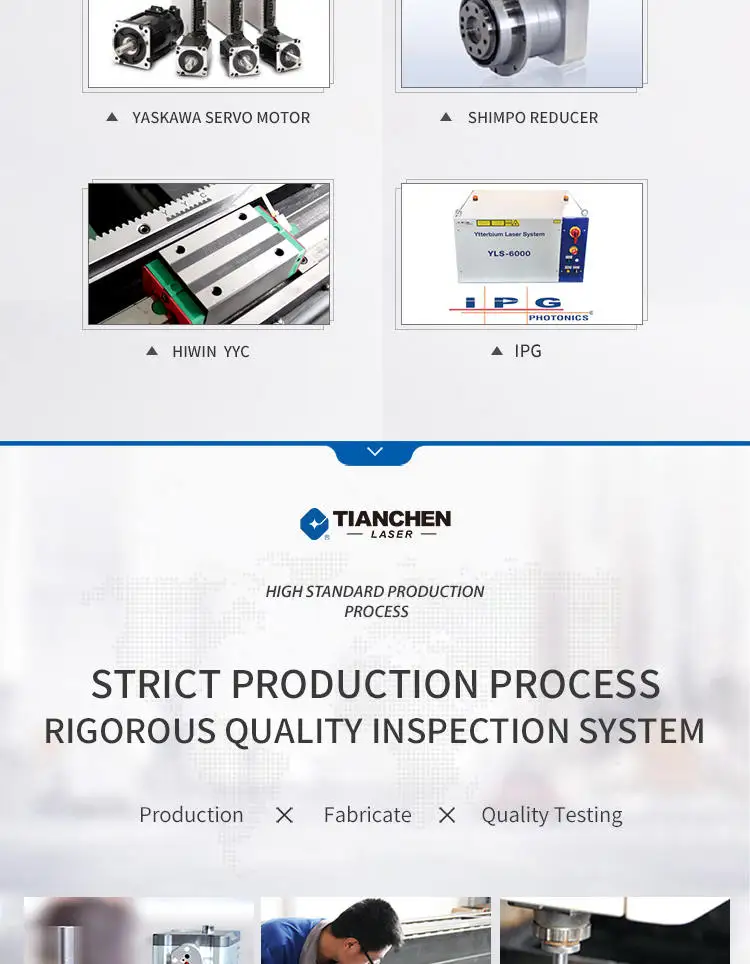

Servo motor system

Brand

Japan Yaskawa

U axis motor power ( kw)

2.9

Y axis motor power ( kw)

0.85

Z axis motor power ( kw)

0.75

W axis motor power (kw)

2.9/1.8

Input power

3 phase 5 wires

380V±5%/50-60Hz

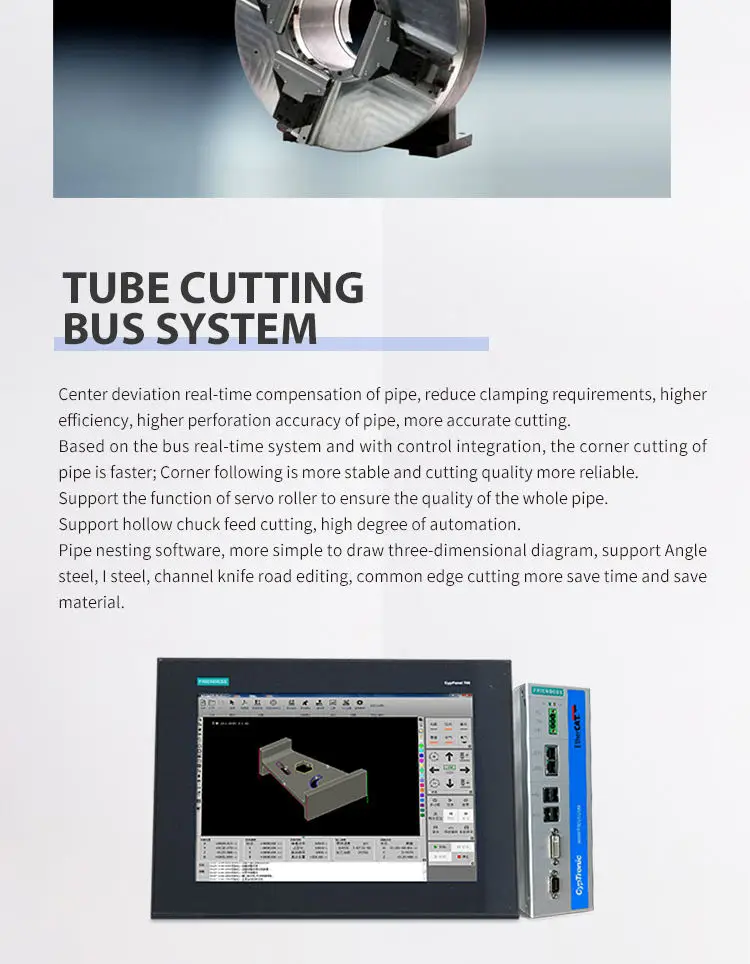

Control system

Brand

Shanghai Cypcut

Model

FSCUT5000

Electrical components

Model

France Schneider , Japan Omron

Pneumatic Components

Model

SMC ,Air TAC

Dust removal system

Dust remove method

Double fan(at start and end)

Fan model

1.1kw/2800rpm* 2set

Partitions quantity

2

Fiber laser source

Brand

 MAX , RAYCUS , IPG

Power (w)

1000w-4000w

Cooling system

Water chiller

Tongfei ( Double temperature dual control)

Machine dimension

Size ( Length * Width * Height )(mm)

11500*1750*2550

Weight (kg )

7500
