Product Overview

Description

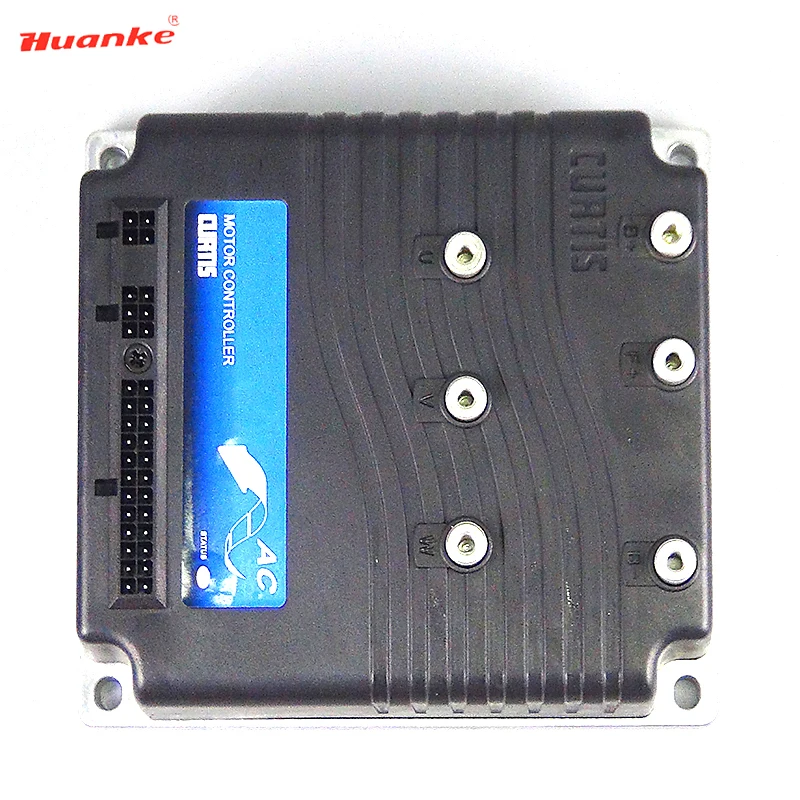

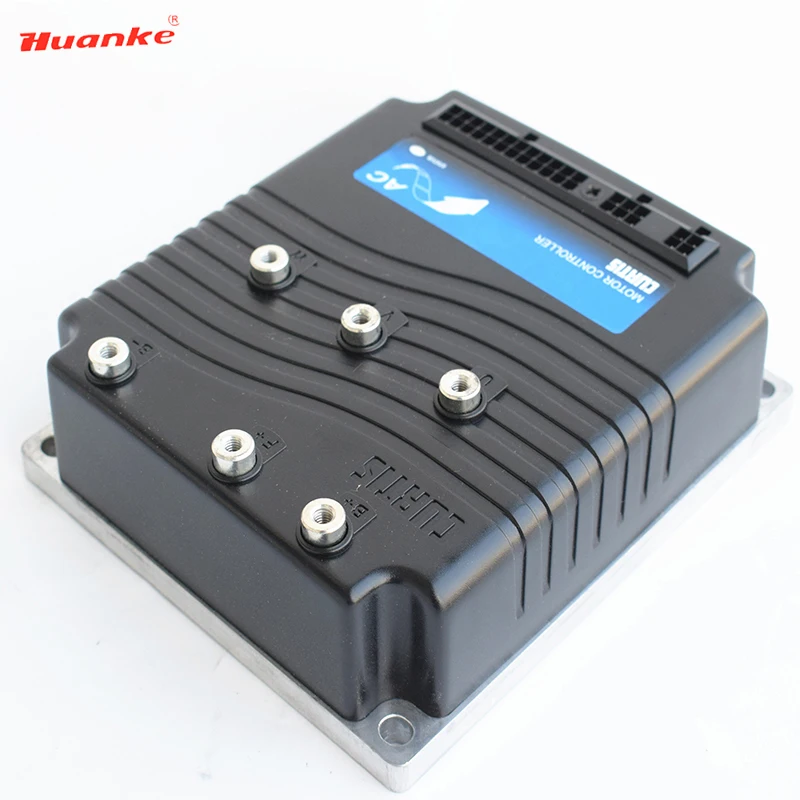

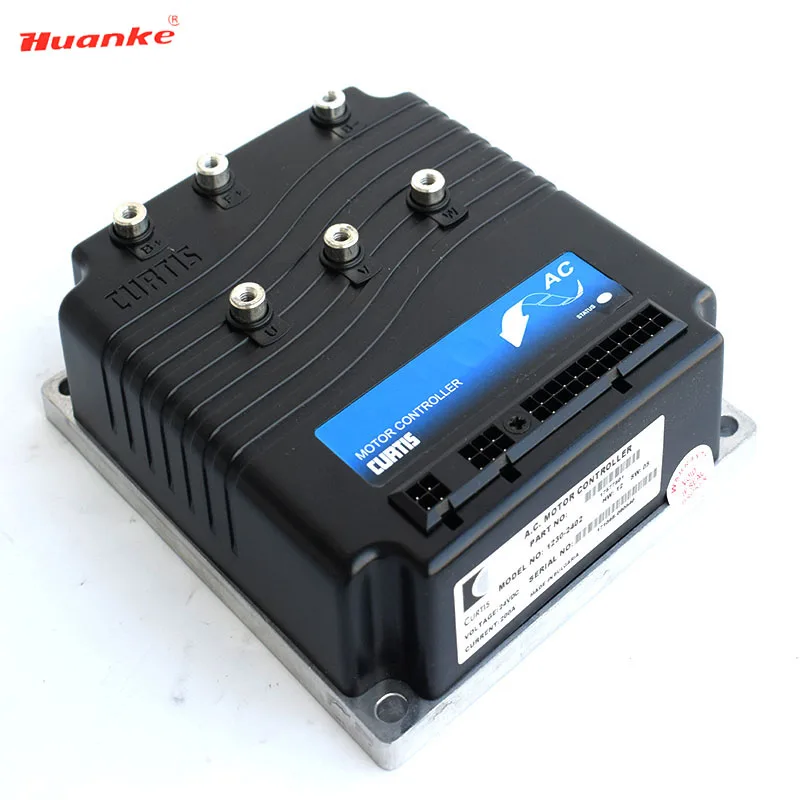

The 1230 motor controller is an AC induction motor speed controller designed for use in a variety of material handling vehicles. Typical applications include walkie/rider pallet trucks, low lifts, stackers, sweeper/scrubber machines, and other small industrial vehicles. This high performance programmable controller is simple to install, efficient, and cost effective.

The 1230 controller offers smooth precise control of motor speed and torque. When used with hydraulic systems, the 1230 turns the pump motor on and off and also controls valves on the hydraulic line—thus controlling the hydraulic path for Lift and Lower operations. These controllers are fully programmable through the Curtis Model 1313-4401 Handheld Programmer . The programmer provides diagnostic and test capability in addition to configuration flexibility. The 1230 is also designed to work with the optional Curtis 840 Spyglass data display and the optional Curtis 1312 tiller multiplexer



Specifications:

Operating voltage range: 16 to 32 V
Nominal input voltage: 24 V
PWM operating frequency: 16 kHz
Electrical isolation to heatsink: 500 V ac (minimum)
KSI input current (no contactors engaged): 90 mA without programmer or speed encoder; 170 mA with programmer and SKF speed encoder
Logic input voltage: >7.5 V High; <1 V Low
Logic input current: 10 mA (nominal)
Nominal output line-to-line voltage (rms): 15 V
Max. output frequency: >200 Hz
Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
MOSFET overtemperature cutback: linear cutback starts at 100°C (212°F); complete cutoff at 110°C (230°F)
MOSFET undertemperature cutback: approx. 50% motor current at -25°C (-13°F); complete cutoff at -40°C (-40°F)
Package environmental rating: IP53
Weight: 1.1 kg
Dimensions : 164 × 146 × 56 mm
