Product Overview

Description

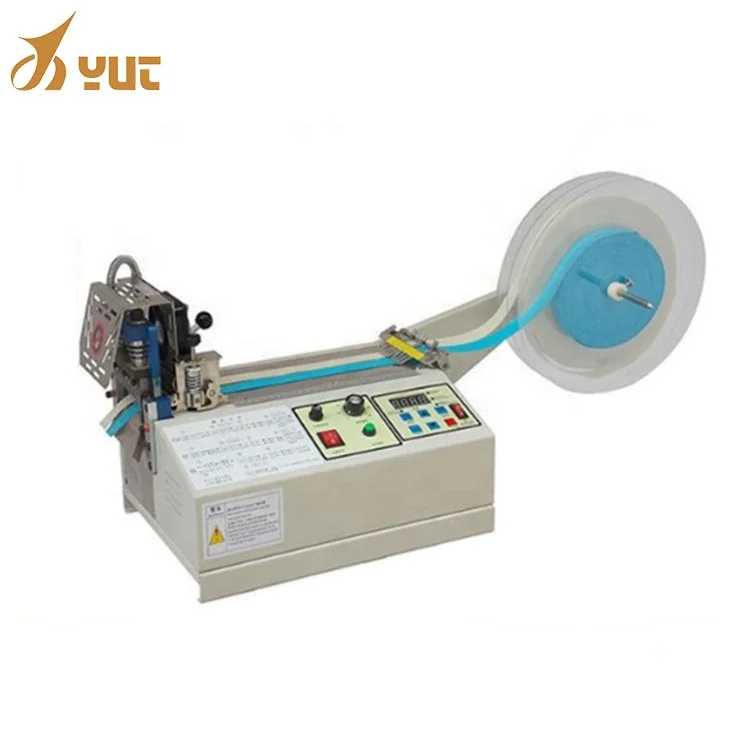

YT-101N strip cutting machine fabric cloth leather cutting machine



Main Function



This machine is suitable for PP belt,zipper,nylon belt braided belt,elastic belt,magic stick,seat belt,shoulder belt,ribbon,tape,wire,casing,etc for Fixed length cutting.Suitable for belt,ready-made clothing,shoe making,leather bag,leather goods.Electronic and other manufacturing processing.



Application: Nylon mesh belt,zipper,elastic,colorful ribbon,label,backpack belt,shoelace,magic stick,knitted belt,pants'ears,and others nylon materials.



Product Information

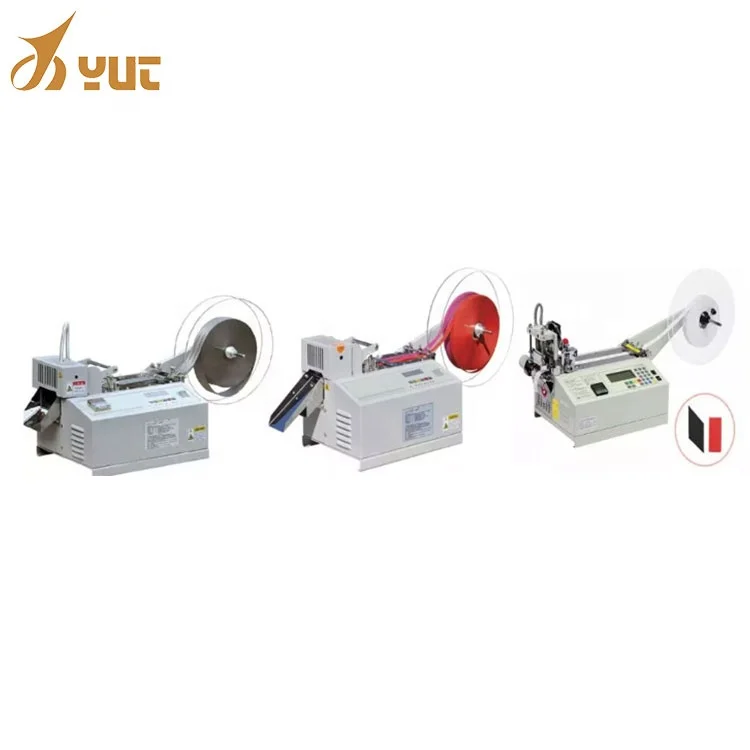

Number	YT-116	YT-527-30T	YT-988	YT-101N
Name	Leather Strap Cutter	Hydraulic Four-column Cutting Machine		Automatic tape cutting machine
Power	0.4KW	2.2KW	1.8KW	/
Working Width/Area	0-100mm	1600*510mm	/	1-95MM (max: straight within 95mm ; bevel within 50mm)
Maximum Cutting Force	/	30T	/	/
Stroke	/	50-200mm	/	/
Productivity	/	1500-2000 pairs/ 8 hours	1200-1800 pairs/ 8 hours	/
Machine Dimension	460*230*350mm	2300*1130*1450mm	1200*600*1550mm	/
Packaing Dimension	480*250*430mm	2350*1150*1550mm	1250*650*1700mm	560*415*400mm
N.W.	26.5KG	1750KG	100KG	26Kg
G.W.	35KG	2100KG	150KG	/
Voltage	220V/50Hz	380V/50Hz	220V/50HZ	110V/220V 50/60HZ ,280W
other	/	/	highest temp.:0-700 air pressure:0.35-0.5 Mpa speed:1-23m/min upper roller Lift:10-30mm tape width:14-25 mm/optional  wheel width:20 mm/optional	highest knife temp:450°C  knife: hot and cold cutter cutting length :11-99999mm thickness:0.2-3MM

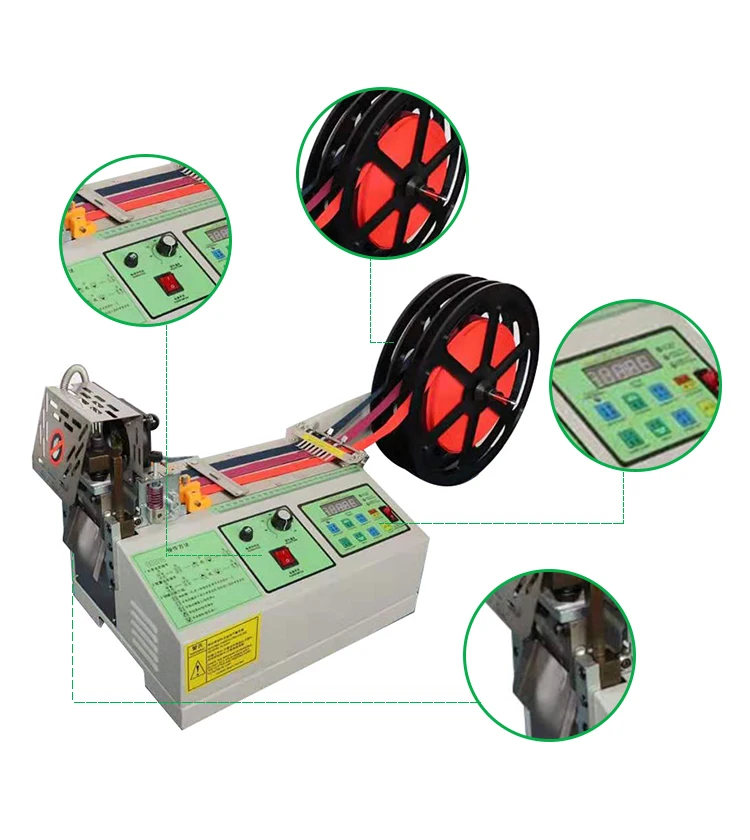

Product Display





1.Function: It can cut straight ;It can cut tape in 45 angle; and 30 angle

2.High speed: It can cut 100~120 cut per minute. (50mm long)

3.Accuracy(± 0.1mm): Cut-length is accurate cwing to a stepping motor

4.Cutting type: Cutting is neat due to using a cold cutter which is durable.

5.Automatic operation: It works autoally only by setting length and quantity

6.Automatic stopper: It stops autoally if materials run out during operation

7.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on

8.Compensation,when the cut size is different form the setting size,Increase or decrease this to the standard size.

9.Reset Function,clear the cut numbers and restart counting.

10.Freature: Heavy duty, high speed, high accuracy, designed for cutting non-adhesive

11.Start heating devices, cold knife into hot knife. Max. temperature is 450 °C adjustment

12.Available materials: Fabric tape ;Elastic belt ,Ribbon, belt loop, bag band It use hot cutter; shrink tube, string, plastic zipper, etc PVC and PE tape also use cold cutter is OK .



13.If you want to know more about it, pls click here to contact us.
