LD8100+F100 Thermal Conductive Pad Typical Properties
Property
Unit
Metric Value
Test Method
Color
***
Pink&White
Visual
Thickness
mm
0.3～15.0
ASTM D374
Density
g/cc
2
ASTM D792
Hardness
Shore C
15±5
ASTM D2240
Tensile Strength
KN/m
2.5
ASTM D412
Continuous Use Temp.
°C
-40-150°C
EN 344
Electrical
Breakdown Voltage
Kv/mm
≥6.3
ASTM D149
Volume Resistivity
Ω.cm
6.2×1015
ASTM D257
Flame Rating
V-0
V-0
UL 94
Thermal
Thermal Conductivity
W/m.k
1.0
ASTM D5470
Remark: Data for design engineer spec. reference only. Engineers are reminded to test the material in application.
LD8100+F100 Thermal Conductive Pad
LD8100+F100 thermal conductive pad can achieve excellent thermal conductivity, while keep economy and efficiency. It is special designed for the application of gap heat transfer. LD8100+F100 thermal conductive pad can fill the gap and improve the heat transfer ability between the heat generation part and heat radiation part. These materials can laminate with the mating surface with minimum pressure, thus make few or no stress on the mating parts. LD8100+F100 thermal conductive pad has a very soft surface and excellent stickiness. It has a high degree of compliance.
Features & Functions
Configurations Available

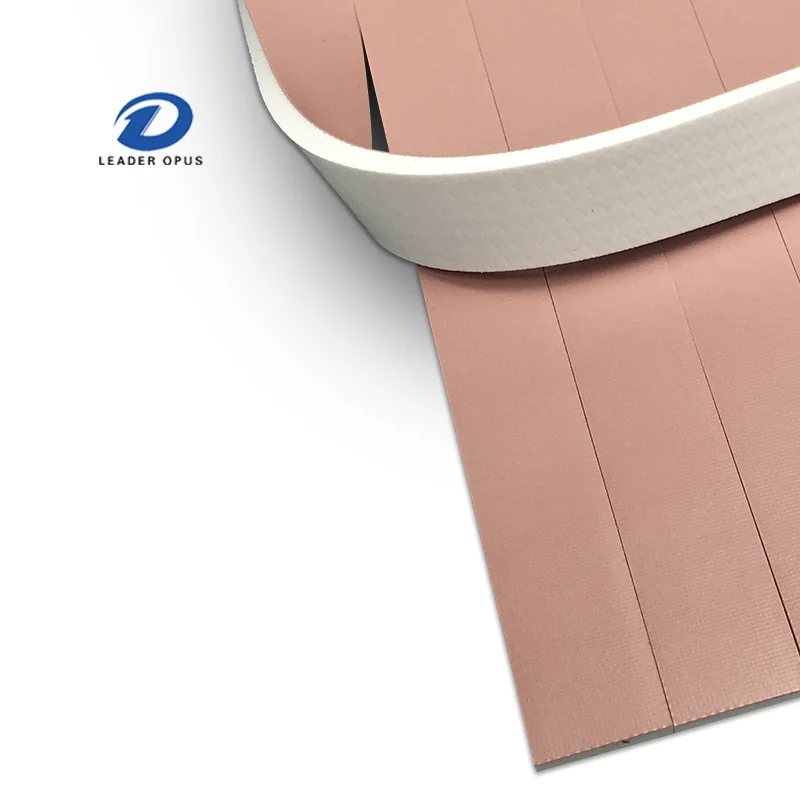

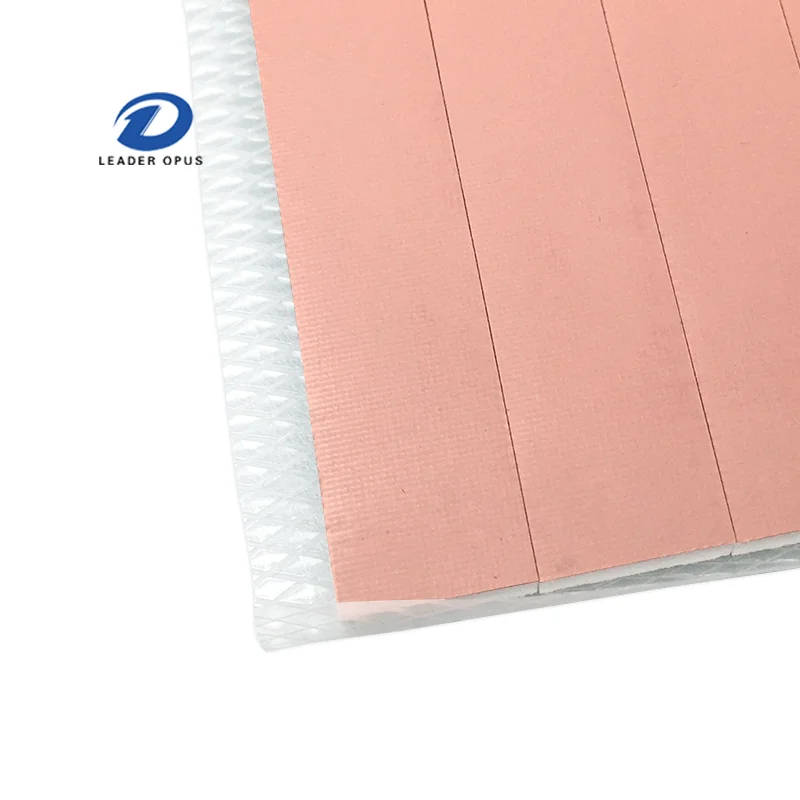

- Sheet Form - Roll Form

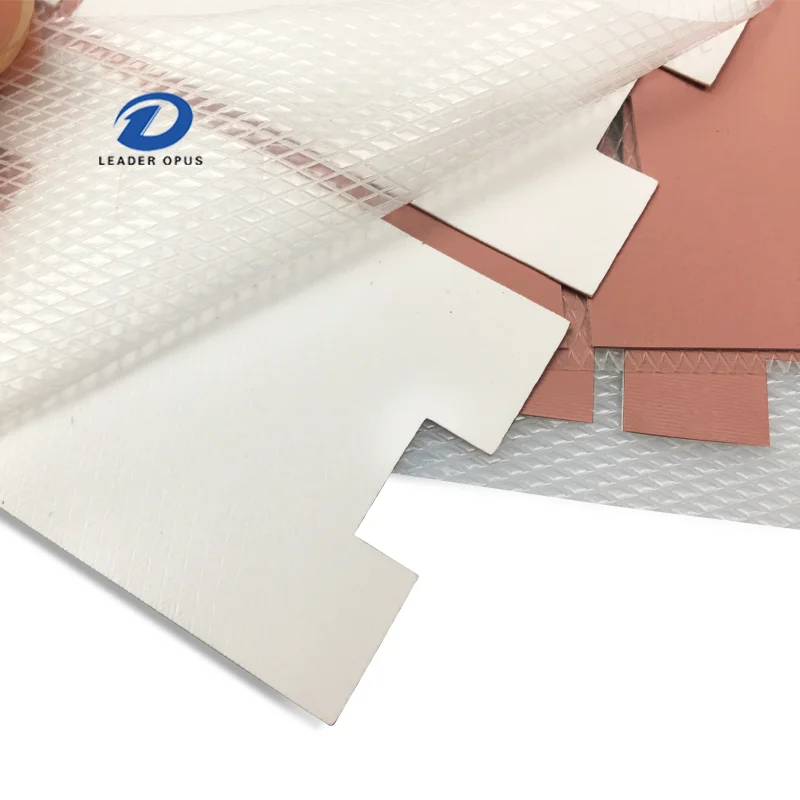

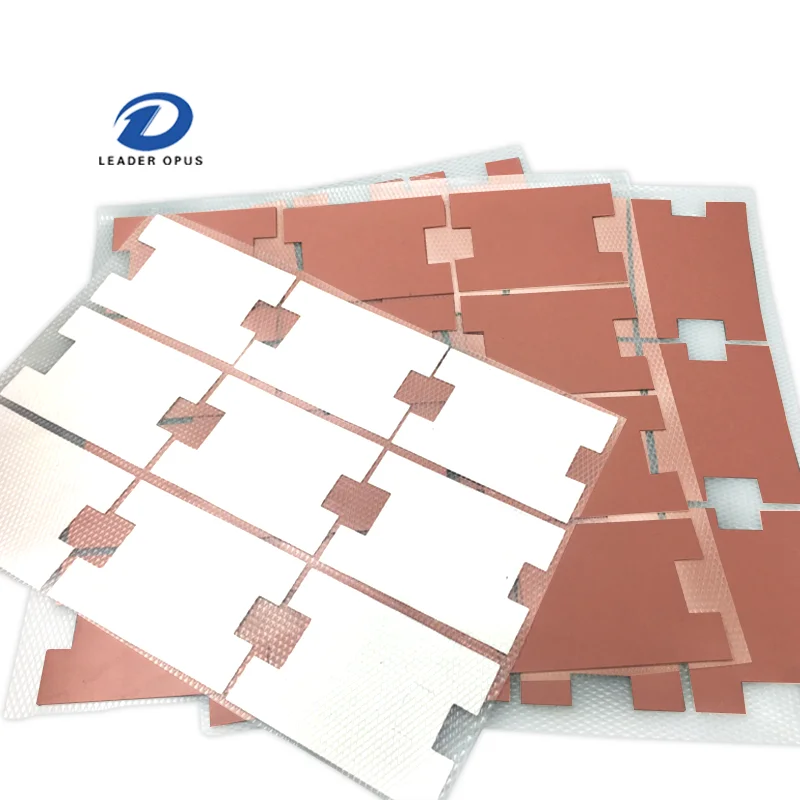

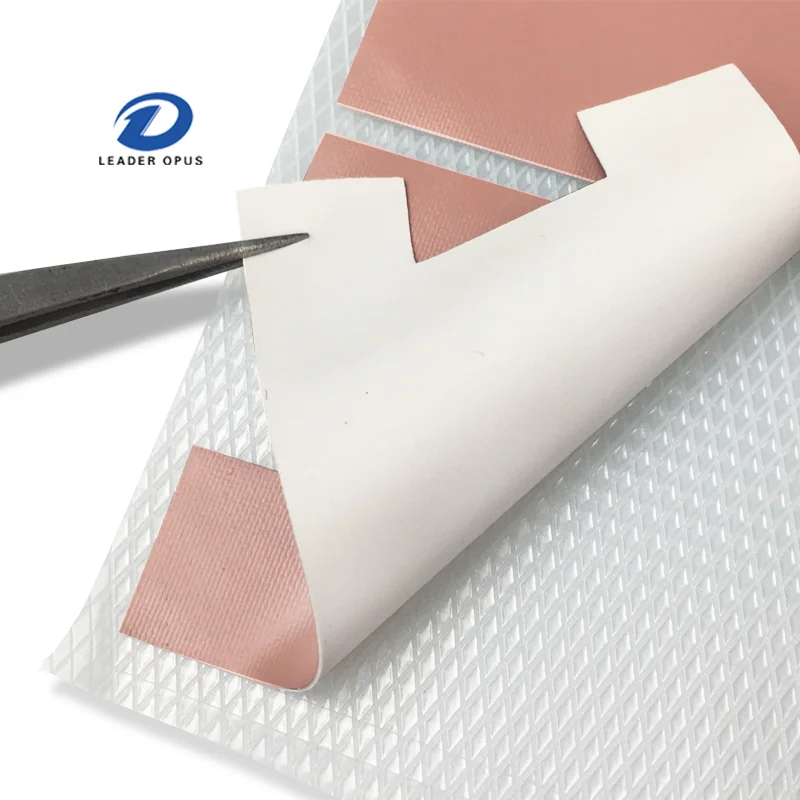

- Die-cut Parts - Fiberglass on the surface/ fiberglass inside available
Size Available
- 200x400mm
- 300x435mm
- 300x350mm
- can custom-made
Thickness Available
0.3-15.0mm, increment by 0.5mm
Features & Benefits of Thermal Conductive Pad
- Thermal conductivity:1.0w/m.k - One side slightly tacky, the other side moderate tacky - Ultra softness offer high conformability at low stress application. - Reinforced fiberglass for puncture, shear or tear resistance.
Application

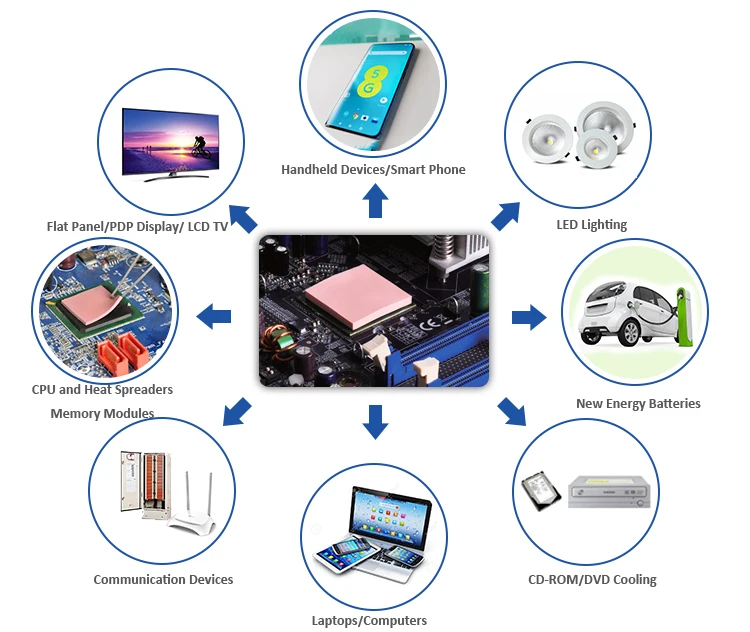

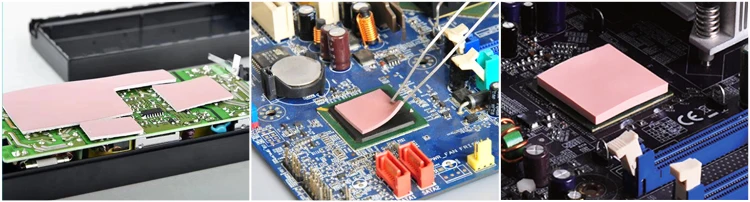

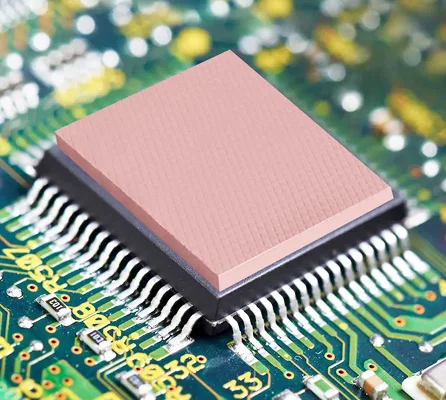

Typical Application of Thermal Conductive Pad Includes
- Flat panel display
- Handheld devices - Memory modules
- PDP display
Related Products
Certifications
Packing&Shipping
Company Introduction
FAQ
Q: What's the thermal conductivity test method given on the data sheet? A: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.
Q: How to Find a right thermal conductivity for my application?
A: It depends on the watts of power source, ability of heat dissipation.
Q: Do you accept custom orders?
A:Yes, we products can be customized in dimension, shape, color, coated on side or two sides adhesive or coated fiberglass. Our design team will help on drawing, please contact us for more details.
Q: Do you offer free samples?
A:Yes, we are happy to offer the free samples for your test.
Q: Are thermal pads offered with tacky?
A:Yes, all the thermal pads have its inherent tacky. All the models are natural tacky for two sides, except for the LD8100U,only one side has natural tacky.
Q: Are thermal pads reworkable?
A: It's depend on the application and the pad being used. Thermal pads have been reused before, however,it’s up to the judgment of product designer, to see whether the pads could withstand reuse.
Q: Will the heat make the thermal pads softer?
A:From -60-150,there is no significant change in the hardness of thermal pads, as gap filler.
Q: What's the tolerance for the thickness?
A: Normally ±10%.
Q:Are the thermal pads electrical insulating?
A:Yes, all thermal pads are electrically isolated.
Q: What's the shelf life for thermal pads?
A:Shelf life for thermal pad is one year after the date of manufacture. For the pads with adhesive, the shelf life is 6months after the date of manufacture. After these dates, all the characters should be retested.
Q: Can the thermal pads be with fiberglass?
A:YES, we could have thermal pads with fiberglass center to improve customer specific requirements for the tensile strength.LD8100U has fiberglass on its surface, all other models will be made at your requirement.
