Product Overview
Description
Products Description
H.264/H.265 720P/1080P SD CARD MOBILE DVR
1. Video surveillance and people counting are combined in a device.
2. People counter:
1) high precision counts (> 97%).
2) Binocular 3D stereo vision cameras.
3. Mobile DVR:
1) 1080P video resolution (1920X1080).
2) Can be integrated with external devices through RS232 and RS485.
H.264 / H.265 720P / 1080P SD CARD MOBILE DVR
This series of products is a multi-performance car hard disk recorder, using the international mainstream video H.264, 265 main profile coding format, audio G.726 encoding, high compression ratio, clear image, small disk space, unique UPS technology (equipped with Farad capacitor), using wide power supply 10-36V DC input, Supports up to 256GB SD card, USB backup, small appearance, ultra-low power consumption, simple operation and installation, strong stability, widely used in the mass market.
Product Paramenters
Item | Parameter | Description |
System | Operational language | Chinese. English, Others (customized) |
Operation interface | Graphical menu operation interface (OSD menu) | |
Password security | Two-level management of user password and administrator password | |
Video | Video input | 4/8 video input |
Video output | There are two video output modes of VGA and aviation head interface | |
Video resolution | Support 1080P. 720P, D1, HD1, CIF, etc | |
Video loop recording | Support SD card automatic loop recording and loop overlay (auto default) | |
Video mode | Support boot recording, timing recording, alarm (trigger) recording | |
Image compression | H264/H265 | |
Display | Preview features | Supports single and multi-view |
OSD overlay display | Channel name, time, recording status, resolution, license plate, GPS information, etc | |
Alarm | IO alarm | 4 IO alarm inputs, with alarm linkage function |
Communication interface | RS232 interface | 1CH RS232, expandable card machine, oil sensor, LED advertising screen, etc |
RS485 interface | 1-way 485 interface, expandable gimbal | |
AI capabilities (Extensible) | Passenger counting | 1 door passenger counting |
2 doors passenger counting | ||
3 doors passenger counting | ||
4 doors passenger counting | ||
DMS | Fatigue (closed eyes, hatcher) detection alarm | |
Occlusion camera detection alarm | ||
Receiving and receiving phone calls to detect alarms | ||
Face loss detection alarm | ||
Distraction detection alarm | ||
Smoking detection alarm | ||
ADAS | Occlusion camera detection alarm | |
Lane departure detection alarm | ||
Pedestrian detection warning | ||
Vehicle distance detection and warning | ||
BSD | Left blind zone detection alarm | |
Right blind zone detection alarm | ||
Platform | Remote monitoring platform | Real-time monitoring, monitoring intercom, playback, video, high-definition screenshots, GPS data, alarm data upload |
others | power consumption | ≤10W |
Operating temperature | -20℃ to +70℃ | |
Operating humidity | 20% to 80% | |
size | 180 （D）* 140（W）* 60（H） mm | |
net weight | Bare metal: 0.532G | |
Power input | DC +10V - +36V |

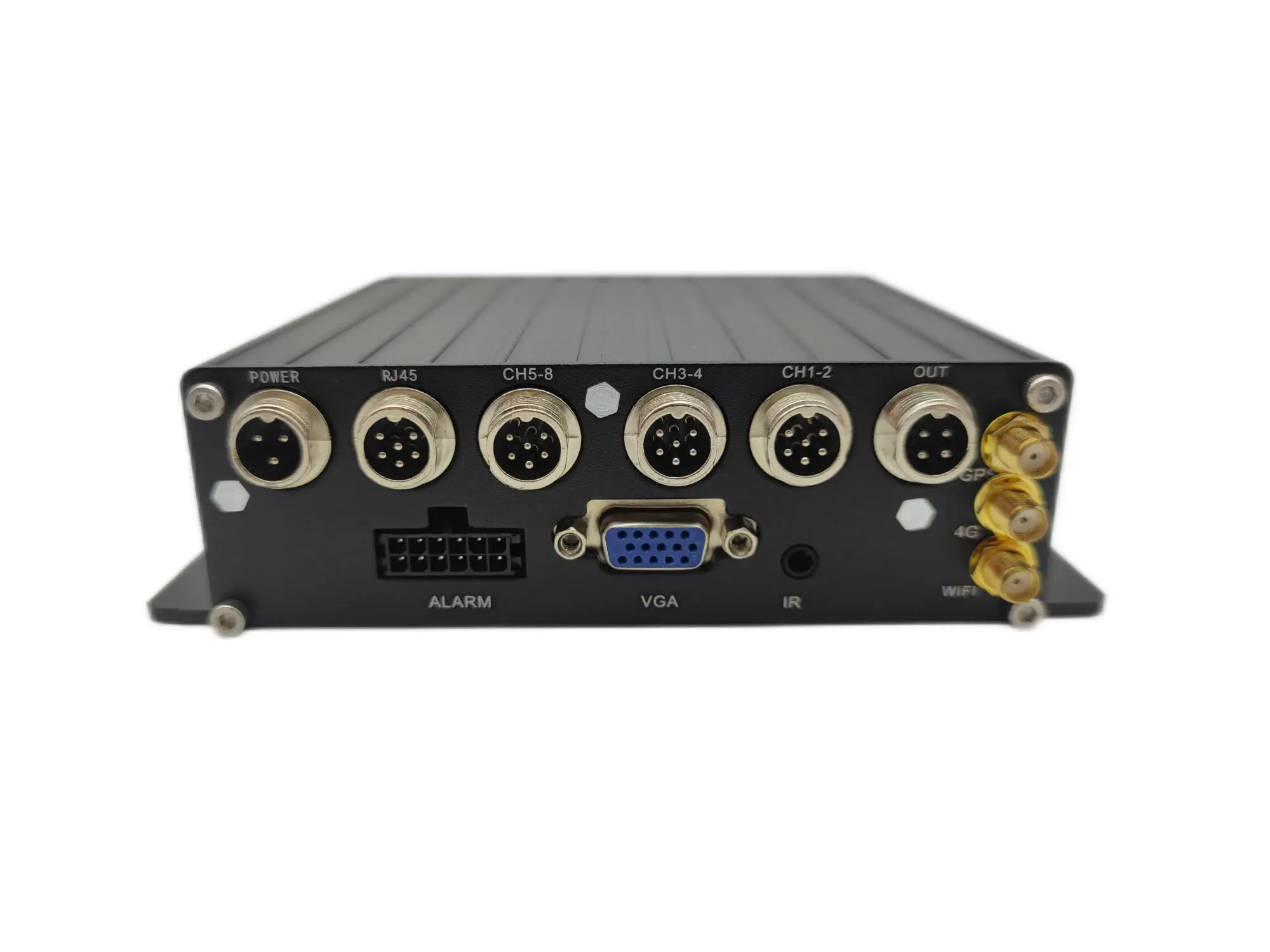

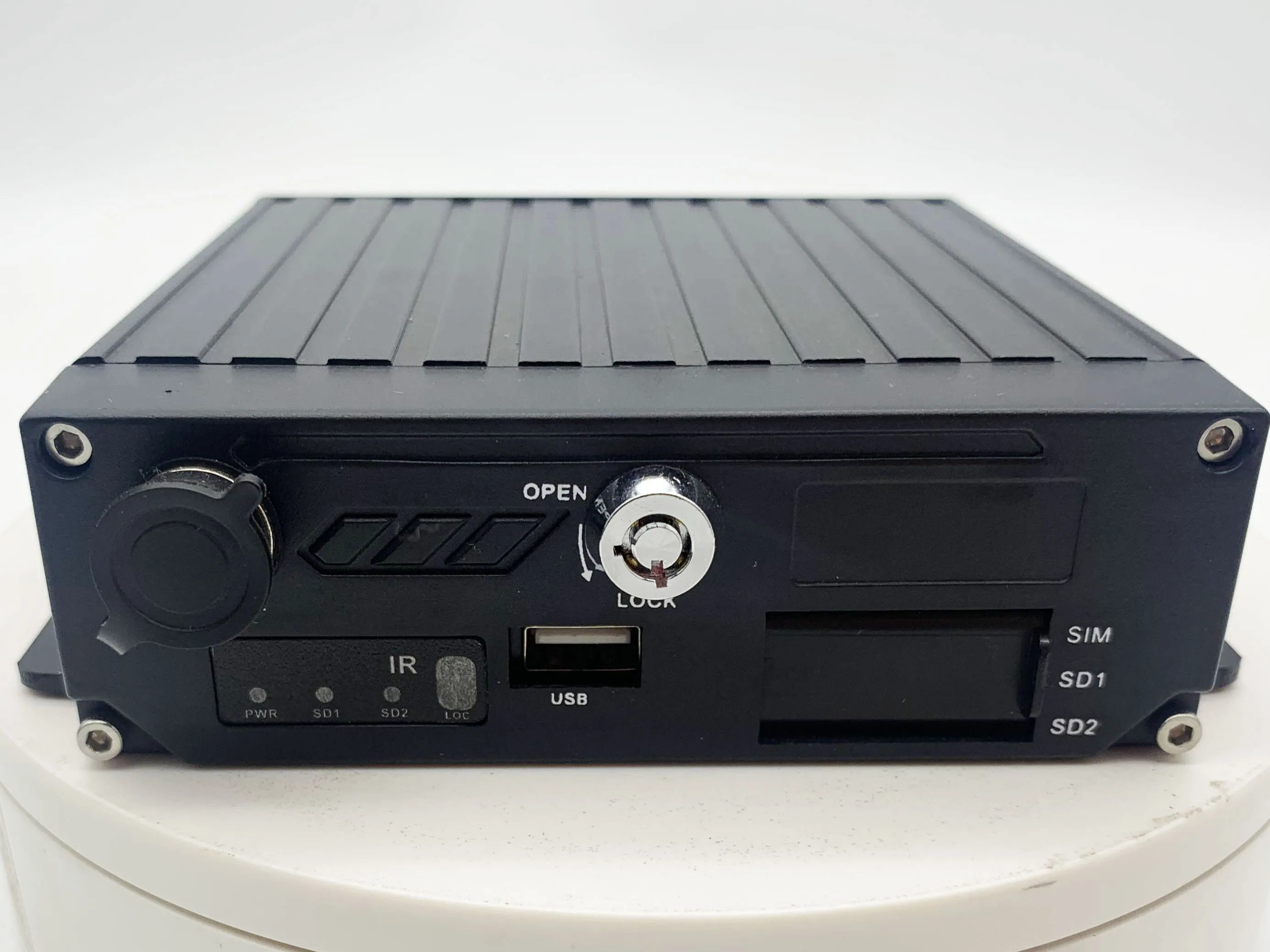

Details Images
Monitor screen

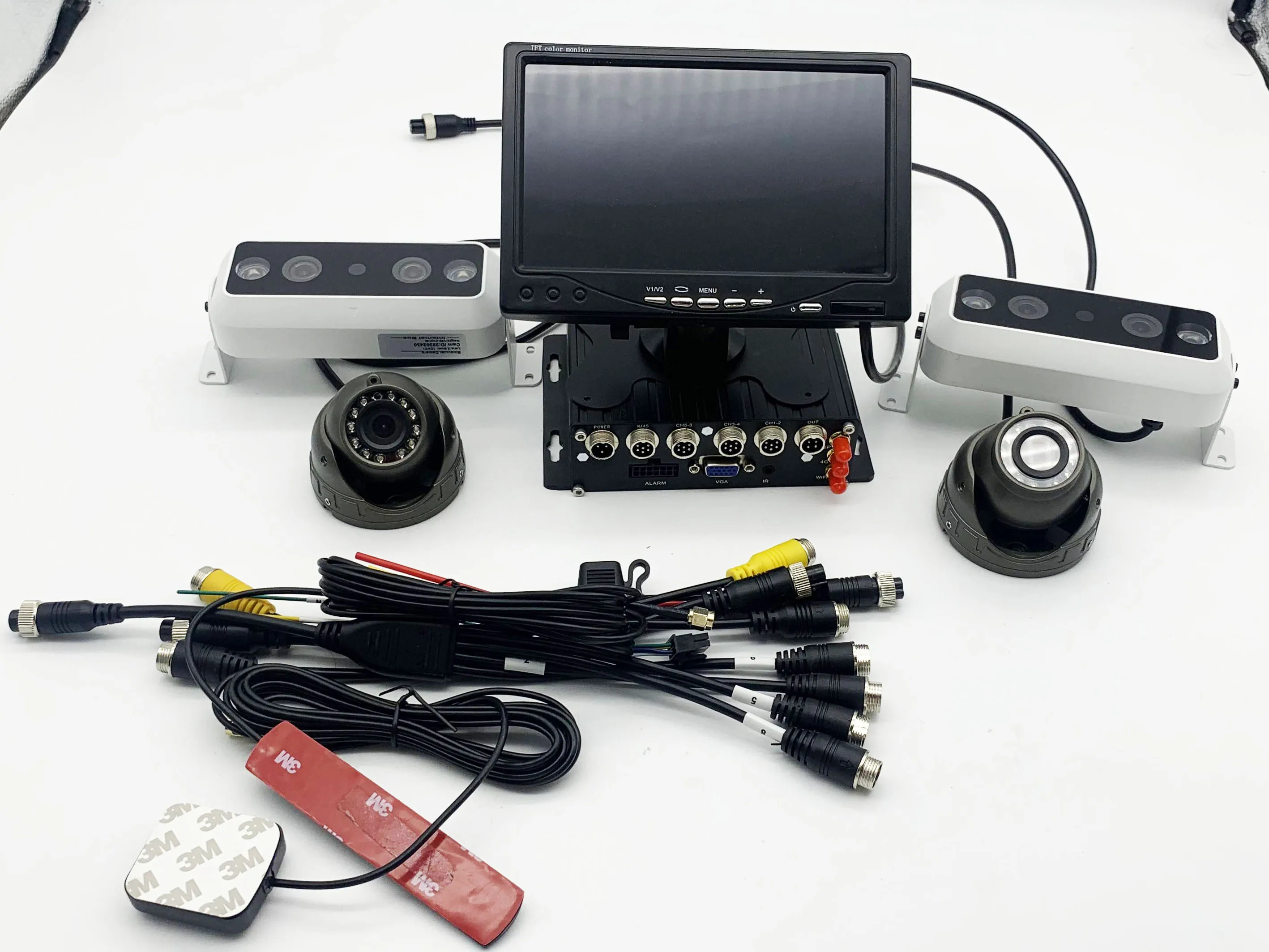

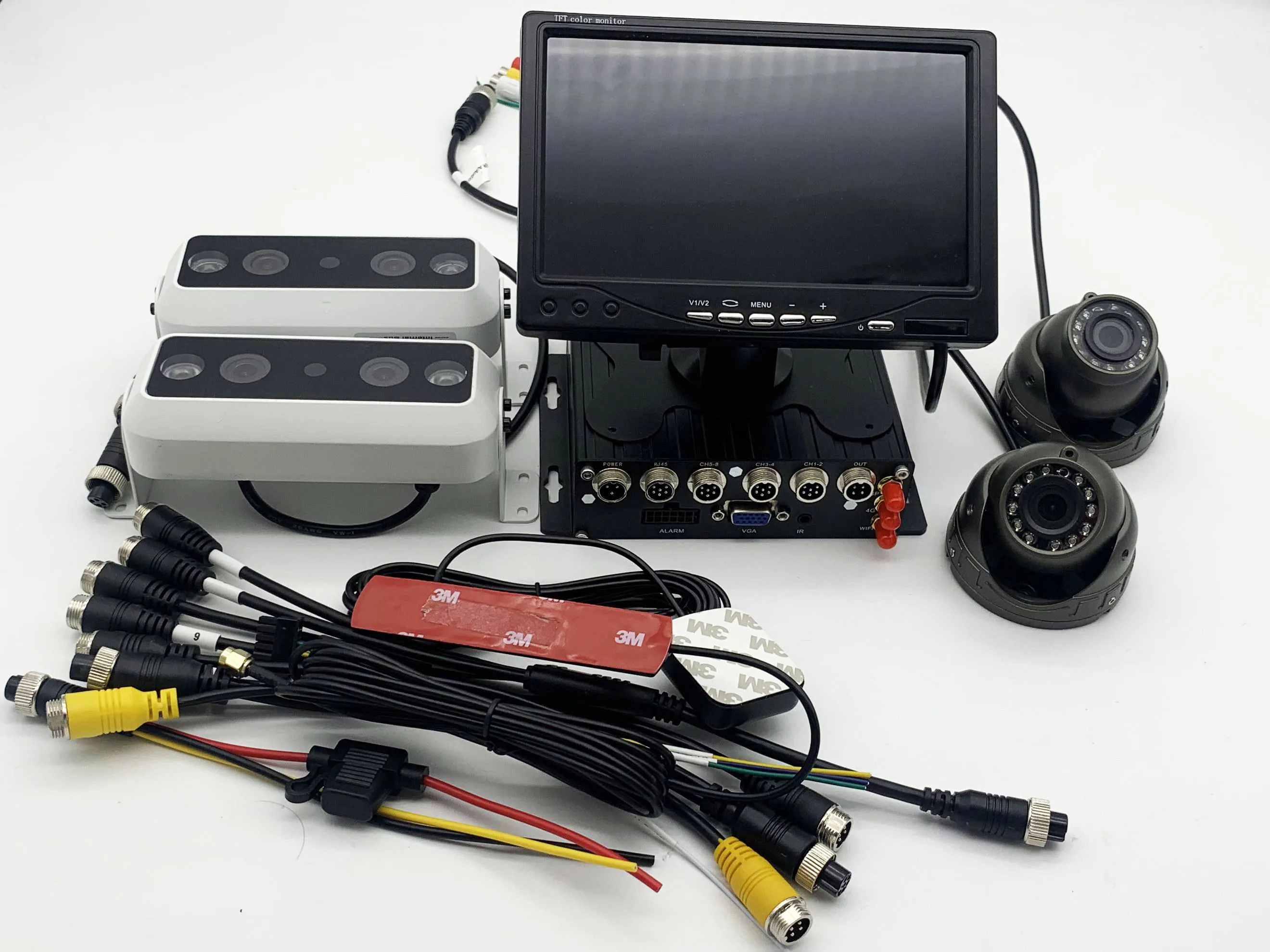

FL & OEM 4CH 1080P AHD MDVR Kit Video Recorder with 4 Side Rear View IR 720P Rear Side Front Camera for Truck Bus RV Van Bus
Four-channel simultaneous recording, smooth picture quality
Support parallel preview and return visit of different channels under multi-screen splitting
Loop recording, automatic coverage
When it detects that the hard disk space is insufficient, the system intelligently deletes the early unlocked screens, without manual operation, you can cycle the recording
3G/4G remote real-time monitoring
Insert a 3G/4G phone card, download the client, you can support multi-device terminal viewing, real-time sharing, remote download,real-time video you want to watch
GPS (Beidou) positioning
Carrying out vehicle positioning through GPS, knowing the location and driving trajectory of the vehicle, realizing the real-time scheduling of the vehicle and improving efficiency
Suitable for a variety of models
Bus ,Coach ,School Bus, Truck ,Tanker, Harvester
Company
Further Technology (Dongguan) Co., Limited is a professional high-tech enterprise for R&D,
manutactur-ing and marketing SD card Mobile DVR, hard drive DVR, 3G/4G/GPS/GPRS/WIFI
Mobile DVR/NVR,.GPS tracker and CCTV camera, which is the best manufacturer specialized
in vehicle security products in China.
In China and abroad, we have won a good reputation and had many success stories. In China,
more than 2000 transport companies choose our products. Our products are made to meet
safety standards such as CE, FCC and RoHS.
manutactur-ing and marketing SD card Mobile DVR, hard drive DVR, 3G/4G/GPS/GPRS/WIFI
Mobile DVR/NVR,.GPS tracker and CCTV camera, which is the best manufacturer specialized
in vehicle security products in China.
In China and abroad, we have won a good reputation and had many success stories. In China,
more than 2000 transport companies choose our products. Our products are made to meet
safety standards such as CE, FCC and RoHS.
With more than 10 years of OEM ODM experience, our manufacturing has sucessfull supported
name brands world wide with quality products with a strong R&D capability and our qualifed
products have been exported all over the world covering Asia, North &South America, Europe,
Oceania, Middle East countries.
name brands world wide with quality products with a strong R&D capability and our qualifed
products have been exported all over the world covering Asia, North &South America, Europe,
Oceania, Middle East countries.
Certifications
CE，FCC，RoHS，ISO001
MDVR Features
◆HIS Solution, H.264/H.265 Compression, Multiple stream recording, support 8CH 1080P AHD Mega pixels camera input.
◆ Support motion detection.
◆ High quality real time recording,1080P/ 720P/CIF/HD1/D1 Optional, quality adjustable.
◆ 8-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application.
◆ Support 12VDC output voltage,power supply for Camera/Screen etc.
◆ Max 4TB HDD + 256GB SD Card Mirror Recording, protect DVR from shock & Dust damage.
◆ Watchdog abnormal restart function,protect SD Card and Record.
◆ Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, and ensure the integrity of the data.
◆ ACC Delay off,can set 24 hours.
◆ Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 10-15s.
◆ Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements.
◆ Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management.
◆ Support GPS/BD,3G/4G Module Optional,WIFI(2.4GHZ/5.8GHZ) extend.
◆ Strong Network,phone device configure ,Support SMS Get device information and configure.
◆ Support Video&Audio Monitoring,Intercom, PTZ, Alarm,Over speed,Geo Fence etc through remote control platform.
◆ 8CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm.
◆ 2CH alarm output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc .
◆ High level aviation interface,easily installation and better shockproof, more stable.
◆ Easily Smart GUI Interface, saving time in device setting.
◆ Strong Stable Application,Support Real-time monitor, talk-back, playback, record, picture snap etc.
◆ Updated through SD or OTA Remote Automatic updating,more stable and convenient.
◆ Support Phone Remote Monitor,3G Phone Calling etc.
◆ Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc.
◆ Be Customized according your request.
◆ Support motion detection.
◆ High quality real time recording,1080P/ 720P/CIF/HD1/D1 Optional, quality adjustable.
◆ 8-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application.
◆ Support 12VDC output voltage,power supply for Camera/Screen etc.
◆ Max 4TB HDD + 256GB SD Card Mirror Recording, protect DVR from shock & Dust damage.
◆ Watchdog abnormal restart function,protect SD Card and Record.
◆ Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, and ensure the integrity of the data.
◆ ACC Delay off,can set 24 hours.
◆ Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 10-15s.
◆ Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements.
◆ Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management.
◆ Support GPS/BD,3G/4G Module Optional,WIFI(2.4GHZ/5.8GHZ) extend.
◆ Strong Network,phone device configure ,Support SMS Get device information and configure.
◆ Support Video&Audio Monitoring,Intercom, PTZ, Alarm,Over speed,Geo Fence etc through remote control platform.
◆ 8CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm.
◆ 2CH alarm output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc .
◆ High level aviation interface,easily installation and better shockproof, more stable.
◆ Easily Smart GUI Interface, saving time in device setting.
◆ Strong Stable Application,Support Real-time monitor, talk-back, playback, record, picture snap etc.
◆ Updated through SD or OTA Remote Automatic updating,more stable and convenient.
◆ Support Phone Remote Monitor,3G Phone Calling etc.
◆ Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc.
◆ Be Customized according your request.
Video Counter Specifications
* High precision counting accuracy (>97%)
* Popular Hi3520D chips solution
* Rich RS-232 for external devices
* 4CH Video Input, 2CH Video Output
* Really Vandal-proof & EMC for buses
* Excellent power protection 9-36V,10A max
* Effectively distinguish bidirectional moving, shoulders, retention, wandering, luggage, etc.
* Well-tested design in thousands of buses over the world
* 195-300cm (height), 80-300cm(width)
* Easy setup and connection to IPAS system
* 300,000pcs of records saved in memory
* Smartly Resent records when network is lost
* 30-90MB data plans only every month
* Used in step environment
* Built-in 3G/WIFI/GPS optional
* Max 4bus doors with combination of counters
Power Supply
* 3D Binocular Camera:≤3 W
* BPC-V1≤ 8W
* BPC-V2≤ 11W
Environmental
* MTBF:>6000 hours * Temperature range:-25~+55℃
* Relative Humidity:10% - 90%
* Heat radiating:Passive heat output (natural cooling)
* Popular Hi3520D chips solution
* Rich RS-232 for external devices
* 4CH Video Input, 2CH Video Output
* Really Vandal-proof & EMC for buses
* Excellent power protection 9-36V,10A max
* Effectively distinguish bidirectional moving, shoulders, retention, wandering, luggage, etc.
* Well-tested design in thousands of buses over the world
* 195-300cm (height), 80-300cm(width)
* Easy setup and connection to IPAS system
* 300,000pcs of records saved in memory
* Smartly Resent records when network is lost
* 30-90MB data plans only every month
* Used in step environment
* Built-in 3G/WIFI/GPS optional
* Max 4bus doors with combination of counters
Power Supply
* 3D Binocular Camera:≤3 W
* BPC-V1≤ 8W
* BPC-V2≤ 11W
Environmental
* MTBF:>6000 hours * Temperature range:-25~+55℃
* Relative Humidity:10% - 90%
* Heat radiating:Passive heat output (natural cooling)
Binocular Cameras
Binocular Cameras
Features:
* 720P AHD CMOS Sensor
* Effective pixel 1280*720
* IP 65, Dust proof
* 0.05 Lux (LED is OFF)
* Metal IR-Cut
* 12V DC input
* 180×64×55 mm（L×W×H）
Specifications
New 3D Binocular Camera
Remarks:
Left and Right Camera must connect right with the counter.
Lighting Requirements
There are no strict lighting requirements (if the infrared LED illumination is set to maximum intensity, the BPC can even work in complete darkness). However, we recommend that, for optimal performance, users should provide constant diffused illumination (approx. 500-1000 Lux, i.e. standard light intensity for an interior office space). Users should also avoid direct sunlight or strong light pointing in the detection area.
Features:
* 720P AHD CMOS Sensor
* Effective pixel 1280*720
* IP 65, Dust proof
* 0.05 Lux (LED is OFF)
* Metal IR-Cut
* 12V DC input
* 180×64×55 mm（L×W×H）
Specifications
New 3D Binocular Camera
Remarks:
Left and Right Camera must connect right with the counter.
Lighting Requirements
There are no strict lighting requirements (if the infrared LED illumination is set to maximum intensity, the BPC can even work in complete darkness). However, we recommend that, for optimal performance, users should provide constant diffused illumination (approx. 500-1000 Lux, i.e. standard light intensity for an interior office space). Users should also avoid direct sunlight or strong light pointing in the detection area.
Lens | Installation Height | Blind Zone | Detect Height | Detect Width |
2.8mm | 195-210 | 16-22cm | 110-140cm | 100-140cm |
3.6mm | 210-240 | 20-25cm | 100-120cm | 90-120cm |
4mm | 230-260 | 25-30cm | 95-110cm | 105-110cm |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(40.00%),Southeast Asia(10.00%),Eastern
Europe(8.00%),North America(7.00%),Northern Europe(7.00%),Western Europe(5.00%),Southern Europe(4.00%),Central America(4.00%),Mid East(4.00%),South America(3.00%),Eastern Asia(3.00%),South Asia(2.00%),Africa(2.00%),Oceania(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Mobile DVR,Mobile NVR,People Counter,CCTV Camera,Car Black Box
4. why should you buy from us not from other suppliers?
Further Technology (Dongguan) Co., Limited is a professional high-tech enterprise for R&D, manufacturing and marketing SD card and HDD Mobile DVR/NVR,GPS tracker and CCTV camera,People counter. Our products are made to meet safety standards such as CE, FCC and RoHS.
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
6.Does your Company support OEM or ODM service?
7. Does your MDVR System has CE FEE E-Mark?
8.How about your quality control?
9. What is about your warranty?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(40.00%),Southeast Asia(10.00%),Eastern
Europe(8.00%),North America(7.00%),Northern Europe(7.00%),Western Europe(5.00%),Southern Europe(4.00%),Central America(4.00%),Mid East(4.00%),South America(3.00%),Eastern Asia(3.00%),South Asia(2.00%),Africa(2.00%),Oceania(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Mobile DVR,Mobile NVR,People Counter,CCTV Camera,Car Black Box
4. why should you buy from us not from other suppliers?
Further Technology (Dongguan) Co., Limited is a professional high-tech enterprise for R&D, manufacturing and marketing SD card and HDD Mobile DVR/NVR,GPS tracker and CCTV camera,People counter. Our products are made to meet safety standards such as CE, FCC and RoHS.
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
6.Does your Company support OEM or ODM service?
Yes, our company has our own R&D department, and factory , can support OEM & ODM Service.
7. Does your MDVR System has CE FEE E-Mark?
Yes, our MDVR System has CE FEE E-Mark Certifications.
8.How about your quality control?
We have a very strict quality inspection step , 100% full Quality inspection
9. What is about your warranty?
For MDVRS, the warranty is 12 month, for Cameras,the warranty is 24 month. But actually we give Lifetime maintenance services, over the warranty period, only need to pay the cost of replacement parts , other maintenance services are free.
10.Q:Device keep Rebooting
A:1)Check working power,I flow power device will keep rebooting;
2)HDD/SD Card error, remove storage device and turn on device checking;
11.Q:Device on with HDD but not recording;
A:1)Check SD/HDD formatted or not;if not please enter Main GUI--System Set--Format,formatHDD/SD Card;
2) Check If close Recording, or set Timed Recording mode, if yes it won(t recording
3) If the HDD is connected well, if yes the HDD/SD light is on.
12.Q: With GPS but no GPS coordinate Information
A:1)Check if GPS module exist;
2) Check GPS Antenna connection,suggest install on the outside place with strong signal;
3) If testing in office, suggest put GPS Antenna out of window;
4) If working environment not good will related to no GPS Information or wrong information;
13.Q:Deviation of GPS Location on Map?
A:The signal is effective if the GPS module has been positioning, there are so many reasons caused bias, governmentrestriction, permissible error, GPS signal break off, The actual satellite map error occurred for the security, GPS Correction can solve the problem.
14.Q:If using 3G ,what should we concern?
A:1)Choose inside wireless module WCDMA,EVDO,TD-SCDMA, relative module setting is different then SIM Card is different, please make sure the module is corresponding with the SIM Card.
2) If Server IP & Port set correct,if 3G signal strong for dialing;3G dialing successfully or not;
3) Check 3G Antenna connection,dialing will be failed if 3G signal too weak;
4) Check SIM Card 3G Flow
15.Q:Device working but can not see Vehicle and video on client software
A: 1)Check if Center Server running and device Number if using;
2) Check Server IP and Port parameter setting;
3) Check is using 3G or WIFI for connecting, if 3G check the 3G Model WCDMA or EVDO and related
SIM card,3G antenna connect normally/APN setting/Center No. setting;
If it still can not work,please offer the most detailed information to us for technical support
16.Q:Device Online but can not see video
A:1)Please set Low Sub-stream,when sub-stream set high it will affect the transmission because of the network;
2) Network environment not good;
17.Q: During playback, the map doesn't show?
A: Possible reasons are as follows: Net cable did not connect to PC; Net works, but the computer can not get to the Internet;
A:1)Check working power,I flow power device will keep rebooting;
2)HDD/SD Card error, remove storage device and turn on device checking;
11.Q:Device on with HDD but not recording;
A:1)Check SD/HDD formatted or not;if not please enter Main GUI--System Set--Format,formatHDD/SD Card;
2) Check If close Recording, or set Timed Recording mode, if yes it won(t recording
3) If the HDD is connected well, if yes the HDD/SD light is on.
12.Q: With GPS but no GPS coordinate Information
A:1)Check if GPS module exist;
2) Check GPS Antenna connection,suggest install on the outside place with strong signal;
3) If testing in office, suggest put GPS Antenna out of window;
4) If working environment not good will related to no GPS Information or wrong information;
13.Q:Deviation of GPS Location on Map?
A:The signal is effective if the GPS module has been positioning, there are so many reasons caused bias, governmentrestriction, permissible error, GPS signal break off, The actual satellite map error occurred for the security, GPS Correction can solve the problem.
14.Q:If using 3G ,what should we concern?
A:1)Choose inside wireless module WCDMA,EVDO,TD-SCDMA, relative module setting is different then SIM Card is different, please make sure the module is corresponding with the SIM Card.
2) If Server IP & Port set correct,if 3G signal strong for dialing;3G dialing successfully or not;
3) Check 3G Antenna connection,dialing will be failed if 3G signal too weak;
4) Check SIM Card 3G Flow
15.Q:Device working but can not see Vehicle and video on client software
A: 1)Check if Center Server running and device Number if using;
2) Check Server IP and Port parameter setting;
3) Check is using 3G or WIFI for connecting, if 3G check the 3G Model WCDMA or EVDO and related
SIM card,3G antenna connect normally/APN setting/Center No. setting;
If it still can not work,please offer the most detailed information to us for technical support
16.Q:Device Online but can not see video
A:1)Please set Low Sub-stream,when sub-stream set high it will affect the transmission because of the network;
2) Network environment not good;
17.Q: During playback, the map doesn't show?
A: Possible reasons are as follows: Net cable did not connect to PC; Net works, but the computer can not get to the Internet;
Recommend Products
We Recommend
