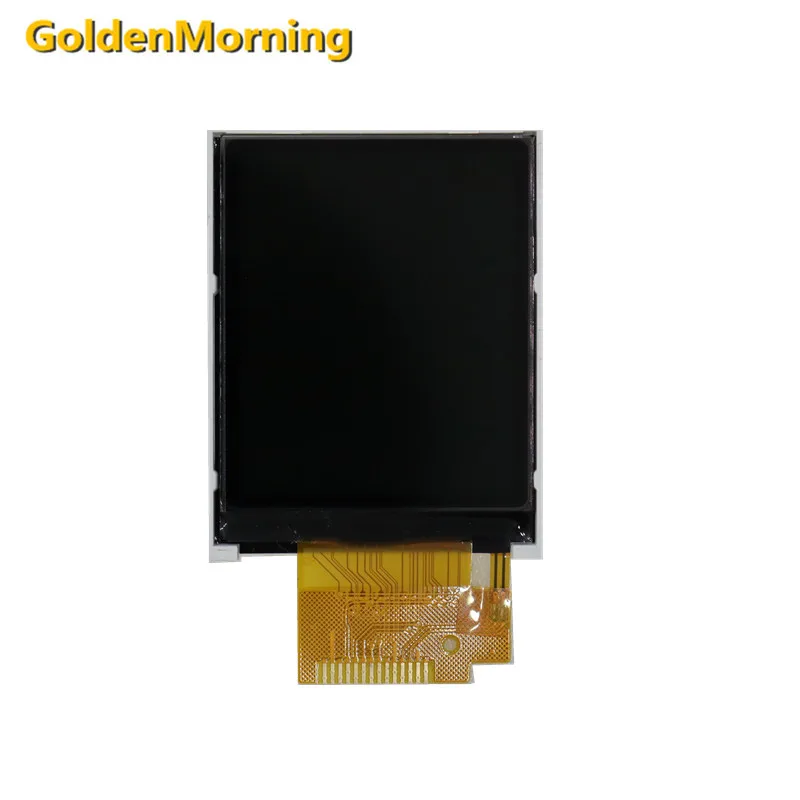

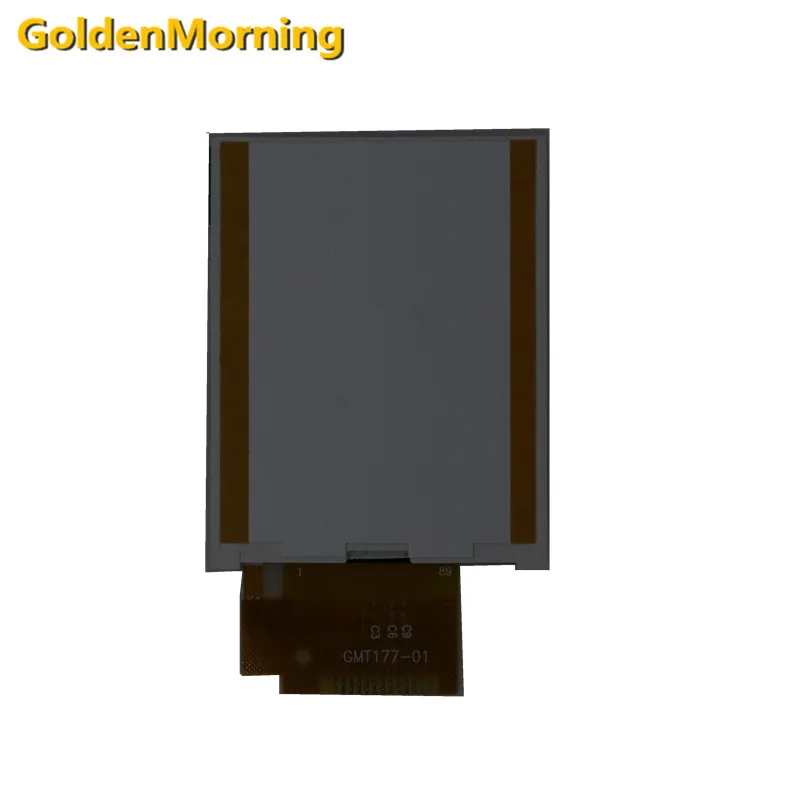

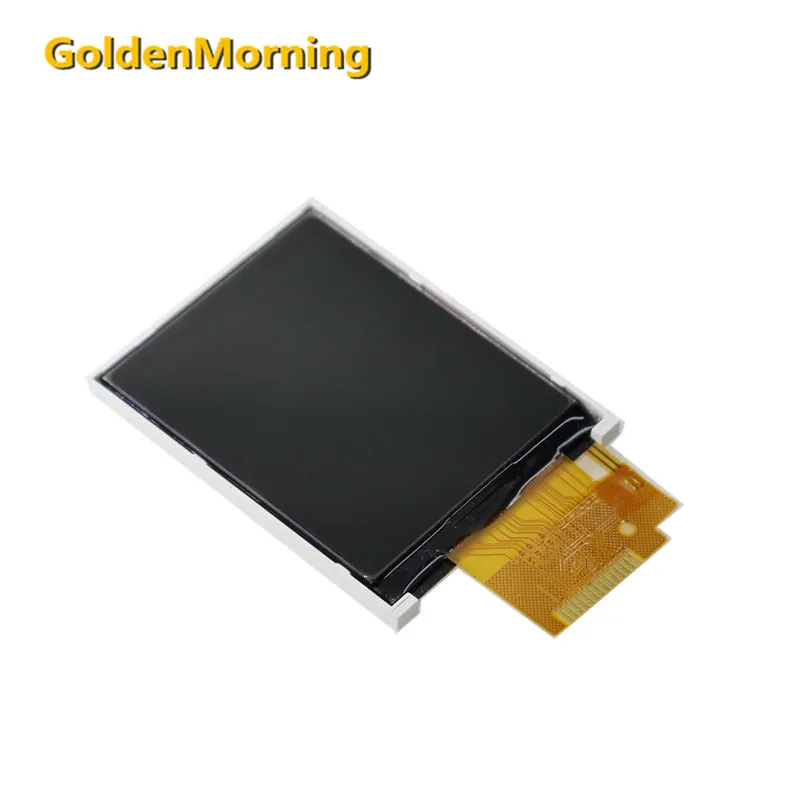

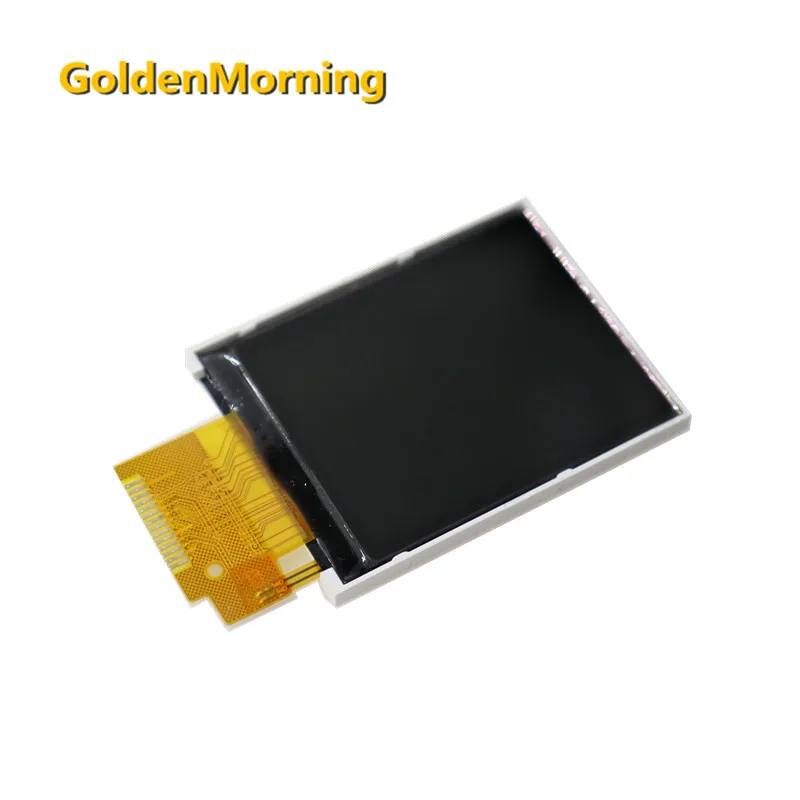

1.77 inch TFT LCD display with 128x160 resolution ,Pins 14P 262k SPI interface
1.77 inch TFT LCD display with 128x160 resolution ,Pins 14P 262k SPI interface
1.77 inch TFT LCD display with 128x160 resolution ,Pins 14P 262k SPI interface
1.77 inch TFT LCD display with 128x160 resolution ,Pins 14P 262k SPI interface
1.77 inch TFT LCD display with 128x160 resolution ,Pins 14P 262k SPI interface
1.77 inch TFT LCD display with 128x160 resolution ,Pins 14P 262k SPI interface
1.77 inch TFT LCD display with 128x160 resolution ,Pins 14P 262k SPI interface

1.77 inch TFT LCD display with 128x160 resolution ,Pins 14P 262k SPI interface

Share on (62412089003):


Price:$2.40 - $3.00

Quantity:


Product Overview

Description



Product Description

1

1.77" TFT display





















































Diagonal Screen Size1.77inch
Model numberGMT177-01
Resolutions

128X160


Outline dimension34x43.7x2.6mm
Active area28.03x35.04mm
Pixel Pitch0.219x0.219mm
Driver ICST7735S
Voltage3-5V
Operating temperature-20~70℃
Storge Temperature-30~80℃
Assemble Soldering
Pins14P

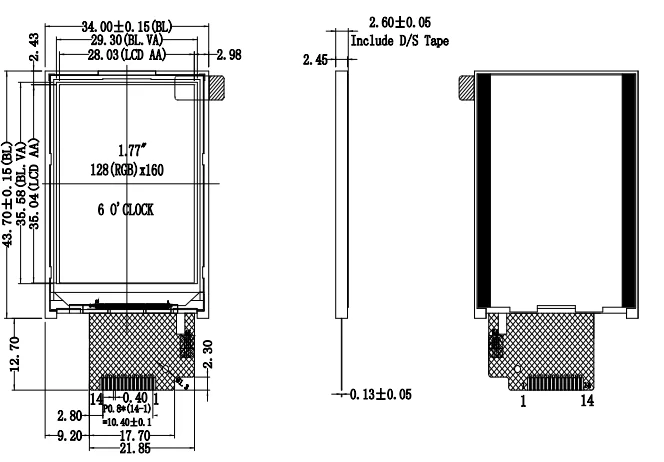

Drawing(1.77" TFT)

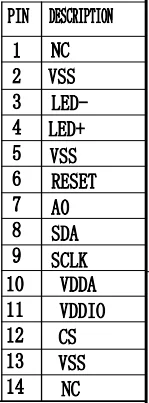

Pin Assignment(1.77"TFT,Pins:14P)











Application
