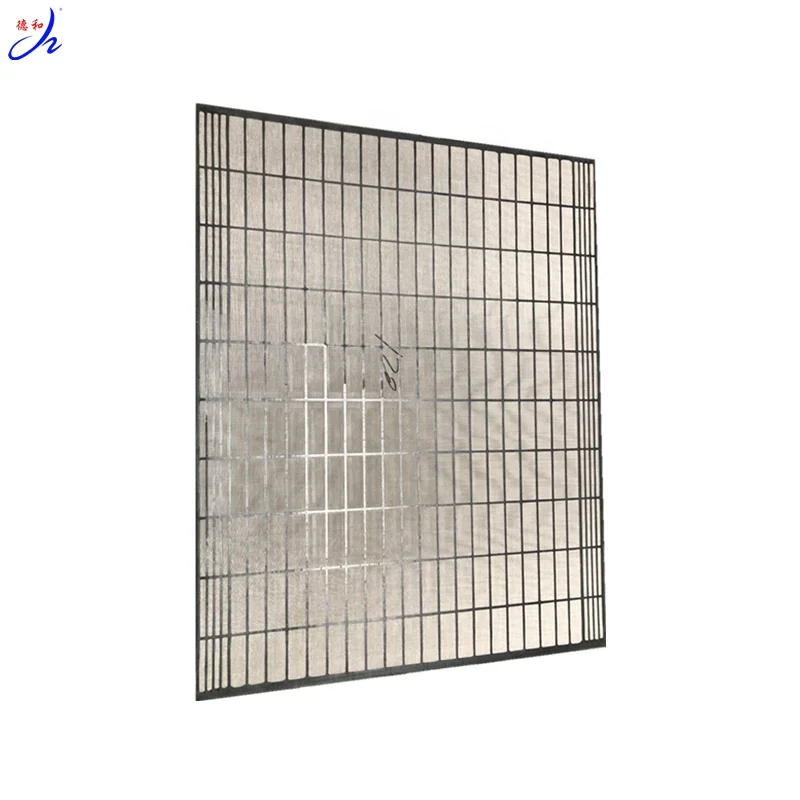

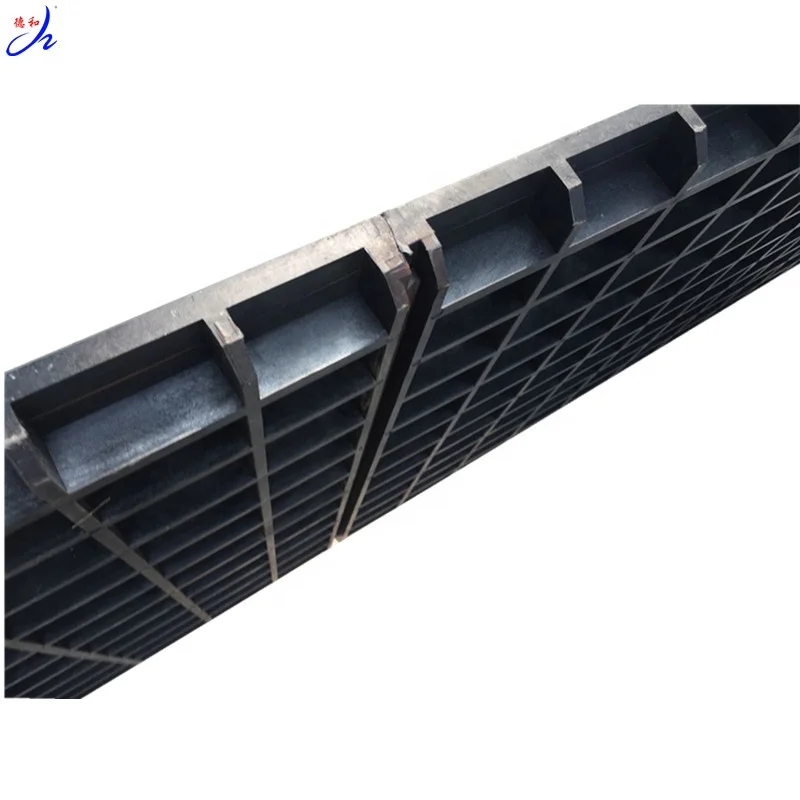

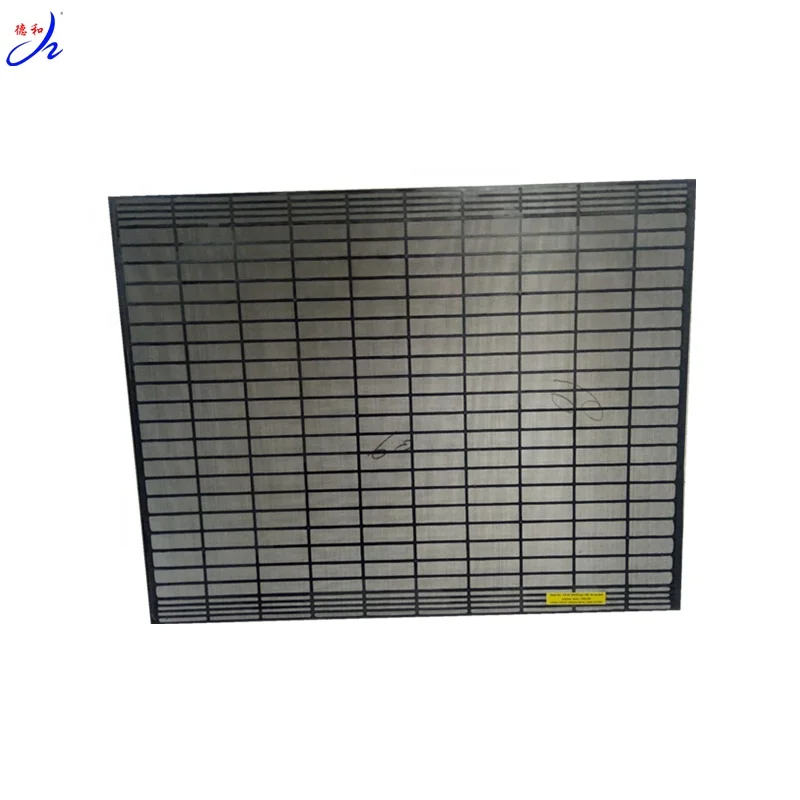

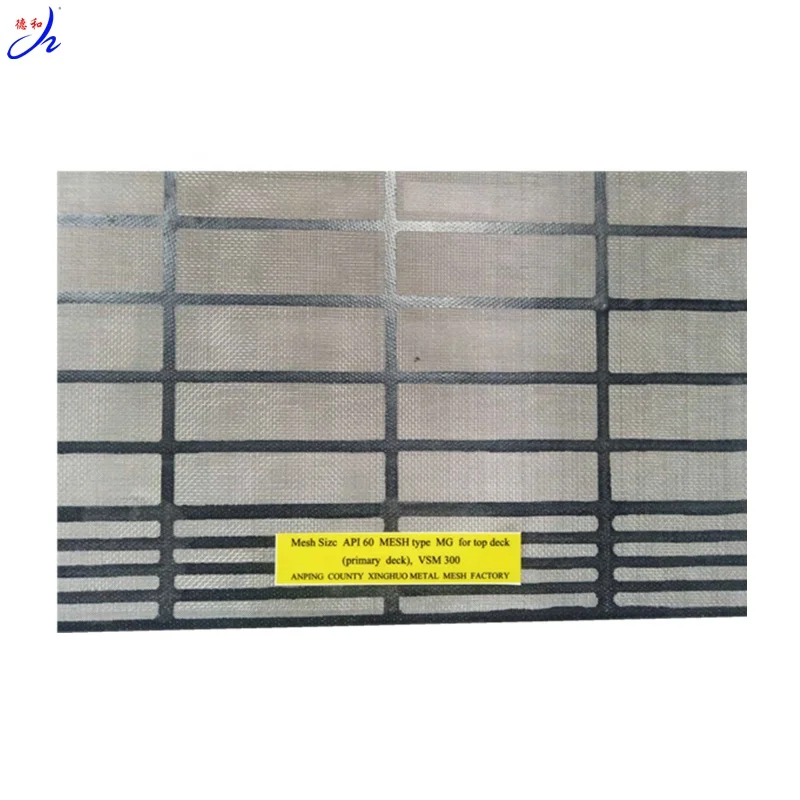

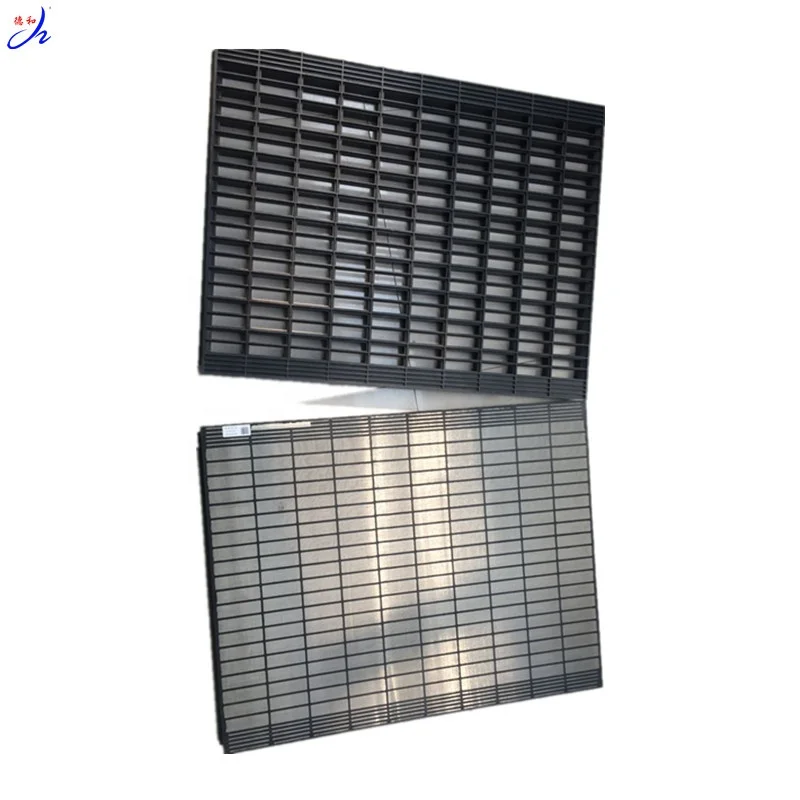

Brandt VSM 300 Composite Type Vibrating Shale Shaker Screen for Oil Drilling

High-capacity composite screens provide a significant increase in fluid capacity as well as excellent resistance to blinding providing dryer solids discharge and a larger net usable screen area.

NOV Brandt VSM300 Composite Sand Vibrating Screen for solids control system. The new and improved DURAFLO composite replacement screen for the Brandt VSM 300 brand shaker uses a new frame design that is lighter and more easily repaired and promotes longer screen life. It is easier to remove than the original DURAFLO composite screens. DURAFLO composite screens are available with TBC, Ultra Fine (XL), and XR MESH.

Part Number	Brand & Model for shaker	Mesh Range	Dimension (Length x Width)	Weight ( Kgs)
XH-03	Brandt BLT-50/LCM-2D	20-325 mesh	1251*635 mm	7.0 Kgs
XH-11	Brandt VSM 300 Scalping	10-325 mesh	940*676 mm	12.6 kgs
XH-12	Brandt VSM 300 Primary	10-325 mesh	885*686 mm	11.5kgs
XH-13	Brandt VSM 300 Secondary	40-325 mesh	686*208 mm	6 kgs
XH-23	Brandt VSM 100	20-325 mesh	910*650 mm	10 kgs
XH-24	Brandt VSM Multi-sizer Primary	20-325 mesh	935*680 mm	11 kgs
XH-25	Brandt King Cobra	20-325 mesh	1251*635 mm	13.5 kgs
XH-28	Brandt King Cobra	20-325 mesh	1251*635 mm	13 kgs
XH-29	VSM 300 Scalping	20-325 mesh	940*676 mm	11 kgs
XH-30	Brandt VSM 300 Primary	20-325 mesh	885*686 mm	10 kgs
XH-32	Brandt 4*5	10-325 mesh	1220*1524 mm	5.0 kgs
XH-33	Brandt King Cobra Wave Type	20-325 mesh	1251*635 mm	17.0 kgs
XH-36	Brandt VSM Multi-sizer Top	20-325 mesh	935*670 mm	10 kgs

Detailed Images

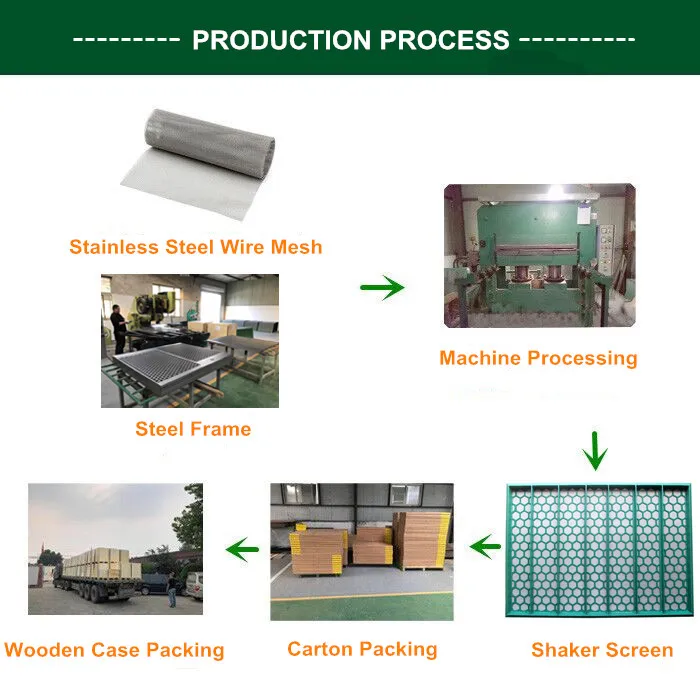

Process

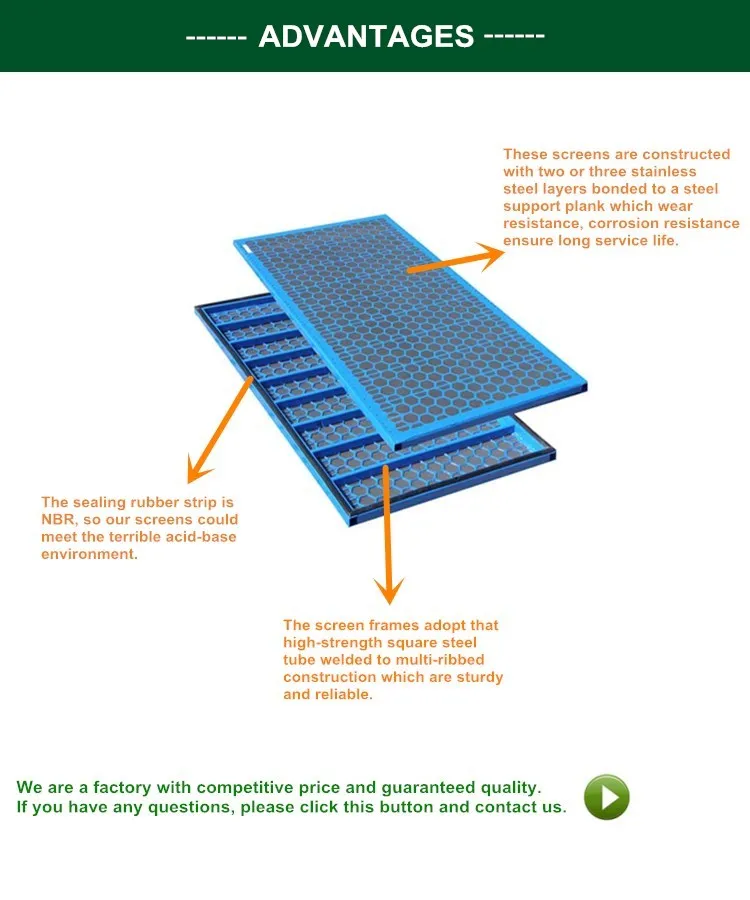

Products Advantages
