Y образный высококачественный фланцевый фильтр из нержавеющей стали для подключения воды
- Category: Needle Valves >>>
- Supplier: Liaoyang Feedwater And Drainage Equipment Valve Co. Ltd.
Share on (62412754145):
Product Overview
Description
Product Description

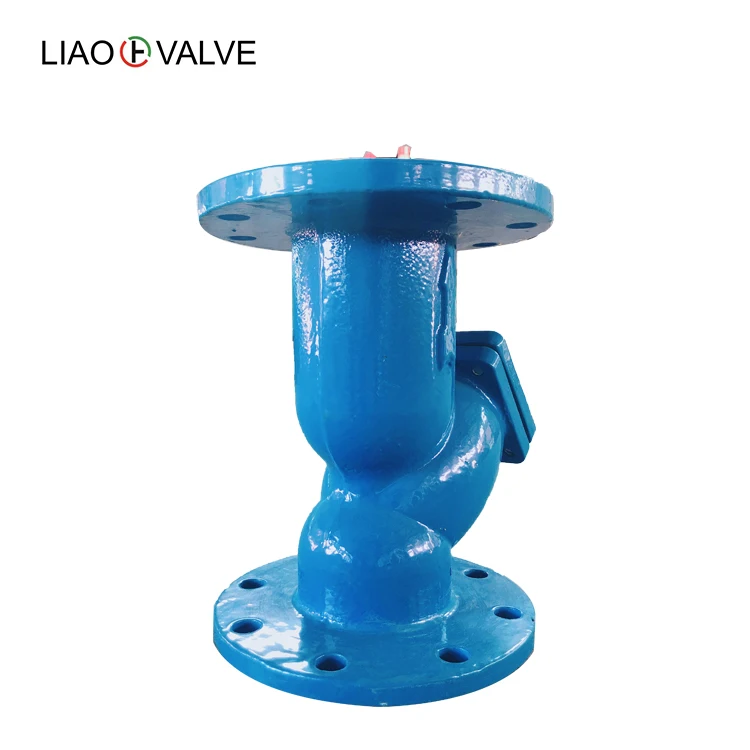

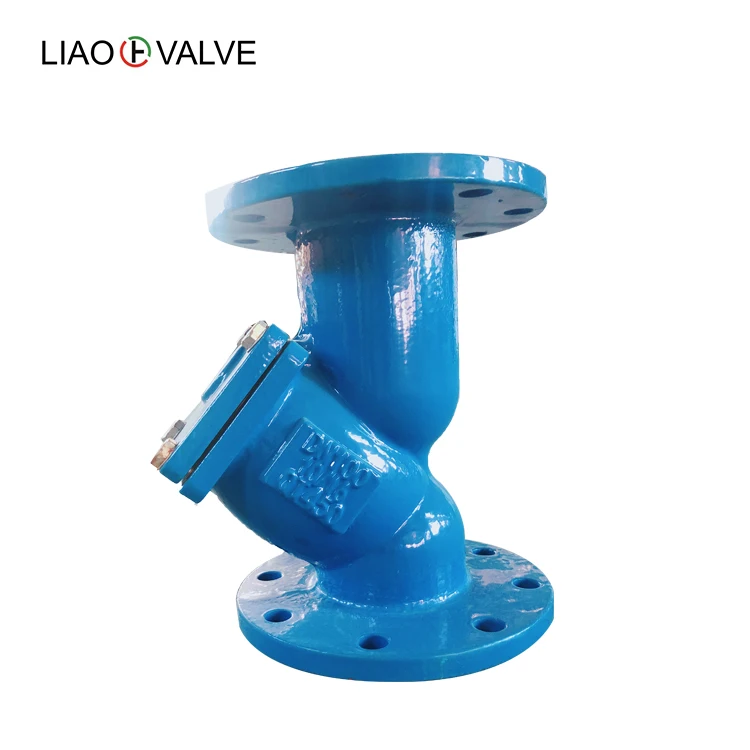

Y Type Filter
Filter is a small device to remove a small amount of solid particles in the liquid, which can protect compressor, pump, instruments and other equipment to work properly. When the fluid is placed into a certain specifications of the filter cartridge of filter net, the impurity is blocked, and clean filter liquor by filter outlet. When cleaning is needed, just remove the removable cartridge, after processing to install again. Therefore, it is very convenient to operate and maintain.
Filters are usually installed at the inlet of pressure reducing valves, pressure relief valves, locating water valves or other devices to remove impurities from the medium to protect the valve and equipment in normal use.
Filters are usually installed at the inlet of pressure reducing valves, pressure relief valves, locating water valves or other devices to remove impurities from the medium to protect the valve and equipment in normal use.
In addition to supporting the use of pressure reducing valve, can also be used separately in hot and cold circulating water
system, compressed air, steam, oil and other media pipeline.An occasion for removing mechanical debris.
system, compressed air, steam, oil and other media pipeline.An occasion for removing mechanical debris.
Main Technical Parameters | ||
Product Name | Y Type High Quality Stainless Steel Flange Water Connection Filter | |
Place of Origin | Liaoyang, China | |
Model | Y Type | |
Power | Manual operated. | |
Connection | Flange | |
Nominal Diameter | DN40-DN1200 | |
Nominal pressure | 0.6-4.0MPa | |
Medium | Air, water, steam or oil. | |
Temperature of Media | -30℃-120℃ | |
Body Material | Carbon steel, ductile cast iron, stainless steel | |
Filter Net Material | Stainless steel | |
Standard | ISO9001:2015, ISO14001:2015, Intertek | |

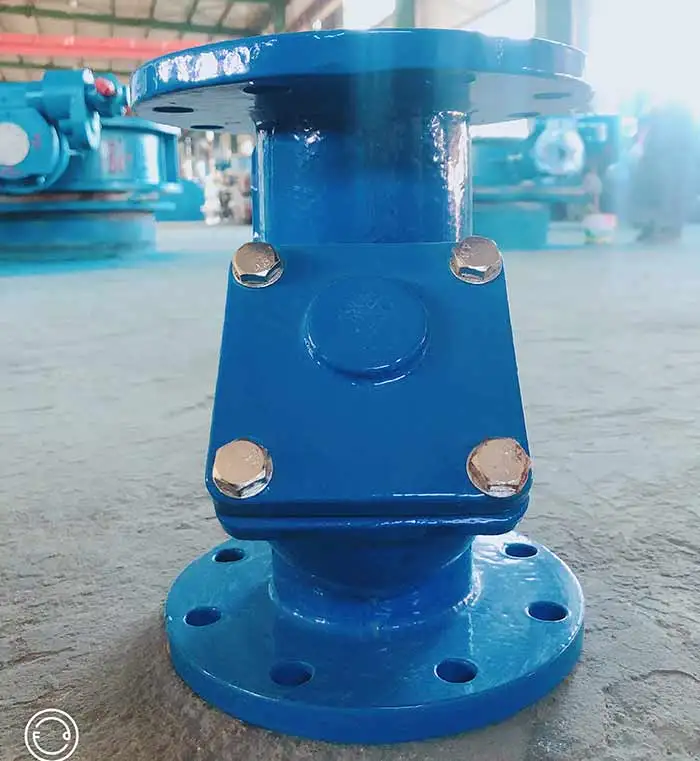

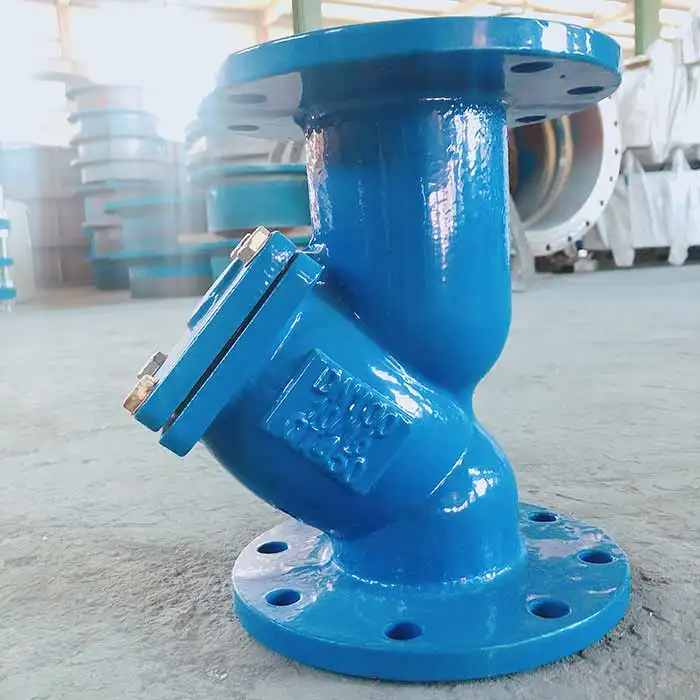

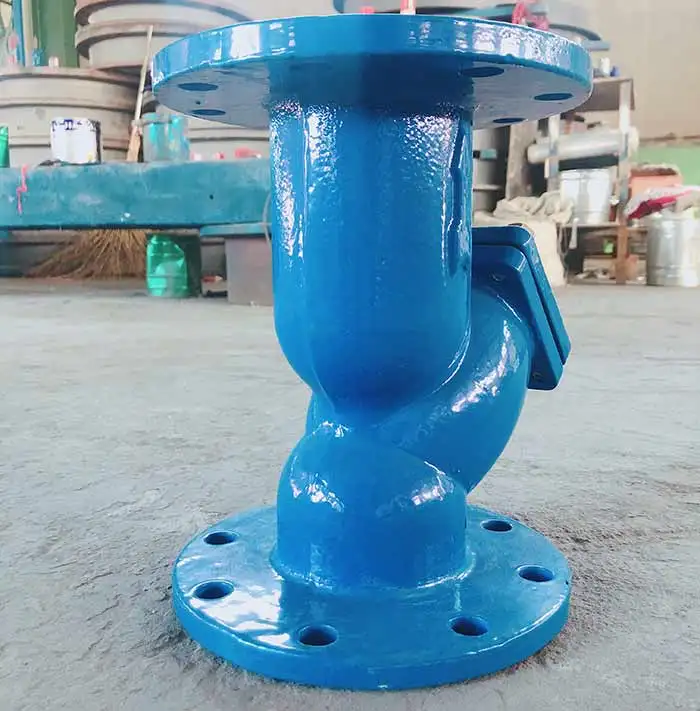

Detailed Images
Packing&Shipping
Related Products
Company Introduction
Our company was founded in 1994, with the total assets of 155 million yuan, covering an area of 80,000 m2, and has 320 employees, 30 senior engineering and technical personnel. Our company has an independent Product R&D Center, and the R&D team is led by senior engineers with strong technical force. Our company has a modern manufacturing plant and workshops, with large workshops of casting, welding, rubber vulcanization, mechanical processing, assembly and painting etc., equipped with advanced processing equipment, CNC lathe, vertical lathes of 12.5m, 8m, 6.3m, 5m, 4m, 3.5m, 2.5m, 1.6m, large boring machine, large drilling machine, large gear hobbing machine, plasma welding, testing center, chemical composition analysis, mechanical test, hardness test, spectrum analysis, nondestructive flaw detection, ultrasonic thickness meter and all kinds of professional equipment.
Our products are butterfly valves, expansion joints, check valves, eccentric half ball valves, gate valves, water control valves,
air valves and other products, all conform to the National GB, JB Standard and American ANSI and API, Japan JIS, Germany DIN and
other international standards. Specification of butterfly valves is 0.6MPa-2.5MPa. Materials of valve are cast iron, ductile cast
iron, carbon steel and stainless steel, etc. Operation modes are manual, gear, hydraulic, pneumatic, electric and so on.
air valves and other products, all conform to the National GB, JB Standard and American ANSI and API, Japan JIS, Germany DIN and
other international standards. Specification of butterfly valves is 0.6MPa-2.5MPa. Materials of valve are cast iron, ductile cast
iron, carbon steel and stainless steel, etc. Operation modes are manual, gear, hydraulic, pneumatic, electric and so on.
Our valves are popular and exported into more than 40 foreign countries and regions such as the United States, India, Malaysia, Indonesia, Canada, France etc.
Certifications
FAQ
Contact us
