Automatic Multi Heads Weighing Mung Bean Sprouts Packing Machine
- Category: >>>
- Supplier: Top Y Machinery Co. Ltd.
Share on (62412828249):
Product Overview
Description
Automatic Multi Heads Weighing Mung Bean Sprouts Packing Machine

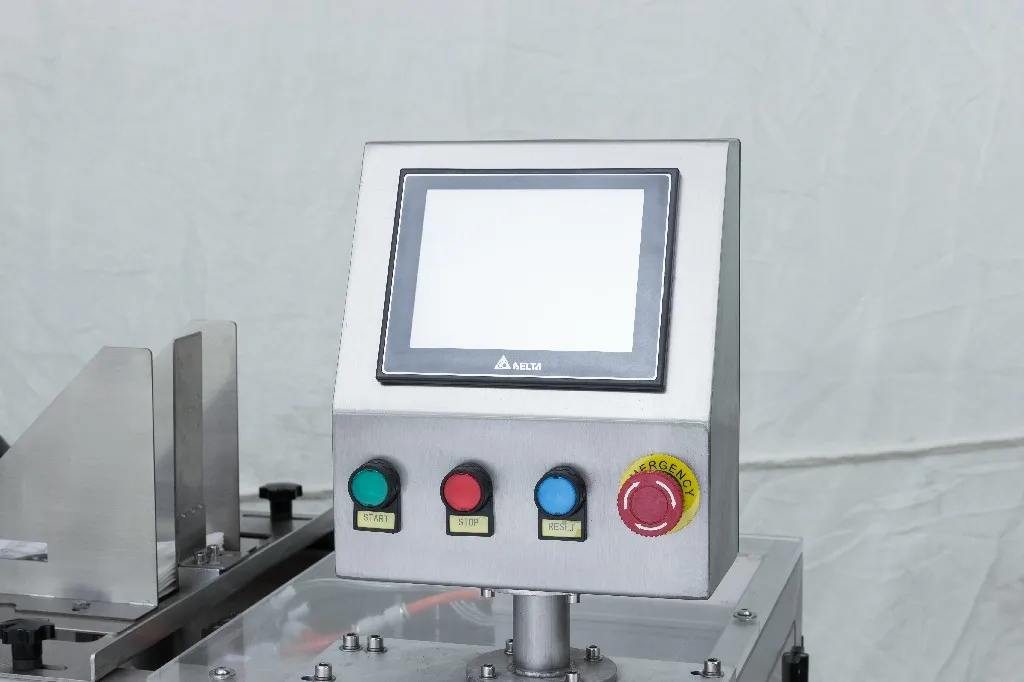

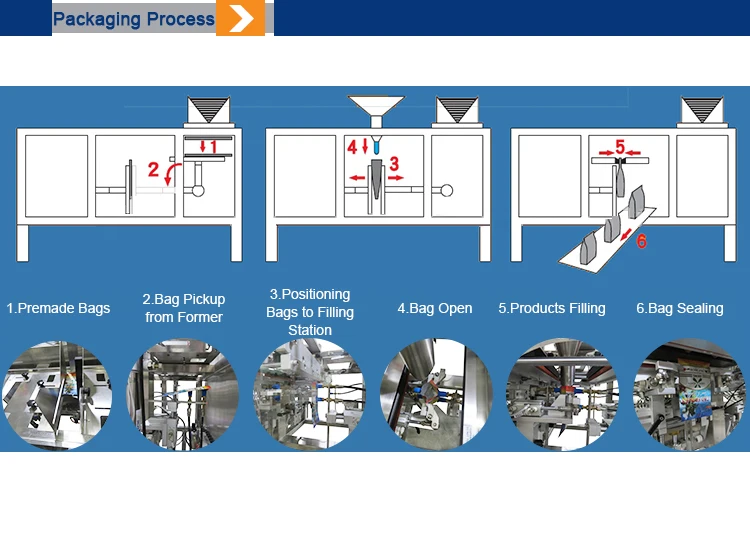

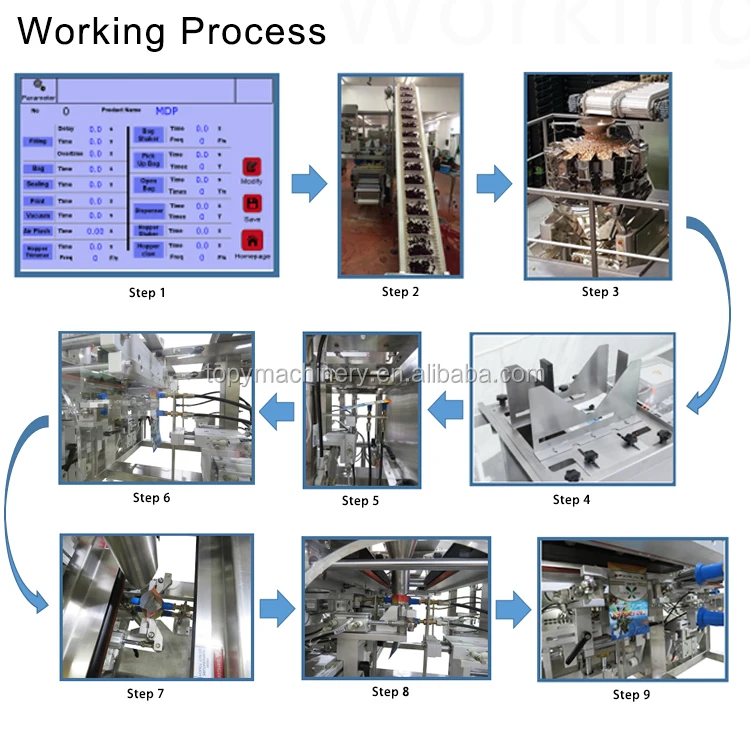

Step1: set the parameters we need on HMI

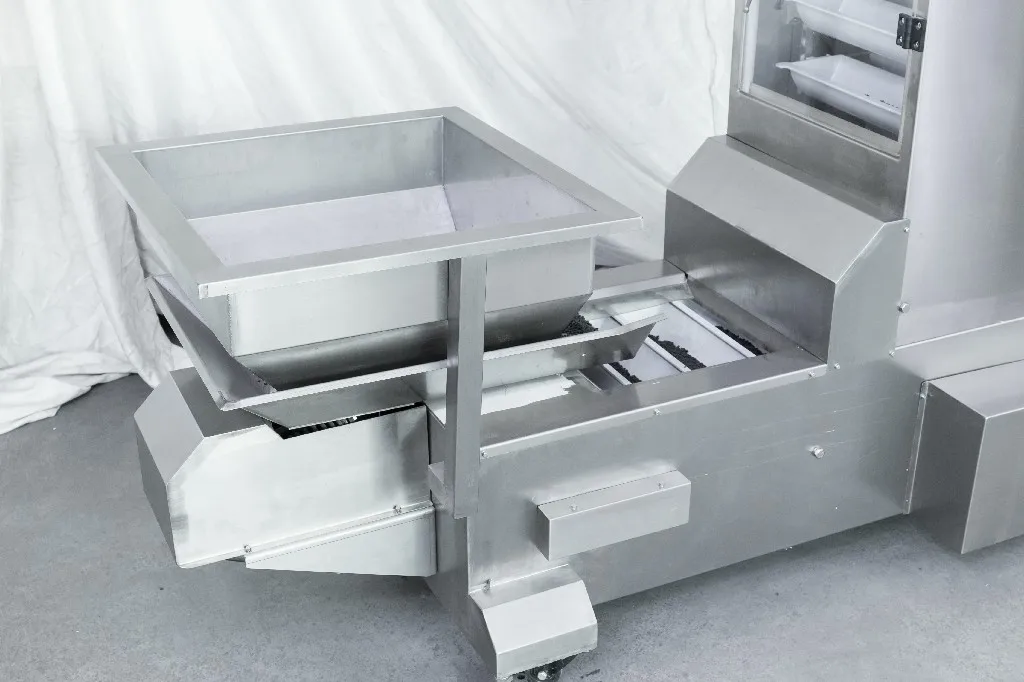

Step2: pour bulk products into the storage hopper manually or automatically

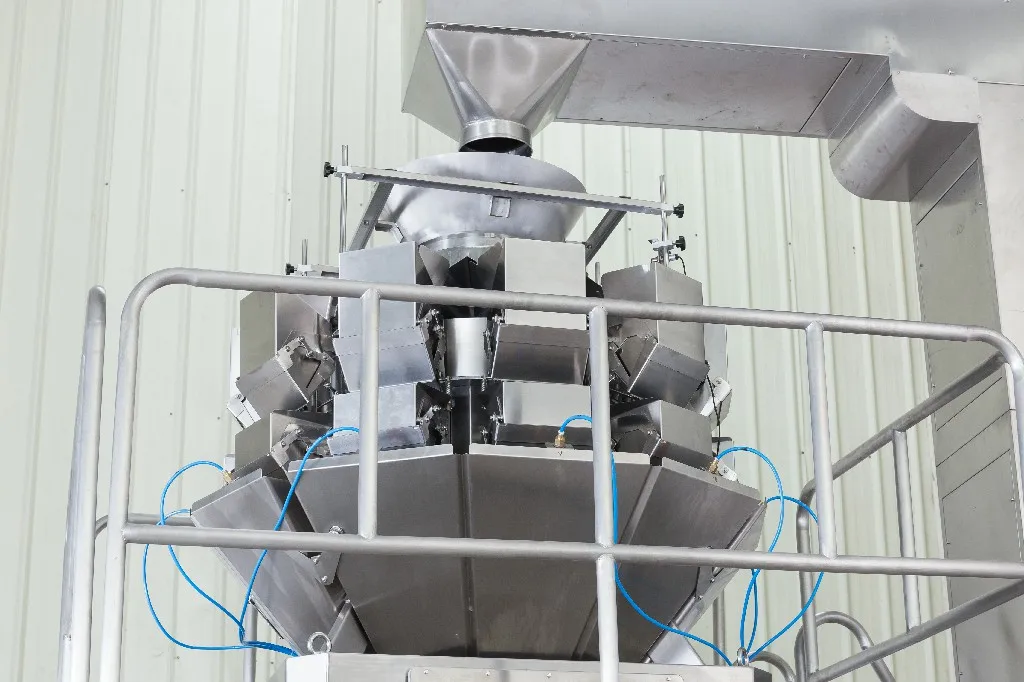

Step3: multifunction weighing dosing machine will dose target weight we need

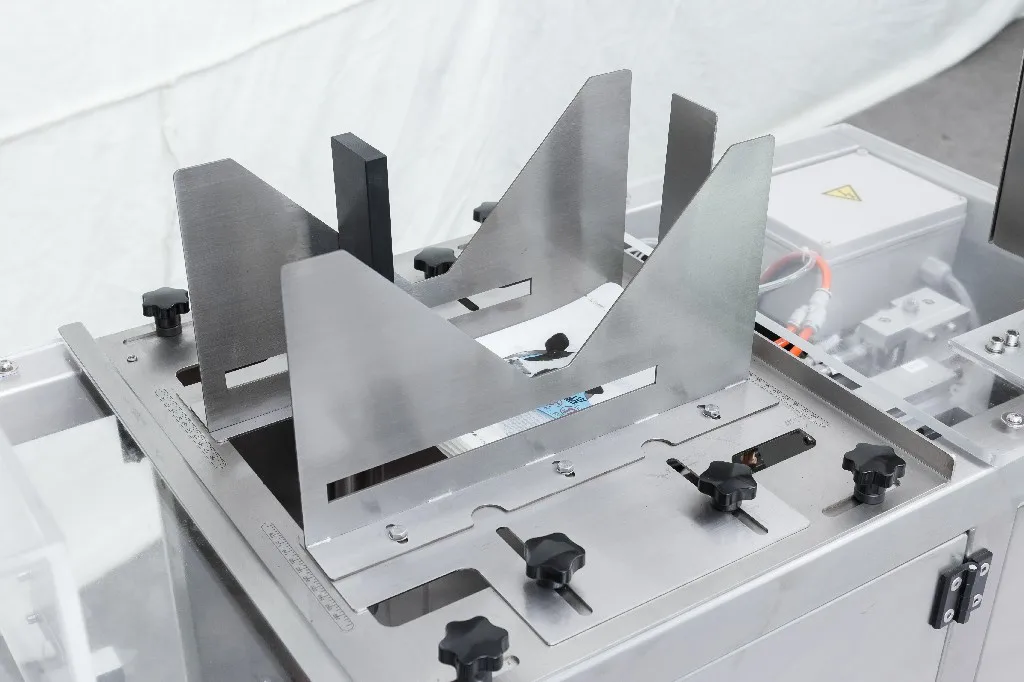

Step4: put bags into bag magazine

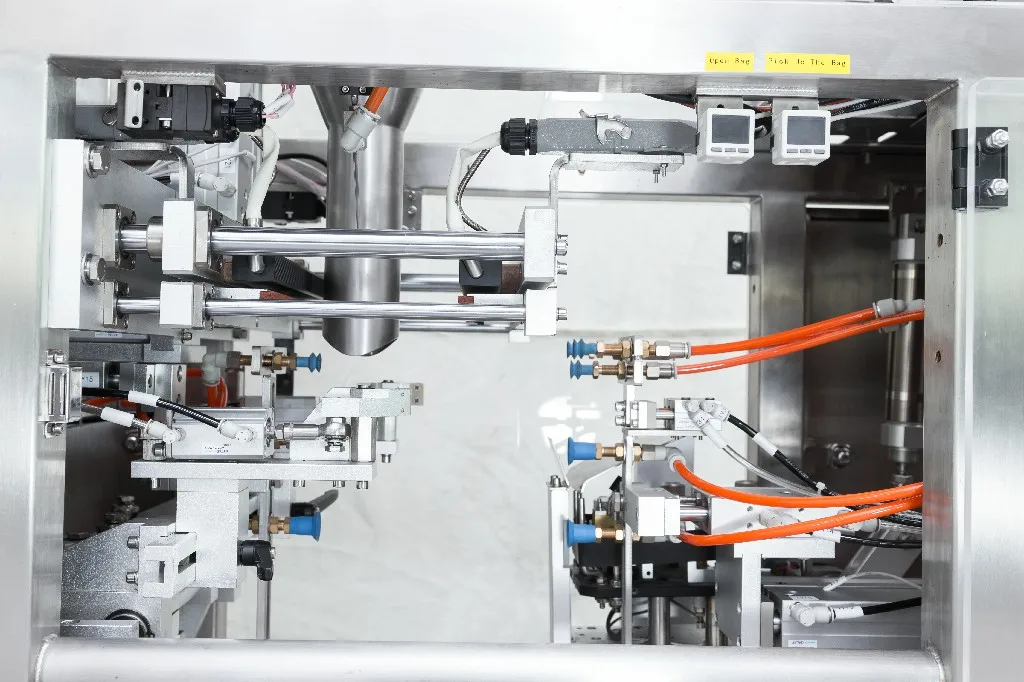

Step5: zipper device open the ziplock
Step6: positioning bags to the filling station
Step7: bag open and sending out “request filling” signal
Step8: filling machine drop down products with target weight into open bags
Step9: the sealing jaws seal bags automatically
Application of weighing and packing machine:
Doypack machine is suitable for all kinds of the premade bags, such as pillow bag, 3-side, 4-side and 8-side quad seal bags (box pouch), kraft bags and spout bags and so on

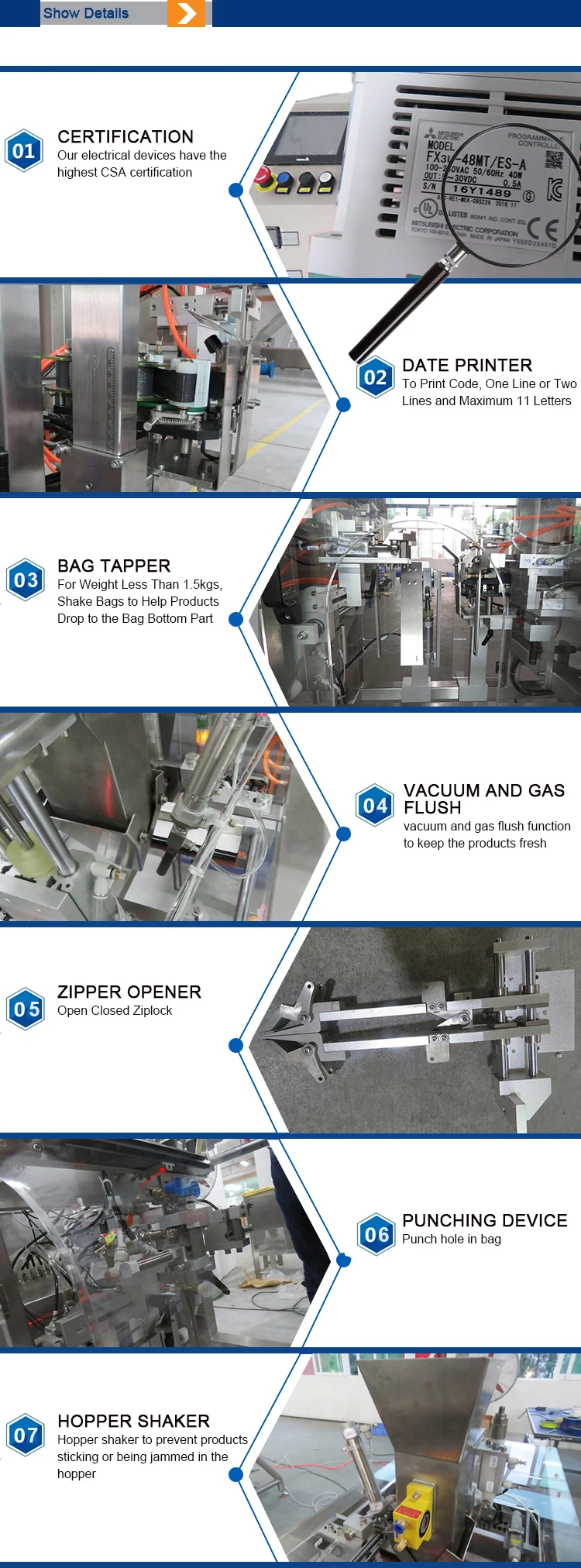

Function and characteristics of weighing and packing machine:
1. Easy to operate,adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
4. The width of the bags could be adjusted by electrical motor.
5. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
6. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
7. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
8. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Technical Features of weighing and packing machine:
Model No. | TOPY-MDP1 | TOPY-MDP2 | TOPY-MDP3 |
Bag Width | 70-280mm | 70-280mm | 70-330mm |
Bag Length | 80-320mm | 80-440mm | 80-440mm |
Bag Type | Premade pouch, Stand-up pouch, Zipper bag | ||
Power Supply | 110V/220V/380V/415V, 50/60HZ | ||
Air Consumption | 7.0 CFM@80 PSI 0.14m3/m3 | ||
Pneumatic Parts | PIAB Vacuum Generator, Pneumatics component Airtac from Taiwan | ||
MDP Series
Chat Online
FAQ
Nimko packing machine
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200. For premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?

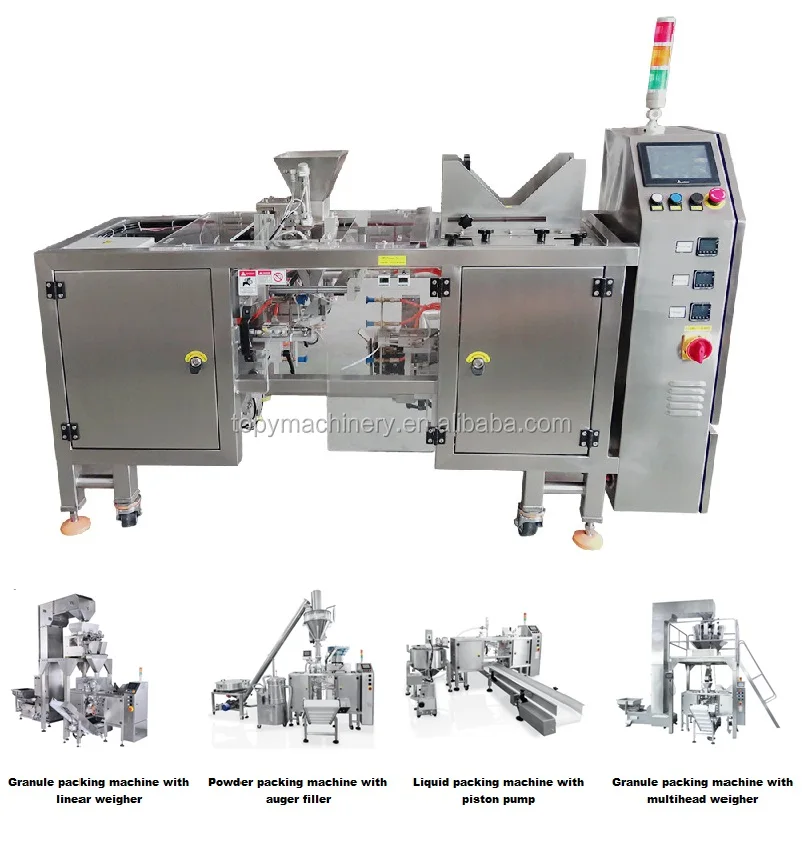

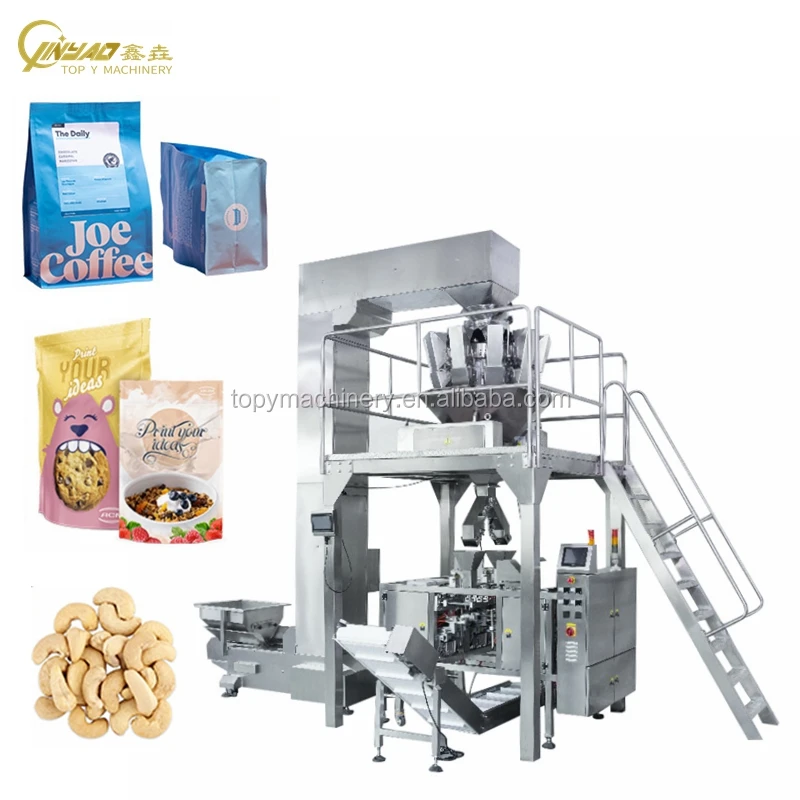

For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work on is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is 24 months and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation. Also our engineers are available to clients’ factory and technical training.
