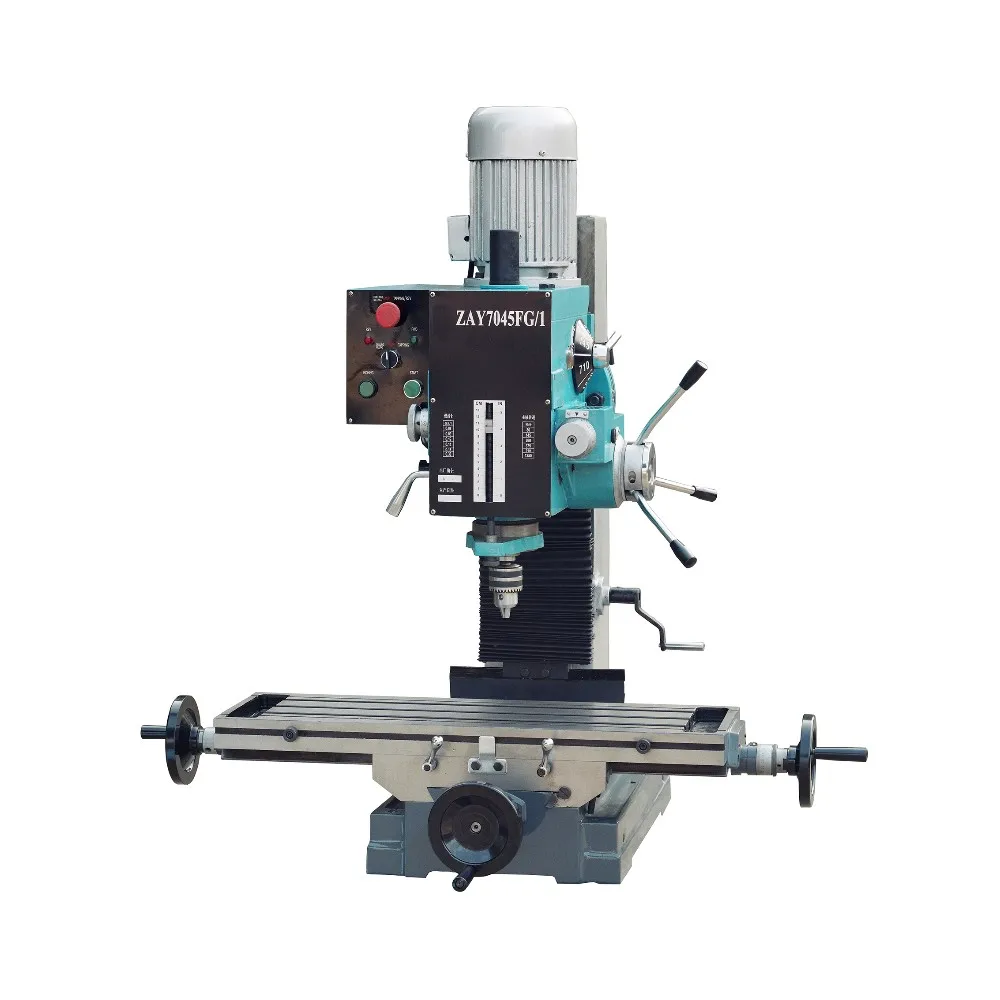

ZAY7040FG/1 Bench Type Metal Drill Mill Machine From China

Share on (62413358613):


Price:$1,248.00 - $1,348.00

Quantity:


Product Overview

Description



Product Description


Features

Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed.
Milling,drilling,tapping,boring and reaming.

Head swivels ±90° vertically.

Micro feed precision.

Adjustable gibs on table precision.

Strong rigidity, powerful cutting and precise positioning.




Specifications for ZAY7040FG/1
Maximum Drilling Capacity
40mm
Maximum Face Milling Capacity
80mm
Boring diameter
60mm
Maximum Ending Milling Capacity
32mm
Maximum Distance From Spindle Nose To Table
450mm
Minimum Distance From Spindle To Column
260mm
Spindle Travel
130mm
Spindle Taper
MT3, MT4/R8
Step Of Spindle Speed
6
Range Of Spindle Speed
80-1250r.p.m(50HZ) /95-1500r.p.m(60HZ)
Auto-Feeding Step Of Spindle
6
Auto-Feeding Amount Of Spingle
0.06-0.30mm/r
Swivel Angle Of Headstock (Vertically)
±90º
Automatic Lifting Of Spindle(As Customer's Requirement)
240mm/min

Table Size
800×240mm(Optional 1000*240mm)
Forward And Backward Travel Of Table
175mm
Left And Right Travel Of Table
500mm(700mm)
Motor Power
1.5kW
Net Weight/Gross weight
323kgs/373kgs
Packing Size
770×880×1160mm




Standard Accessories:

● Wedge
● Allen wrenches

● Tie rod




Optional Accessories:

●Drill chuck
●Milling cutter holder
●Milling chuck
●Power feed attachment
● Auto-tapping electrical

●Parallel vice
● Working lamp
● Coolant system
● Machine stand and chip tray
● Clamping kits
● Rotary table
●  2-axis DRO,3-Axis DRO
