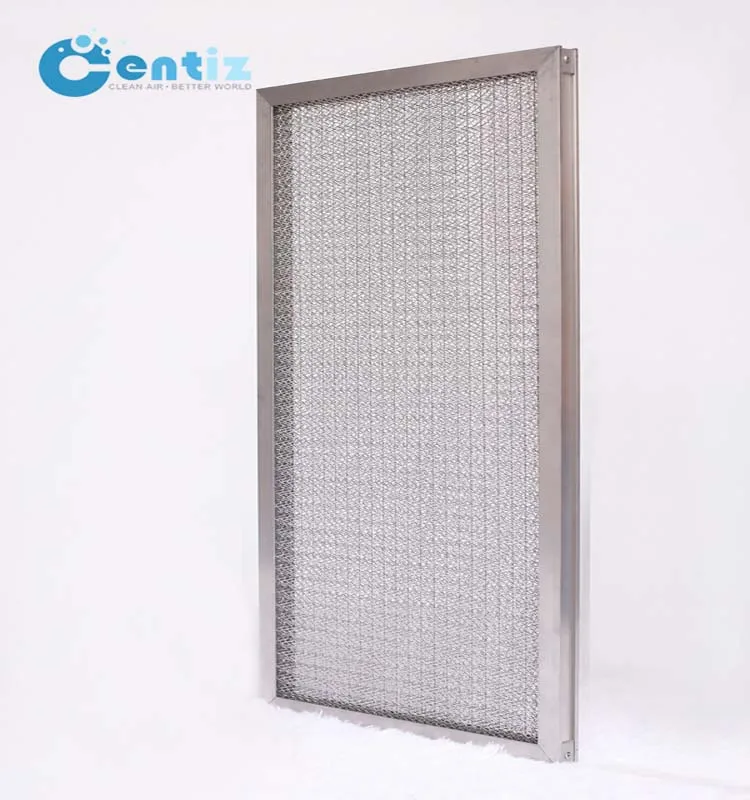

Factory direct sale G4 Initial effect Economical washable panel metal aluminum mesh stainless steel air filter

Share on (62413375418):


Price:RUB 393.94

Quantity:


Product Overview

Description

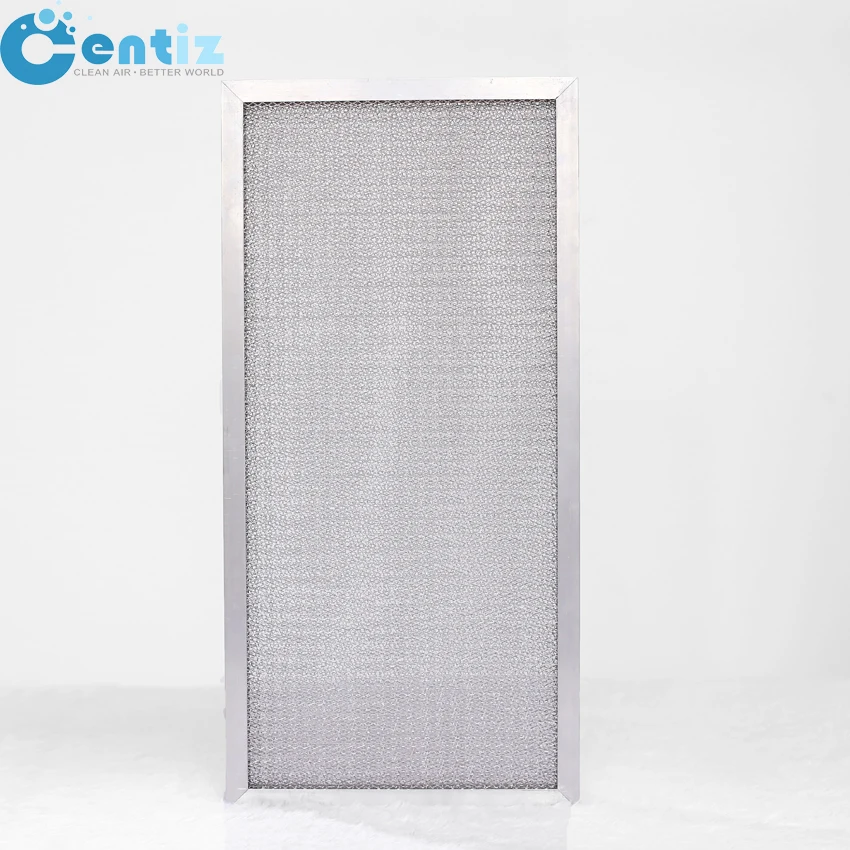

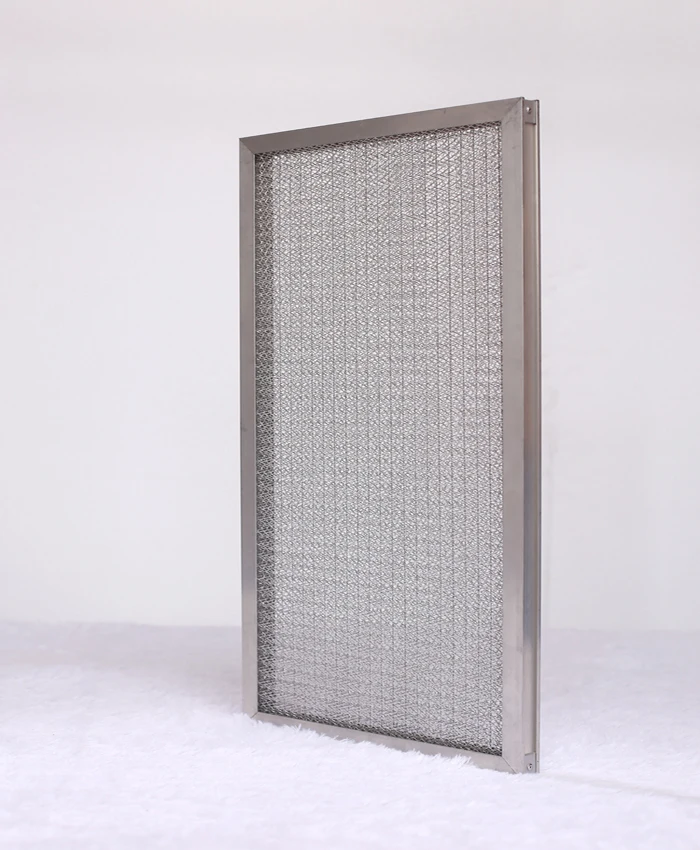

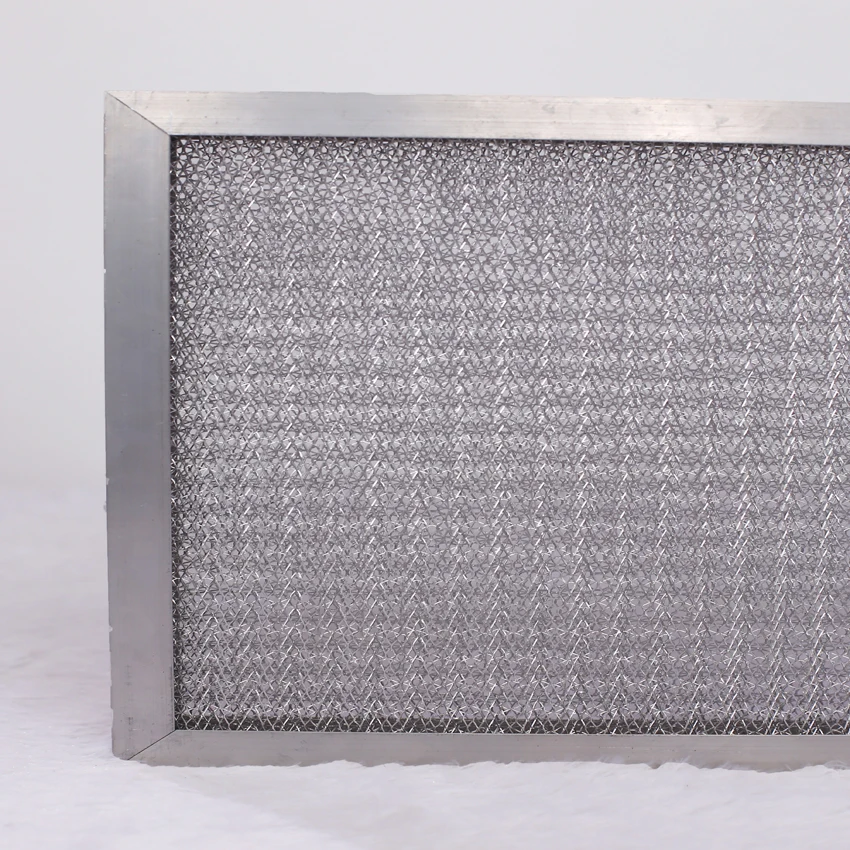

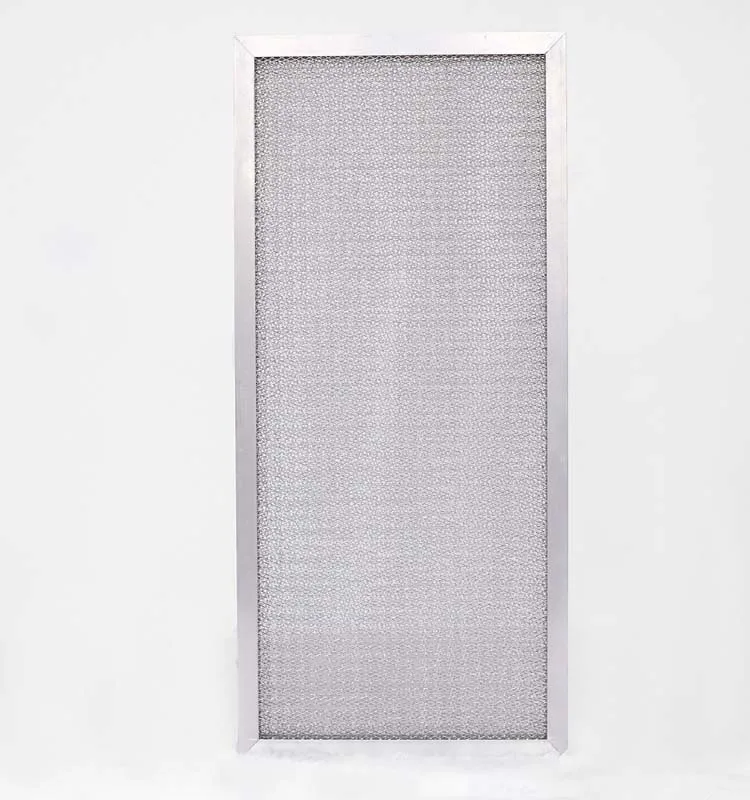

 Economical washable panel metal aluminum mesh stainless steel air filter



Product features

High dust holding capacity

Low resistance

M-WASH board type washable filter uses light board structure, high quality polyester synthetic fiber with low initial resistance and good fire resistance



Application of product

       Pre-filtration of air conditioning and ventilation systems to avoid ash pollution inside the system

      Pre-filtration of large air compressor

      Clean room centralized ventilation and air conditioning system and return air filtration to extend the service life of the high efficiency filter in the rear section

      Ventilation system for general industrial plants to meet general cleaning requirements for air

     Rough dust filtration system of air conditioning in general construction building






Product specification



Nominal size

Actual size

Efficiency

Rated air volume

Initial resistance under different air volumes

Recommended final resistance

(inch)

(mm)

EN779

(m3/h)

(Pa)

(Pa)

W×H×D

W×H×D





70%

100%

120%

Initial resistance 2-2.5 times

12×24×2

290×595×46

G2

1700

25

40

55

20×24×2

490×595×46

G2

2800

25

40

55

24×24×2

595×595×46

G2

3400

25

40

55

12×24×2

290×595×46

G3

1700

35

55

70

20×24×2

490×595×46

G3

2800

35

55

70

24×24×2

595×595×46

G3

3400

35

55

70

12×24×2

290×595×46

G4

1700

40

60

75

20×24×2

490×595×46

G4

2800

40

60

75

24×24×2

595×595×46

G4

3400

40

60

75

  Remarks: The tolerance of performance initial resistance is ±10% /it can provide special size production

633



11111111


FAQ:

1.Certificates:

RoHs,UL,SGS,MSDS,DIN53438

2.Payment terms:

50% deposit upon getting the order,balance against the B/L copy.

3.Delivery date:

About 7 working days(500pcs), special order is negotiable to be quicker.

4.Sample Terms:

We can supply 1-2 small samples for tree but express cost is covered by your side.

5.Minimum Order Quantity:

No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.

6.Price Terms:

EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.

7.Lead time:

3 Days for a 40ft container, weeks for two 40ft container.

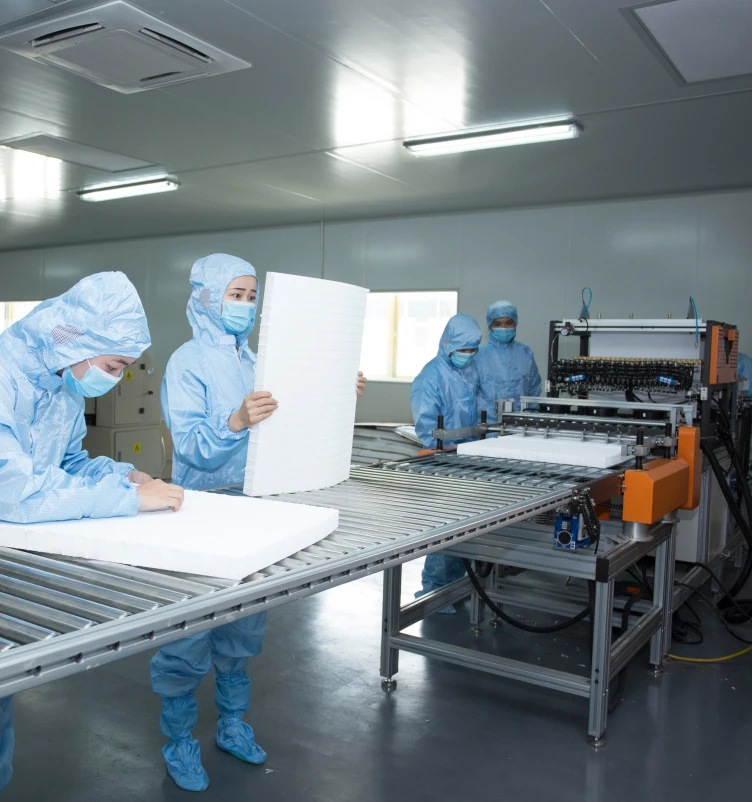

8.Factory:

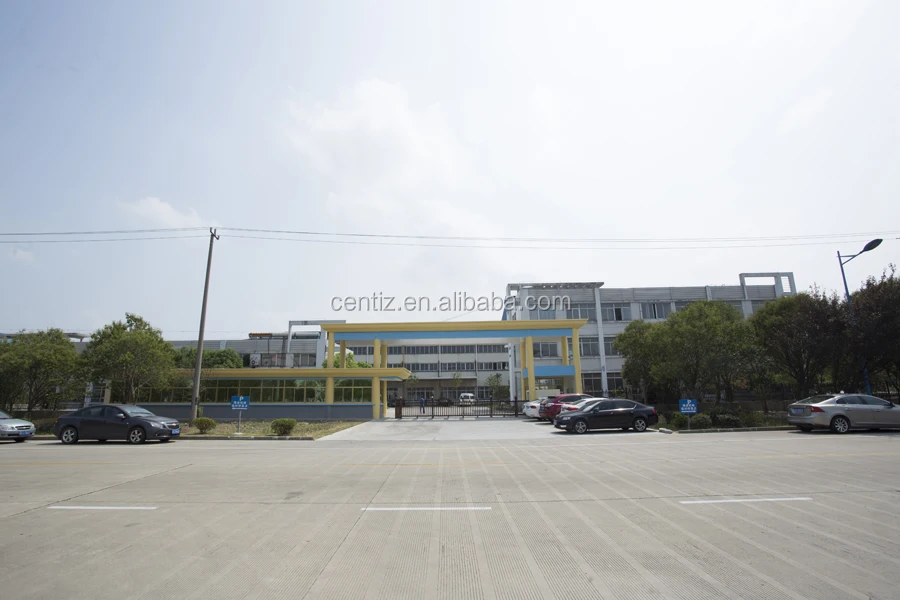

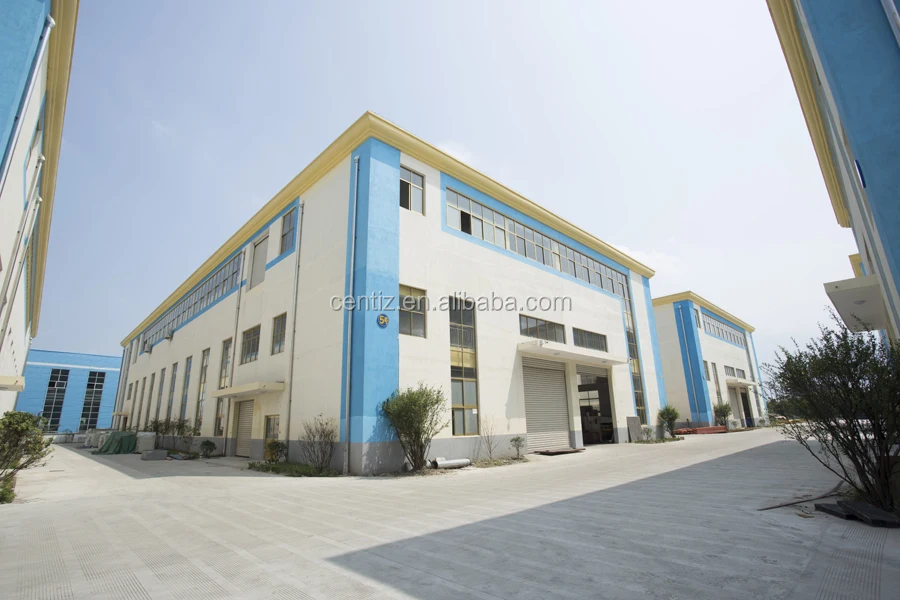

Our factory located in Jiangsu, about 2000sqm, with 30 workers.
