Yanbixin YB11A3 IEC Входной провод, линия питания, шумовой фильтр с сертификатами cUL и TUV
- Category: Filters >>>
- Supplier: Shenzhen Yanbixin Technology Co. Ltd.
Share on (62413392162):
Product Overview
Description

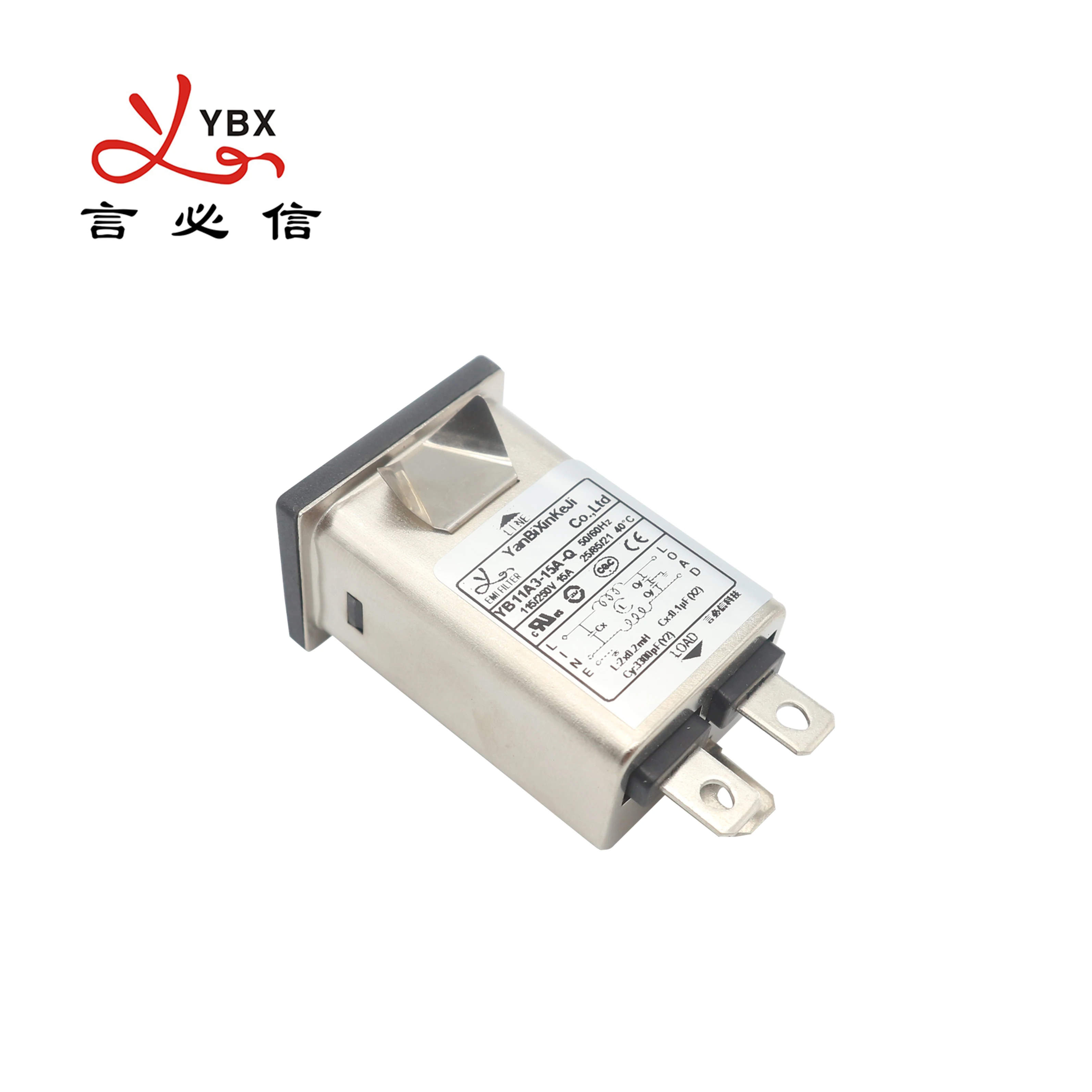

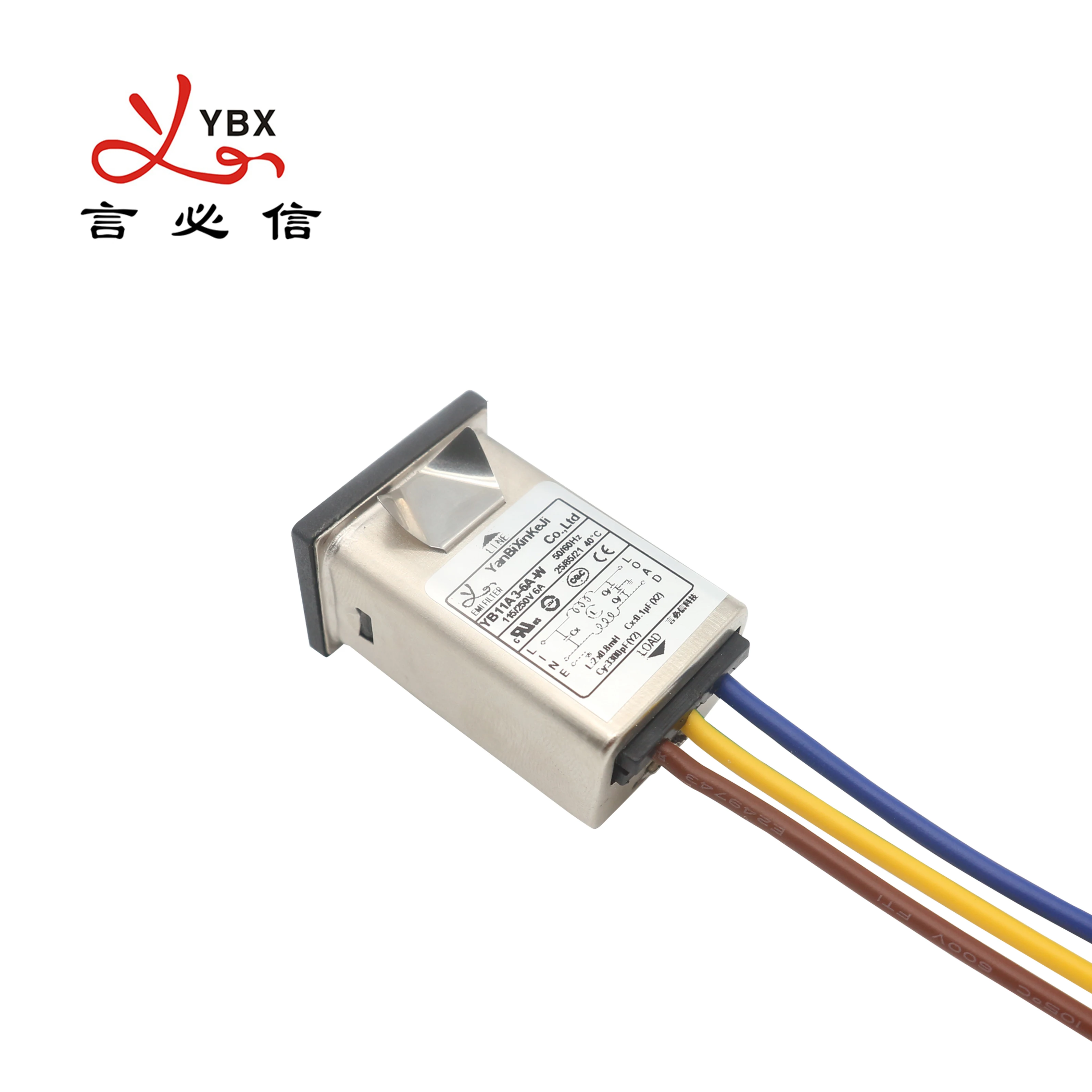

Yanbixin IEC Inlet Wire Power Line Noise Filter with cUL and TUV certificates
Our Advantages
1.After years of efforts of the company's personnel, products successively obtained the cUL,
TUV,CQC, CE, ROSH certifications.
2.We have a professional R&D team; our aims is we won't let customers spend any extra money!
3.National high-tech enterprises, brand assurance, reliable quality, and we have the relevant
product certifications.
4.We cooperate with top scientific research laboratories to provide free EMC rectification technical
support, samples; and free conduction test.
5.Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement
within three months, free maintenance within six years, life-long maintenance!
Product Description

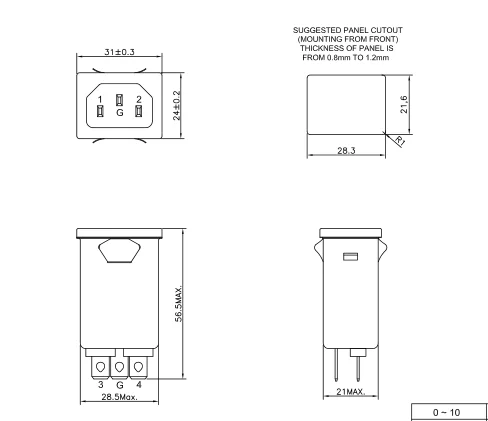

Physical Dimensions

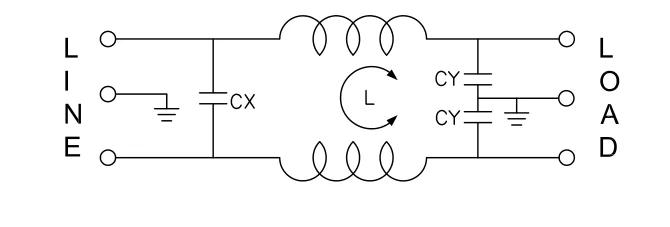

Electrical Schematic
Characteristics
(1) Voltage Rating............................................................................................115/250VAC
(2) Current Rating:
A.@115VAC............................................................................................... 15A RMS Max.
B.@250VAC............................................................................................... 15A RMS Max.
(3) Oprating Frequency:50/60Hz
(4) Leakage Current: each line to ground
A. 115VAC/60Hz........................................................................................... 0.4mA Max.
B. 250VAC/50Hz...........................................................................................0.8mA Max.
(5) Hipot Rating(for one minute)
A. Line to ground............................................................................................ 2250VDC
B. Line to line.................................................................................................. 1450VDC
(6) IR: 50M ohm A7 500VDC any input or output to ground
(7) Temperature Range: -25℃~+85℃
Our Company
1.Customized:We have a professional R&D team; our aims is we won't let customers
spend any extra money.
2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and
we have the relevant product certifications.
3.Rectification test: We cooperate with top scientific research laboratories to provide free
EMC rectification technical support, samples; and free conduction test.
4.Scale production:Automation technology, scale production, great price,excellent, service,
fast delivery! Free replacement within three months, free maintenance within six years,
life-long maintenance!
Working Environment
The Exhibitions
Our Patents
Our Certificates
Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Our service
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.
Packaging and Shipping
Packaging
Power Line Filter: CTN/300pcs
N/G W.: 13.5/14.3KG
Measures:0.565*0.285*0.225m
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
---Port is Shenzhen or as requests.
