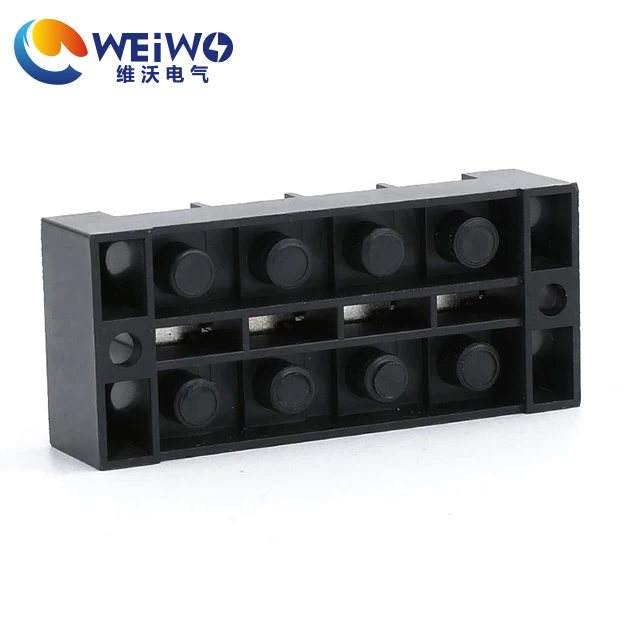

TB 1504 Fixed terminal blocks 600V 15A 4 Pole Soldering Wire Connector

Product Overview

Description

TB-1504 Fixed 600V 15A 4 Pole Soldering Wire Connector



    Sliecting thermosetting plastic, safety factor of big current is more reliable.Board type screw crinm commecting technology as structure parts.Rated AC voltage 600V,Rated current of connecting conduct piece with seven specifications of 60.100.150.200.300.400.600A.The cross-section 10-300mm2,Which is the biggest closure flow terminal.It can be divided into 3P.4P flat bolt installation according to arrangement, It will be more reliable with OT.UT termination point for connectiong big current in different kind electric device.

Specifications

Model of product	Wire Section(mm²)	Rated Current(A)	Rated Voltage(V)	Wide/High/Thick
TB-1503	0.5-1.5	15	600	46.5/22/17.5
TB-1504	0.5-1.5	15	600	55.5/22/17.5
TB-1505	0.5-1.5	15	600	63/22/17.5
TB-1506	0.5-1.5	15	600	73.5/22/17.5
TB-1510	0.5-1.5	15	600	103/22/17.5
TB-1512	0.5-1.5	15	600	128.5/22/17.5
TB-2503	0.5-2.5	25	600	55/30/19
TB-2504	0.5-2.5	25	600	67/30/19
TB-2505	0.5-2.5	25	600	79/30/19
TB-2506	0.5-2.5	25	600	91/30/19
TB-2510	0.5-2.5	25	600	140/30/19
TB-2512	0.5-2.5	25	600	163/30/19
TB-3503	0.5-2.5	35	600	50/30/19
TB-3504	0.5-2.5	35	600	67/30/19
TB-3506	0.5-2.5	35	600	91/30/19
TB-3512	0.5-2.5	35	600	163/30/19
TB-4503	1.5-4	45	600	70/38/23.5
TB-4504	1.5-4	45	600	85/38/23.5
TB-4505	1.5-4	45	600	102.5/38/23.5
TB-4506	1.5-4	45	600	120.5/38/23.5
TB-4512	1.5-4	45	600	222/38/23.5
TB-60A/3P	2.5-6	60	600	125/34/22
TB-60A/4P  6P/12P	2.5-6	60	600	200/34/22
TB-100A/3P/4P   6P/12P	2.5-10	100	600	170/38/23
