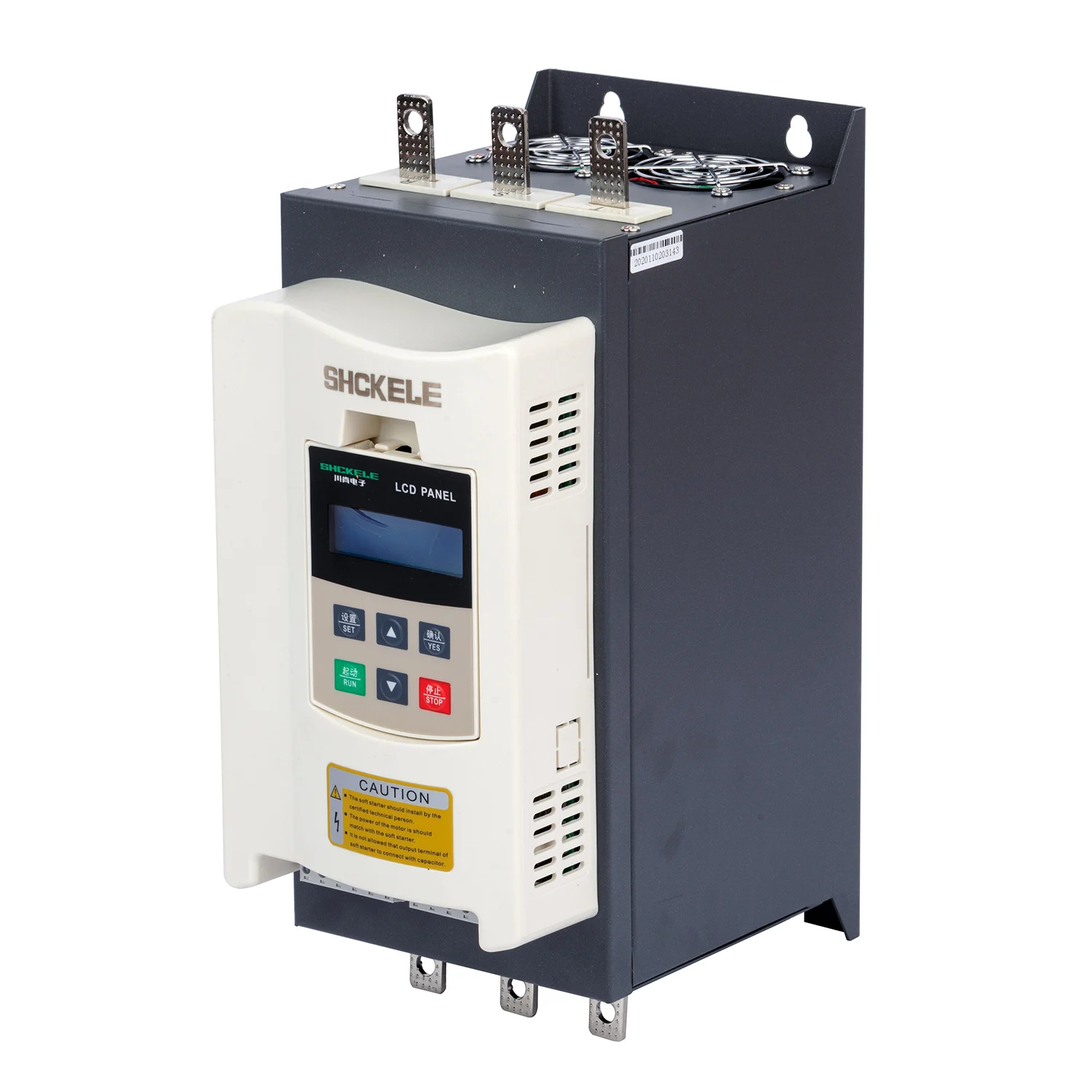

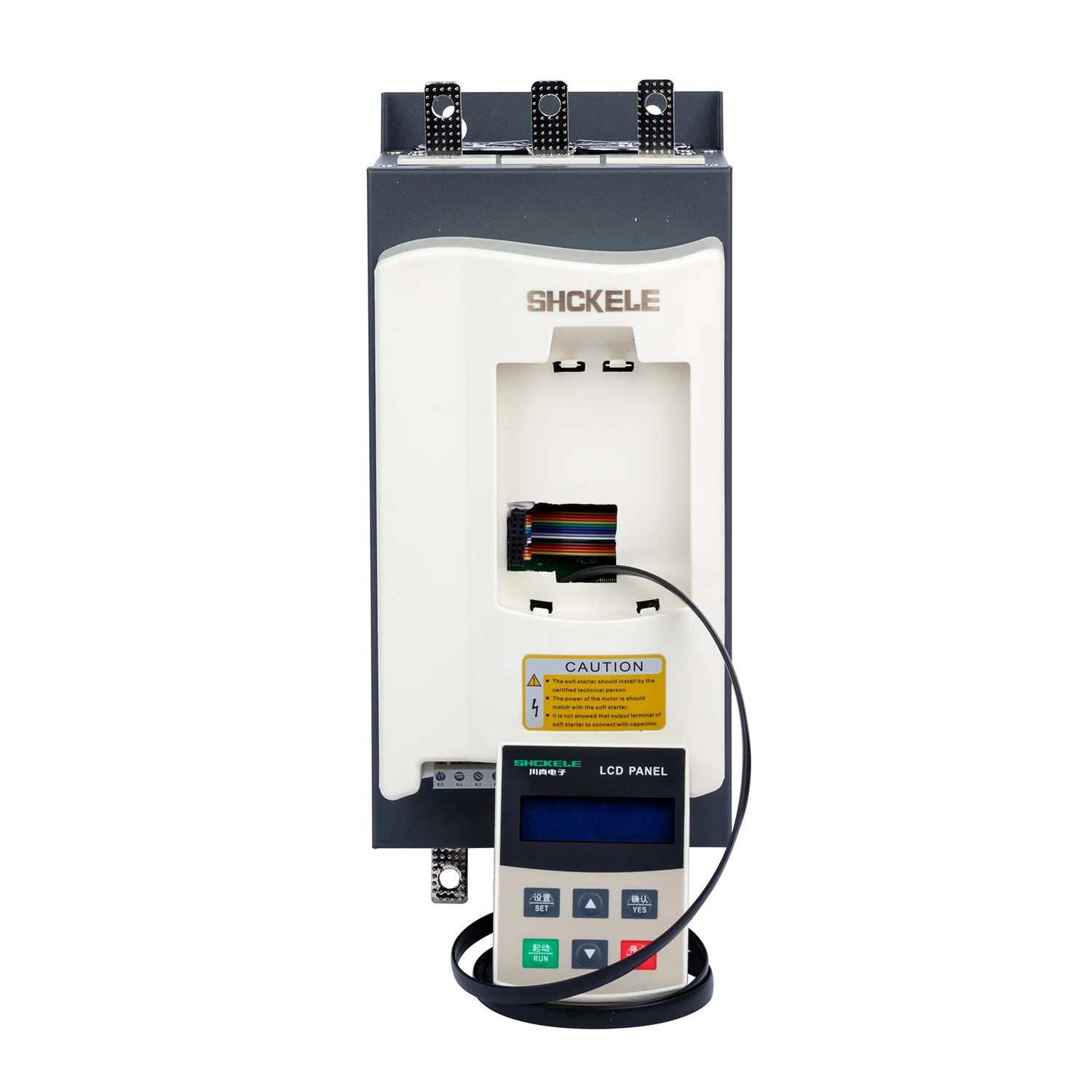

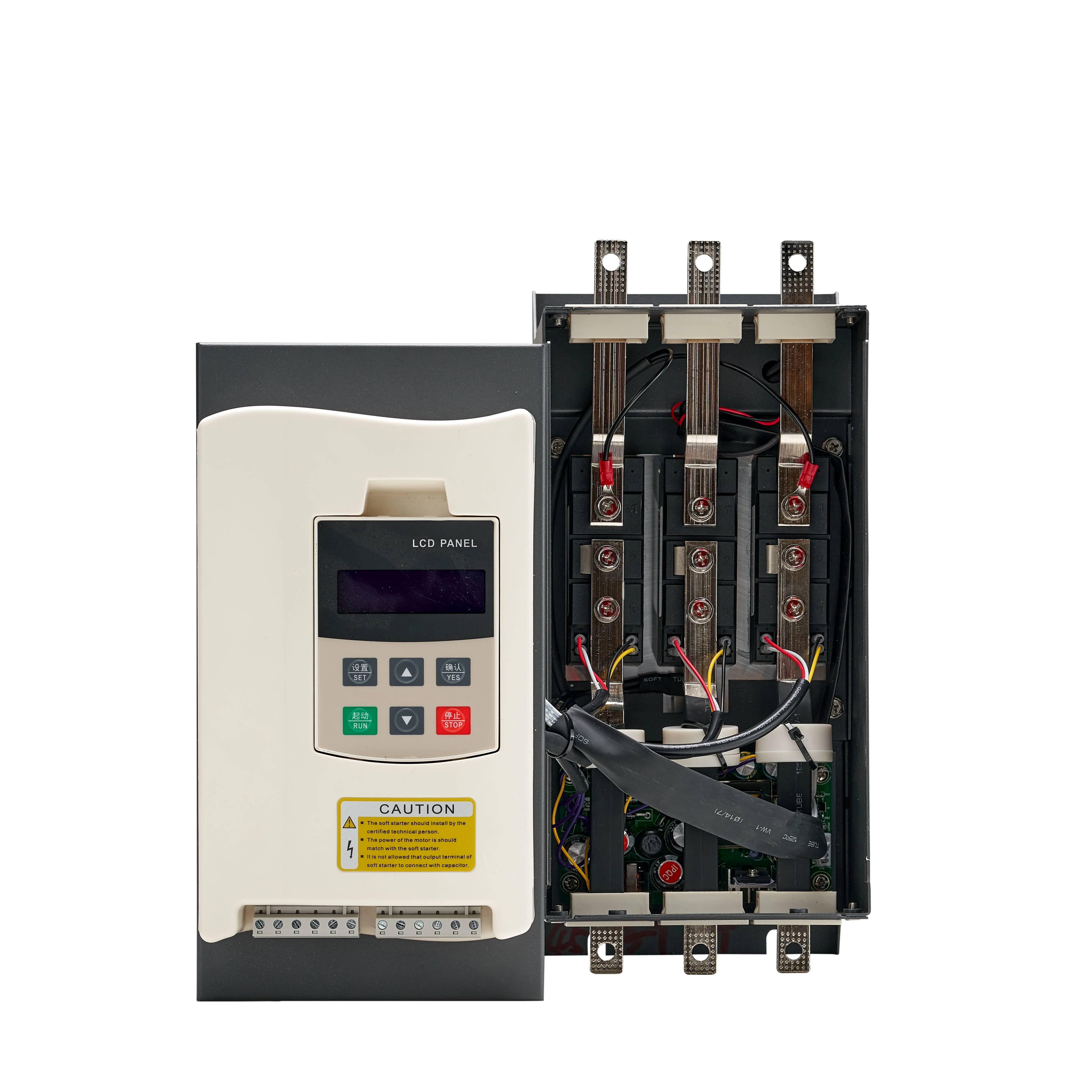

Manufacturer 3 Phase 75KW 100HP 380V 150A Intelligent Motor Soft Starter for Crusher
- Category: >>>
- Supplier: Shanghai Chuanken Electronic Technology Co. Ltd.
Share on (62413838686):
Product Overview
Description
Product Description

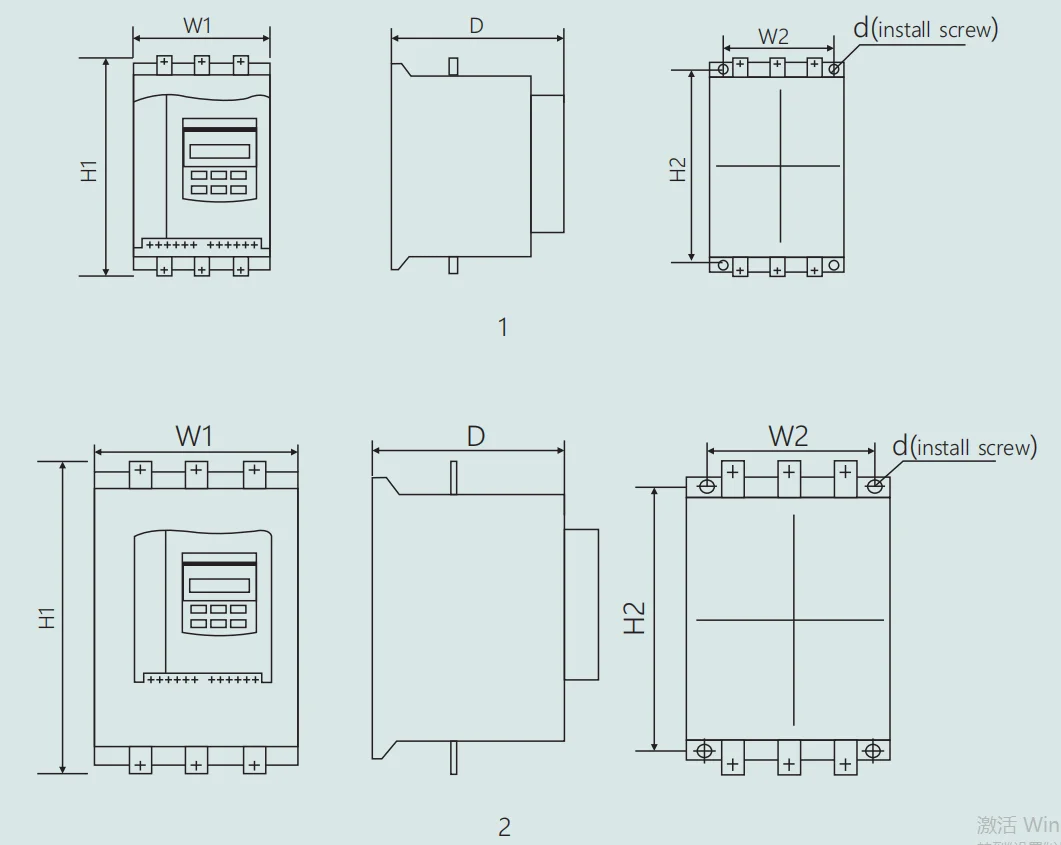

Specifications: | Outline dimensons(mm) | Installation dimension(mm) | Drawing | ||||||||
W1 | H1 | D | W2 | H2 | d | 1 | |||||
5.5KW-45KW | 145 | 315 | 215 | 85 | 298 | M6 | 1 | ||||
55KW-90KW | 210 | 360 | 255 | 150 | 343 | M8 | 2 | ||||
115KW-160KW | 330 | 465 | 255 | 260 | 440 | M8 | 2 | ||||
185KW-280KW | 490 | 562 | 295 | 335 | 535 | M8 | 2 | ||||
320KW-630KW | 680 | 840 | 420 | 350 | 780 | M10 | 2 | ||||
Technical Specifications
Item | Description | ||
Input Power Supply | Input Voltage | Three-phase 380V/480V/660 AC | |
Frequency | 50/60Hz | ||
Adaptive Motor | Squirrel-cage three-phase asynchronous motor | ||
Starting Times | It is recommended not to exceed 20 times per hour | ||
Control Mode | (1) Operation panel control. (2) Operation panel + external control. (3) External control. (4) External control + COM control. (5) Operation panel + external + COM control. (6) Operation panel + COM control. (7) COM control. (8) No start or stop operation. | ||
Start Mode | (1) Current-limiting to start. (2) Voltage ramp to start. (3) Torque control + current-limiting to start. (4) Torque control + voltage ramp to start. (5) Current ramp to start. (6) Voltage current-limiting double closed-loop start | ||
Stop Mode | (1) Soft stop. (2) Free stop | ||
Protective Function | (1) Open loop protection for external instantaneous stop terminals. (2) Over-heat protection for soft starter. (3) Protection for too long starting time. (4) Input open phase protection. (5) Output open phase protection. (6) Unbalanced three-phase protection. (7) starting over current protection. (8) Running overload protection. (9) Under voltage protection for power voltage. (10) Overvoltage protection for power voltage. (11) Protection for fault parameter setting. (12) Load short circuit protection. (13) Auto restart or incorrect wiring protection. (14)Incorrect wiring protection of external control stop terminals | ||
Ambient | Place to be used | Indoor location with good ventilation free from corrosive gas and conductive dust | |
Altitude | Below 1000M. It have to rise the rate power when the altitude is more than 1000M. | ||
Temperature | -20 +45 ℃ | ||
Humidity | 90%RH without dew condensation. | ||
Vibration | <0.5G | ||
Structure | Protection Class | IP20 | |

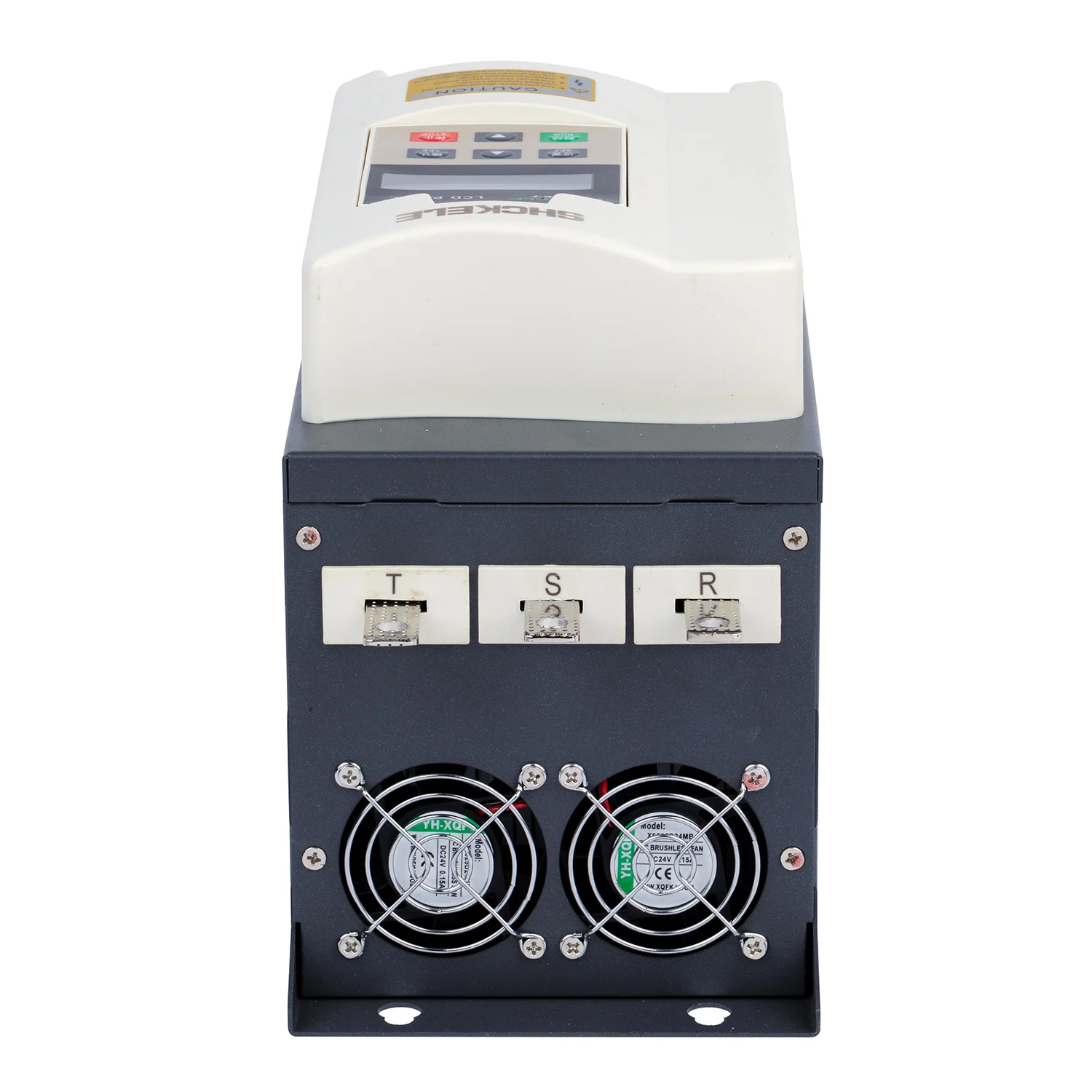

Cooling Pattern | Fans cooling. | ||

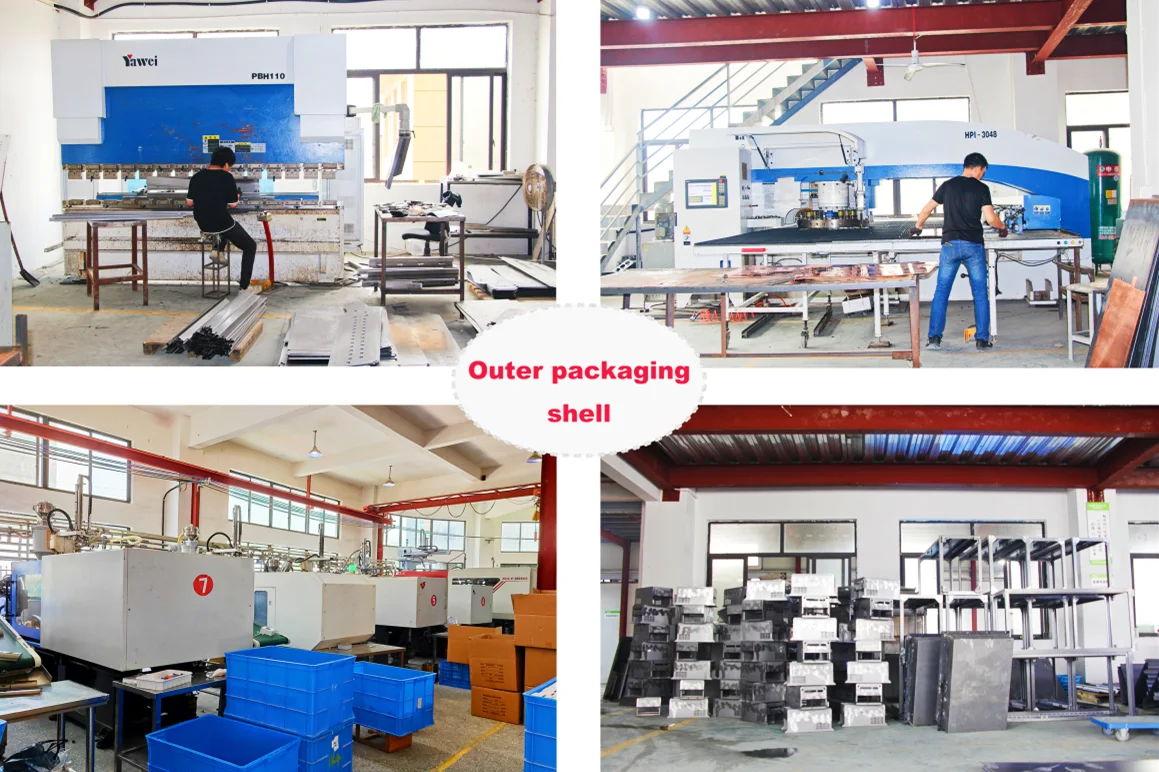

Work shop

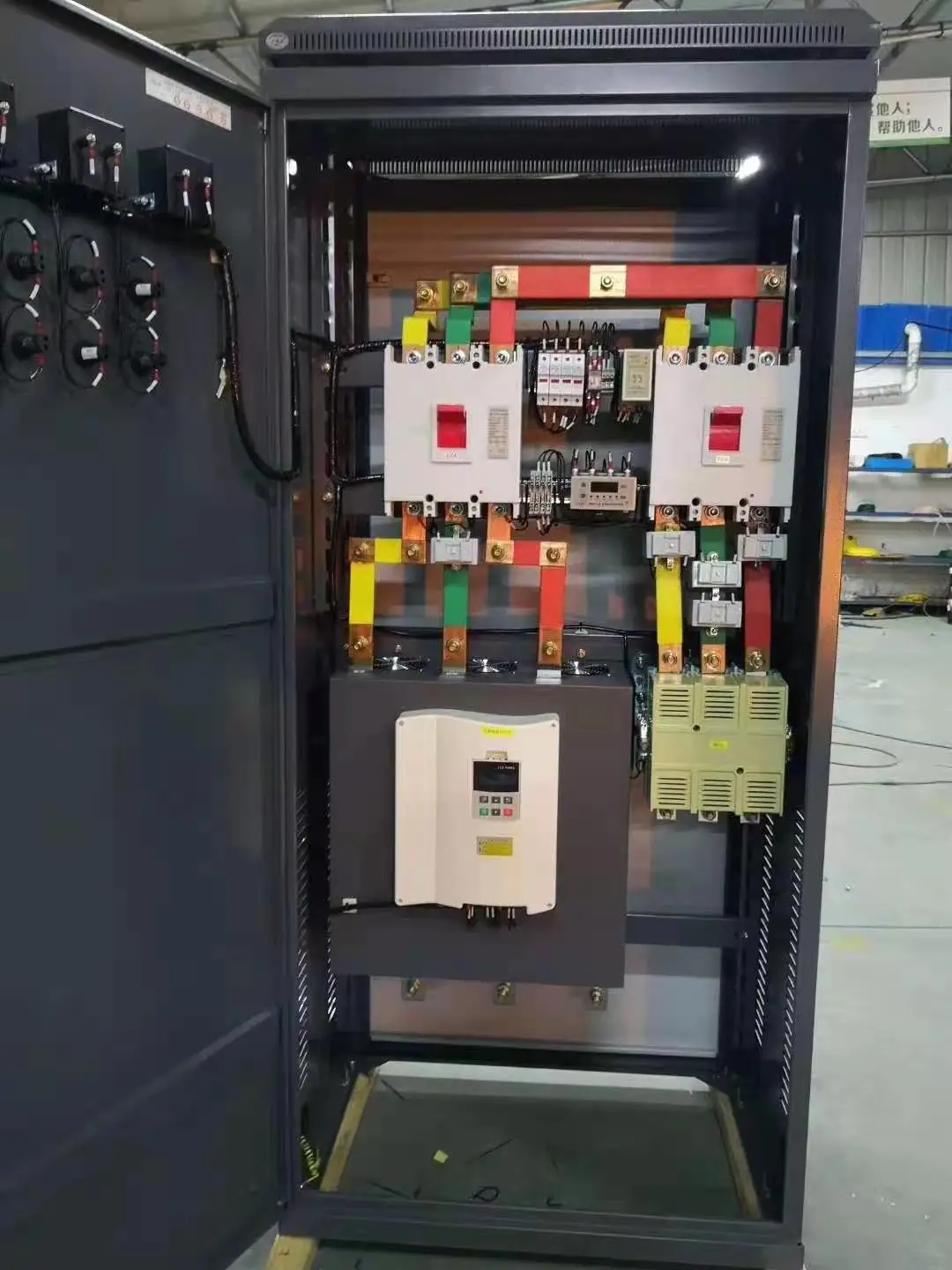

Customer Photos
Our Advantages
Certifications
FAQ
Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.
Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost
What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.
How to pay it?
You can pay it to Alibaba,Paypal,bank.
How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you.
