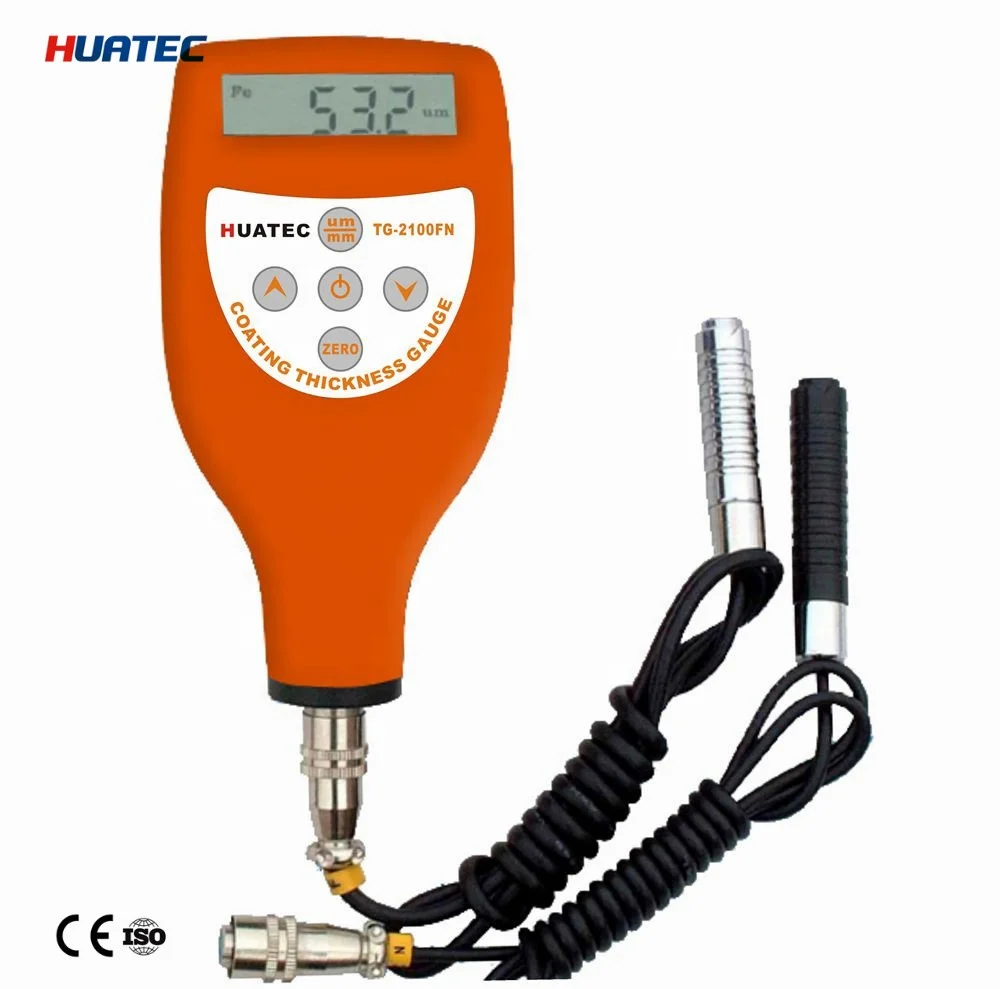

Accurate Coating Thickness Gauge Customized TG 2100 5000 Micron

Description:

Function: TG-2100F ferrous substrate

Measuring principle: magnetic induction & eddy current
Measurement range:0~2000um in built or separate probe
Resolution:0.1 um (under 100um) 1um (over 100um)
Accuracy: ±1~3%n or ±3um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45°C(32°F-104°F),≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)
Optional accessories: other range 0-2000um to 18000um

Application:

1. Coating thickness gauge TG-2100F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. Coating thickness gauge TG-2100NF can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

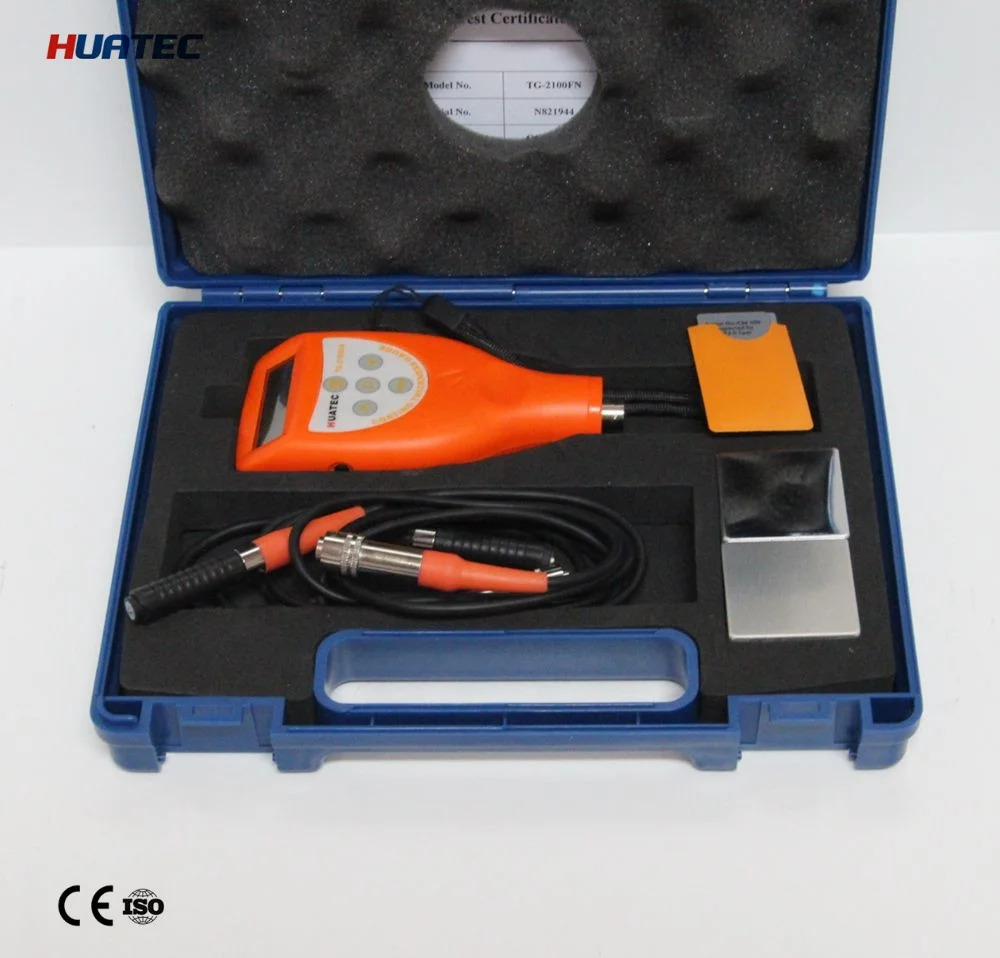

Standard Delivery of coating thickness gauge TG2100FN:
Main unit (2000um)                      1
F type probe                                   1
N type probe                                  1
F calibration base set                  1
N calibration base set                 1
Calibration foil set                        1set (4 foils)

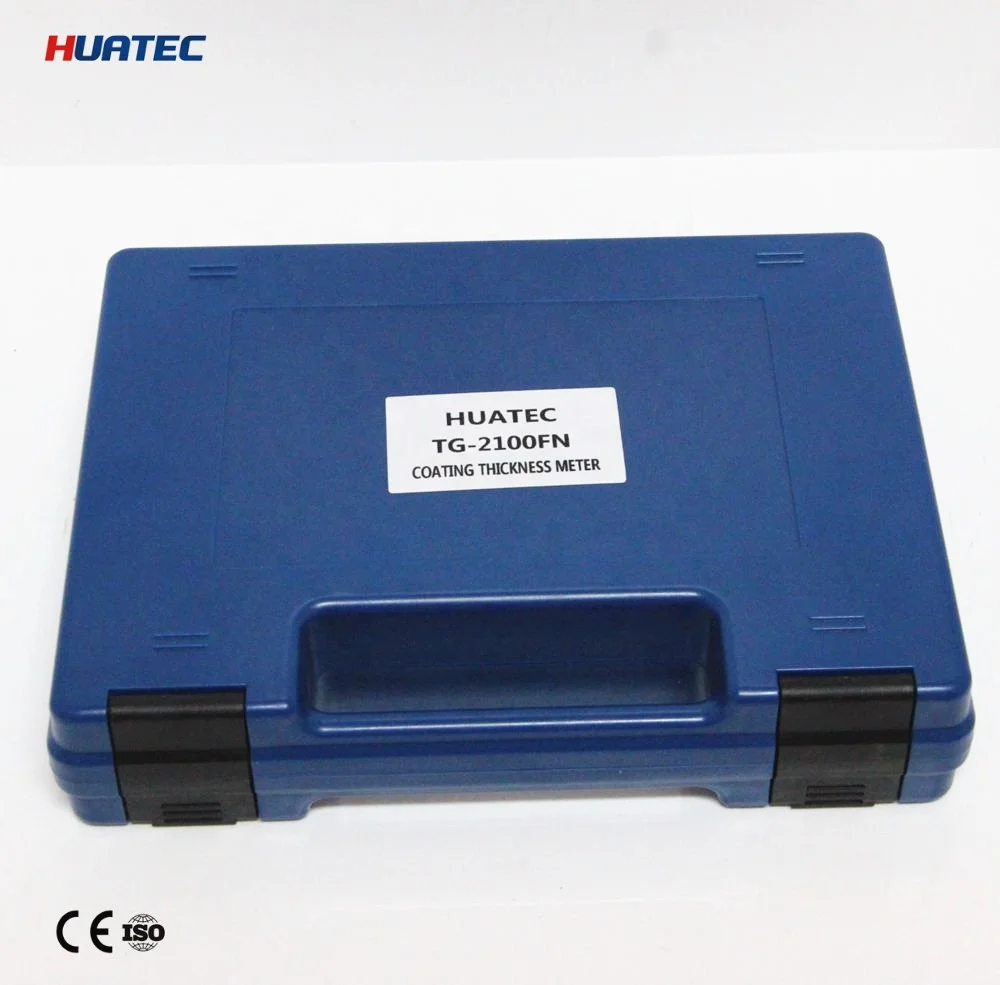

Carrying case                                1
Instruction manual                       1

Optional Accessories of coating thickness gauge TG2100FN:
Cable and software for RS-232C
Customized testing range

HUATEC Group is a reliable manufacturer and supplier of testing instruments in Beijing China. HUATEC Group combines all the R/D and production advantage of all its own subsidiaries, takes advantage of its years marketing and sales experience in global market, contributes to offering most qualified competitive products and service to international markets.

HUATEC Group products are composed of all kinds of metal and non-metal testing equipments, such as portable hardness tester, micro hardness tester, shore durometer, vickers hardness tester, Rockwell hardness tester, Brinell hardness tester, portable X-ray flaw detector, mobile X-ray flaw detector, Real-time X-ray image flaw system, holiday detector, digital portable eddy current electrical conductivity meter, digital ultrasonic flaw detector, coating/painting thickness gauge, ultrasonic thickness gauge, vibration tester, surface roughness tester, profile projector, etc, and all of their accessories such as ultrasonic transducer, test block, IQI, lead screen, densimeter, film viewer etc.

We have more than 15 R&D engineers in our group company, who make sure the produced product to be best quality. And more than 10 new products will be developed every year.

Q1. How about your samples?

Yes, we can serve you our samples for your test (Freight collect). You also can get a refund of the freight cost when the bulk order is placed.

Q2. How much for the freight?

It depends on your area, we will use DHL, FedEx and EMS bulk service, it had discount as normal express service. And we can return freight while you place order.

Q3. Do you have discount for large quantities?

Yes, It not only depends on your order quantity, but also the item you booked.

Q4. What about delivery?

Prompt shipment after receipt of order confirmation for regular products.

We can offer the free samples

We can accept OEM/ODM

The mass production is accordance with the samples

We can packed the production well and safe.

We can answer your questions in time after sale
