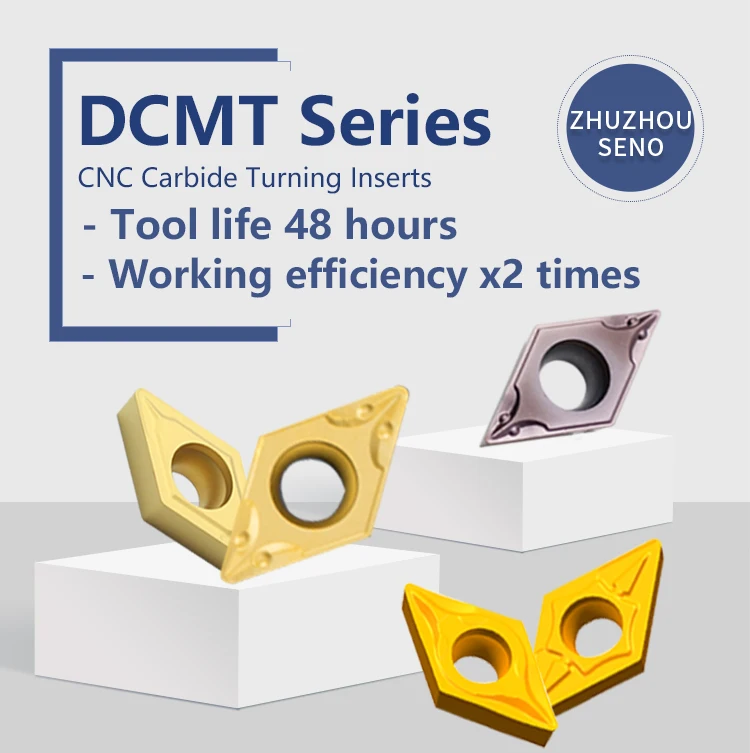

Твердосплавные вставки DCMT, токарные инструменты для нержавеющей стали

DCMT070204/08

DCMT11T304/08

SP8025/SP8125/SM8020/SK8010

steel/hardened steel/ stainless steel/cast iron

CVD/PVD coating

10pcs

10pcs in one box

OEM/ODM

Grade for turning inserts

CVD
(MT-TiCN+Al2O3+TiN)

golden yellow

P10-P30

The carbide substrate have good anti-deformation resistance and toughness. MT-TiCN+Al2O3+TiN coating has very good surface quality and help to recognize wear easily. It is suitable for semi-finishing and finishing steel machining.

SP8125

CVD
(Multi-TiCN+Al2O3)

black

P10-P40

The carbide substrate have mild cobalt content and high cubic content, combining with thick TiCN and Al2O3, treated by sepcial technology after coating treatment, which gives inserts strong wearing resistance. It is prority for semi-finishing to finishing steel machining.

SM8020

PVD (Silicon+TiAlN)

purple

M10-M30

Micro WC grain substrate with high Co maintain cutting edge strength and it has smallest coefficient of friction and good nano hardness with good thermal stability silicon coating. The grade is very good for interrupt turning and milling for stainless steel.

SK8010

CVD
(thick TiCN+ textured Al2O3)

black

K10-K30

The medium-coarse substrate combine with thick TiCN and textured Al2O3, after special coating treatment, it has strong
wear-resistance. The grade is suitable for high-speed semi-finishing cast iron turning under stable working condition.
