Low Cost and High Quality Chinese Agricultural Greenhouse/Henhouse Wet/Cooling Pad
- Category: >>>
- Supplier: Qingzhou New Trust-Sun Environmental Technology Co. Ltd.
Share on (62414016380):
Product Overview
Description
Product Description
Low Cost and High Quality Chinese Agricultural Wet/Cooling Pad

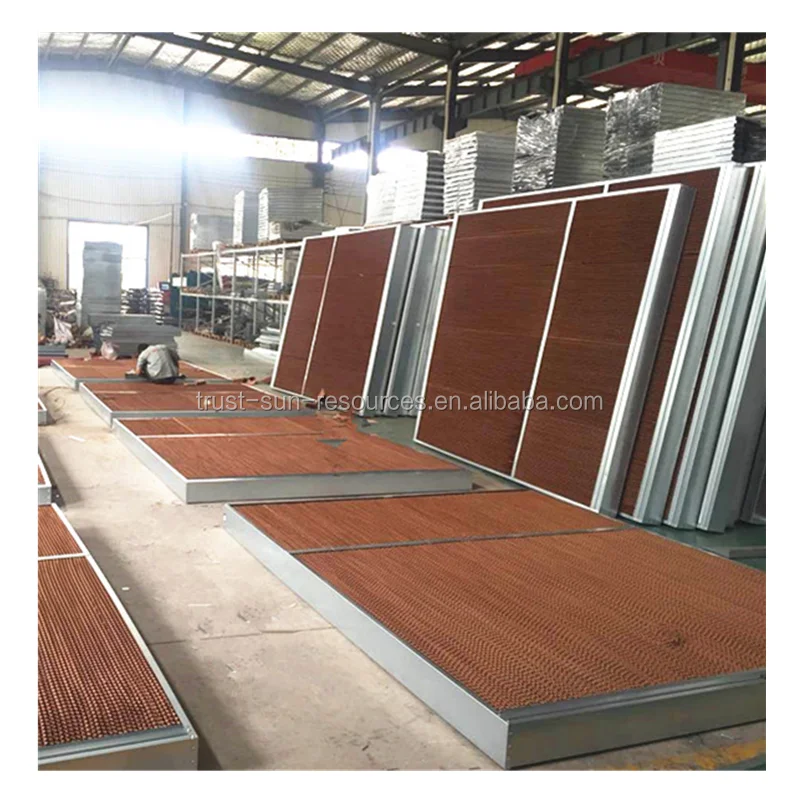

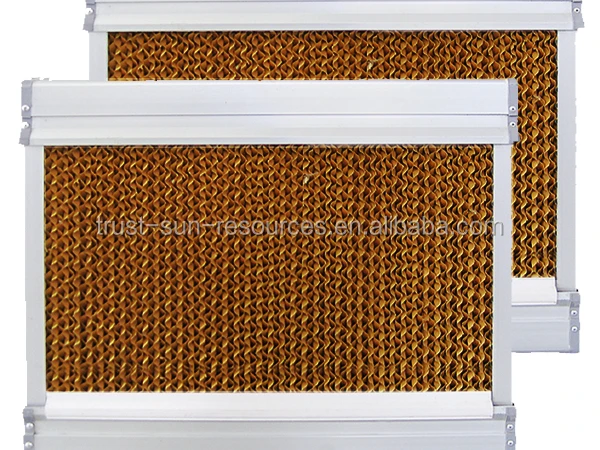

Cooling Pad, also called wet pad, made of hydroscopicity kraft paper, is mainly used for the cooling system, humidification system and filter system. The process includes gluing, drying, corrugating, shaping, solidifying, cutting and polishing. Common specifications are 7090, 6090 and 5090 with 45 * 45 angle. Special sizes or dimensions need made or required individually.

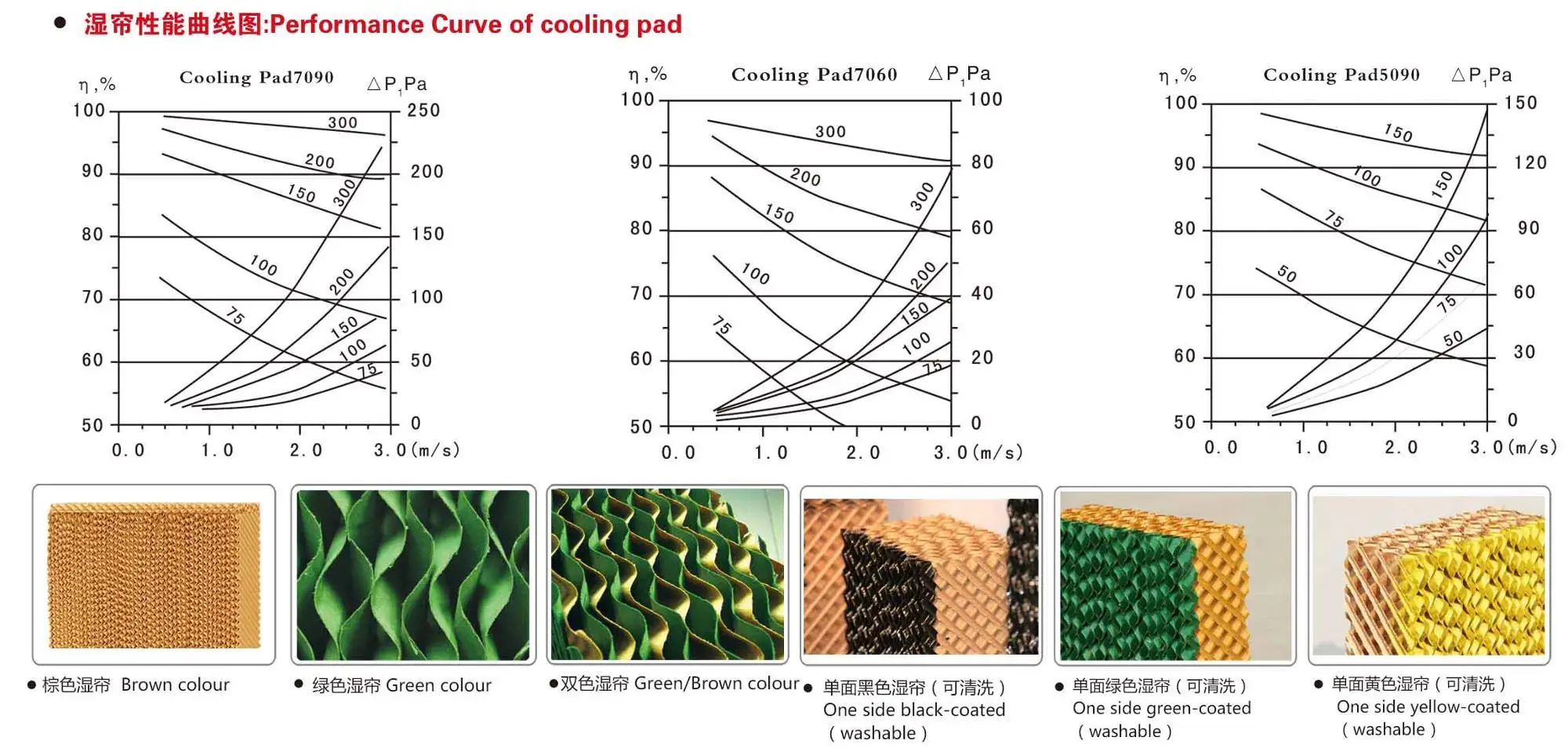

Glitter Cooling Pad is made of water absorbing kraft paper. It boasts a series of superior quality, such as strong hydroscopicity, high wet stiffness, corrosion resistance and long usable life etc. It absorbs the water naturally and the water absorbing capacity is 60-70mm/5min or 200mm/1.5h. The cooling efficiency is by up to 80%.
Our products contain no surfactant and harmful chemicals like phenol and no harmful to health during installation and application. It belongs to green and environmental products, meanwhile, it has approved "ROHS" certified.

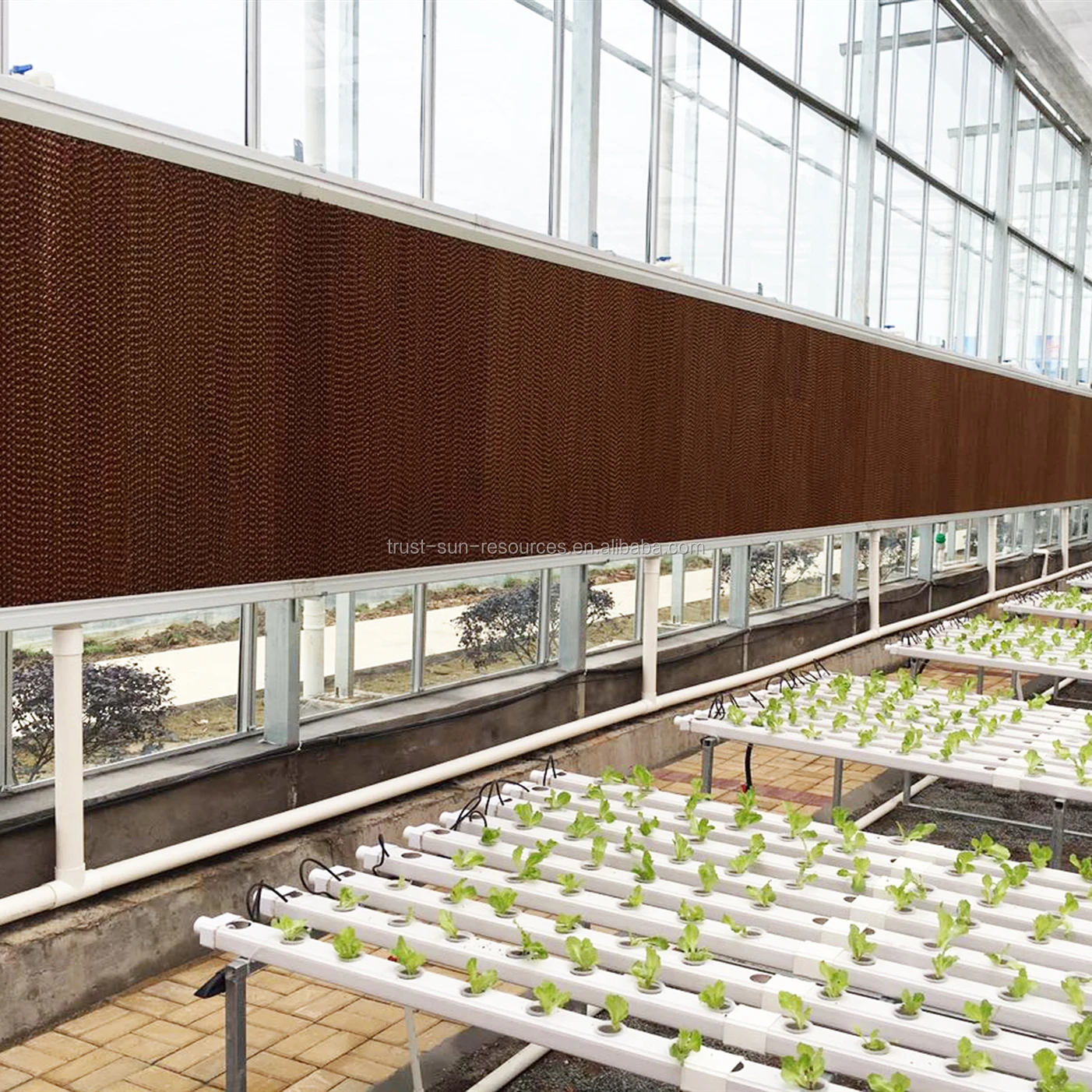

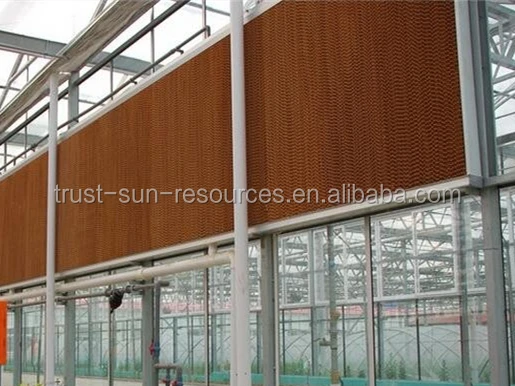

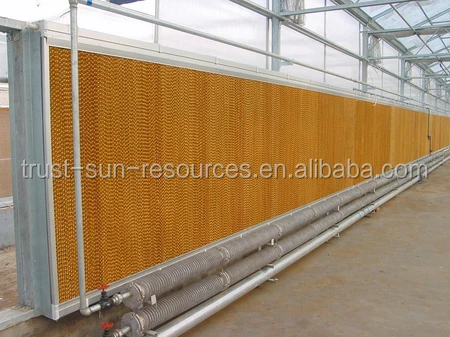

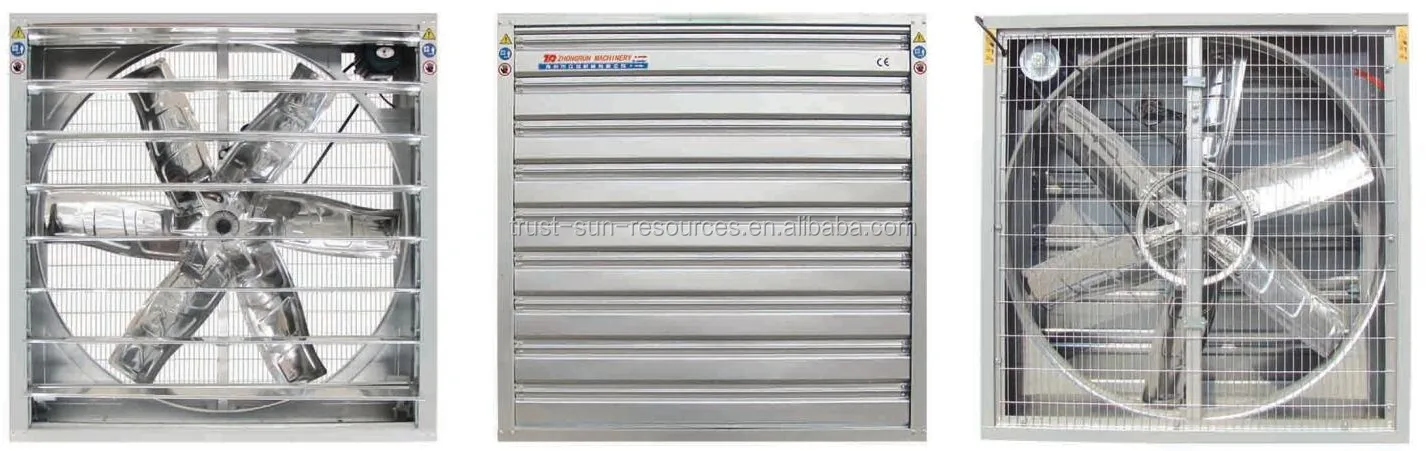

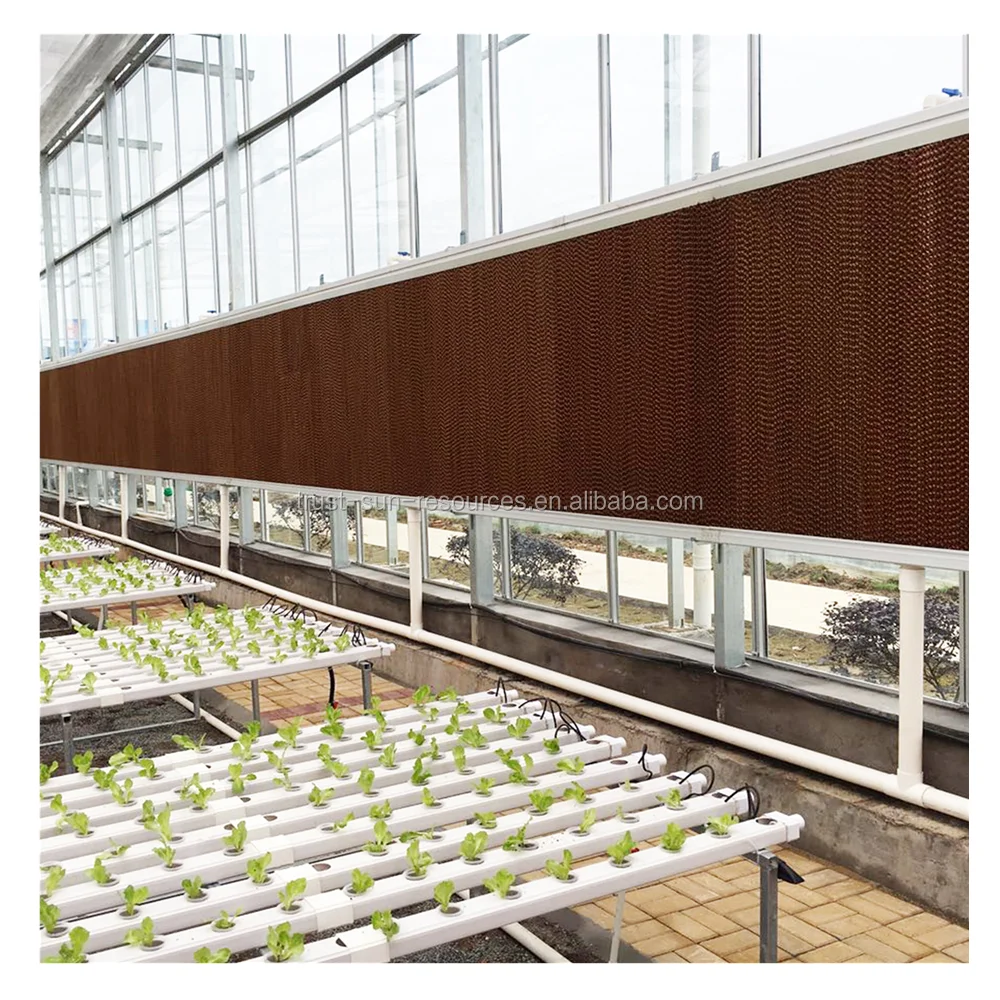

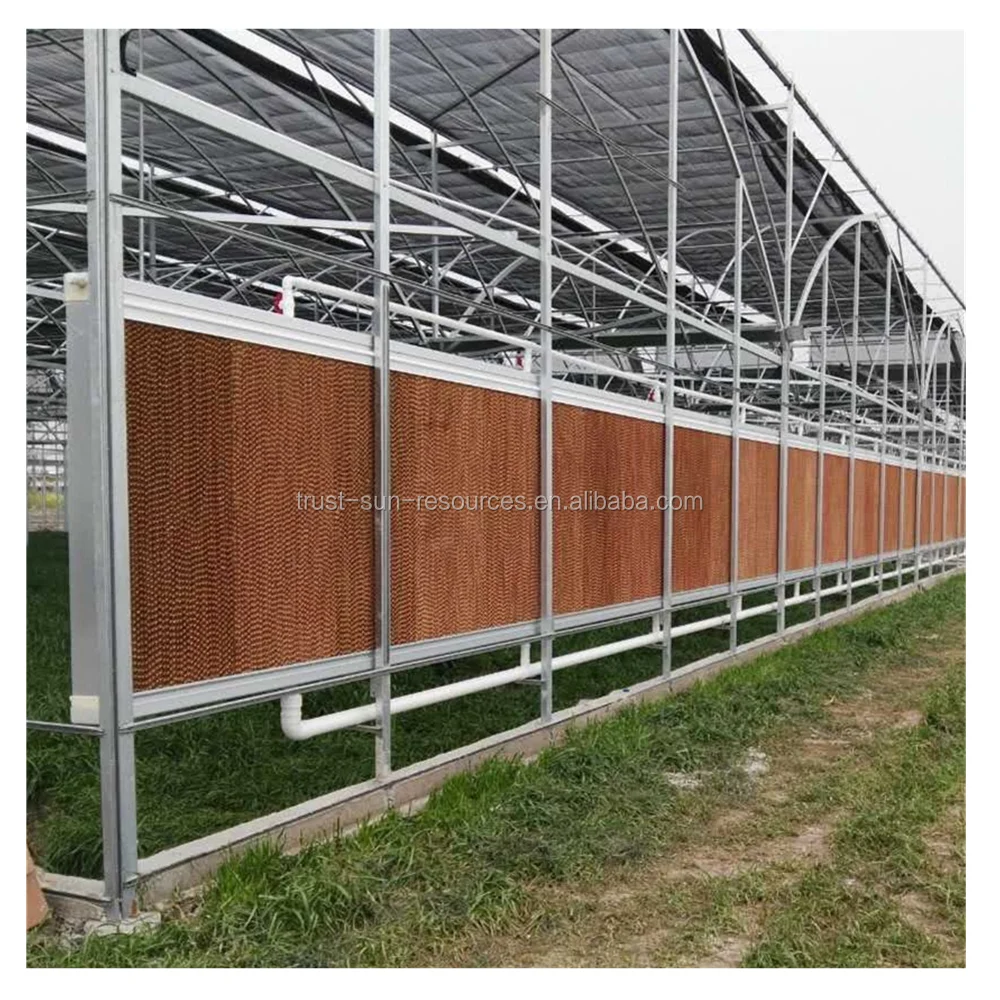

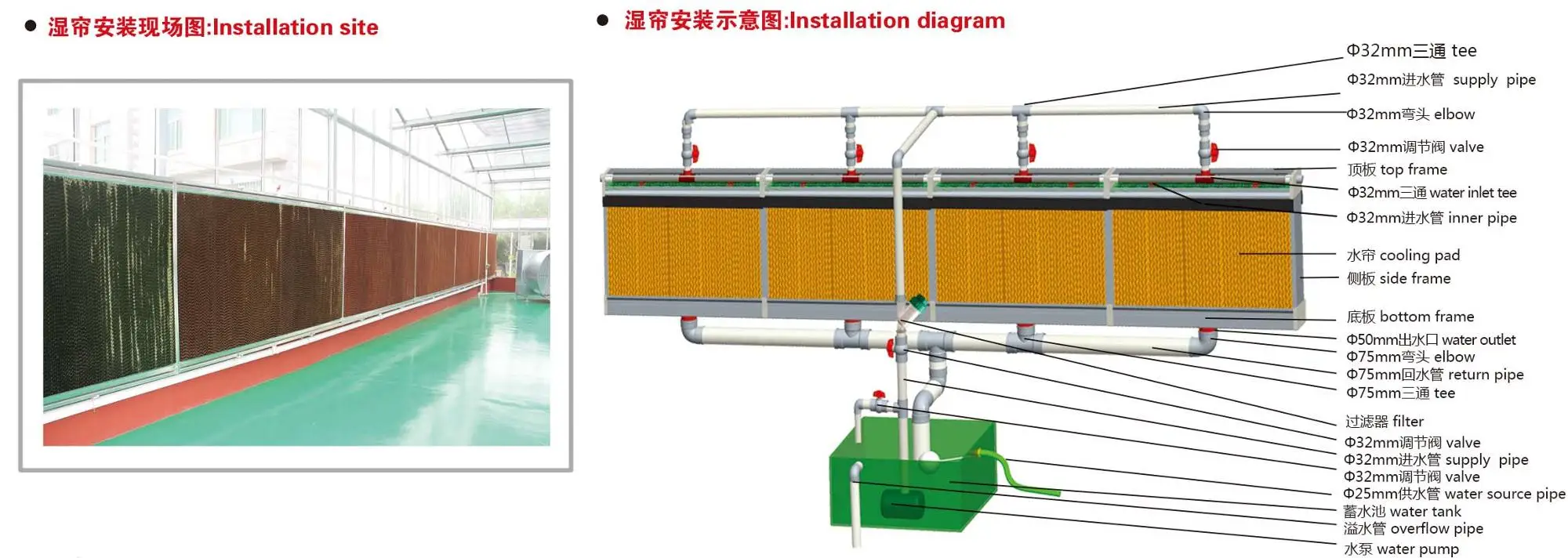

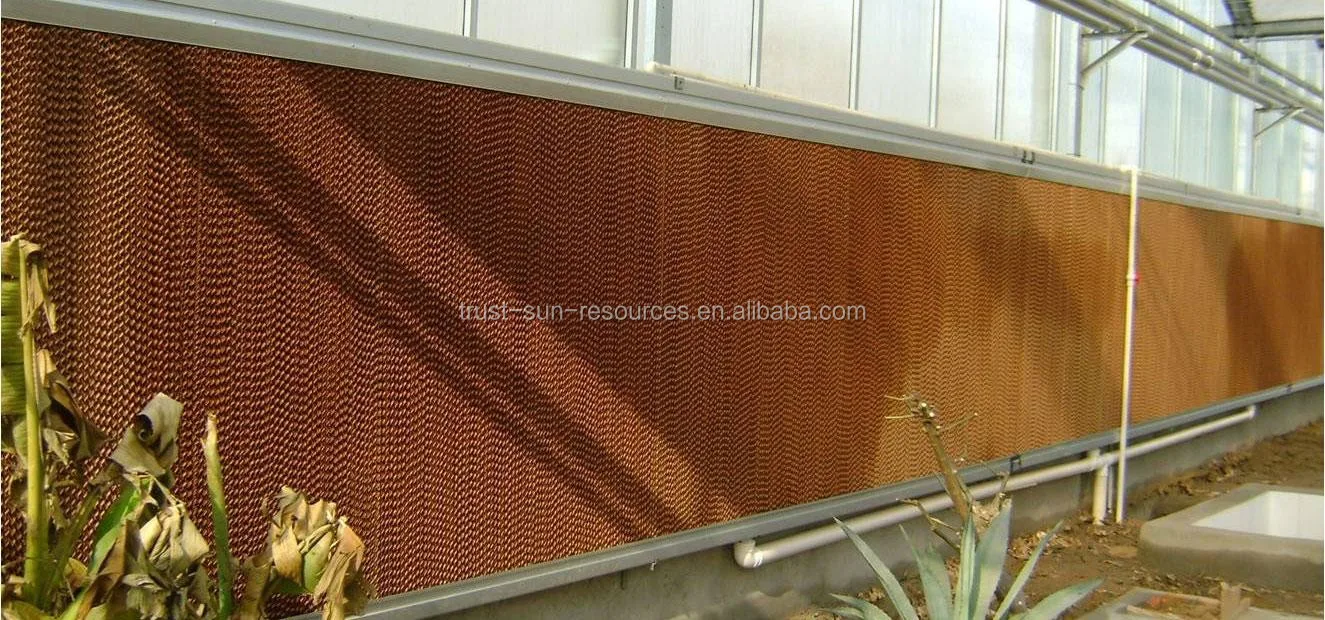

Wet pad installed at one end of the greenhouse, the suction ventilator installed in the other end. When the air in greenhouse is needed to cool down, the control system of fan will start, the indoor air is forced out and build-up the negative pressure; At the same time, the water pump water the wet pad. The negative pressure cause the indraft through the wet pad , leading to evaporation and cooling, then the cold air flow through the greenhouse, absorb the indoor heat, so as to achieve the purpose of the circulating cooling.
Specification and Dimensions
Model | 7090 | 6090 | 5090 |
Width (mm) | 300, 600 | 300, 600 | 300, 600 |
Height (mm) | 1500, 1800, 2000 | 1500, 1800, 2000 | 1500, 1800, 2000 |
Depth (mm) | 100,150,200,300 | 100,150,200,300 | 100,150,200,300 |
Flute Height | 7mm | 6mm | 5mm |
Angle (o) | 45*45 | 45*45 | 45*45 |

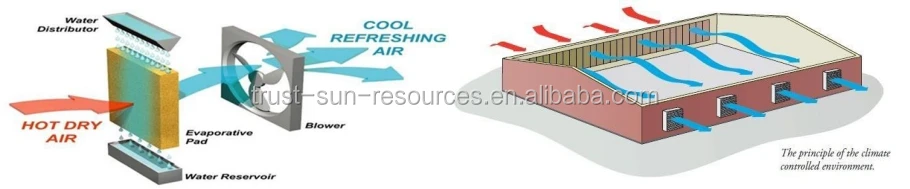

How the Cooling System Works？

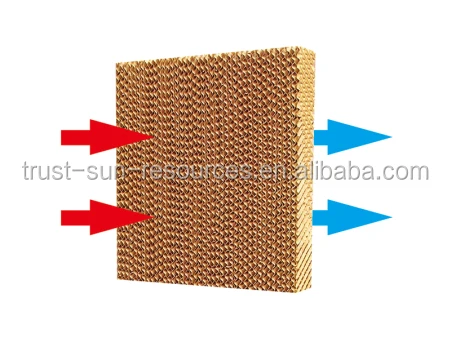

When the temperature of the greenhouse is much higher than the temperature you set beforehand, the exhaust fan will rotate and create a negative pressure in the greenhouse. The outside hot dry air will be pressed into the greenhouse through the wet cooling pad. The water is circulating in the cooling pad driven by the pump. Then the hot air will be transferred into cold air. So the greenhouse temperature will lower down.
Packing & Delivery
We make sure the strongest packing in our factory, the fastest delivery speed and the best quality of our greenhouse product. We can provide 12 months guarantee after the delivery.
Our Service
1. Reliable Design: New Trust Sun has numorous patent rights in greenhouse field and occupy the leading positon of the greenhouse.
2. Strong Technology Team: Professional R&D center guarantee top quality and advanced reliable design for each project.
3. Personal Customization: All the greenhouse design is made according to customers' local climate condition and requirements.
4. Good after-service: New Trust Sun could send engineer go abroad for correct installation, horticultural service and other service for you.
5. Quality warranty: If any parts or structure has some probelm within warranty period,we will maintain or change free of charge.
Our Company
New Trust-Sun (NTS) located in QingZhou, Shandong province in China is a comprehensive trading company, wholly owned by Aquatic Group. With many years' experience in the industry of Amphibious Excavator, Loaders, Mining Equipment and Green Houses, we can provide the customized solution according to customers' demand. Professional team, high quality product, excellent after-sale service, and innovative R&D is the key to the continuous development and innovation. The amphibious excavator with the feature of flexibility, reliability, durability can easily complete many dredging works in swamp, shallow water ,channel, which the crawler excavator can not make it. Mining machinery like concentrator, sluice, trammel...... is welcomed by our customers by its advantage of high recovery rate, reliable performance, low maintenance cost. The greenhouse is specially designed for the growth of the agriculture plants. The high warm-keeping ability and rational structure can earn great profit for customers.
We insist on business philosophy "Professional, Integrity, Customer First", provide top class products and services. Focuses on customer demand, takes technical innovation as drive, relies on quality assurance system, NTS keeps technology and services leading among peers.
Recommend Products
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-30 days after order.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How to install the greenhouse? Do you provide installation service?
A:We will provide paper or video building manual, or if needed we will send engineer to do installation guidance.
Q: What preparations I should be before installation.
A:First finish the greenhouse building authorization from the government if required.
Second prepare the tools as per the tool list we send to you.
Third prepare the workers.
Forth prepare the po wer supply if needed.
Fifth prepare one place that can store the greenhouse materials after arrival to protect it from rain if needed.
