Product Overview

Description

sanitary product or bathroom products cut by laser cutting robot



 There are various irregular shape materials for processing automotive sheet metal, 3d kitchen ware and sports equipment. General fiber laser cutting machine can not achieve the precise processing of irregular materials,but robot can, and 3D laser cutting robot can do it perfectly.



the laser cutting robot main parts are robot and laser device. we main use FANUC robot and IPG device, and Chinese famous device.

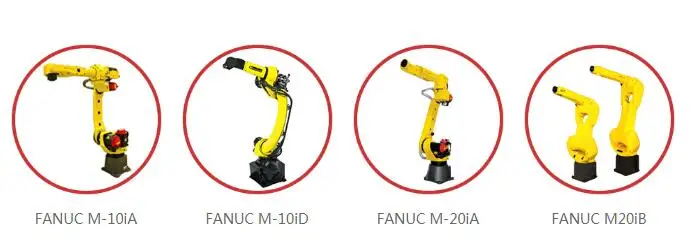

the robot models as following:



Most time, the thinkness of 3D cutting parts are not big, so the power of laser device is bellow 3KW. Our customers main pay attention to the data as the following:



Model	Arm Length	Load	Repeated positioning accuracy	Actual cut thickness
M10iA	1420mm	12kg	±0.04mm	±0.15mm(good)
M10iD	1441mm	12kg	±0.02mm	±0.1mm(best)
M20iA	1811mm	20kg	±0.04mm	±0.15mm(good)
M20iB	1853mm	25kg	±0.02mm	±0.1mm(best)







Our products feature:

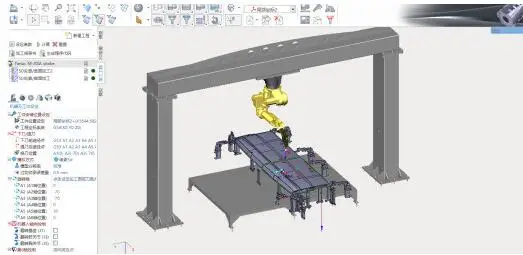

1 high-efficiency  2  Flexible adjustment 3 Multi-work collaboration 4 easy to maintain 5 off-line programming 6 free training









Cutting robots are mainly used in decoration, automotive, advertising, sheet metal, kitchen utensils, lamps and other industries.

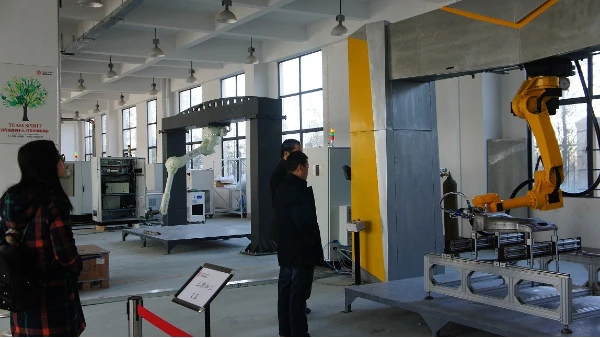

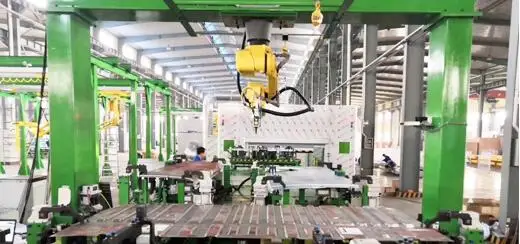

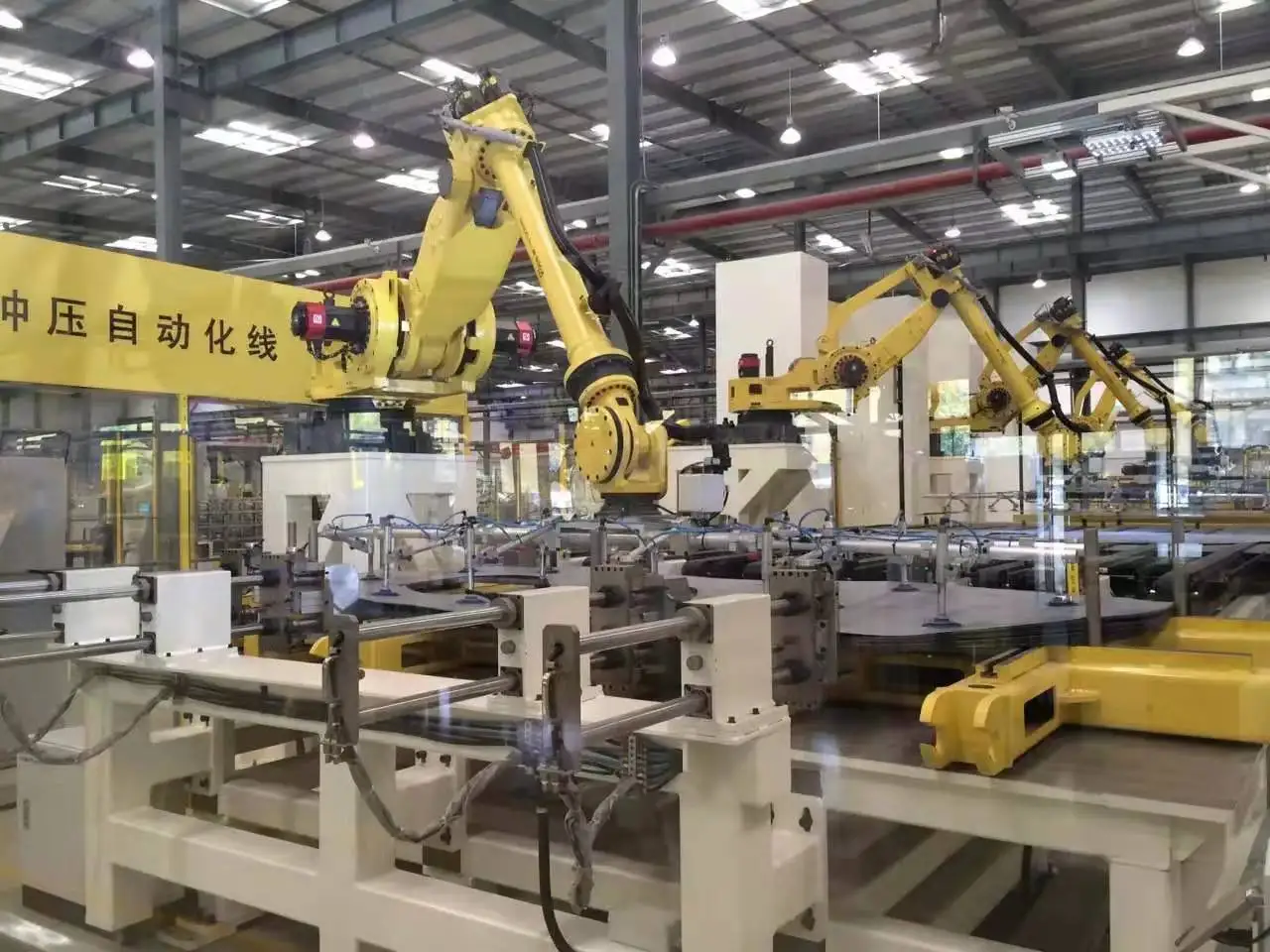

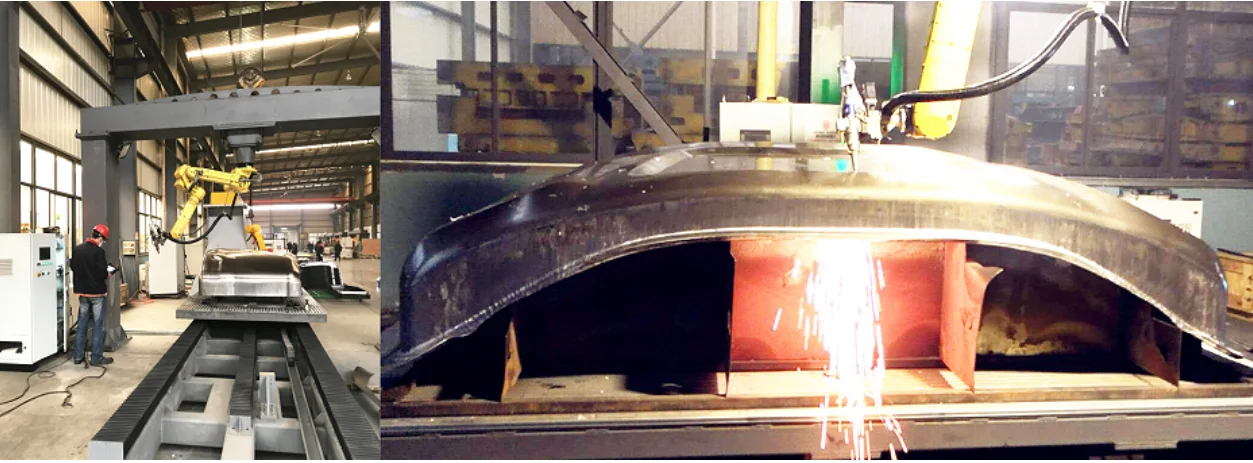

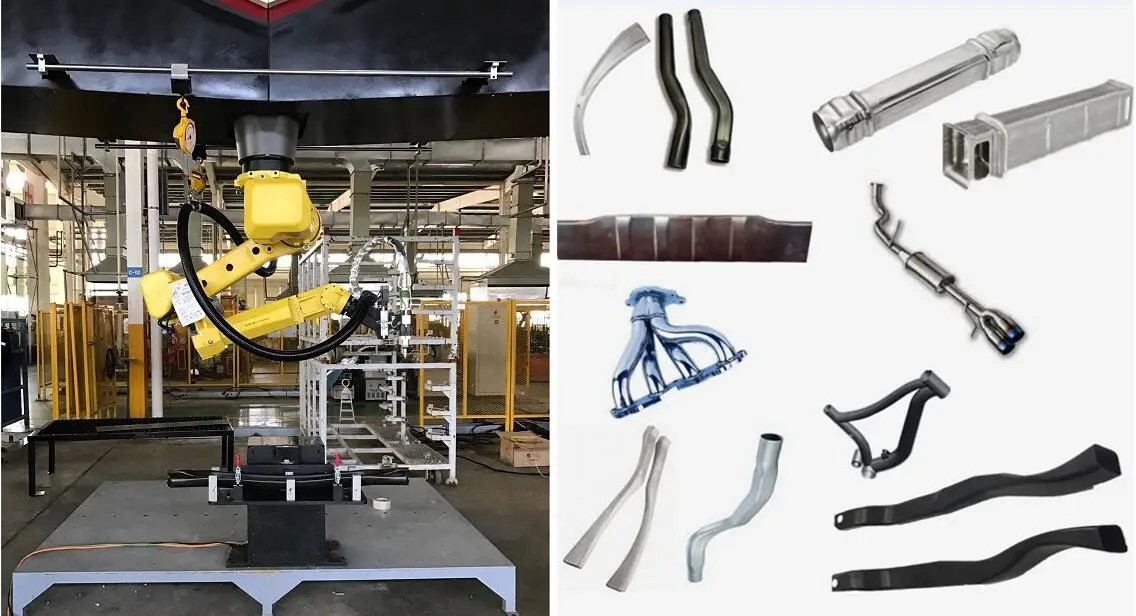

Main case studies:

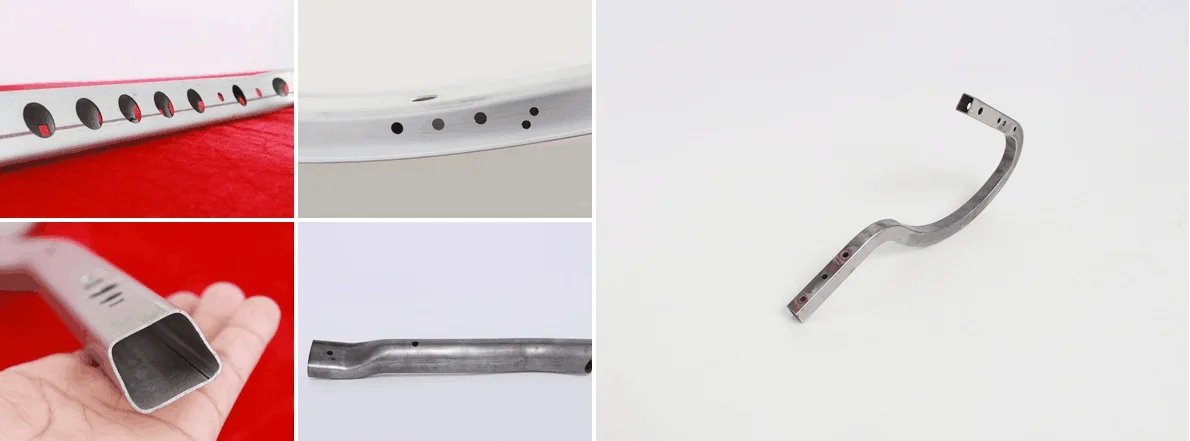

 Cutting parts case:











welome you consult it to us!
