Wastewater evaporators price
US $7800
Best Price West Tune WTRE-50dual 50L Dual Condenser Industry Alcohol Vacuum Roto Evap Rotary Evaporator with Motorized lift
- Category: Evaporator >>>
- Supplier: Hangzhou,West,Tune,Trading,Co.,Limited
Share on:
Product Overview
Description

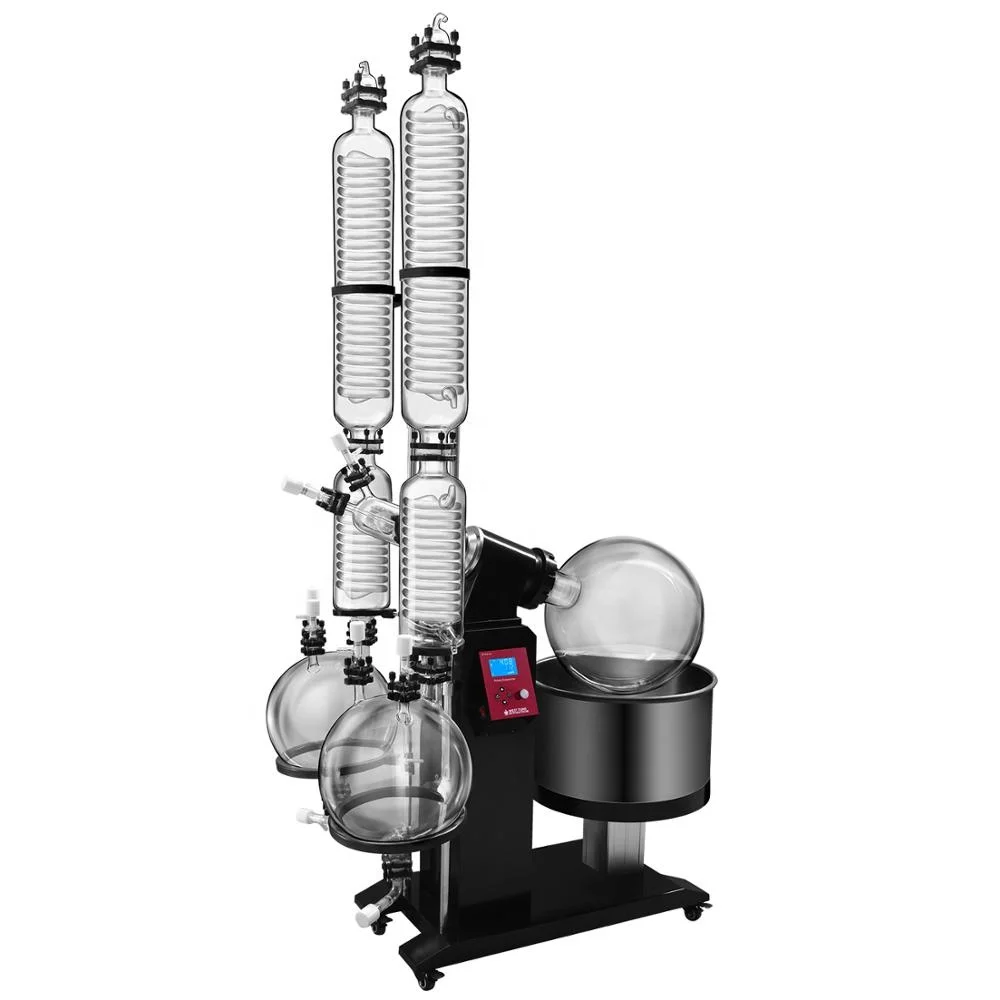

West Tune 13-Gallon/50L WTRE-50dual Rotary Evaporator with Dual Condensers
The new West Tune 50L dual main and dual auxiliary condensers rotary evaporators is designed for double recovery rate in same unit.
A Rotary Evaporator is a device used in extraction laboratories for efficient and gentle distillation of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate “low boiling” solvents such a butane or ethyl alcohol from compounds which are solid at room temperature and pressure.
WTRE-50dual evap is larger model give users the ability to recover larger amounts of solvent.

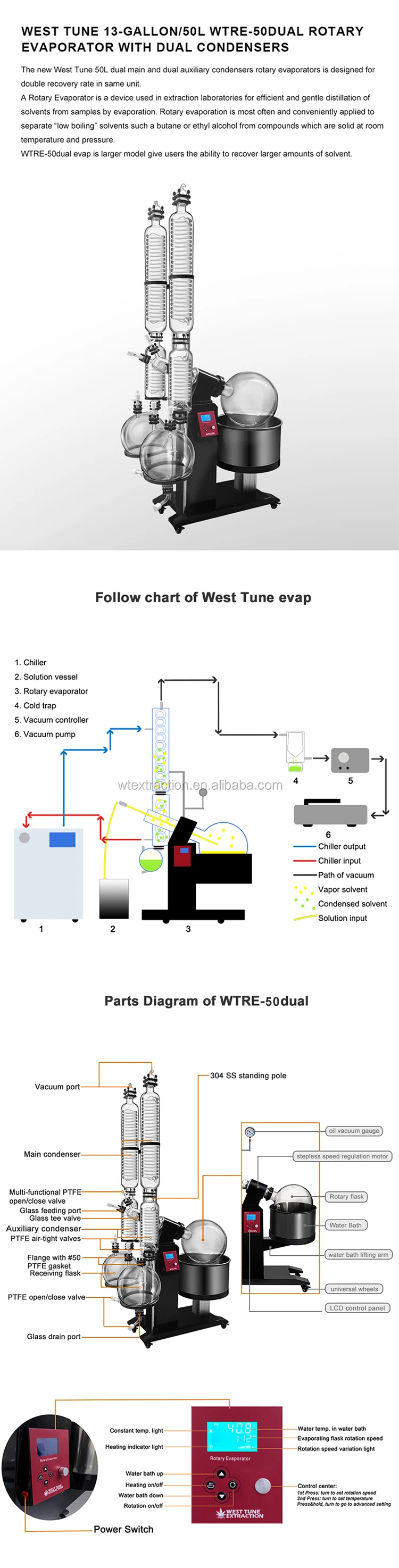

Follow chart of West Tune evap.

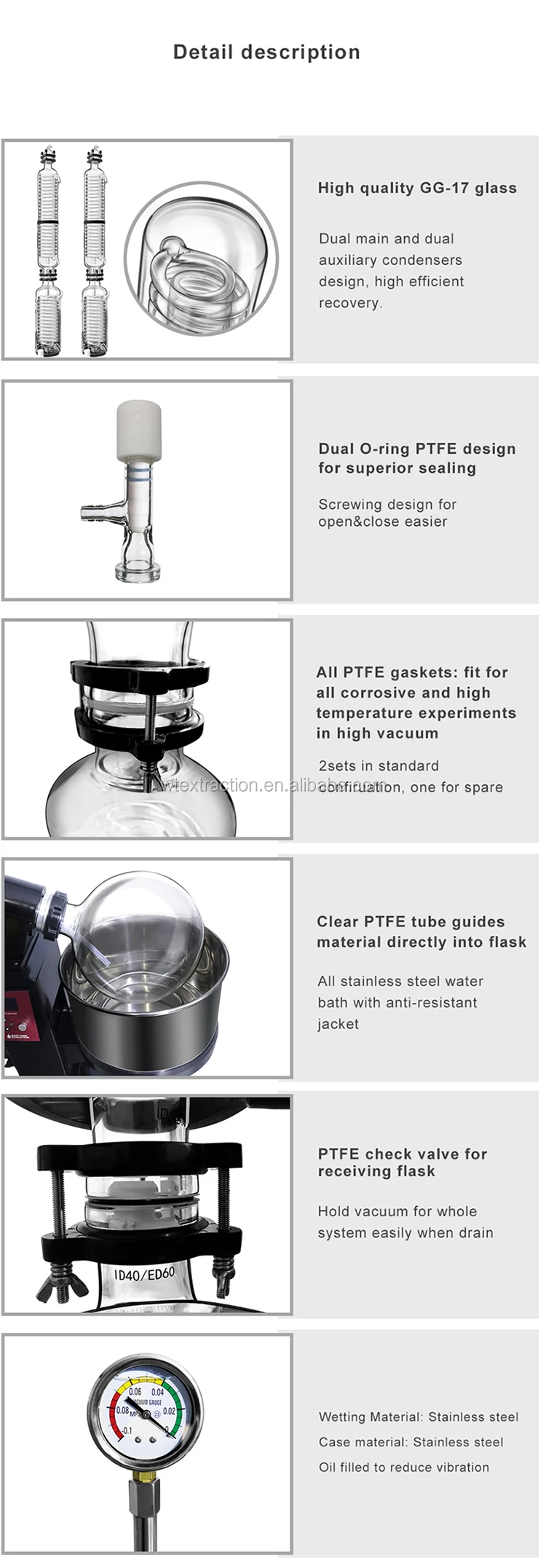

Details Images
Specifications
Model | WTRE-50dual Rotary Evaporator |
Operating Ambient Temperature | 5~35C / 41~95F |
Glass Material | GG-17 High Borosilicate |
Power (V/Hz) | 220V 60Hz Single Phase |
Speed Regulation | Digital Step-less Regulation |
Rotation Speed | 10~110RPM |
Set Temperature | 0-99C / 0-210F |
Temperature Control | Digital Temperature Control |
Maximum Vacuum Pressure | < 3 torrs |
Evaporating Flask Capacity | 50L / 13 gallon |
Receiving Flask Capacity | 20L / 5.3-Gallon *2 |
Condenser Style | Main + Auxiliary Vertical Double Helix *2 |
Evaporation Capacity | Alcohol ≥ 19 L/H |
Recovery rate | Alcohol ≥ 18L/H |
Heater Max Current Draw (Amps) | 29 |
Water Bath Material | 304 Stainless Steel |
Water Bath Size | 21.65 x 12.30'' |
Lifting Function | Electric |
Lifting Stroke | 230mm / 9.0'' |
Total Power Consumption (kW) | 6.3 kW |
Dimensions | (L) 52'' x (W) 30'' x (H) 92'' |
Weight | 220 lbs. |
Vacuum Connection | 0.55” Barb |
Condenser Connection | 0.70” Barb |
Features
All PTFE valves for improved sealing and chemical resistance
Anti-dry heating function
Large LCD display
PID temperature and rotation speed controls
Direct injection capability for continous feeding of your material
Compact wheels design for improved workspace allocation
Receiving flask drain port for easy draining
Mobility with locking casters
Motorized water bath lifting for precise control.
Specialized motor for no classless adjustable speed

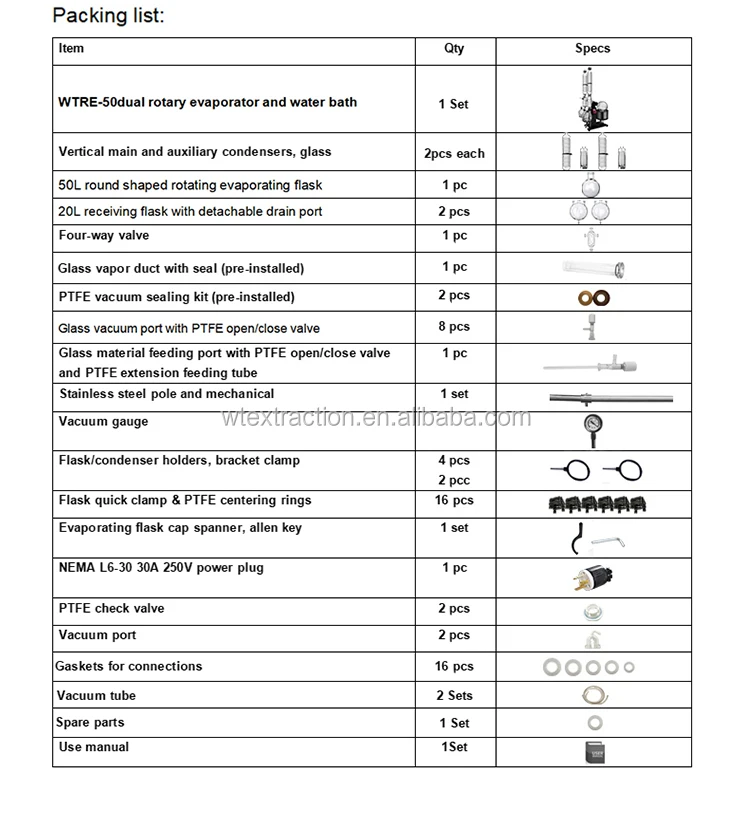

Packing List
Related products
1. 2L/5L Short path turkey:
2L/5L heating mantle+2L/5L glassware with all accessories+WTCH-2006 water chiller+WTVP-11PRO 11CFM high vacuum pump
10L heating mantle+10L glassware with all accessories+WTCH-2006 water chiller+WTVP-21PRO 21CFM high vacuum pump
Rotovap+chiller+vacuum pump: eg: 5L turkey above
2. 10L short path turkey
10L heating mantle+10L glassware with all accessories+WTCH-2006 water chiller+WTVP-21PRO 21CFM high vacuum pump
3. WTMD-04PRO 4inch 1.5~2.0L/h wipe film vacuum short path molecular distillation
Glass type/Stainless steel type
3. WTMD-04PRO 4inch 1.5~2.0L/h wipe film vacuum short path molecular distillation
Fully 304/316 stainless steel wipe film molecular distillation, explosion-proof type
Dual stages 0.5m2 stainless steel wipe film molecular distillation
Dual stages 2m2 stainless steel wipe film molecular distillation
3 stages 2m2 stainless steel wipe film molecular distillation
Rotary evaporator: 1L, 2L, 5L, 10L, 20L, 50L, 100L
Rotovap+chiller+vacuum pump: eg: 5L turkey above
20L/50L rotary evaporator
with dual condensers
100L rotary evaporator
with single condenser---biggest capacity

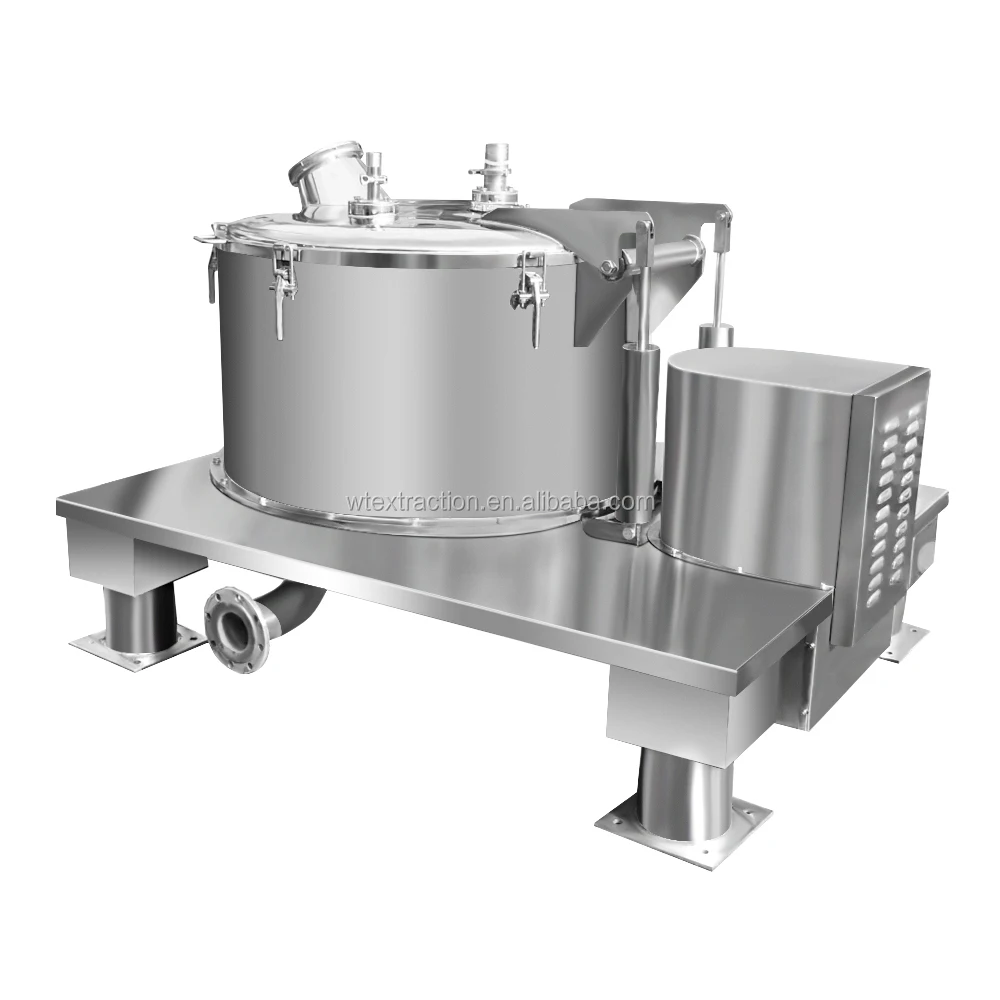

WT800-N/WT600-N Flat Plate Filter Centrifuge are developped for Cannabis products
------PATENT products!!!
1. double layer drum, postive and negative rotate, soaking, washing, seperation ---Like household washing macine
2. Keep low temperature(lowest:-60C alcohol solution)
3. Completely closed design with a large cover structure.
Cover on the top----feeding port, washing port, observing mirror port, lamp port and nitrofen port
4. Advanced explosion-proof
5. PLC control
