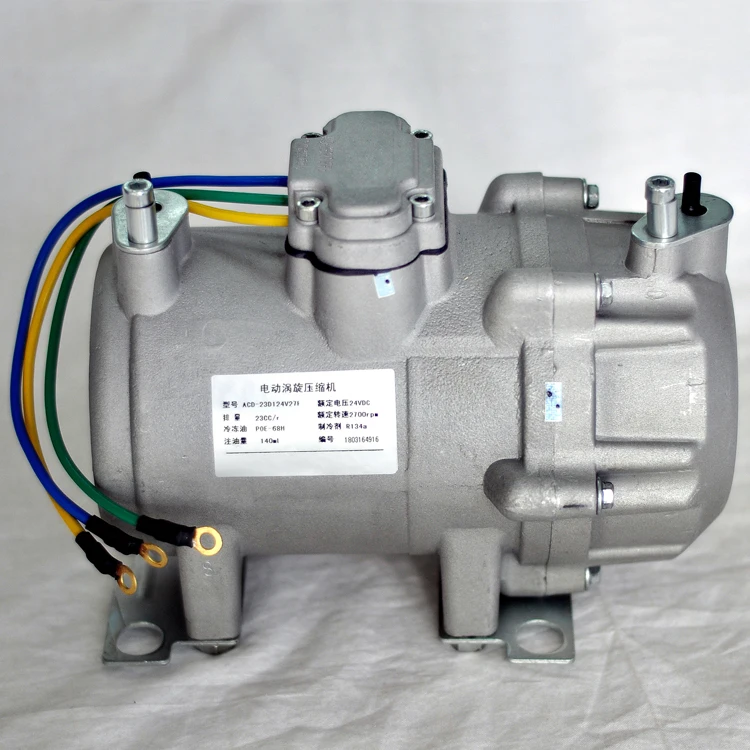

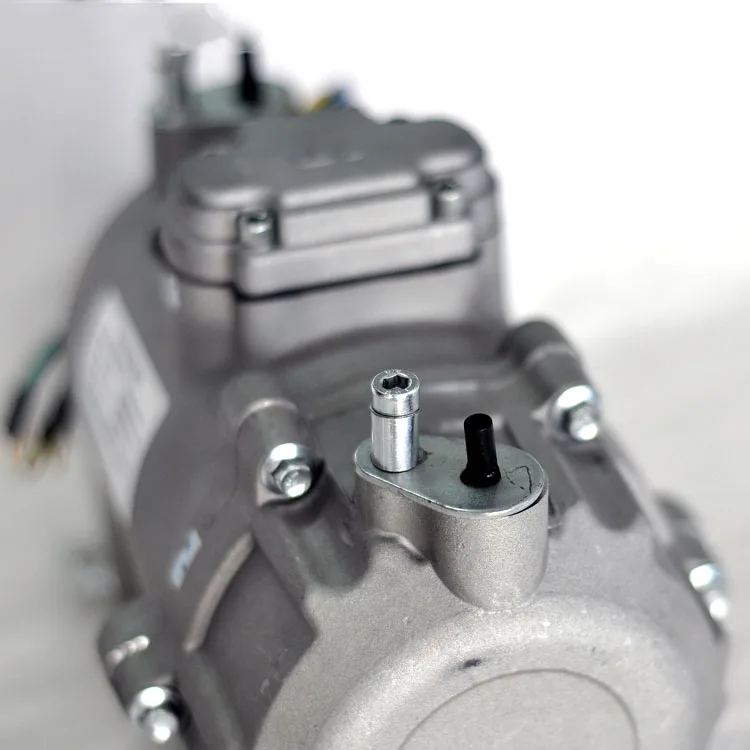

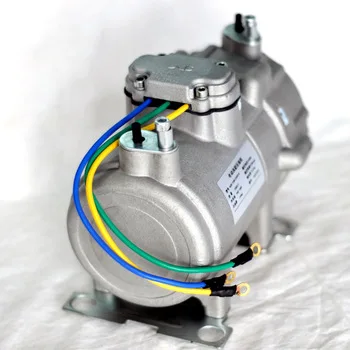

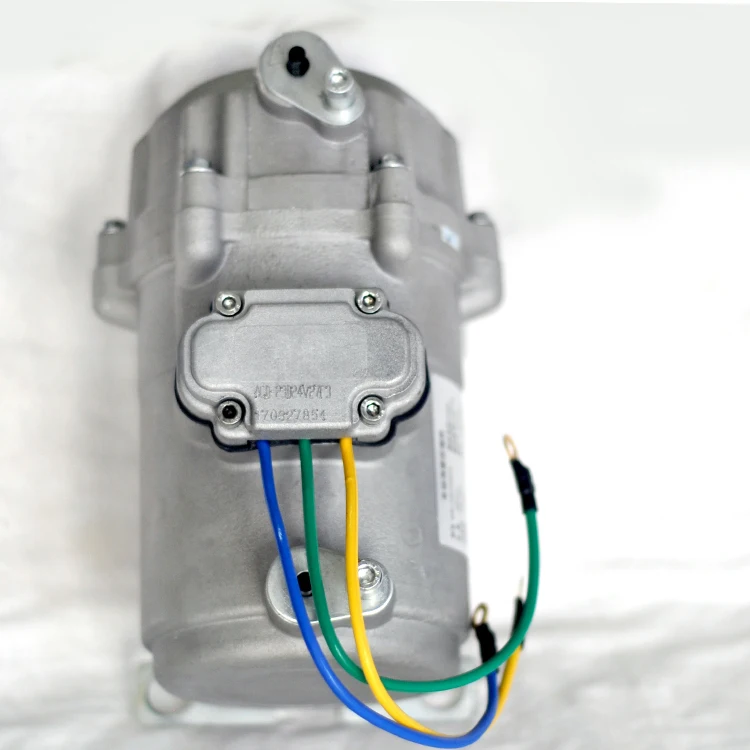

car cooling system 12v 24v dc electric air conditioner compressor car
Main site
Product Description
Items
Basic parameters
Model
ACD-15
ACD-18
ACD-23
ACD-25
ACD-28
ACD-32
Displacement (cc/r)
15
18
23
25
28
32
controller
Split (According to user requirements)
Refrigerant/Lubricant
R134a/RL68H
Rotated Speed Range(r/min)
2000-3600
Starting Time
≤ 30S
Voltage Range(V)
12---580V(DC)
power (W)
600
800
950
1150
1300
1500
Efficiency Ratio(COP)
≥ 2.0
Sealed
10 g/year(y); moisture content ≤1000ppm
Noise
2800(rpm)h; ≤ 70 dB(A)
Protection Grade
Ip65
Insulation Resistance
≥ 500ΜΩ(oil)
Voltage Resistance (V)
Conforms to GB/T22068-2008 standard 5.4.8
Weight(KG)
5-11
01
Inverted Frequency Energy-saving:
Adopting specially designed vortex structure and intelligent industrial control systems, substantially improving Energy Efficiency Ratio (EER, 2.1-2.6cop) of control systems and products. Lower vehicle energy consumption, due to compressor operating power reduced, by intelligently synchronization of running speed and operation temperature.
02
High Volumetric Efficiency:
-No cylinder clearance volume, as no exhalation valves used in vortex air conditioner compressor
-Free air suction into crescent cavity, and completely exhausted. Volumetric efficiency up to 90-98%.
03
Smooth Operation:
- Parallelly running of working cycles with different phases, wave crests and troughs overlapping with each other.
- Minimized work load fluctuation, excellent operating stability, no speed loss.
- The unique eccentric design, enables the compressor to maintain excellent dynamic balance at high speed.
04
Superior Reliability:
- Every spot on dynamic vortex disk orbits in synchronism at minimized radius, which reduces the relative speed between dynamic and static vortex disks, moving parts’ moments of inertia are reduced as well, which fits for the high speed operation.
- Superiorly performing materials and vortex structure guarantee the top operation speed up to 12000rpm, 0.4-0.8m/s low relative speed between dynamic and static vortex disks minimizes the parts wear-out, significantly improves the reliability.
- Less components, minimum parts wear-out, superior reliability, prolonged product lifetime.
05
Low noise, Low Vibration:
- 30-50dB lower noise compared to general models, by removal of exhalation valves, main source of compressor noises caused by reciprocating and mechanical impacts of exhalation valves and pistons are eliminated.
- All motions of moving parts in vortex air conditioner compressor are circular and with minimum radius, inertia force can easily be neutralized, vibration minimized.
Chengdu ReDin Technology Co.,Ltd was founded in 2011, our company is one of the professional auto parts manufacturer integrating R&D, sales and services.
The production base covers an area of 6000 square meters, has own patent, the domestic first-class R&D team, complete testing equipment and reliable product innovation. Professional manufacturing, sales of electric scroll automotive air conditioning compressor and system integration, according to customer requirements and actual needs of the vehicle to provide DC2V-580V voltage platform of various types of electric compressors, products covering passenger cars, commercial vehicles, special vehicles, buses and other models. In the stability, energy saving, environmental protection and energy efficiency ratio has an outstanding performance, favored by customers.Strict implementation of ISO/TS16949 quality system standards, committed to continuous improvement, reduce production costs, excellence. To provide customers with cost-effective high-quality products.
A: Yes, we do. A variety of components and parts can be made and delivered.
Q2: How can I pay? A: You can pay via T/T, L/C, WEST UNION, ESCROW, PAYPAL, etc.
Q3: How can you guarantee the quality? A: One year's warranty. If there exists a quality problem, we promise to replace goods or make refund accordingly.
Q4: If we don’t find what we want on your website, what should we do? A: Please contact us the descriptions and pictures of the products, we will check whether we have them. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q5: Can we buy 1 pc of each item for quality testing?
A:Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
If those above cannot solve your problem, please feel free to contact me at any time!
We are factory, can offer all kinds of auto a/c compressor parts, with high quality and competitive price, welcome inquiry!
