2.Raw material and finial PCB are all fully accord with UL standard
3.Applicable products:

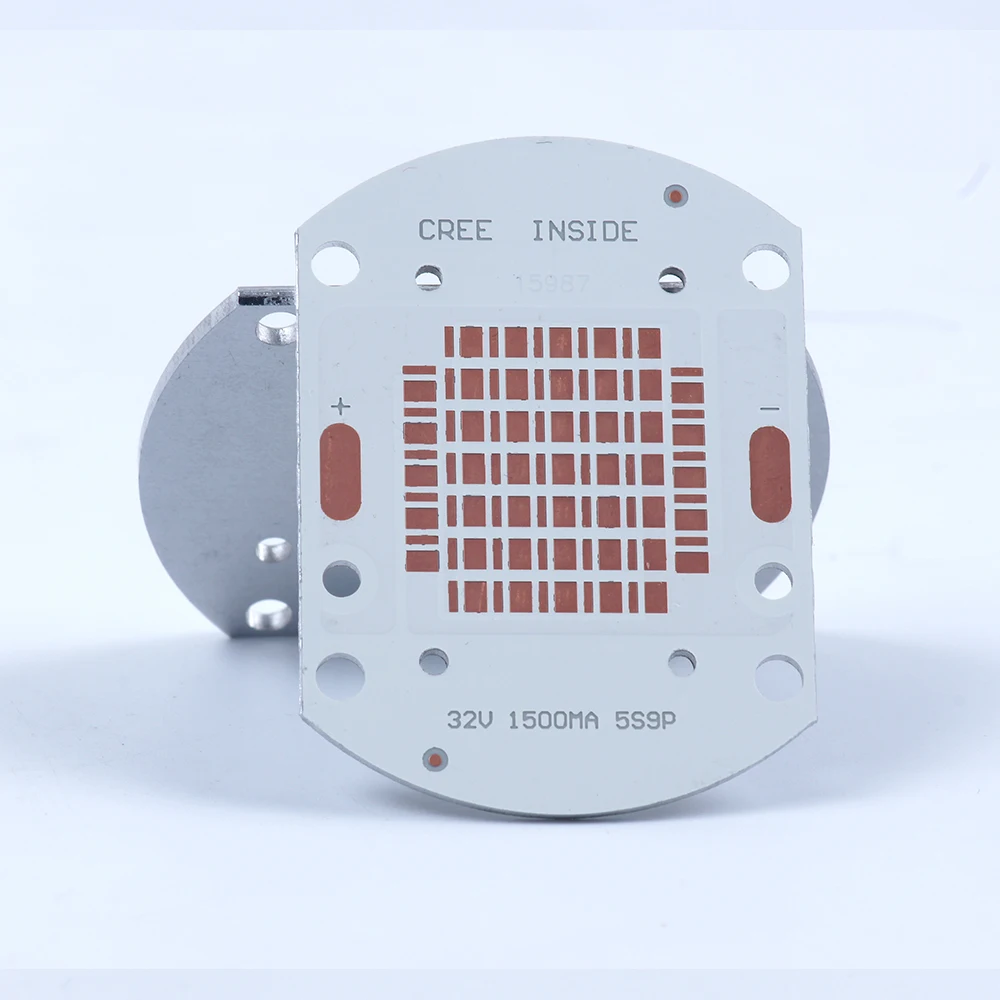

Street lamp,Tunnel lamp,advertisement lamp,high shed lamp,Shooting lamp and other outdoor lighting.
4.Enable to customize PCB and make assembly.
Applications
Production capablity
Technical parameters and process capability of metal substarte(MCPCB)
ITEM
SPECIFICATION
Surface
LF HASL,immersion gold,immersion siliver,OSP
Layer
Single side,double sided Multilayer and special structure
Maximum PCB size
LF HASL,immersion gold,immersion siliver,OSP
PCB thickness
0.4-3.0mm
Copper Foil thickness
H 1/2/3/4(oz)
Insulation layer thickness
50/75/100/125/150/175/200(um)

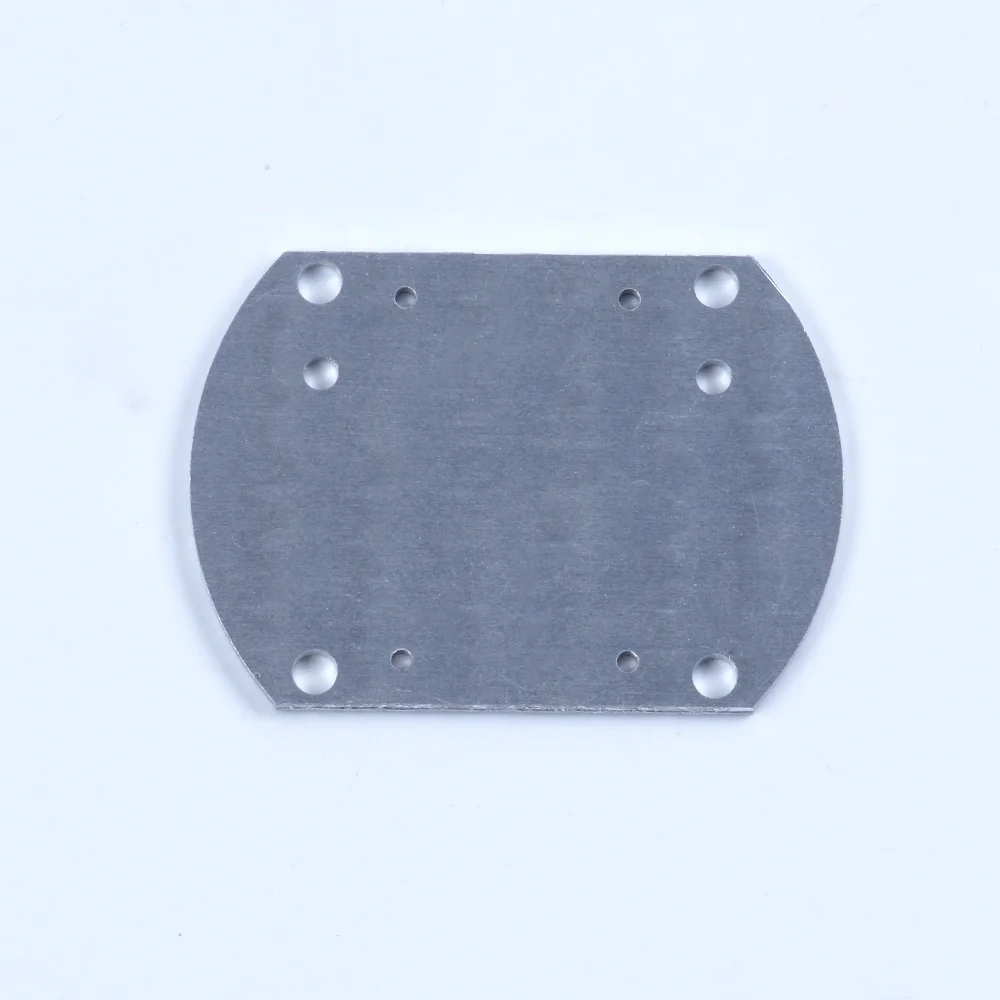

Metal Base thickness
AIuminum(1100/3003/5052/6061),Copper AIuminum
Metal Base thickness
0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm)
Shaping
Die punching/CNC Route/V-Cut
Test
100% open&short test
Shaping tolerance
Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm
Hole tolerance
+-0.5mm
Min.Hole DIameter
Single side 0.5/Double sided PTH0.3MM
Solder mask
green/white/black/red/yellow
Min.letter height
0.8mm
Min.line space
0.15
Min.letter width
0.15
Sile screen color
blue/white/black/red/yellow
Sopecial hole
Spot facing/cup hole/buried via hole/buried tank
File format
Gerber,Protel,PowerPCB,AutoCAD etc
Company Information
Mankun Electronic Co., Ltd. is a high-tech enterprise specializing in researching & producing metal substrates.
We focus on personnel training and absorbing superior techniques. We have an excellent management team. We strictly implement ISO9001 international quality standards to guide the entire company at all levels of management. We built an all-round quality control system to guarantee production quality with strong technical force, advanced production & testing equipment and rich experience.
About us
1.15years manufacturing experince
2.Specialist of PCB Fabrication
3.5000 sqm Workshop
4.10000 sqm capacity per month
5.120 Workers 6.6+ enginners as Tech support
7.get UL Certificates and meet ROHS stand
8.100% Test rate before shipment
9.On-time delivery control
10.Do pcb design and layout
11.join in international LED Lighting exhibition every year
12.Mature PCB technology and proven PCB equipment
Our Service
Why choose us?
We provide one-stop service: (PCB design + PCB production + PCB SMD +LED module+ and range of LED lighting accessories such as lenses, LED beans , power supply, housing etc.)
Packing & Delivery
FAQ
Q: 1. CAN I HAVE A SAMPLE ?
A: YES, WE CAN SEND YOU OUR SAMPLE TO CHECK OUR QUALITY
Q: 2. WHAT IS THE LEAD TIME?
A:SAMPLE NEEDS 1-3 DAYS, MASS PRODUCTION NEEDS 7-10 DAYS, ALSO ACCORDING TO THE ORDER VOLUME.
Q: 3. DO YOU HAVE ANY MOQ LIMIT?
A: OUR MOQ IS 1PCS.
Q: 4. CAN YOU OFFER BEST PRICE TO US?
A: YES, WE ARE A MANUFACTORY , SO WE CAN OFFER LOW PRICE THAN THE TRADING COMPANY.
Q: 5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE ARRIVE?
A: WE USUALLY SHIP BY DHL, UPS, FEDEX OR TNT. IT USUALLY TAKES 3-5 DAYS TO ARRIVE.
Q: 6. WHAT FILE WE SHOULD OFFER?
A: MAKING PCB SHOULD OFFER GERBER FILE (PROTEL ,POWER PCB,PADS FILE), PCBA SHOULD OFFER GERBER FILE AND BOM LIST.
Q: 7. WE WANT TO VISIT YOUR COMPANY?
A: NO PROBLEM, WE ARE A PRODUCTION AND PROCESSING ENTERPRISES, LOOK FORWARD TO YOUR ARRIVAL AND WE WILL LEAD YOU TO VISIT OUR FACTORY AND PROCESSING FACTORY.
