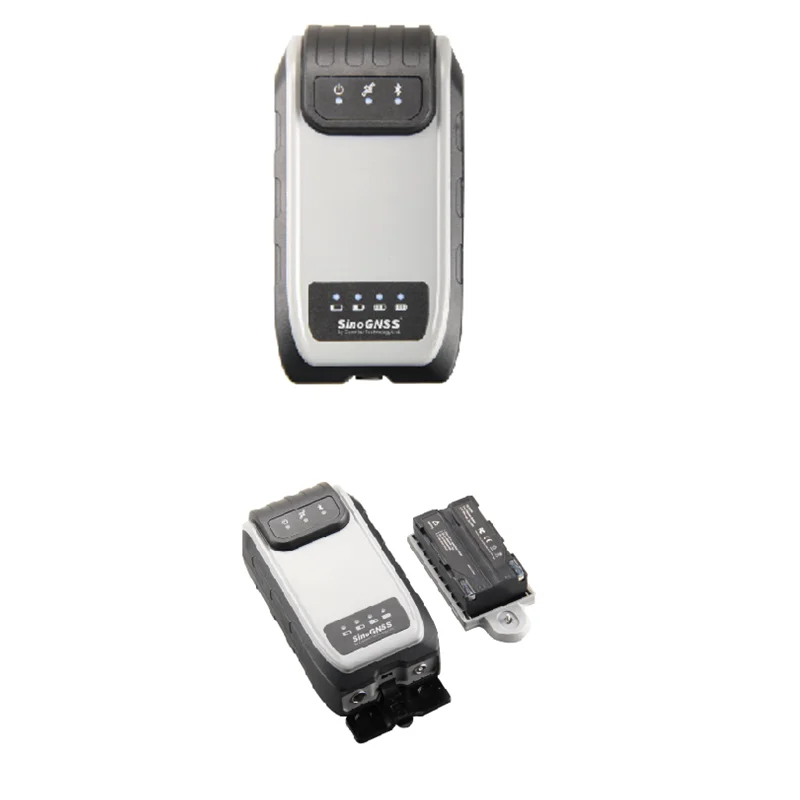

High accuracy data collector GIS comnav G200
- Category: Other Optics Instruments >>>
- Supplier: Suzhou Super Gis Technology Co. Ltd.
Share on (62414805778):
Product Overview
Description
Product Description
Features
GPS L1/L2
BeiDou B1/B2
GLONASS L1/L2
Galileo E1/E5b
QZSS
High-accuracy Positioning Ideal for RTK Solution Compact
Rugged Design Multiple Data Collection Device Choices via Bluetooth Connection
Signal Tracking
* 352 channels
- GPS: L1 C/A, L2C, L2P
- BeiDou: B1, B2
- GLONASS: L1 C/A, L1P, L2 C/A, L2P
- Galileo E1,E5b
- QZSS1
- SBAS: WAAS, EGNOS, MSAS, GAGAN,SDCM
GPS L1/L2
BeiDou B1/B2
GLONASS L1/L2
Galileo E1/E5b
QZSS
High-accuracy Positioning Ideal for RTK Solution Compact
Rugged Design Multiple Data Collection Device Choices via Bluetooth Connection
Signal Tracking
* 352 channels
- GPS: L1 C/A, L2C, L2P
- BeiDou: B1, B2
- GLONASS: L1 C/A, L1P, L2 C/A, L2P
- Galileo E1,E5b
- QZSS1
- SBAS: WAAS, EGNOS, MSAS, GAGAN,SDCM
Performance
Specifications
* Cold start: 99.9%
* Warm start: 99.9%
* Hot start: 99.9%
* Initialization time: 99.9%
* Singal re-acquisition:＜1.5S
Communications
* Bluetooth® 4.0, compatible with AndroidTM and WindowsTM mobile OS
* Support Ntrip protocol (based on software)

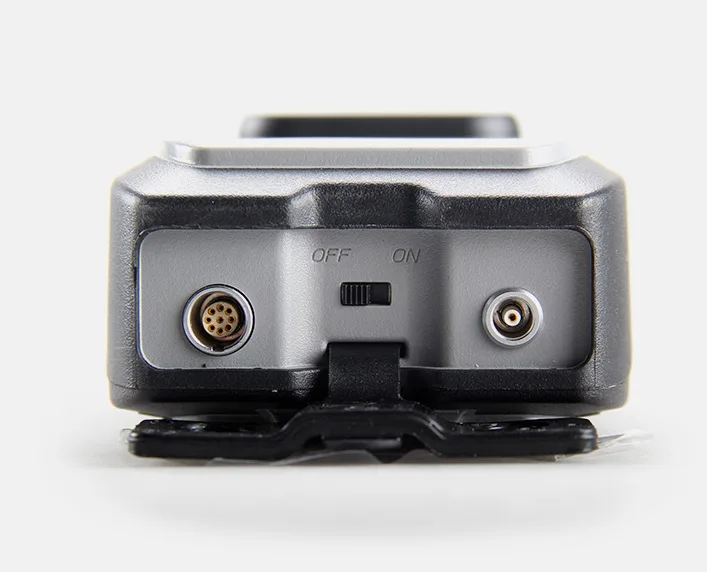

* 1 serial port (9 pin Fischer), 1 Fischer connector
* 3 LEDs (indicating Power, Satellite Tracking and Bluetooth)
Data Format
* Correction data I/O: RTCM 2.X, 3.X, CMR(GPS only), CMR+(GPS only)
* Position data output: - ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, AVR; PTNL, GGK -Extended NMEA-0183 BDGGA, GPNTR, GPCDT, GPHPR - ComNav Binary update to 100 Hz (compatible with major brands)
Physical
* Size(L x W x H): 137 mm × 72 mm × 50.4 mm
* Weight:0.35KG
Environmental
* Operating temperature: -20 °C to +60 °C
* Storage temperature: -30 °C to +70 °C
* Waterproof and dust-proof: IP65
* Shock and vibration: Survive a 1.5m nature drop onto concrete Electrical • Battery capacity: 3400 mAh
* Power consumption: 1.6 W
* Working time: Over 9 h continous work
* Charging time: 2.5 h Accessories
* AT340 GNSS antenna Software
* Compass Receiver Utility software
* Survey Master Software
Specification
Mode | Accuracy |
Static and Fast Static | 2.5 mm + 0.5 ppm Horizontal 5 mm + 0.5 ppm Vertical |
Real Time Kinematic | 8 mm + 1 ppm Horizontal 15 mm + 1 ppm Vertical |
E-RTK (<100 km) | 0.2m + 1 ppm Horizontal 0.4m + 1 ppm Vertical |
DGPS | <0.4 m RMS |
SBAS | 1 m 3D RMS |
Standalone | 1.5 m 3D RMS |
Signal Tracking
* 574 Channels
- GPS: L1 C/A, L2C, L2P, L5
- BeiDou: B1, B2, B3
- BeiDou Global Signal: B1C, B2a2
- GLONASS: L1 C/A, L1P, L2 C/A, L2P
- Galileo: E1, E5a, E5b,AltBOC
- QZSS, IRNSS1 - SBAS: WAAS, EGNOS, MSAS, GAGAN
- L-Band
Performance Specifications
* Cold start: 99.9%
* Warm start: 99.9%
* Hot start: 99.9%
* Initialization time: 99.9%
* Singal re-acquisition:＜1.5S
Communications
* 1 Serial port (7 pin Lemo) Baud rates up to 921,600 bps
* UHF modem3: Tx/Rx with full frequency range from 410-470 MHz4
- Transmit power: 0.5-2 W adjustable
- Range: 1-5 km5
* 4G modem
- 4G Bands: 800/900/1800/2100/2600 MHz
- 3G Bands: 900/2100 MHz
- 2G Bands: 900/1800 MHz
- Support GSM, Point to Point/Points and NTRIP
* Position data output rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
* 5 LEDs (indicating Power, Satellite Tracking, GPRS Status and Differential Data)
* Bluetooth® : V 4.0 protocol, compatible with Windows OS and Android OS
Data Format
* Correction data I/O: - RTCM SC104 Version 2.x, 3.x formats,CMR(GPS only),CMR+(GPS only)
* Position data output: - ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, AVR; PTNL, GGK - ComNav
Binary update to 20 Hz Physical
* Size(W × H): Φ 15.8 cm × 7.5 cm
* Weight: 0.95 kg with two batteries Environmental
* Operating temperature: -40 °C to + 65 °C (-40 °F to 149 °F)
* Storage temperature: -40 °C to + 85 °C (-40 °F to 185 °F)
* Humidity: 100% non-condensing
* Waterproof and dustproof: IP67, protected from temporary immersion to depth of 1 m
* Shock: Designed to survive a 2 m drop onto concrete Electrical and Memory • Input voltage: 5-27 VDC
* Power consumption: 3.1 W6
* Li-ion battery capacity: 2 × 2000 mAh, up to 9 hours typically
* Memory: 8 GB7 Software
* CGSurvey field data collection software
* Survey Master Android-based data collection software
* Carlson SurvCE field data collection software (optional)
* MicroSurvey FieldGenius field data collection software (optional)
* 574 Channels
- GPS: L1 C/A, L2C, L2P, L5
- BeiDou: B1, B2, B3
- BeiDou Global Signal: B1C, B2a2
- GLONASS: L1 C/A, L1P, L2 C/A, L2P
- Galileo: E1, E5a, E5b,AltBOC
- QZSS, IRNSS1 - SBAS: WAAS, EGNOS, MSAS, GAGAN
- L-Band
Performance Specifications
* Cold start: 99.9%
* Warm start: 99.9%
* Hot start: 99.9%
* Initialization time: 99.9%
* Singal re-acquisition:＜1.5S
Communications
* 1 Serial port (7 pin Lemo) Baud rates up to 921,600 bps
* UHF modem3: Tx/Rx with full frequency range from 410-470 MHz4
- Transmit power: 0.5-2 W adjustable
- Range: 1-5 km5
* 4G modem
- 4G Bands: 800/900/1800/2100/2600 MHz
- 3G Bands: 900/2100 MHz
- 2G Bands: 900/1800 MHz
- Support GSM, Point to Point/Points and NTRIP
* Position data output rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
* 5 LEDs (indicating Power, Satellite Tracking, GPRS Status and Differential Data)
* Bluetooth® : V 4.0 protocol, compatible with Windows OS and Android OS
Data Format
* Correction data I/O: - RTCM SC104 Version 2.x, 3.x formats,CMR(GPS only),CMR+(GPS only)
* Position data output: - ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, AVR; PTNL, GGK - ComNav
Binary update to 20 Hz Physical
* Size(W × H): Φ 15.8 cm × 7.5 cm
* Weight: 0.95 kg with two batteries Environmental
* Operating temperature: -40 °C to + 65 °C (-40 °F to 149 °F)
* Storage temperature: -40 °C to + 85 °C (-40 °F to 185 °F)
* Humidity: 100% non-condensing
* Waterproof and dustproof: IP67, protected from temporary immersion to depth of 1 m
* Shock: Designed to survive a 2 m drop onto concrete Electrical and Memory • Input voltage: 5-27 VDC
* Power consumption: 3.1 W6
* Li-ion battery capacity: 2 × 2000 mAh, up to 9 hours typically
* Memory: 8 GB7 Software
* CGSurvey field data collection software
* Survey Master Android-based data collection software
* Carlson SurvCE field data collection software (optional)
* MicroSurvey FieldGenius field data collection software (optional)
