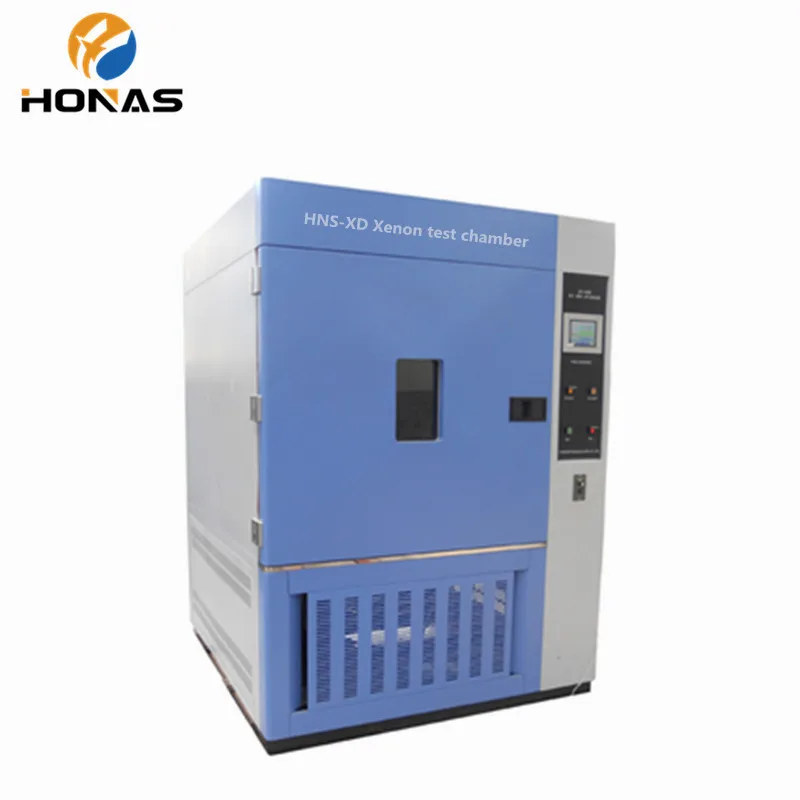

water and air cooling xenon test equipment chamber for rubber aging testing
Product Description

Application :

Xenon arc chamber can be used to select a new material, or to change an existing material or to assess the durability of changed materials product. It can simulate the product under different environmental conditions to see the changes of the exposed material to the sun,


Through aging the sample which to be exposed under the xenon arc lamp light and thermal radiation to evaluate the weather resistance and light resistance. It mainly used in automotive, paints, rubber, plastics, paint, adhesive , fabric and so on

Technical parameter
Model
HNS-XD-100
HNS-XD-150
HNS-XD-225
Inner size(cm)
50*40*50
50*50*60
60*60*75
External size(cm)
110*100*170
110*110*175
120*120*180
Temperature range
RT+10℃-85℃
Humidity range
65%～98%R.H ±3%R.H
Rainfall time
1~999hour ,59min adjustable
Rainfall cycle
1~240min,Interval (off) adjustable
Spectral wavelength
290-800nm
Radioactivity
550W/m2
Xenon total power
7.0kw
9kw
11kw
Accuracy
Setting/ indication accuracy:temperature 0.1℃;humidity ±1%R.H
Resolution
Temperature±0.01℃ ，humidity±0.1%R.H，Light intensity±0.1W/m2
Temperature humidity sensor
Platinum resistance RT100Ω/MV
Blackboard temperature
Bi-metal blackboard thermometer
Material
SUS304 stainless steel
Sample holder materials
SUS304 stainless steel
Lead hole
50mm 1pcs
Door frame insulation
High temperature resistant aging silicone rubber door seal
Standard configuration
Radiation protection glass window 1set,xenon lamp 2pcs
Protection
Leakage, short circuit, over temperature, water shortage, motor overheating, over current protection
Power supply
AC380V±10%，50HZ±0.5HZ
Environment temperature
5℃~+30℃≤85%R.H
Standard
ISO4892, ISO11341, ASTM G115, ASTM D2565, ASTM D4459, ASTM D6695 etc
Detailed Image
