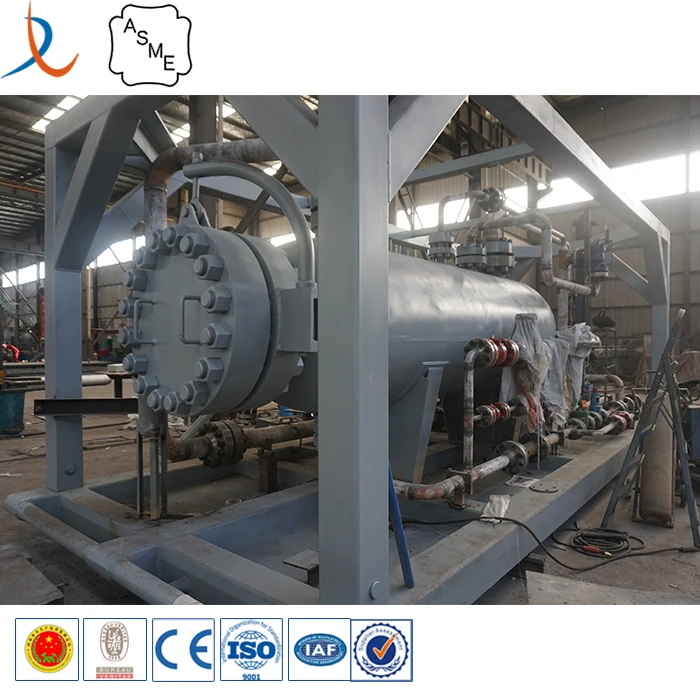

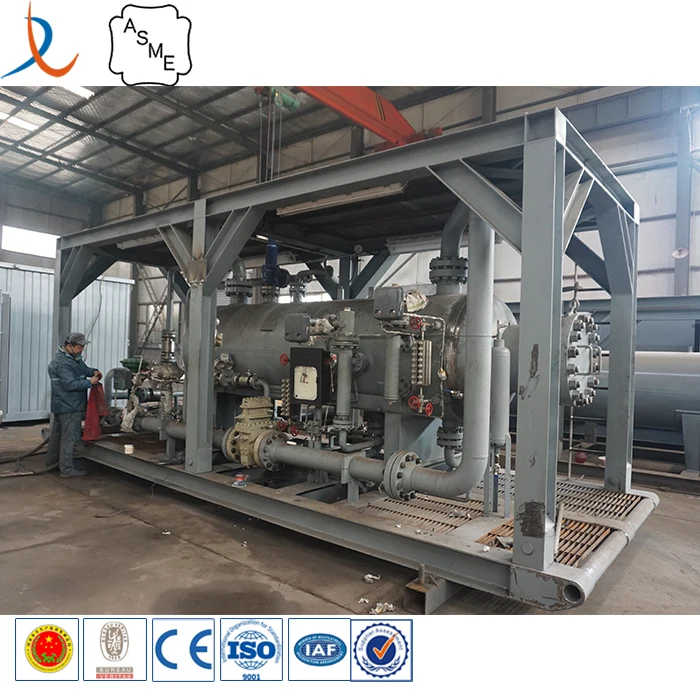

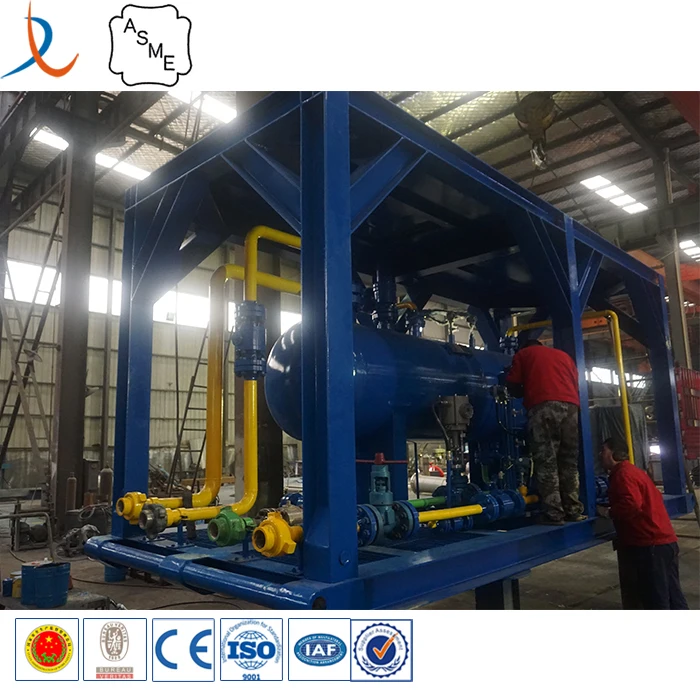

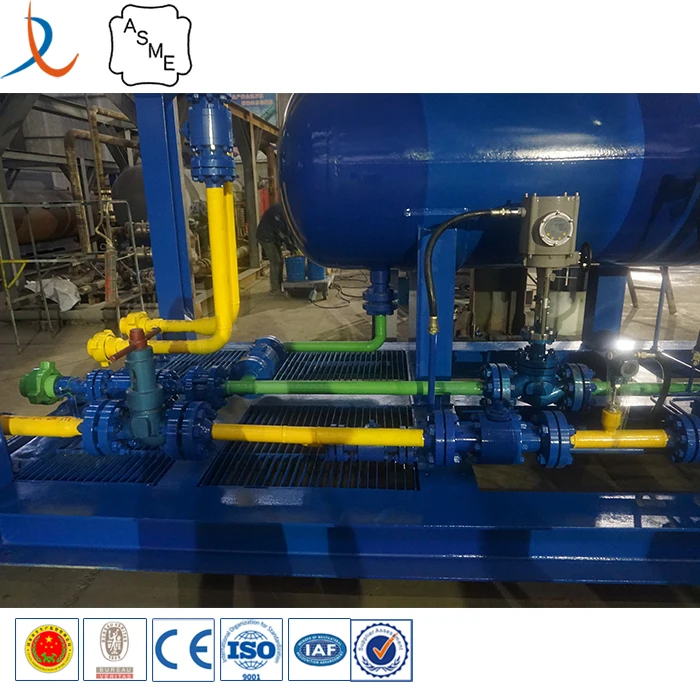

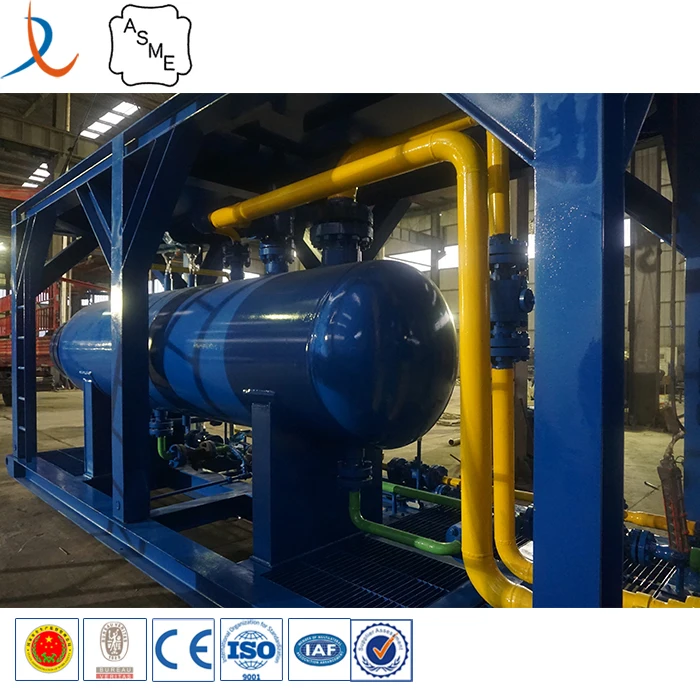

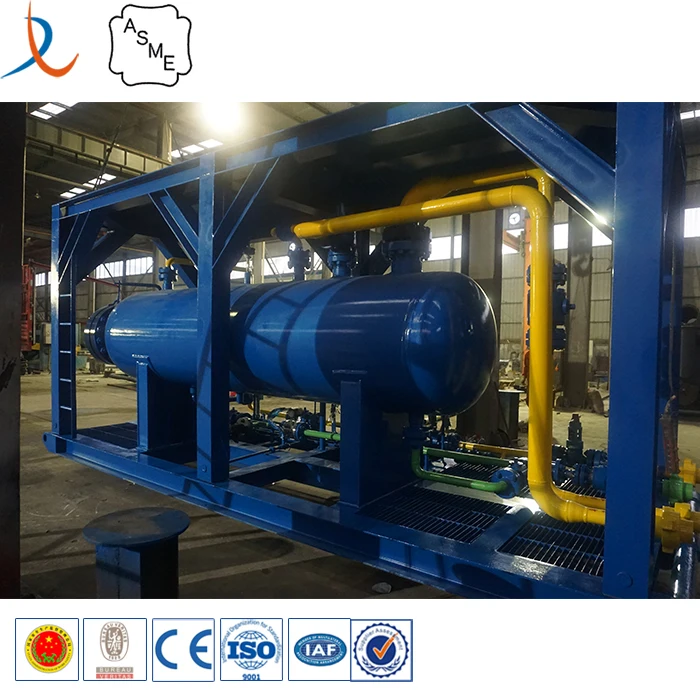

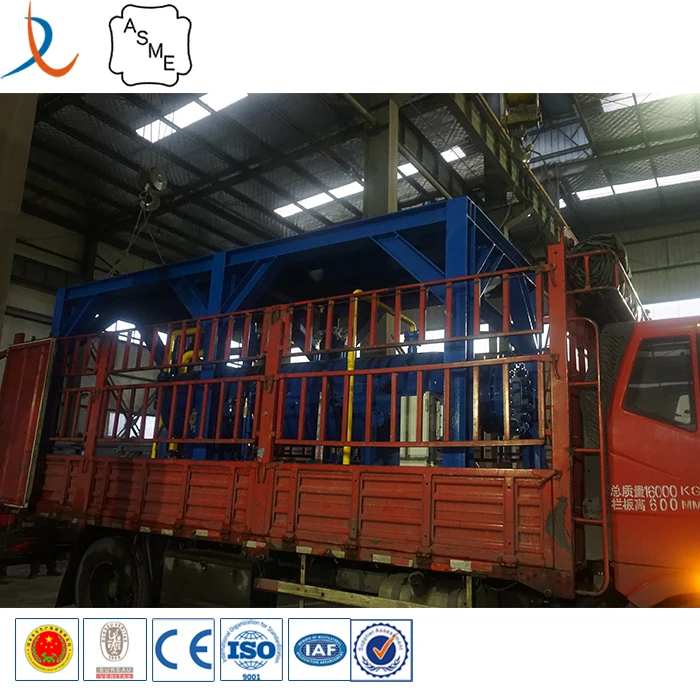

Horizontal oilfield three phase testing separator oil gas water measuring separator

Product Description

Horizontal oilfield three phase testing separator oil gas water measuring separator is a special equipment for oil and gas well testing and gathering pretreatment. oil gas water separator is mainly used for wellhead products of oil-gas-water separation and accurate measurement.

Main parameters of our horizontal oilfield three phase testing separator oil gas water measuring separator as below:

Design pressure			Vessel size		Liquid Capacity	Dimensions (L x W x H)	Dimensions (L x W x H)
psi	bar	MPa	in x foot	cm	BOPD	ft	m
800	55	5.5	34 x 8	86x244	3500	13 x 7 x8.5	4.0 x 2.1 x 2.6
1440	99	10(9.93)	30 x 10	76x305	3500	15 x 6.5 x 8	4.6 x 2.0 x 2.5
			42 x 10	107x305	10000	15 x 7.5 x 9	4.6 x 2.3 x 2.7
			42 x 15	107x457	12000	20 x 7.5 x 9	6.1 x 2.3 x 2.7
			48 x 10	122x305	13000	15 x 8 x 9.5	4.6 x 2.5 x 2.9
			48 x 12	122x366	19000	17 x 8 x9.5	5.2x 2.5 x 2.9
			48 x 15	122x457	19000	20 x 8 x9.5	6.1x 2.5 x 2.9
2160	149	15(14.9)	24 x 10	61x305	1000	15 x 4 x7.5	4.6 x1.2x 2.3
			42 x 15	107x457	12000	20 x 7.5 x 9	6.1x2.3x2.7
			48 x 15	122x457	15000	20 x 8 x 9.5	6.1x2.5x2.9

Technical data of our horizontal oilfield three phase testing separator oil gas water measuring separator:

Well test separator	48"x10ft 1440psi Oilfield well test 3 phase skid mounted horizontal test separator
Nominal Vessel Size	48"x10ft Horizontal
Design Pressure	1440psi @ 122Deg F
Design Temperature	-20 to 250 Deg F
Maximum Working Pressure	1330psi @250 Deg F
Service conditions	H2S/CO2
MAX Liquid rate(High liquid level)	14000BLPD
MAX Gas rate(Low liquid level)	80MMScfd
MAX Gross Mass	25000Kgs
Tare Mass	23000Kgs
Payload	2000Kgs
