BAOFENG UV6R Dual band VHF UHF ham Radio Baofeng High Power Baofeng UV 6R Walkie Talkie
- Category: >>>
- Supplier: Xiamen Rongxiang Rui Electronics Co. Ltd.
Share on (62415230438):
Product Overview
Description
Products Description
Model :Baofeng UV-6R | ||
Specification | ||
Frequency Range | 136-174MHz & 400-480MHz (dual band) | |
Channel No. | 128 | |
Channel Spacing | 2.5/5/6.25/12.5/20/25KHz | |
Voltage | DC7.2V | |
Battery | 2200mAh(Li-Ion) | |
Frequency Stabilization | ±2.5ppm | |
Operating Temperature Range | -20°C~+55°C | |
Antenna Impedance | 50Ω | |
Working Mode | Simplex for same/different channel | |
Dimension(without antenna) | 110 * 58 * 32mm | |
Transmitter | ||
RF Power Output | 5W/1W | |
Modulation Type(Wide/Narrow) | 16KØF3E / 11KØF3E | |
Spurious power | ≤7.5uW | |
Maximum Frequency Deviation | ≤5KHz/≤2.5KHz | |
Adjacent channel power | ≤-65dB/≤-60dB | |
Signal to Noise Ratio(Wide/Narrow) | ≥-45dB/≥-40dB | |
Frequency Deviation | 0.7 ± 0.1KHz/ 0.4 ± 0.1KHz | |
Modulation sensitivity | 8-12mV | |
TX Current | ≤1.4A | |
Receiver | ||
Sensitivity | -122dBm(12dB SINAD) | |
Audio Power | 1W | |
Audio distortion | <10% | |
Intermodulation(Wide/Marrow) | ≥65dB/≥60dB | |
Adjacent channel selectivity(Wide/Narrow) | ≥65dB/≥60dB | |
Clutter rejection | ≥65dB | |
RX Current | ≤380mA | |
Inter modulation Interference Resistance | ≥65dB (W), ≥55dB (N) | |
Adjacent channel Sensitivity (W/N Band) | ≥65dB (W), ≥55dB (N) | |
Audio Distortion | 5 % | |
Receiving Current | ≤ 380m A | |
Features:
Frequency Range: 136-174 / 400-519.995 MHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
Different LED Background colors
Output Power: 5 /1Watts
128 Channels 50 CTCSS and 104 DCS
Built-in VOX Function
1750Hz Brust Tone
FM Radio (65.0MHz-108.0MHz)
LED Flashlight
Large LCD Display
Hight /Low RF Power Switchable
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Auto Lock
Monitor Channel
Channel Step: 2.5/5/6.25/10/12.5/25KHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
Different LED Background colors
Output Power: 5 /1Watts
128 Channels 50 CTCSS and 104 DCS
Built-in VOX Function
1750Hz Brust Tone
FM Radio (65.0MHz-108.0MHz)
LED Flashlight
Large LCD Display
Hight /Low RF Power Switchable
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Auto Lock
Monitor Channel
Channel Step: 2.5/5/6.25/10/12.5/25KHz

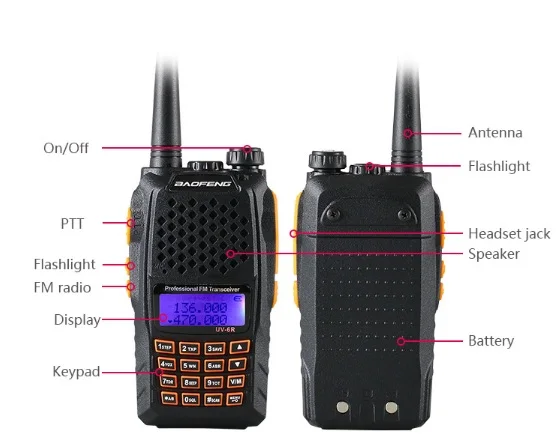

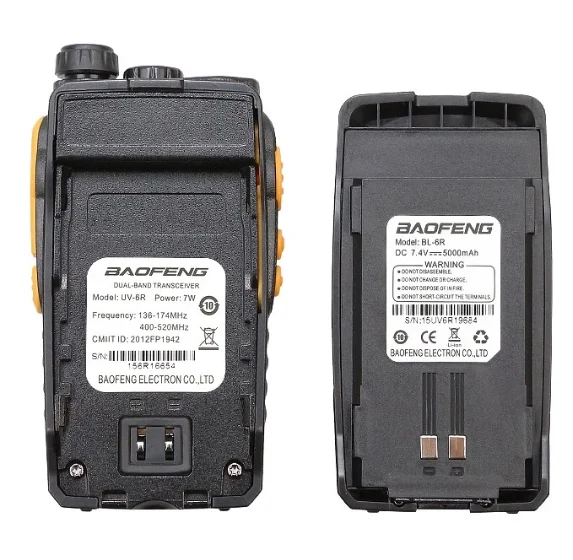

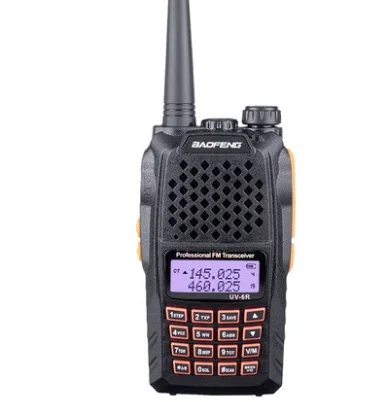

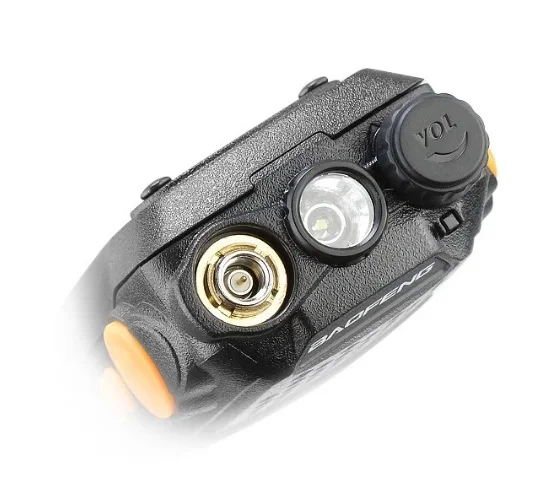

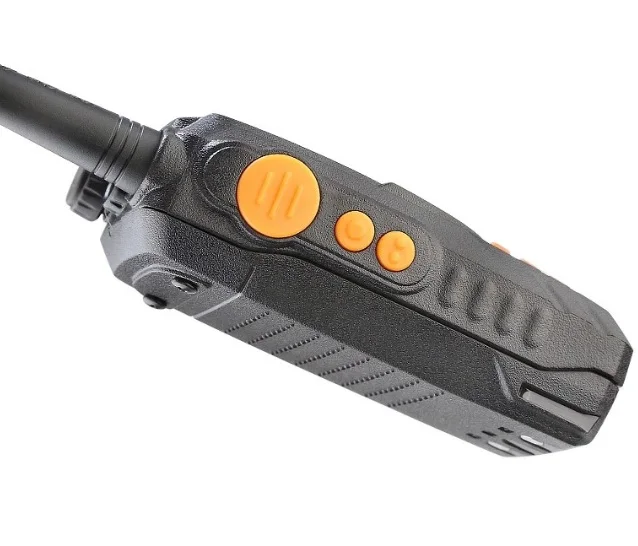

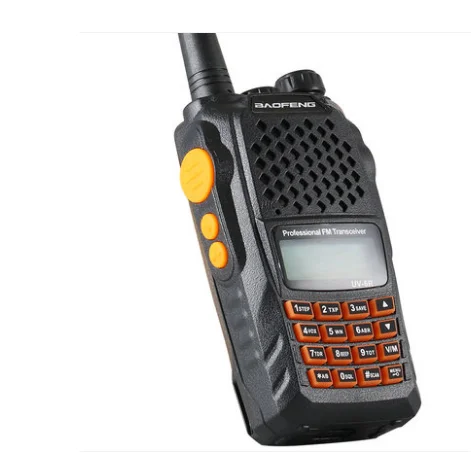

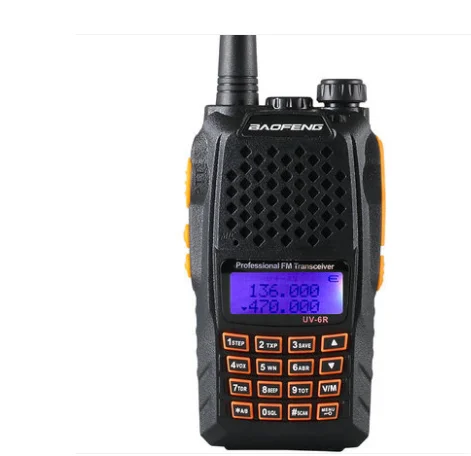

Details Images
Usage
characteristic
With flashlight, good sound quality, good appearance
Usage scenarios
With flashlight, good sound quality, good appearance
Usage scenarios
KTV, hotel, wedding, construction site, security, parking lot, company, etc
