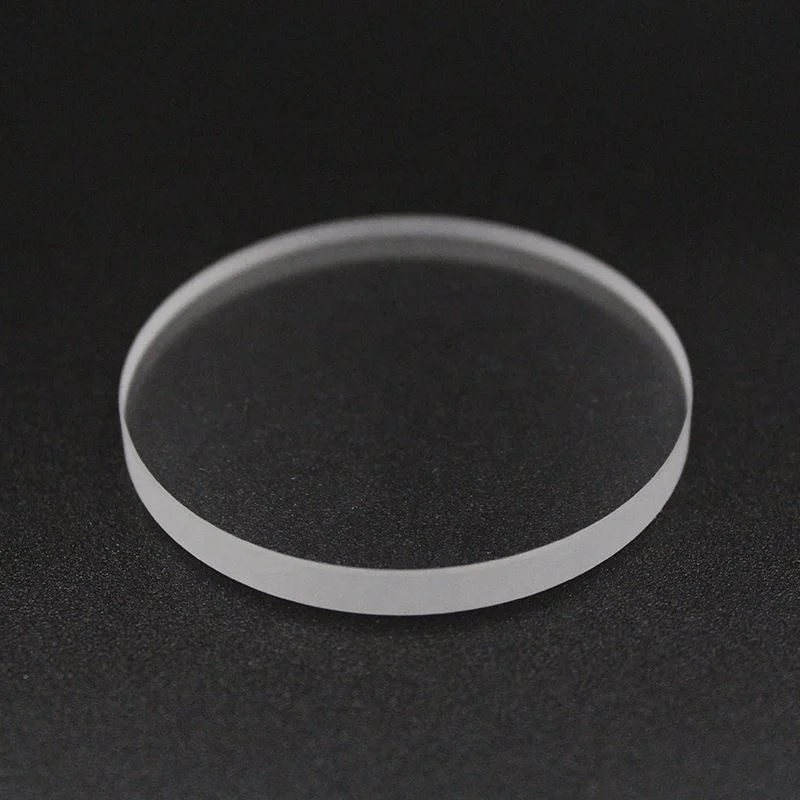

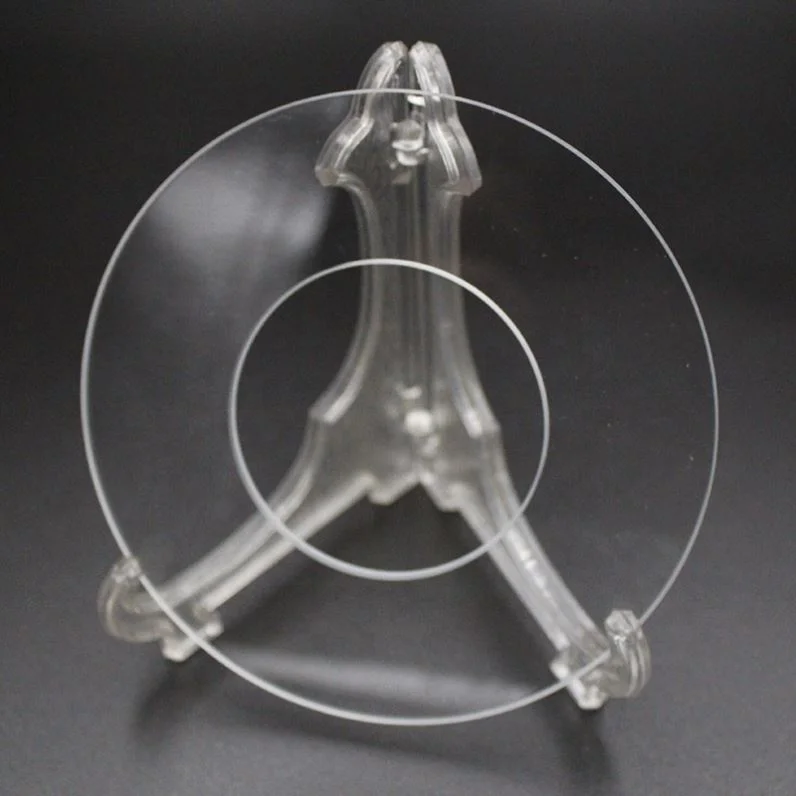

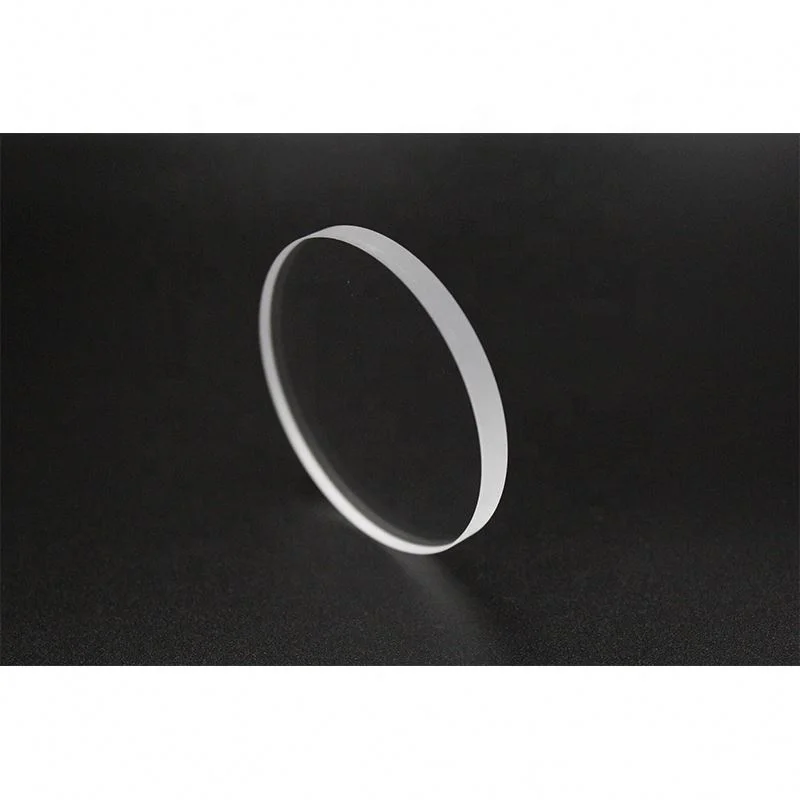

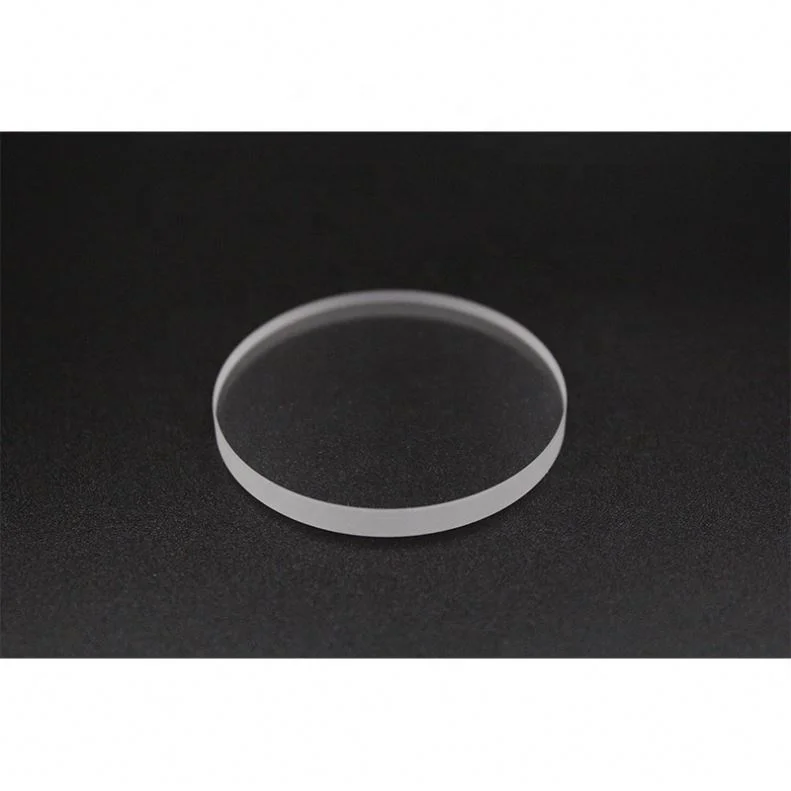

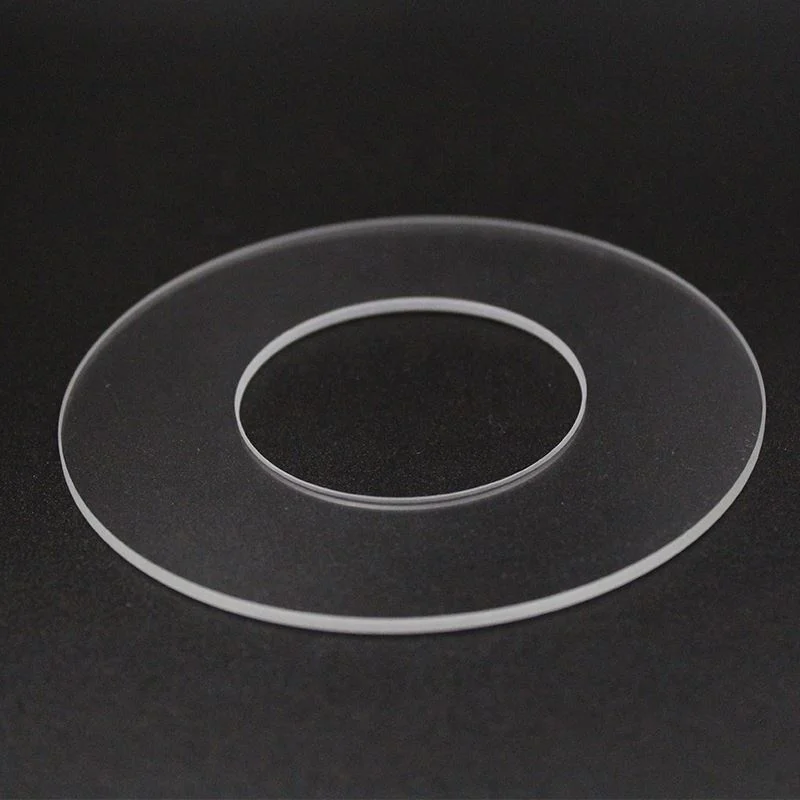

Clear sight quartz glass disc with holes for block
- Category: Quartz Plate >>>
- Supplier: Nantong Yinxing Optical Products Co. Ltd.
Share on (62415348493):
Product Overview
Description
Clear sight quartz glass disc with holes for block
Type | Technical | transmittance |
JGS1 | UV range highly pass | T>90% @200nm |
JGS2 | Highly pass in visible and NIR range | T>92%@280-2500nm |
JGS3 | IR range highly pass | T>80% @2700nm |
JGS1 Spectrum curve.
The JGS1 quartz glass is a kind of far ultraviolet quartz glass material.It has best transmission of ultraviolet rays in quartz glass.Extremely high purity of SiO2 which is over 99.9999%.It's also named synthetic quartz,specially used for water purification,ozone generation,chemical processing etc.
This JGS1 quartz glass is a high purity synthetic amorphous silicon dioxide manufactured by flame hydrolysis, which has properties such as high purity, exceptional transmittance, well homogeneity, very low birefringence, no straie, no granular structures, no bubbles, no inclusions, no fluorescence, outstanding laser injury resistant, and also it combines other quartz's thermal, electrical, mechanical and chemical properties. It is very applicable to use in the near-infrared, visible and deep UV spectral range of optical and various high-tech areas.
JGS2 quartz plates & quartz discs
The most popular high purity (SiO2 over 99.99%) quartz glass window is made of material JGS2 in China,this material is made by flame fusing.It is widely used in semiconductor and solar industry,for making optical quartz glass parts such as slides,quartz lens,prism,observation window etc.Another two kind of quartz material is JGS1-far ultraviolet opticla quartz glass and JGS3-infrared optical quartz glass.
Material: JGS2, equivalent to GE214,made by flame fused,small or none tiny gas bubbles,SiO2 over 99.99%,OH content around 120ppm,most common material for optical application,it's chemcial composition as below(only for reference)
Quartz Basic Characteristics:
A. The average thermal expansion coefficient at 0 ~ 1000°C is 5.4 x 10-7/°C
B. Recrystallization temperature: Initial temperature is about 1000°C, while the dirty surface will cool down the recrystallizaion temperature and speed up the recrystallization process
C. Normal operating temperature:
Continuous usage: About 1050°C
Non-continuous usage: About 1250°C
D. Characteristic temperature:
Strain temperature: About 1075°C
Anneal temperature: About 1180°C
Hot processing temperature: About 1700~2100°C
JGS3 quartz plates & quartz discs
The JGS3 quartz material is a kind of infrared optical quartz glass which is good transmission at far infrared range. the transmittance on 2700nm can over than 75%.
JGS2 AR coating
JGS2 without UV range AR coating
JGS2 WITH UV range AR coating. the transmittance can acchive 99.5% in 280nm.
Q1: Are you a factory or trading company ?
A: We are a factory.We have been in optics field for 20 years.
Q2: Where is your factory located ? How can i visit there ?
A:Our factory is located in Haian county,Nantong City ,Jiangsu Province,China ,about 3 hours bus ride from Shanghai . All our clients,from
home or abroad ,are warmly welcome to visit us !
Welcome to visit our factory anytime.
Q3: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
Q4: What's your MOQ?
A: (1) For inventory, the MOQ is 1pcs.
B: (2) For customized products, the MOQ is 10pcs-20pcs.
Q5: Can i get the sample to test before the mass production ?
A:Sure ,we would like to offer the sample for you to test our quality before large order.
Q6: How to pay?
A: T/T, Western Union, Secure payment, Credit card and Trade Assurance payment on Alibaba and etc..
Q7: What's the delivery time?
A: For inventory: the delivery is 2 workdays after you place the order.
B: For customized products: the delivery is 1 or 2 workweeks after you place the order.
