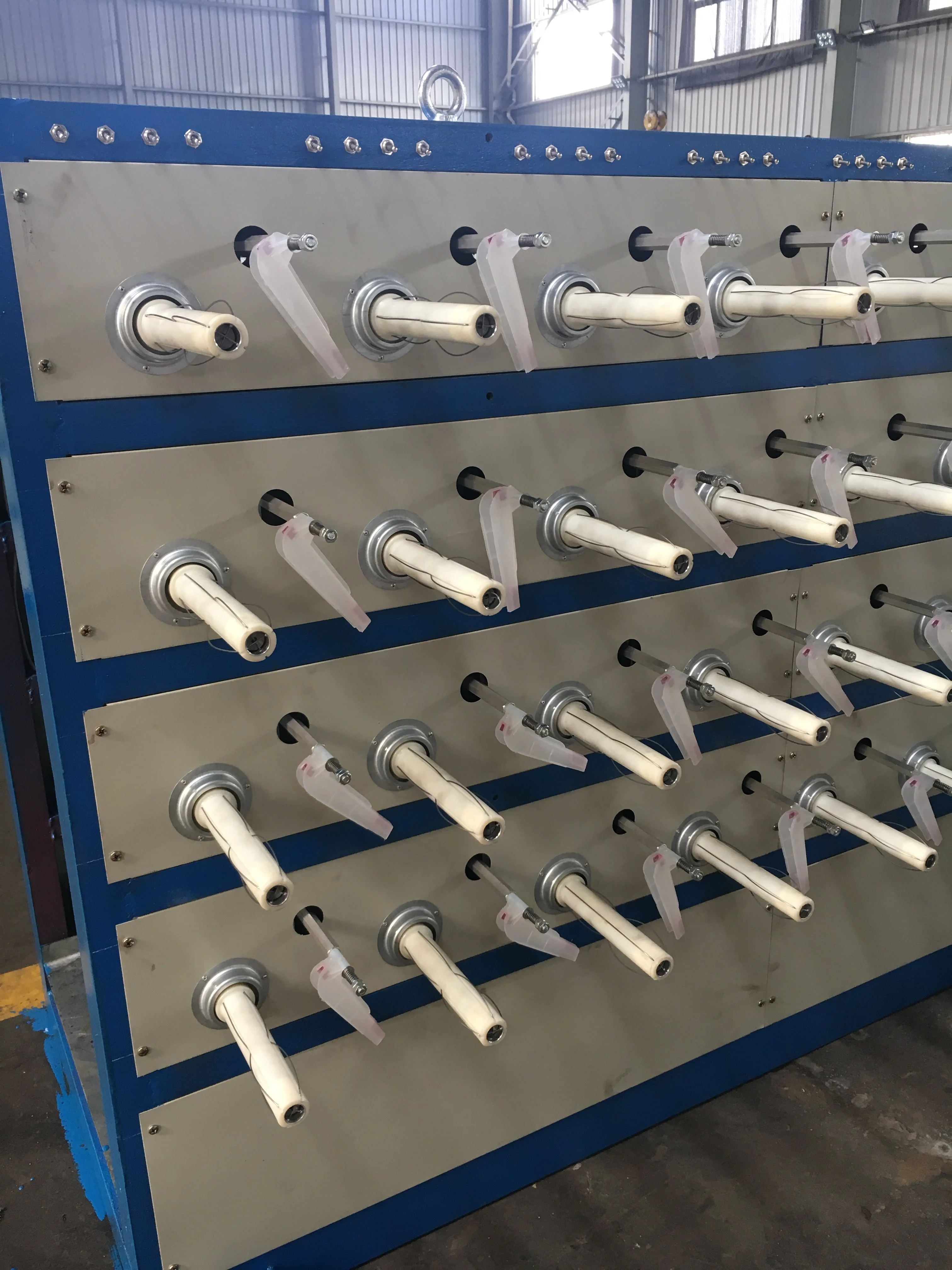

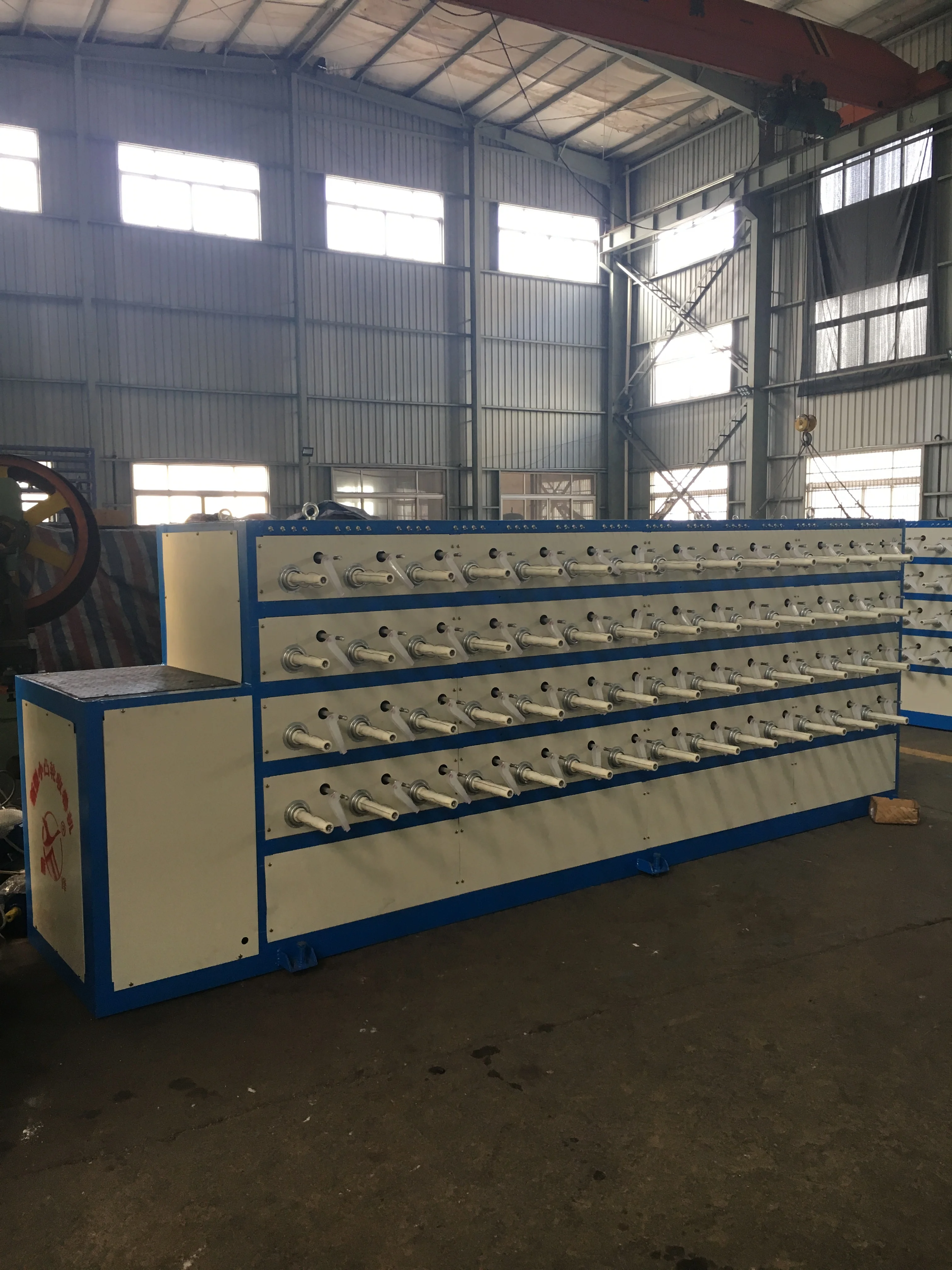

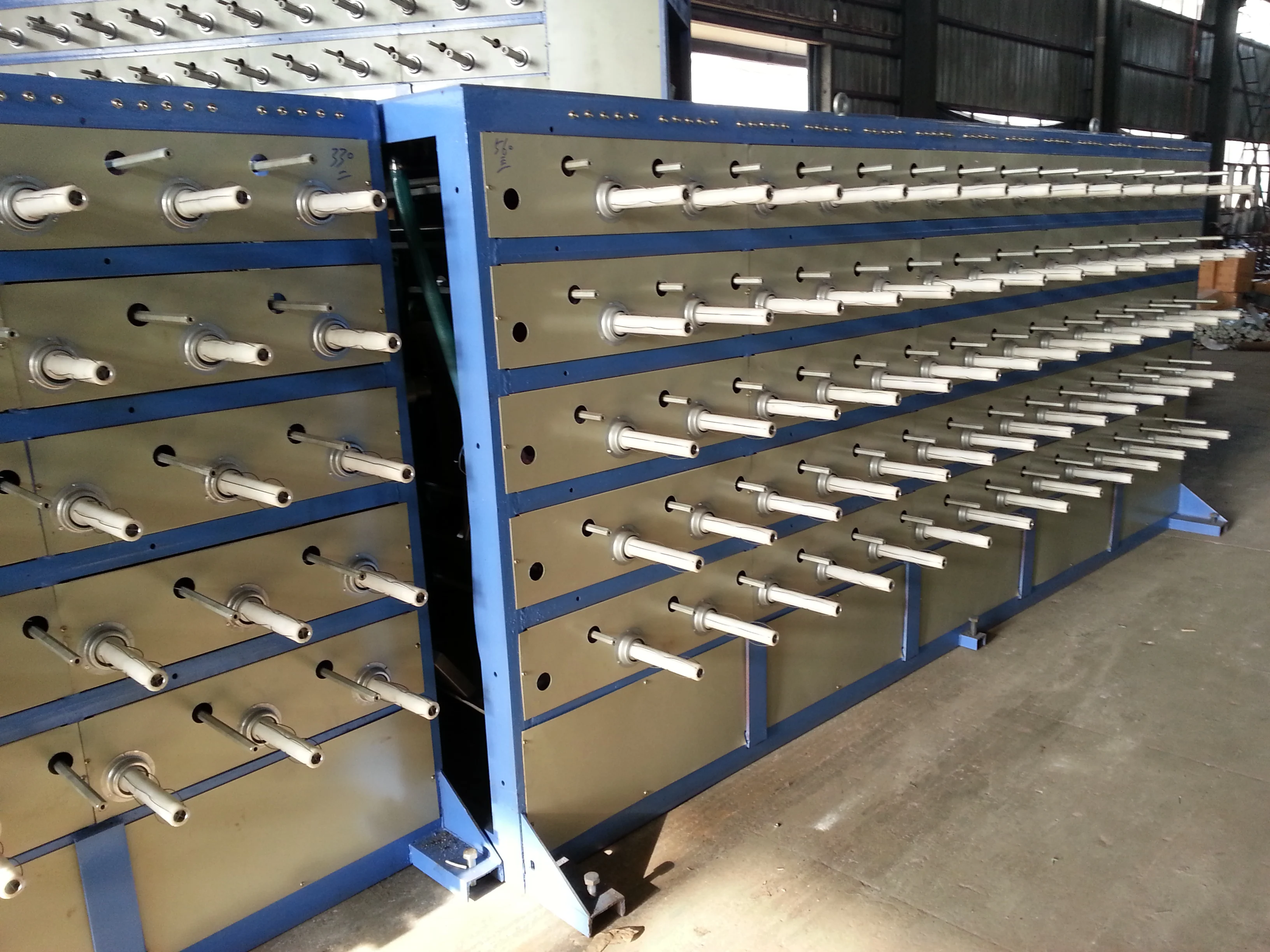

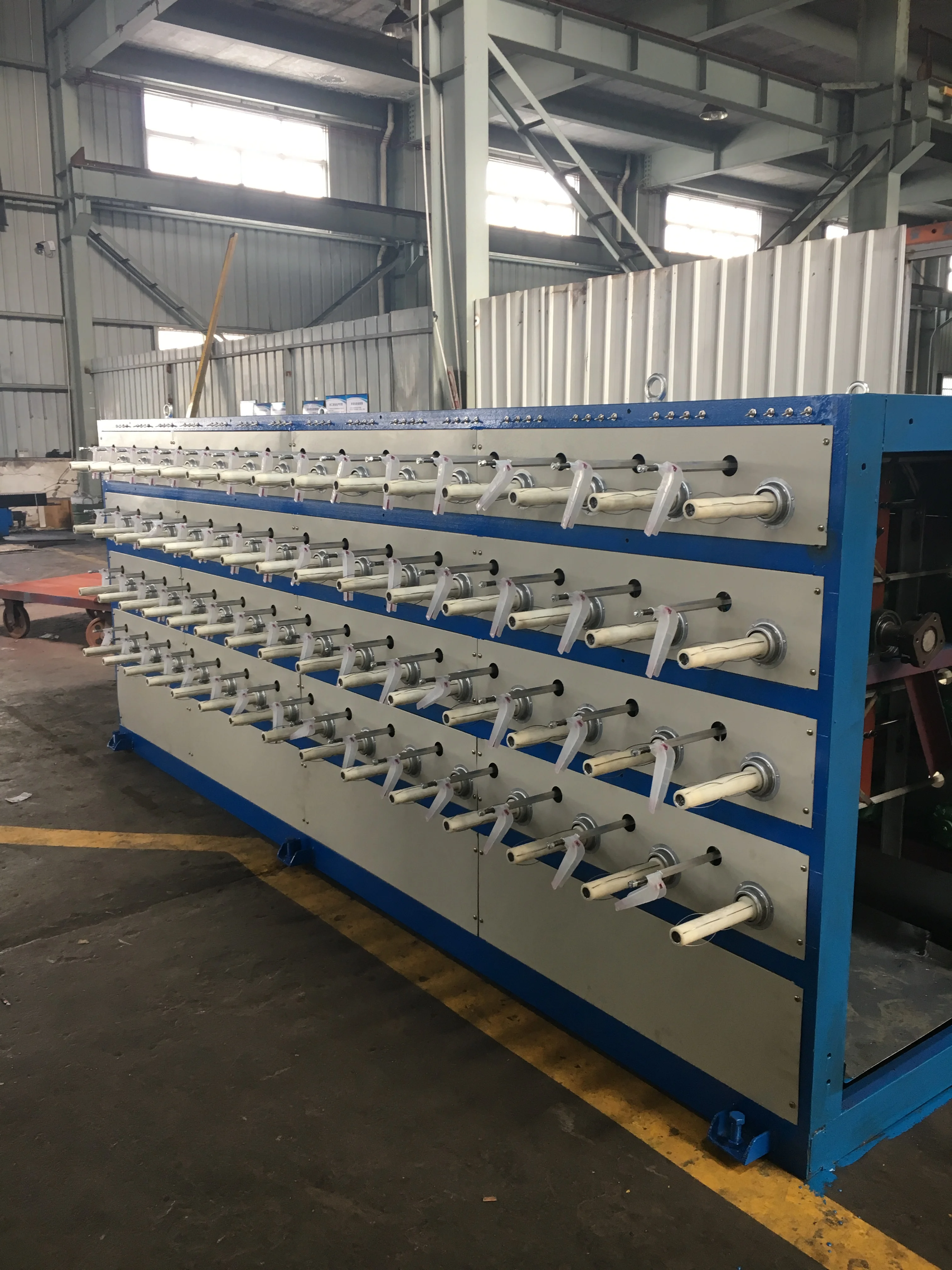

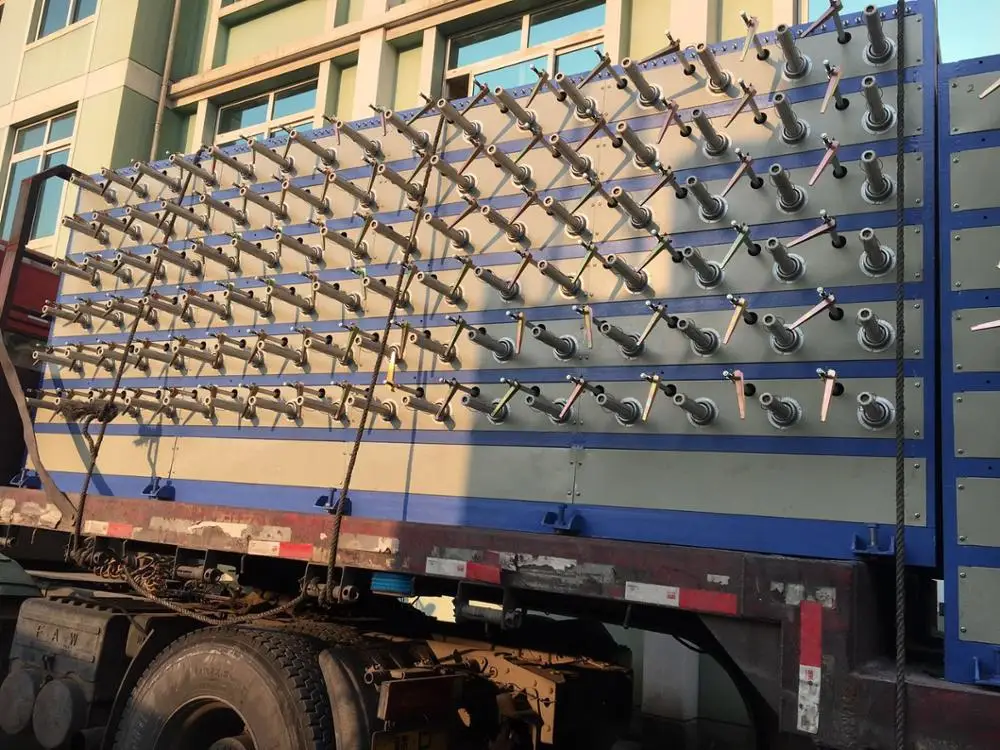

5 Winding layers Cam Type Winding Machine for Winding Plastic Flat Tape Yarn

Product Overview

Description

5 Winding  layers Cam Type Winding Machine for Winding Plastic Flat Tape Yarn

More Information for Cam Type Winding Machine:

1. This machine, with 2.2-4kw main motor only, is our energy-economy invention.
2. It adopts cardioid cam to replace the former reciprocation shaft mechanism of Combination Winding Machine. In this way, the machine can achieve stable movement and flat winding spindle.
3. Its overall length is greatly shortened by adopting 5 winding layers on both sides, which is good for matching with Plastic Tape Drawing Machine.
4. It is a patent device. (Patent No: ZL03203782.1)



Main Technical Parameters:





Model No.	Layer No. of Spindle	No. of Spindle	Bobbin Dimension (D×L)(mm)	Linear Speed of Tape Winding(m/min)	Main Motor Power(kw)	Winding Motor Power(kw)	Installing Dimensions(L× W× H)(mm)	Weight(kg)
S-STL-II/190	5	190	38× 230	80-150	2.2	9	5700× 1500× 1700	3400
S-STL-II/240	5	240	38× 230	80-150	3	11	7000× 1500× 1700	4300
S-STL-II/290	5	290	38× 230	80-150	3	14	8500× 1500× 1700	5200
S-STL-II/390	5	390	38× 230	80-150	3	17	10500× 1500× 1700	7000
S-STL-II/430	5	430	38× 230	80-150	4	19	11500× 1500× 1700	7500
S-STL-II/480	5	480	38× 230	80-150	4	22	13000× 1500× 1700	8600
