Product Overview

Description

Product name

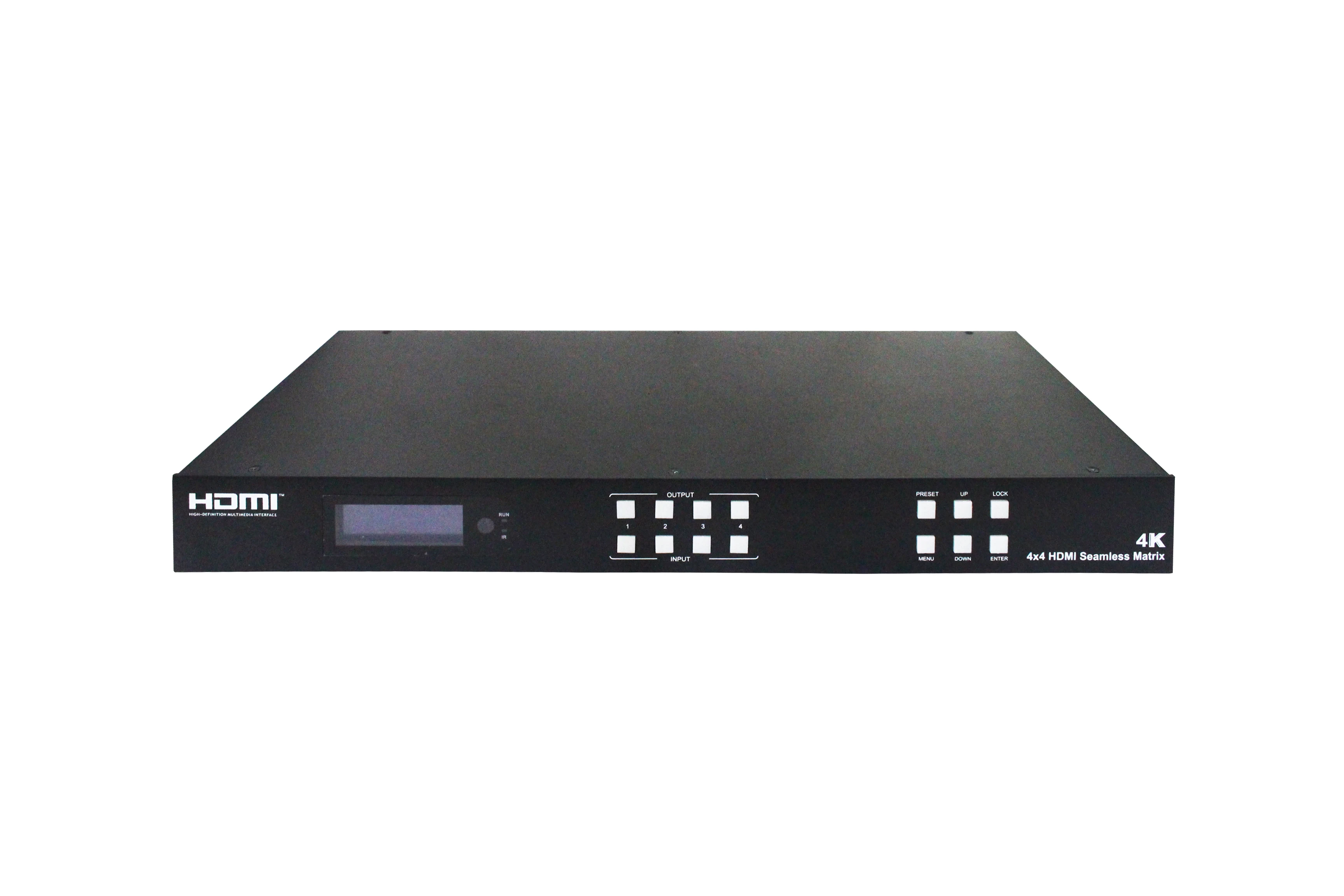

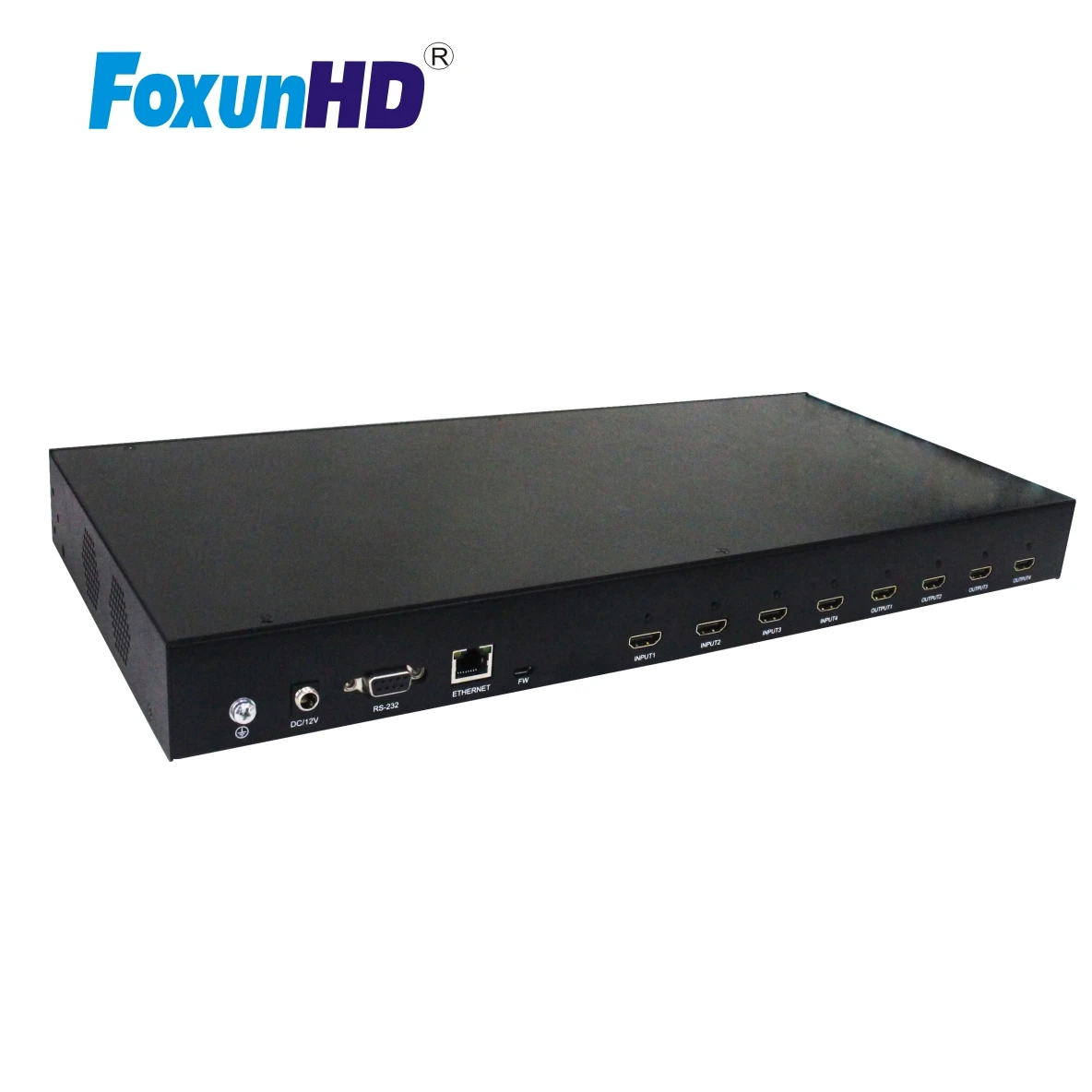

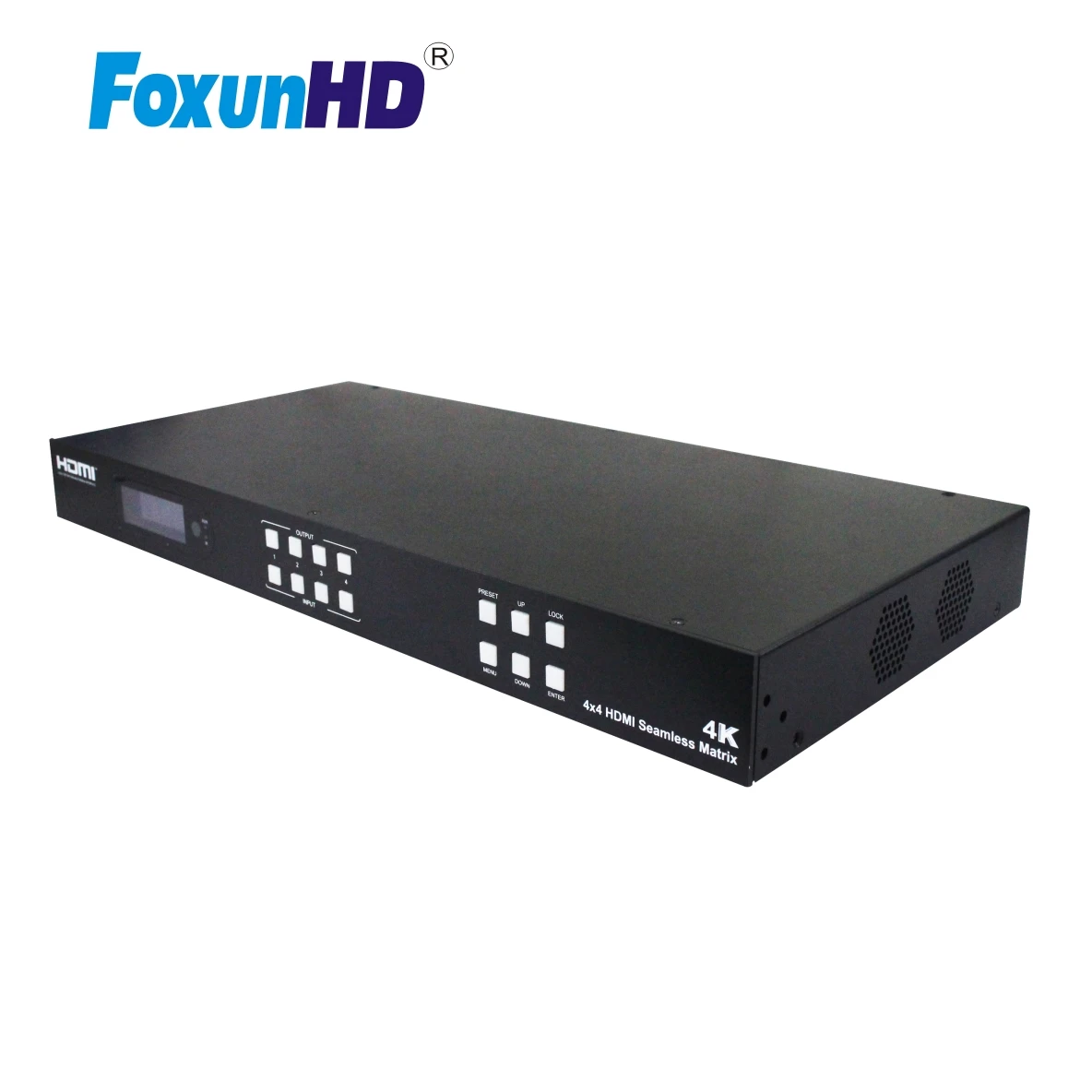

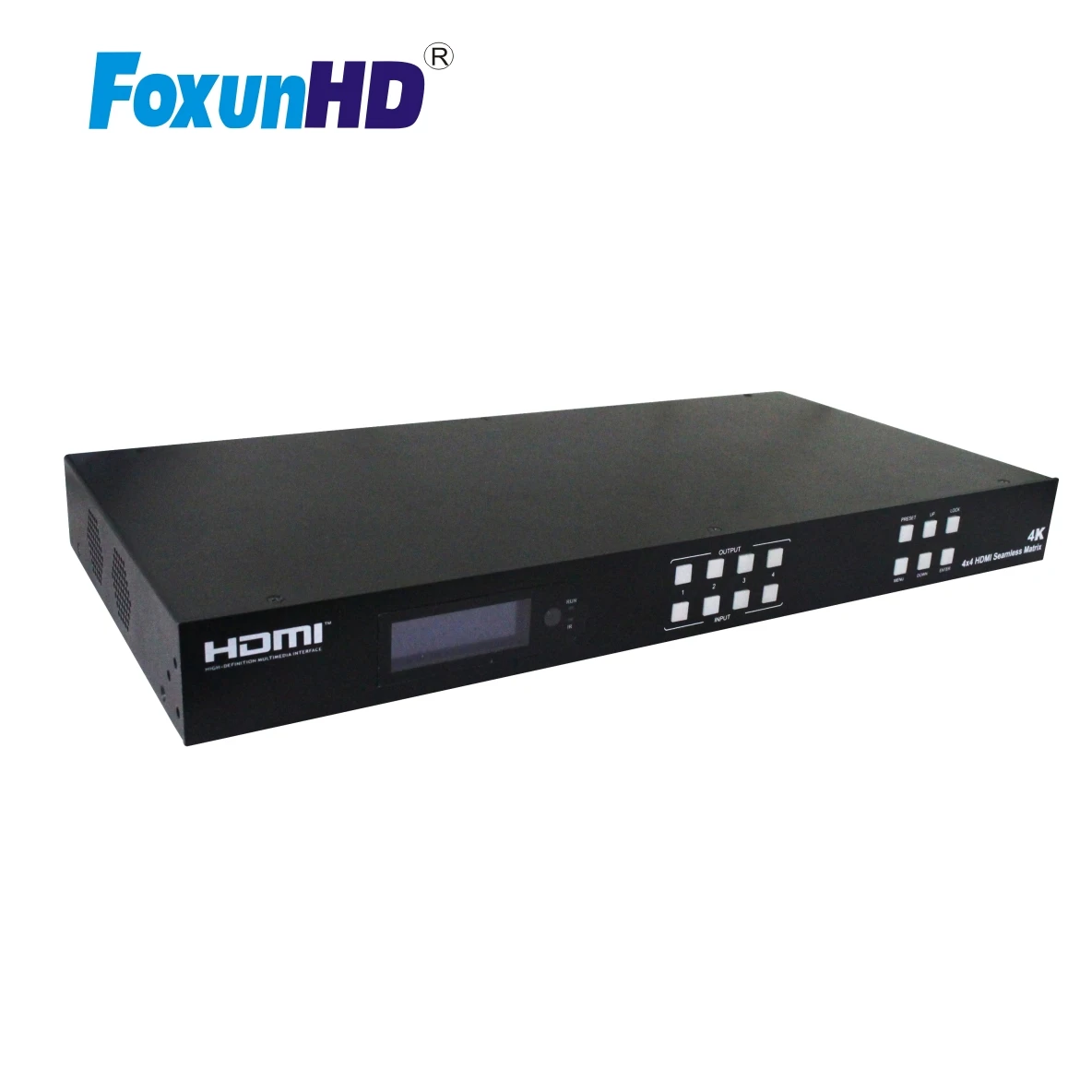

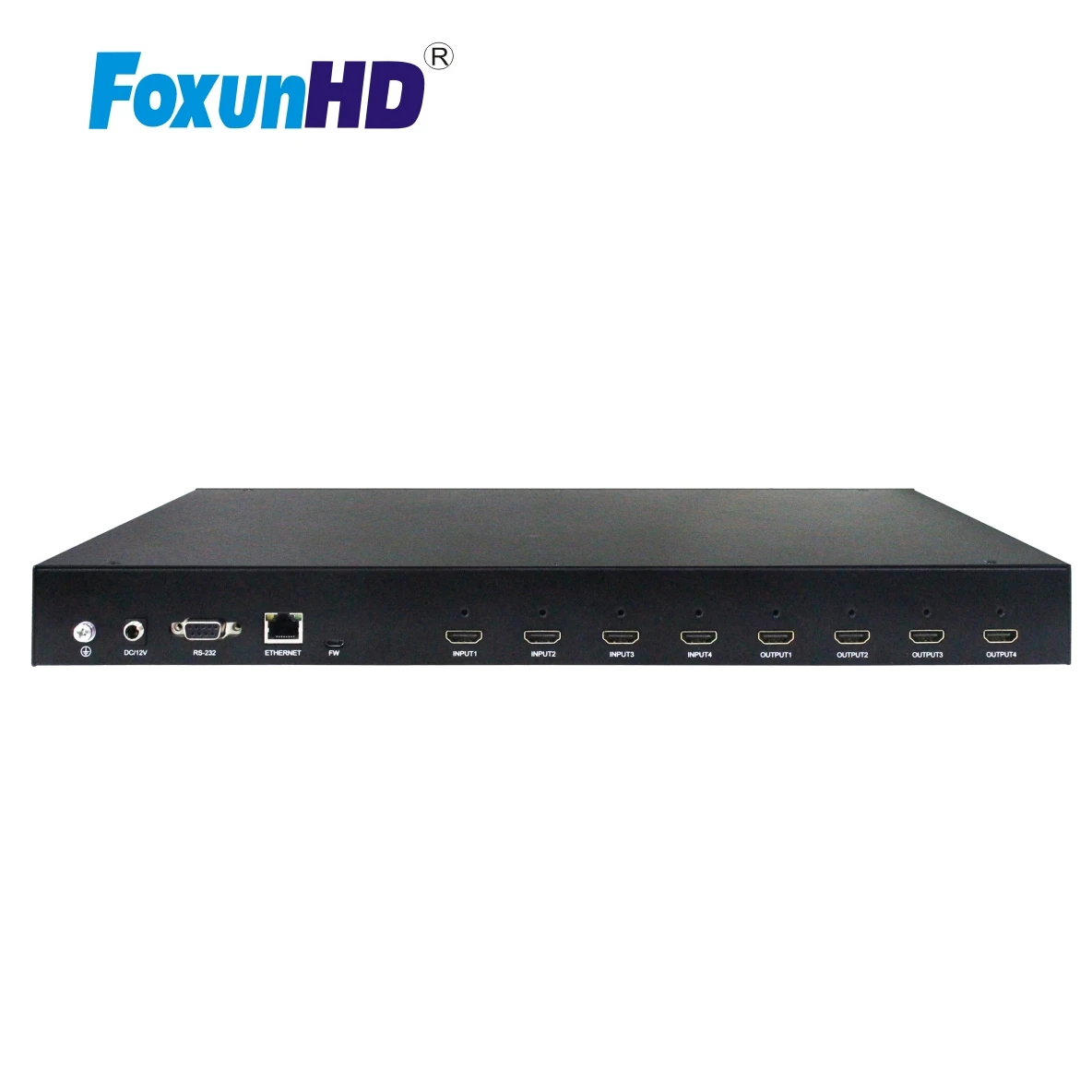

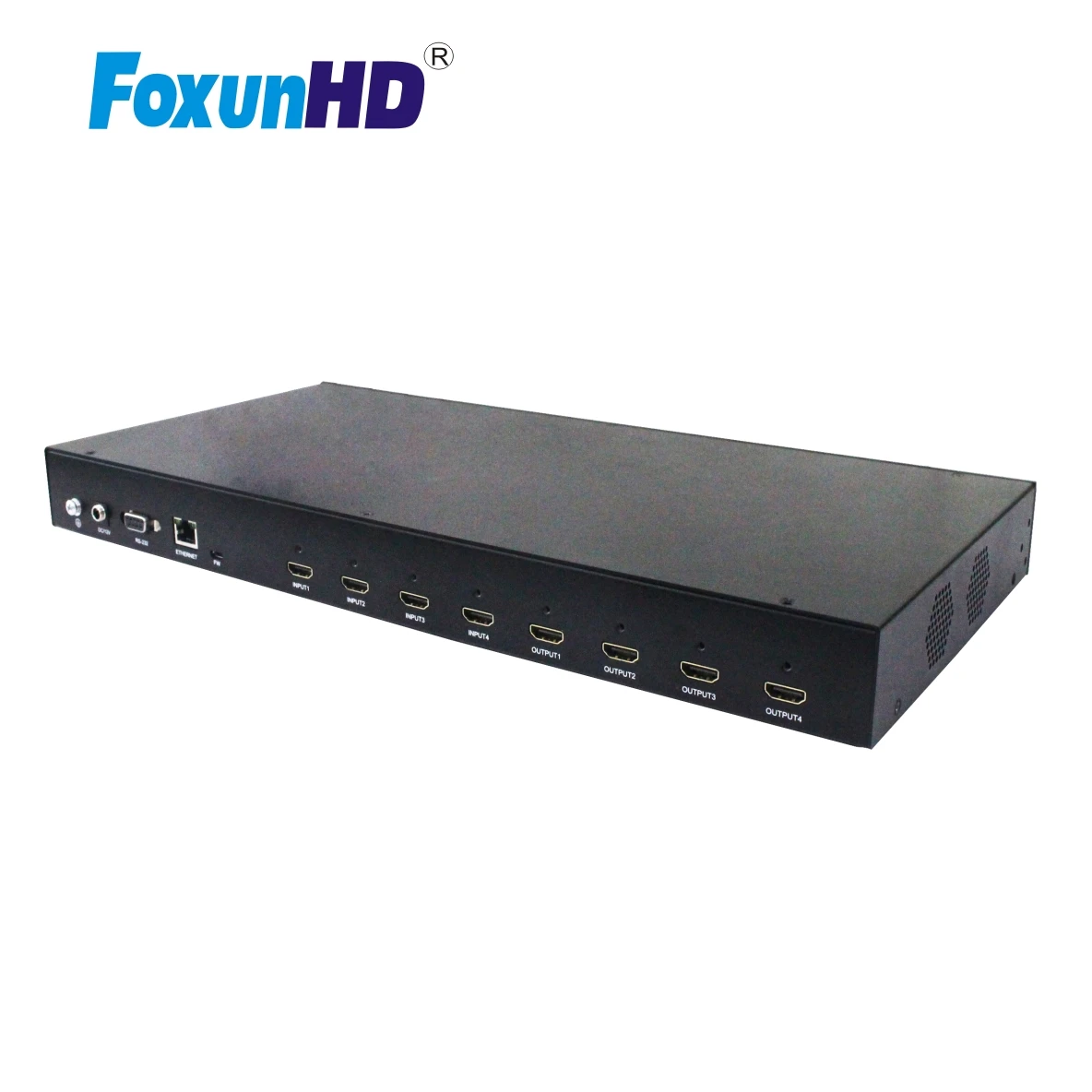

4X4 Seamless Switch HDMI Matrix
Model
SX-SMX46
Control
Panel button, Remote, RS232 , TCP/IP Control to select the source, Third-party platform control.
Resolution
Support 4K@30HZ 4:4:4
Warranty
2 years, all of our products have tested before shippment to ensure 99% is good products
 4X4 Seamless Matrix 4K@30HZ 4:4:4, Support 2X2 Video Wall
1. Any one of the 4 sources to any one of the 4 displays. 2. Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 40 millisecond.
3. Support video wall mode and output image mirror function
4. Any one of the four outputs can be turned off independently. 5. Support PCM 2CH audio. 6. Support EDID management 7. Complant HDCP 2.2 and HDCP1.4 8. Support high definition resolutions, including: 4K30HZ,1080p@60Hz@36 b/pixels, and other standard video formats.
9. Support output downscale to 1080P/720P/2560*1440/1920*1200/1360*768
10. With panel button, Remote Control, RS232 Control, TCP/IP Control to select the source.And support for third-party platform control.
11. 1U rack design ,easy installment.
12. DC 12V 2A power supply.
13. Unit size:L438*W205*H44mm
Details Images

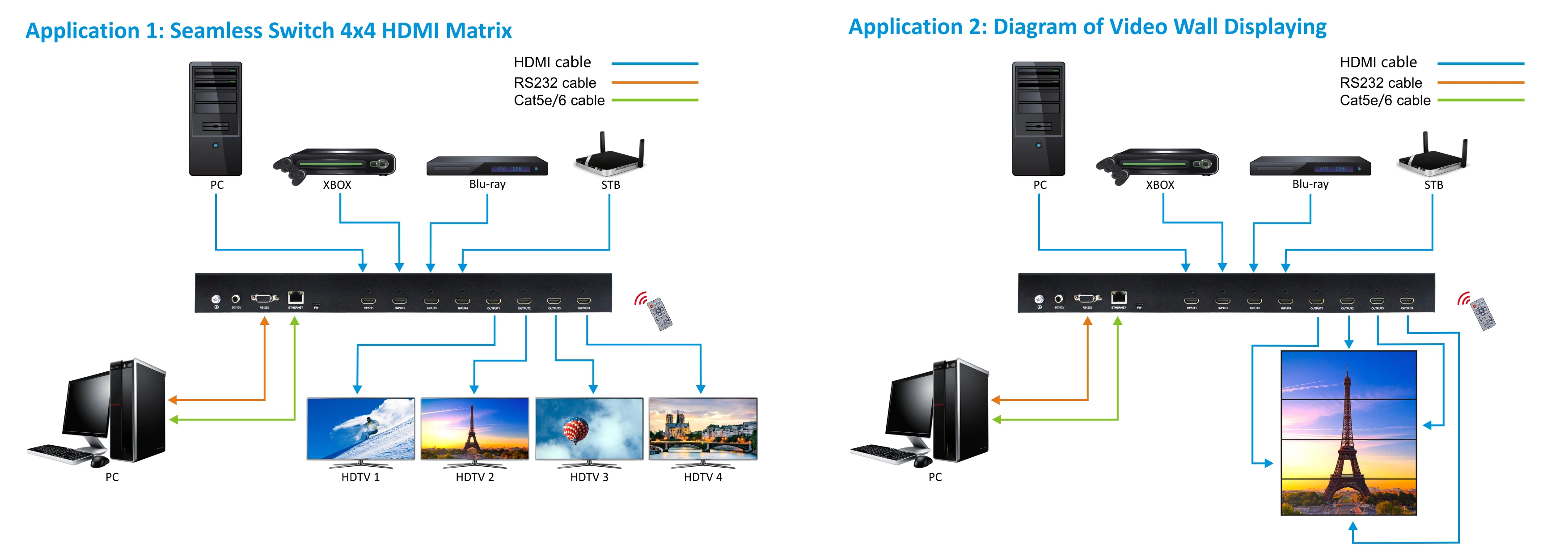

Connection Diagram
Related Products
Packing & Delivery
PACKING CONTENTS
1). 4x4 Matrix x1pcs
2). Remote Controller x1pcs
3). CD ROM (user manual) x1pcs
4). Power Adapter 12V2A x1pcs
5). Mounting Ears x1pair
6). IR Cable x1pcs
