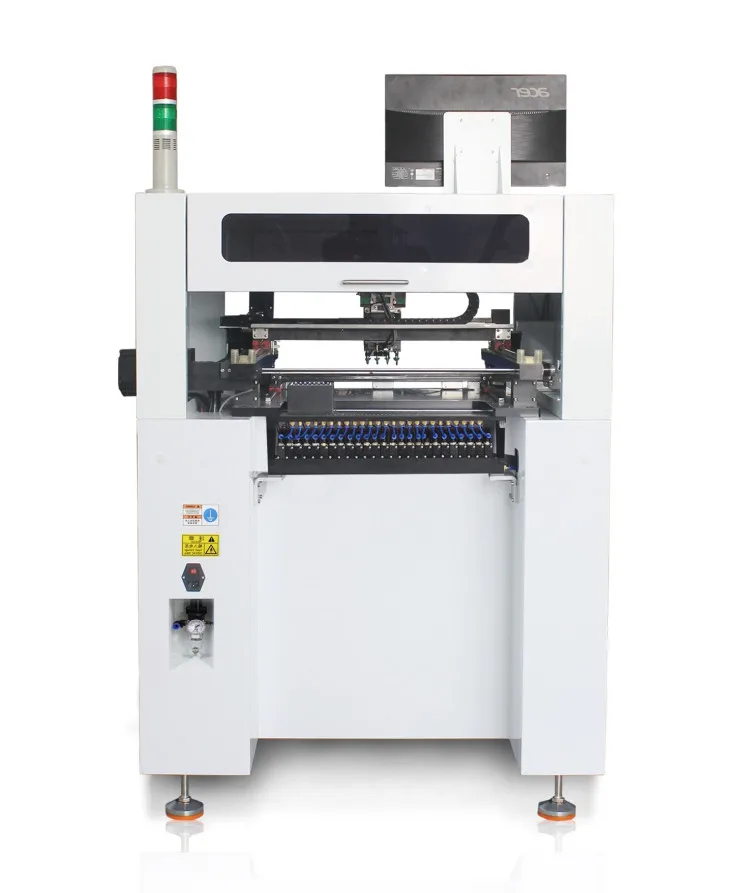

4 Placement Heads High Precision SMD Pick and Place Machine With Computer QM41
- Category: >>>
- Supplier: Jugetek Co. Ltd.
Share on (62415454098):
Product Overview
Description
Product Description
RDG-QM41 rev, science and technology in RDG925/TVM925 models based on the new upgrade of vertical placement machine.X, Y, Z three
axis adopt high precision linear slide rail, more accurate positioning.More visual system: 1, depending on the camera, depending
on the system by four small cameras and 1 big camera, at the same time realize four head four visual camera detection, greatly
improving the efficiency of the visual patch.
Added new r&d and design of automatic transmission system.Maximum 600 mm length of circuit boards, more in demand.
axis adopt high precision linear slide rail, more accurate positioning.More visual system: 1, depending on the camera, depending
on the system by four small cameras and 1 big camera, at the same time realize four head four visual camera detection, greatly
improving the efficiency of the visual patch.
Added new r&d and design of automatic transmission system.Maximum 600 mm length of circuit boards, more in demand.
Model | QM41 | ||||||
Applicable PCB | 20*40mm-350*435mm | ||||||
XY-axis Moving Range | 375*715mm | ||||||
Z-axis Moving Range | 16mm | ||||||
Placementhead quantity | 4 | ||||||
Max mounting capability | 9500pcs/h without vision | ||||||
7000pcs/h with vision | |||||||
Mounting Accuracy | 0.025mm | 64 (YAMAHA Feeder is available) | |||||
0402-5050,SOP8.LQFP100 etc. | |||||||
Components Supply | Tape reel, Bulk , IC tubes | ||||||
Motor Control Scheme | Closed-loop stepping servo system | ||||||
Tape Width | 8mm, 12mm, 16mm, 24mm | 5CCD cameras & 1 HD CCD camera | |||||
Feeder | 38 (YAMAHA Feeder is available) | ||||||
Machine Dimension | L852*W962*H1230 | ||||||
Visual Camera | 6 CCD camera | ||||||
Down-looking Camera | Automatic identify the mark point | ||||||
Up-looking Camera | Automatic adjust the offset | ||||||
Vacuum Pump | External air pump | ||||||
Power Supply | AC220V/AC110V | ||||||
Net Weight | 215kg | ||||||
Packing Size | 1.35CBM | ||||||

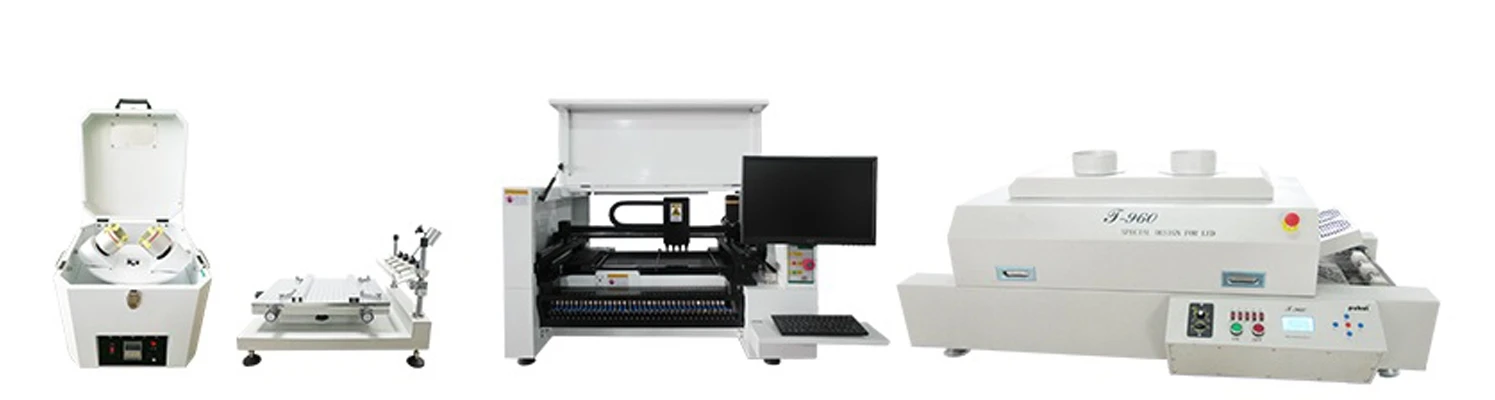

Production Line Recommend
