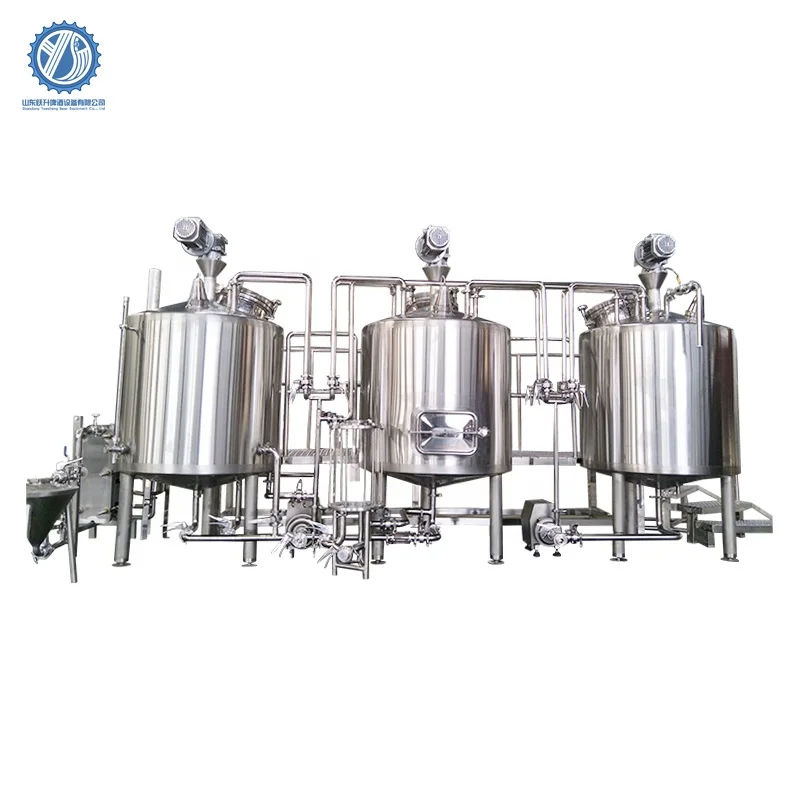

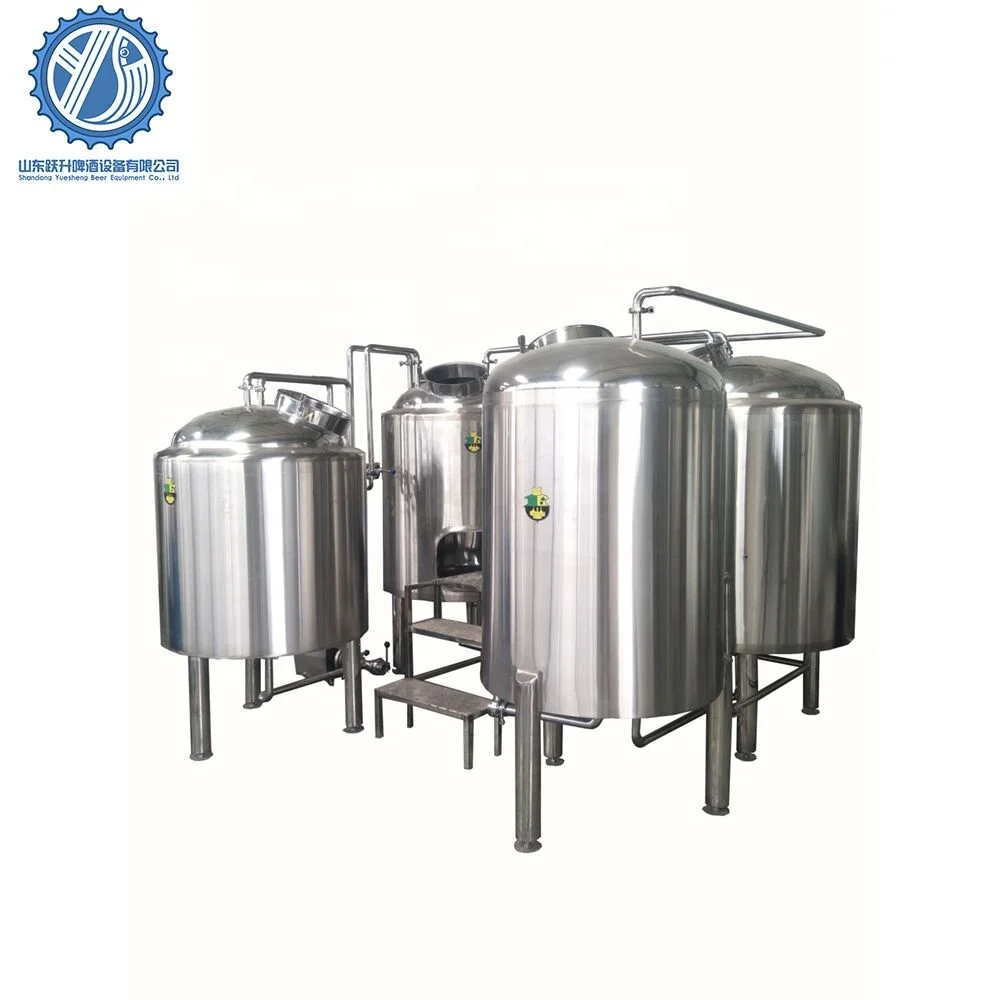

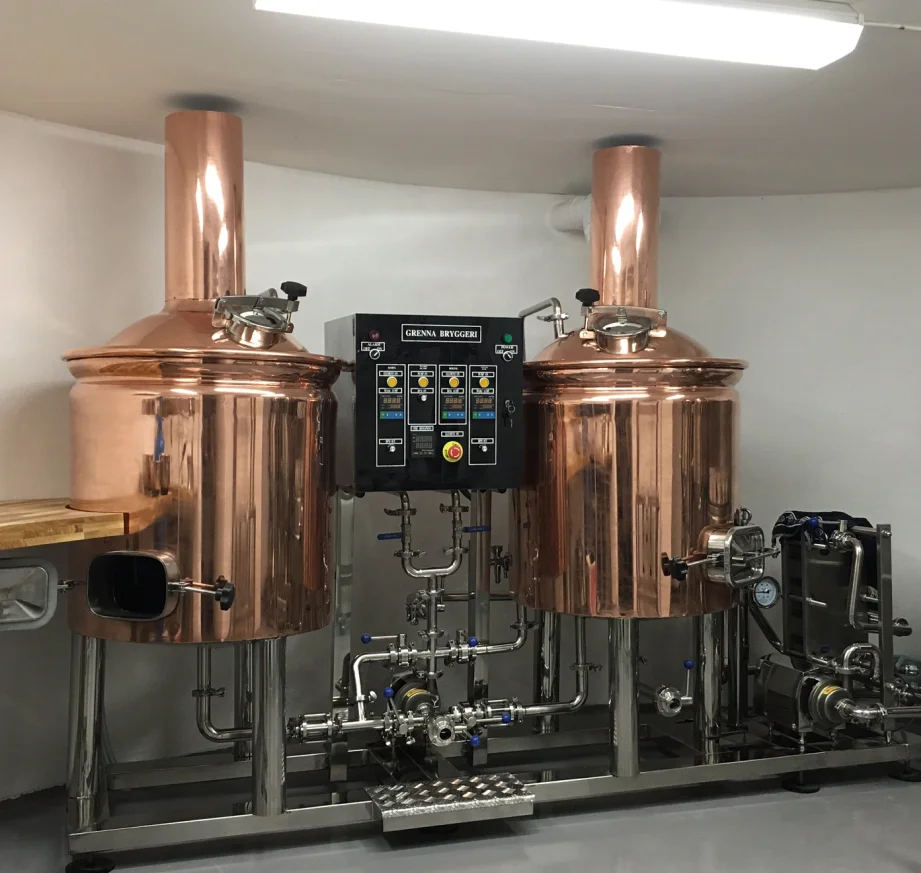

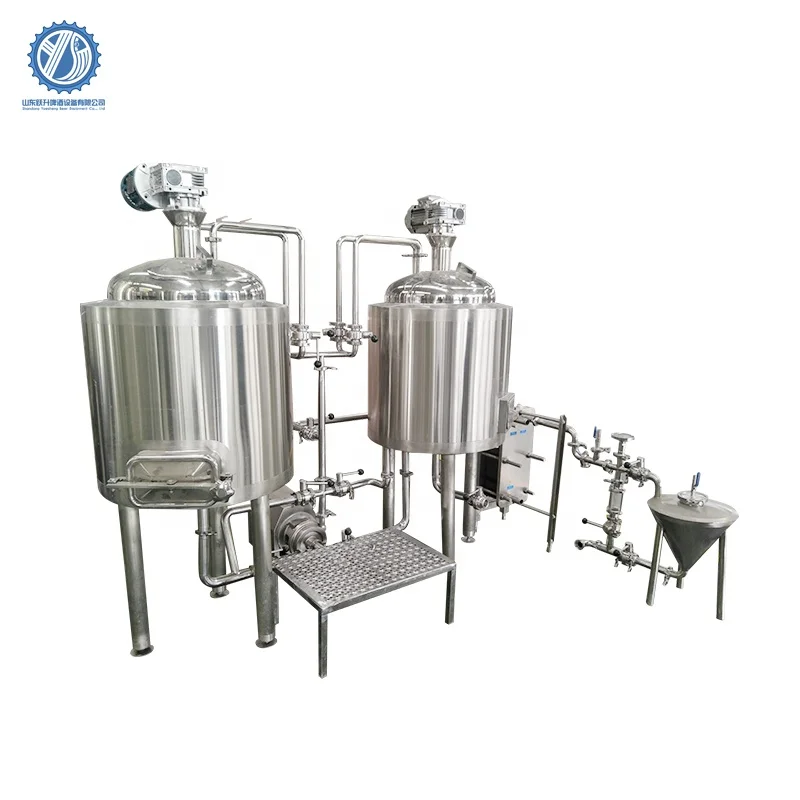

Europe quality 100 liter 100l mashing lauter kettle whirlpool beer brewhouse (62415518564)

Share on:


Price:$1,000.00 - $1,100.00
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

Europe quality mashing lauter kettle whirlpool beer brewhouse

What does Mashing Unit contain?



Mashing unit  is ususlly called Brewhouse. The basic tanks and accessories are listed below.

The tanks can be combined to  meet the needs of different beer and mashing methods.

Mash Tun

Function: mashing

(convert the starches in crushed grains into sugars for fermentation)

Material: SUS304 or red copper cladding

Decoction mashing and infusion mashing

Steam jacketed (optional) and insulation

Lauter Tun

Function: filtering and clarifying the sugar liquid (called wort) out of

the heated water-malt mixture (called mash) that comes from the mashing tun

Material: SUS304 or red copper cladding

V-wire false bottom

Raker with motor

Sight glass, CIP ball, etc for option

Boiling Kettle

Function: boiling for sterilization, releasing of hop flavours,

bitterness and aroma compounds through isomerization

stopping of enzymatic processes, precipitation of proteins,

and concentration of the wort

Material: SUS304 or red copper cladding

Heating method: steam, electric or direct fire

Steam jacketed & insulation

Whirlpool Tun

Function: whirlpooling, classifying

Material: SUS304 or red copper cladding

Tangential wort inlet

Hot Water Tank

Function: saving and supplying hot water for mashing and sparging

Material: SUS304

Heating method: steam, electric or direct fire

Steam jacketed & insulation

Heat Exchanger

Function: cooling down the wort to the fermentation temperature

Two stages



Mashing System of different types

 2 vessel.jpg3 vessel.jpg4 vessel.jpg

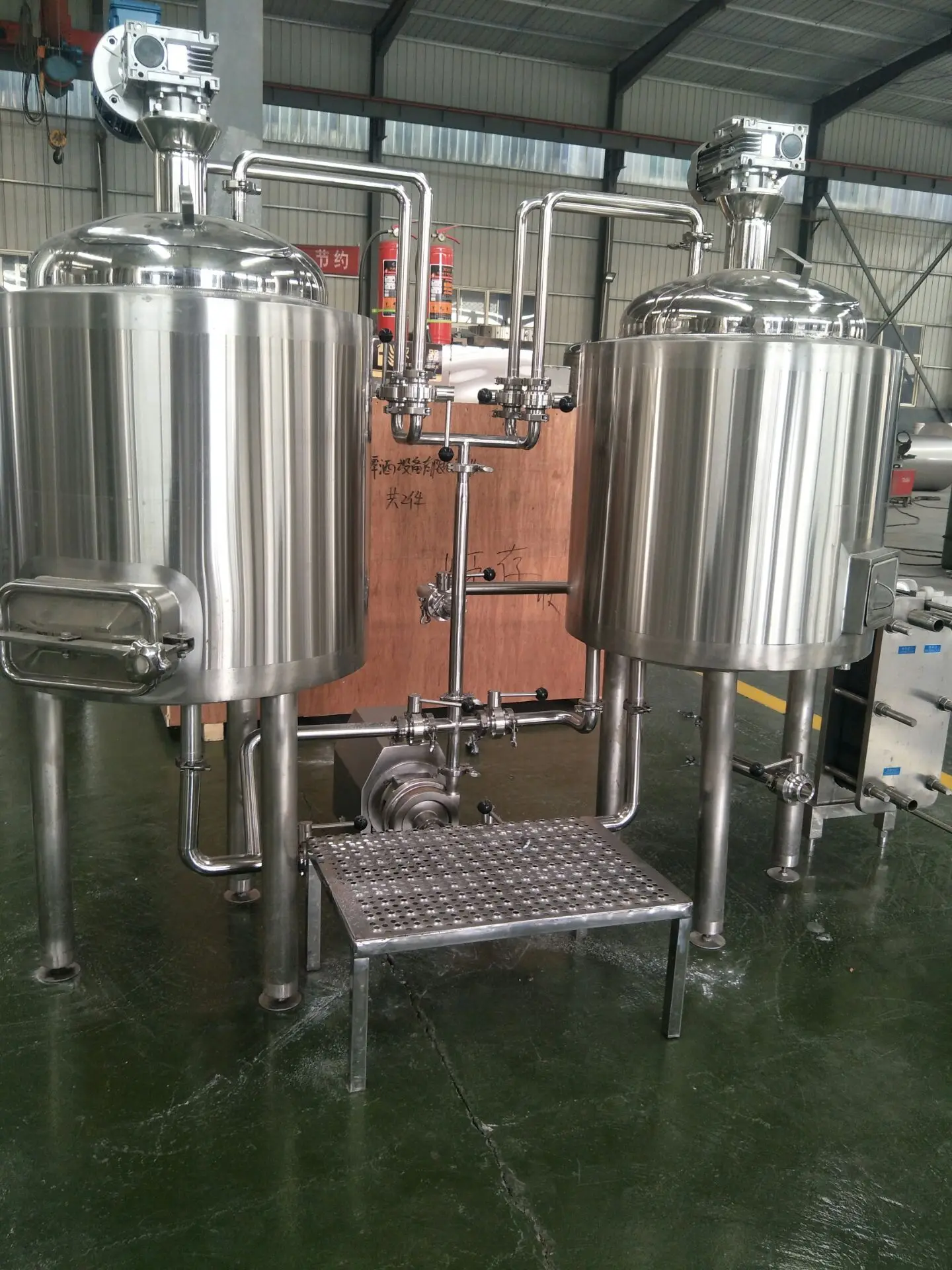

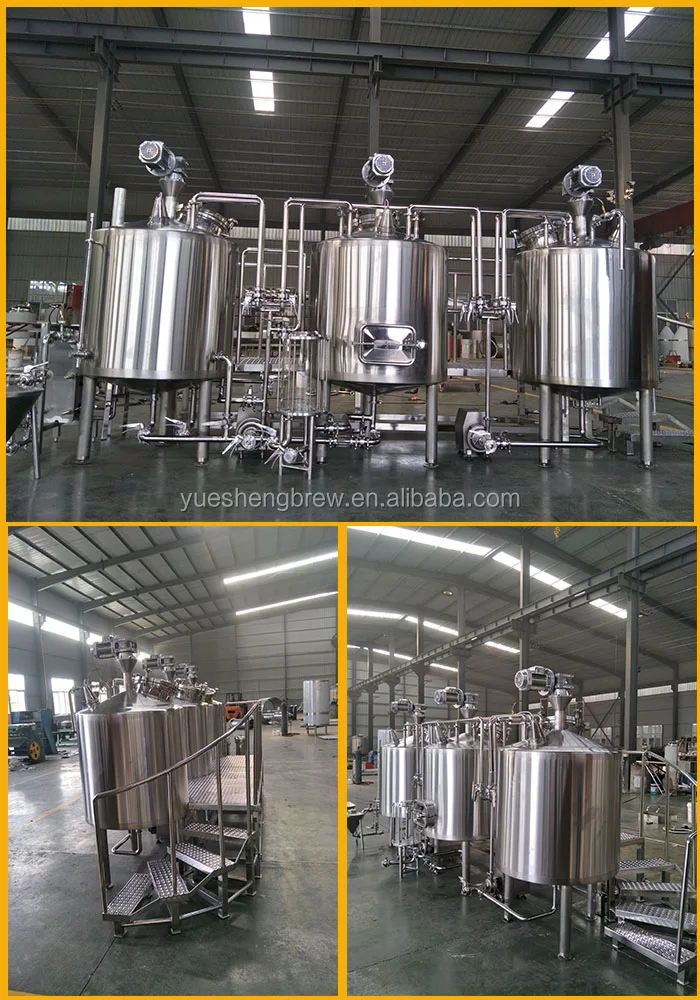

 brewhouse systembrewhouse500L





our advantage

1. Top cone of all tanks are mirror polished.

2. Flanging butt joint on manway pipe fittings, beautiful and secure weld joints.

3.Outer cladding is adopted mechanical polished with uniform welding lines.

4. Our skilled workers are with more than 10 years welding and related production experiences.

5. High quality milled falsed bottom(gap between filter≤0.8mm) installation method: special discharging hangle, easy to discharge and clean;

6. Led cold light, bright , lower power consumption and lasting, other suppliers only use normal light ball;

7. Imported food grade rubber hose, long lift-span, safe and firm.

8. Large spent grain door, reliable sealing, with hopper, easy to make the spent grain out without ground pollution.

9. Mechanical pressure adjustable valves: plus and minus pressure protection, ensure the tank safty.

10. Complete quality control and management system: material IQC complete inspection, PQC production process inspection,

OQC inspection after finishing productionbrewhouse installation 24 water leakage test and pressure test, fermenters cooling jacket pressure 24 hours test.

11. 3Years After-sales services for our goods.

12. Complete beer line to meet different capacities and all kinds of beer

13. Customize machine can be offered(voltage,material,dimension,heating source and so on)



Packaging & Shipping

Packaging:  Wooden case,steel frame and any other packages suitable for sea transportation.

Shipping:  From Qingdao port in 30 working days after the payment.

_05

Our Services



Pre-service

1.Our market team can serve you in 24 hours, so please feel free to contact at your convinent.

2.Our dedicated engineers can supply 2D, 3D drawing for you if you needed.

3.If you need to inspect our factory, we can book the hotel and make the invitation letter for you.

4.Our market team with our engineer with more than 10 years experiences together can satisfy you with any technologyproblem;

5.Customize machine can be offered(voltage,material,dimension,heating source and so on)

After-service:

1.When shippment, we will supply a whole set of parts for backup.

2.If there is any parts damaged, we are surely can send the part to you in 24 hours.

3.Main machine is 3 years warranty, auxiliary machine is 12 months warranty,

4.electrical components is 18 months warranty, life long service.





Company Information



Shandong Yuesheng Beer Equipment Co.,Ltd is a professional company specializing in producing, design, installation, commission of beer brewing equipment. We can supply turnkey brewery from 50L-20000L and  other related products like keg, keg filler and washer, bottle filler and washer, etc.With advanced technology, good quality and after-sale service, our products have been highly praised by our customers from many countries.

company informatio021345

QQ20181217173113





Certificate

_07

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 30-45 days

Q: What is your terms of payment ?

A:50% T/T in advance ,balance before shipment.



Contact us

Nina Zhou

Mob/Skype/Whatsapp/Wechat: 86-15853126608

Email:nina(at)sdyueshengbrew.com

Tel:86-0531-88707611

Website: //yueshengbrew.en.alibaba.com

Please feel free to contact us if you are interested in the beer brewery equipment
