Q3210 small tumble shot blasting machine for rust removal
- Category: Abrator >>>
- Supplier: Qingdao Rovan Machinery Co. Ltd.
Share on (62415525933):
Product Overview
Description

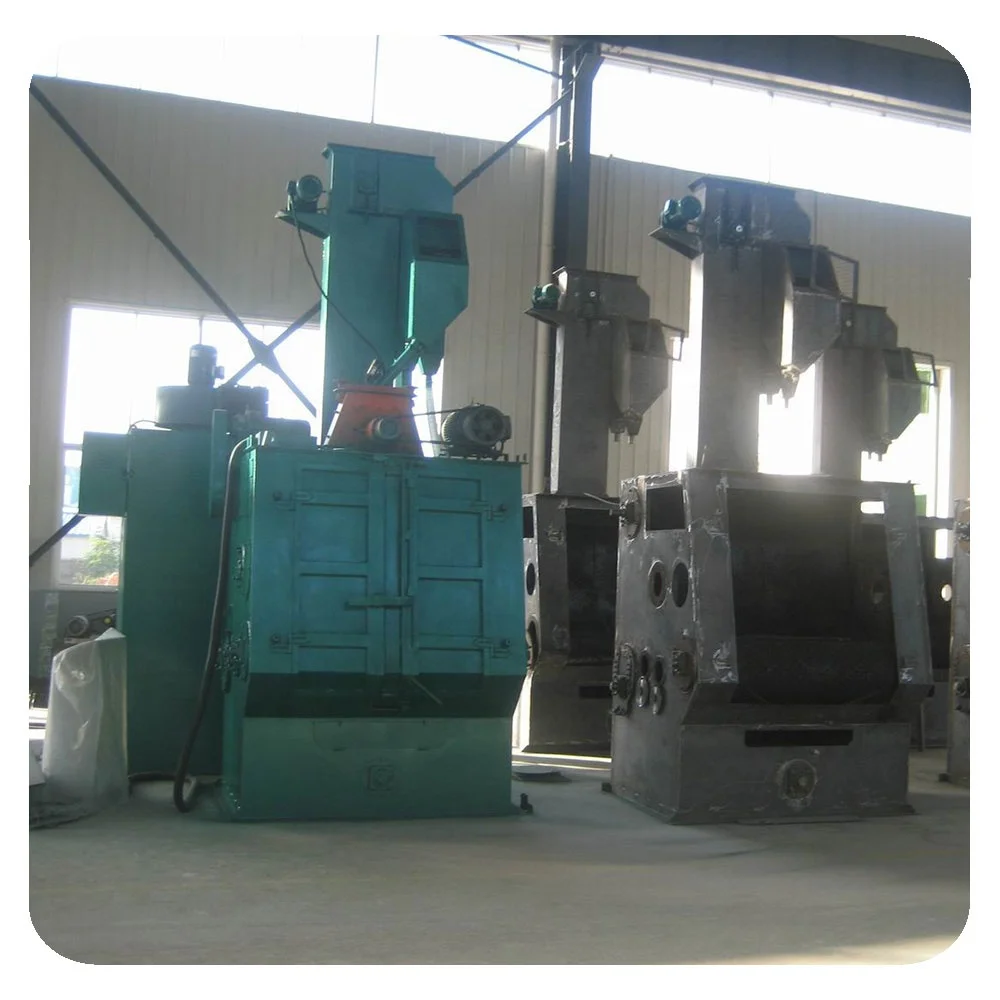

Q3210 small tumble shot blasting machine for rust removal
Product Description
Machine details:
- Our barrel blast machine are designed to process a variety of parts that can be tumbled.

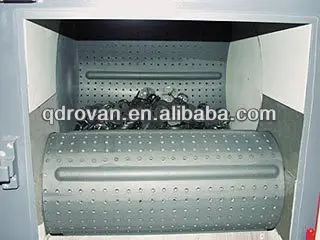

- The endless conveyor belt and lateral round place creates a trough in which parts are treated.
- The number and power of the turbines are chosen according to the requirement production rate.
- Optional PLC control system, stable quality and easy to get support from local.
- Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.
- No-pit, easy for install and move and save cost.
- A high volume of parts can be processed in a small working area.
- All shot blasting machines are totally integrated with abrasive reclaim systems, separator and dust collector.
- 20 years experienced engineers, customized service avaliable.
- Superior design, quality and rugged construction make our barrel machines more reliable and easier to maintain.
- After-sale service support will be provided within 24hours.
Tumble Barrel Type Shot Blasting Machine Uses:
- Ferrous and non-ferrous castings
- Heat treated forgings
- Small Automotive parts
- Die castings and much more
- Lower value parts where part on part impingement is not an issue
- When production requires dictate batch processing
- Small to medium size castings, fabrications and heat-treated parts
- Sand removal or part cleaning
Technique parameter:
| Item | Unit | Q326 | Q3210 | 15GN | 28GN |
| Productivity | Kg/h | 600-1200 | 1500-2500 | 5000-6000 | 10000-12000 |
| Feeding amount | kg | 200 | 600 | 1300 | 3500 |
| Max weight ofsingle piece | kg | 10 | 30 | 230 | 363 |
| Diameter of End disk | mm | 650 | 1000 | 1092 | 1245 |
| Effective volume | M | 0.15 | 0.3 | 0.43 | 0.79 |
| Abrasiveflow rate | Kg/min | 100 | 200 | 480 | 700 |
| Ventilation capacity | M3/h | 2200 | 5000 | 5300 | 6500 |
| Power consumption | kw | 12.6 | 24.3 | 49.3 | 54.5 |

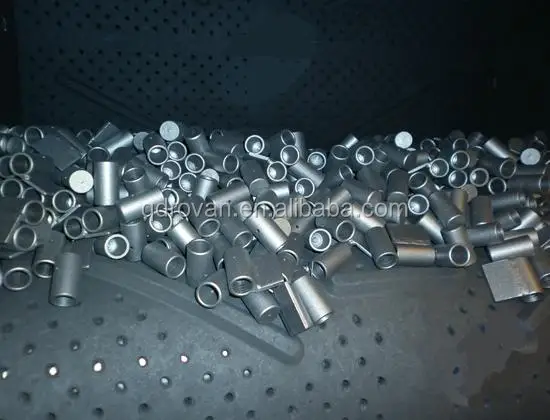

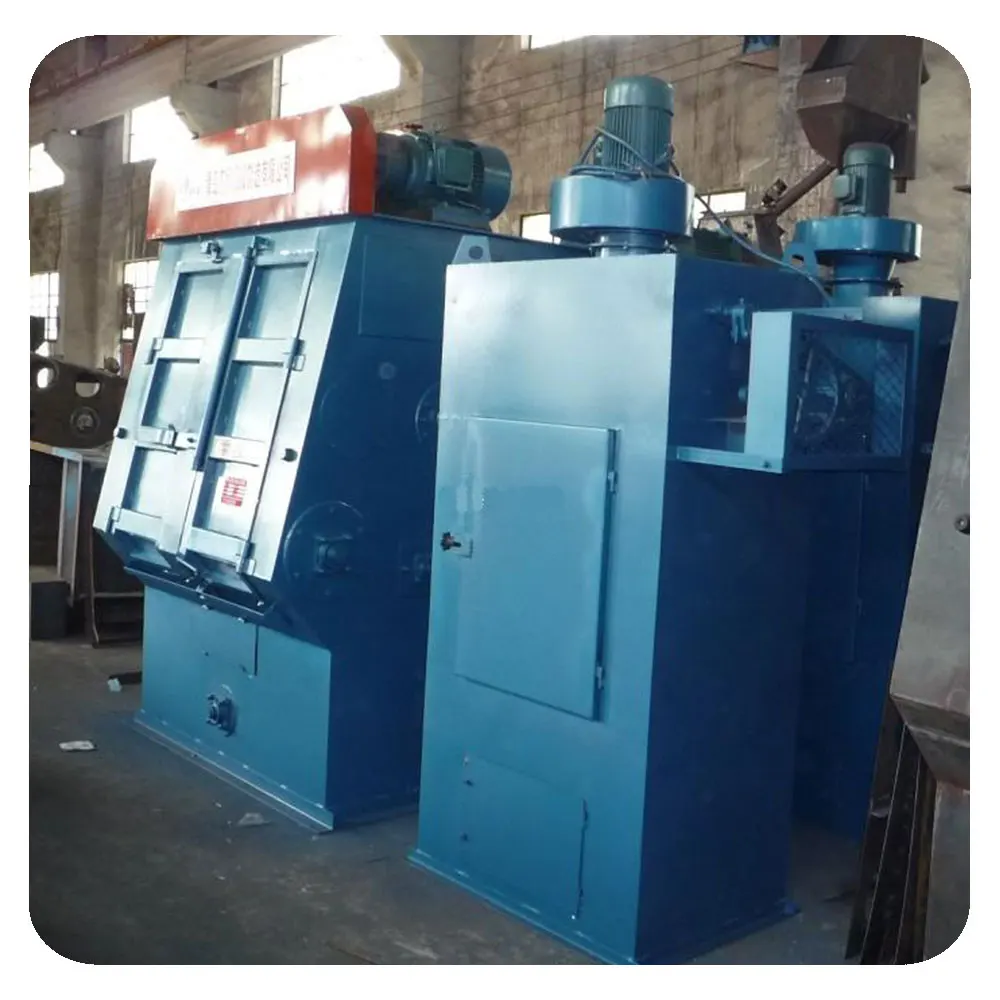

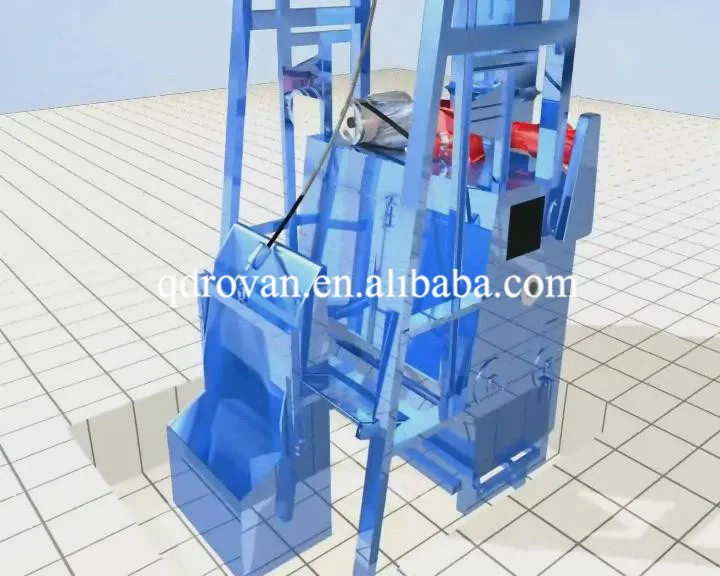

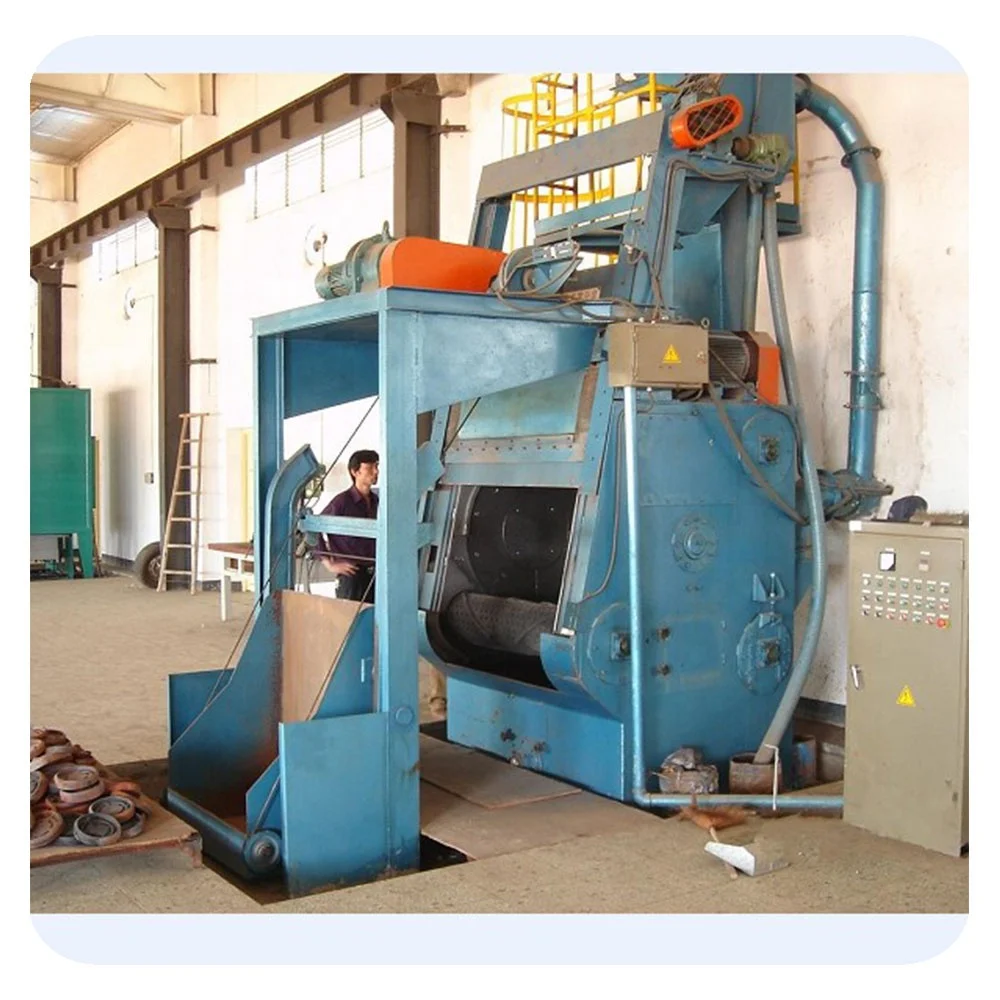

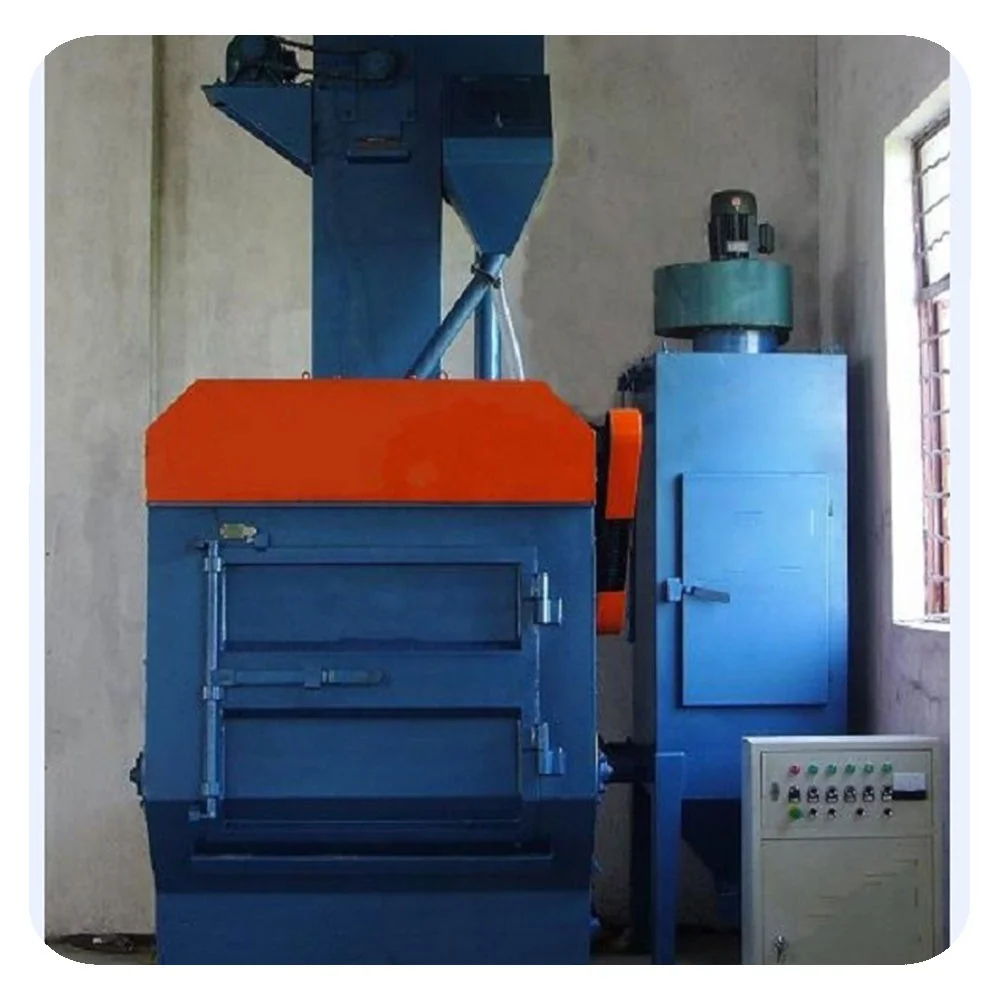

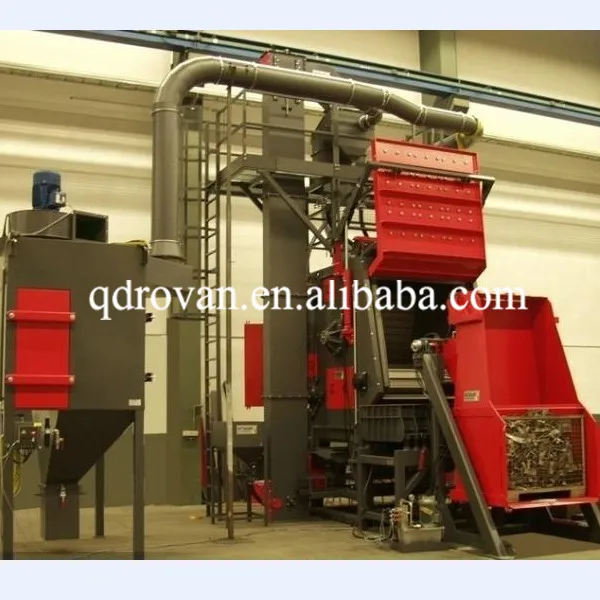

Detailed Images:
Company Information
Our Services
Packaging & Shipping
FAQ
Q1:What is the target market for this machine?
The Blaster is designed for customers who require a more sophisticated method than just manual cleaning in preparation for further processing or painting.
Q2:What type of abrasive media does it use?
The Blaster is designed to use round steel shot. The shot is recycled inside the system and gets smaller and smaller during the blasting process, until it is completely consumed. Approximately two tons are required for start-up, and approximately 20 pounds are consumed per blasting hour. Replenishment is easily done as needed.
Q3:What utilities are needed to run the Blaster?
The electrical system runs on three-phase input and a transformer will be provided for your supply voltage if required. Clean and dry compressed air supply is also needed.
Q4:What does it cost to operate?
The highly efficient turbines require much less power that competitor's shot blast machines. Including abrasive consumption, power consumption and maintenance, the total operating cost averages around $20 per hour in US. When comparing this to your current methods, keep in mind that the Blaster is at least 4 to 5 times as productive as manual cleaning and only one operator is required to load and run the machine while it is working. Labor costs are much lower, plus you will have a huge amount of extra capacity for cleaning.
Q5:Are there any special operator skills required for the Shot Blaster?
No, once the machine is installed and adjusted by our technician, running the machine consists of merely switching it on and setting the speed dial for the desired surface finish. Maintenance is simple too.
