Molecular Distillation Purification and Separation Short Path Molecular Distillation
- Category: Refrigeration & Heat Exchange Equipment >>>
- Supplier: Nanjing Ningkai Instrument Co. Ltd.
Share on (62415744196):
Product Overview
Description
Product Description

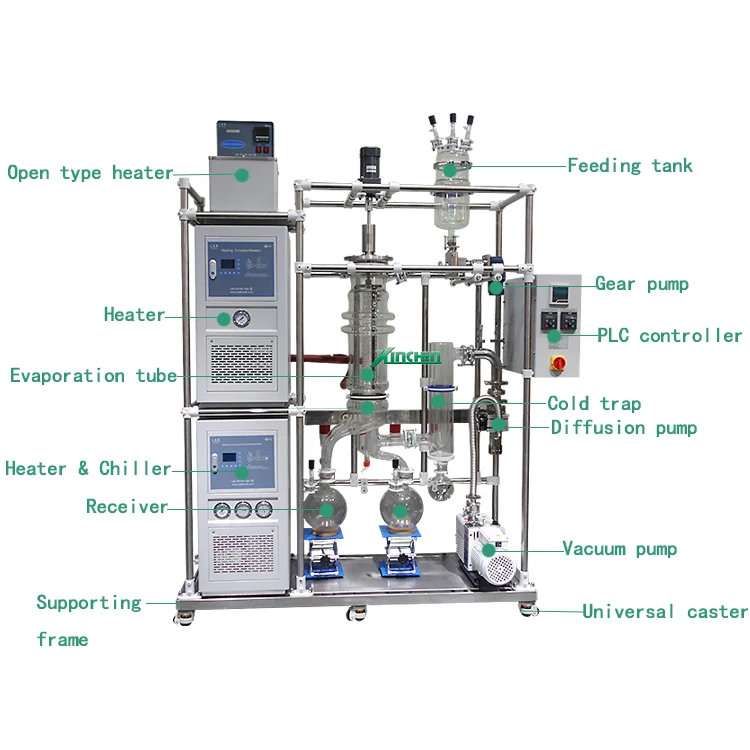

Short path molecular distillation (short-path distillation) is a new separation technique that addresses the problems that conventional distillation techniques cannot solve. It can achieve "liquid-liquid" separation at very low vacuum according to the mean free path difference of molecular motion under the temperature of much lower than the liquid boiling point; Mainly the use of scraper system forcing liquid film evaporation or distillation of a highly efficient evaporation, distillation equipment, deodorization, degassing reaction and supporting heating, cooling and other unit operations, can be widely used in food, fine chemicals , Electronic materials, plastic engineering and polymer (such as polyols, fatty acids, polyphenols, polyurethanes, epoxy resins, milk fat, GMS, flavors and fragrances, heavy oil and paraffin oil) purification and so on. The system can also be used to recover organic solvents from industrial effluents. Especially suitable for high boiling point, heat-sensitive, easily oxidized material separation and purification.
Product Advantages & Features
1. Operating temperature is far below the boiling point of the material . It has a big advantage in handling the thermal material , bio-acid fat , high boiling point and the materials which is not easy to steam out .
2. Heating time is extremely short , ordinary distillation need to take few hours in the process, but our short path distillation only need few minutes .
3. Low carbon dioxide , environmentally friendly and good for maintaining the material activity.
4. Belong to the physical separation process , can keep the natural state of the material from pollution .
5. Widely used in high value-added materials deodorzation , bleaching , purification and separation .
Product Applications
Our short path molecular distillations are widely used in food, fine chemicals , Electronic materials, plastic engineering and polymer (such as polyols, fatty acids, polyphenols, polyurethanes, epoxy resins, milk fat, GMS, flavors and fragrances, heavy oil and paraffin oil) purification and so on. The system can also be used to recover organic solvents from industrial effluents. Especially suitable for high boiling point, heat-sensitive, easily oxidized material separation and purification.
Product Paramenters
Model | evaporation tube specifications Φ (mm) | Evaporation tube heat transfer area(㎡) | Built-in cooling area (㎡) | Constant pressure feeding bottle( L) | Sample throughput (L/H) | Motor power (W) | motor speed (rpm) |
NKDF-60 | 60 | 0.05 | 0.03 | 1 | 0.8 | 140 | 800 |
NKDF-80 | 80 | 0.1 | 0.25 | 1 | 1.5 | 140 | 800 |
NKDF-100 | 100 | 0.15 | 0.3 | 1 | 3 | 180 | 800 |
NKDF-150 | 150 | 0.25 | 0.4 | 2 | 5 | 180 | 800 |
NKDF-200 | 200 | 0.4 | 0.5 | 3 | 8 | 250 | 800 |
NKDF-300 | 300 | 0.6 | 0.8 | 5 | 10 | 250 | 500 |

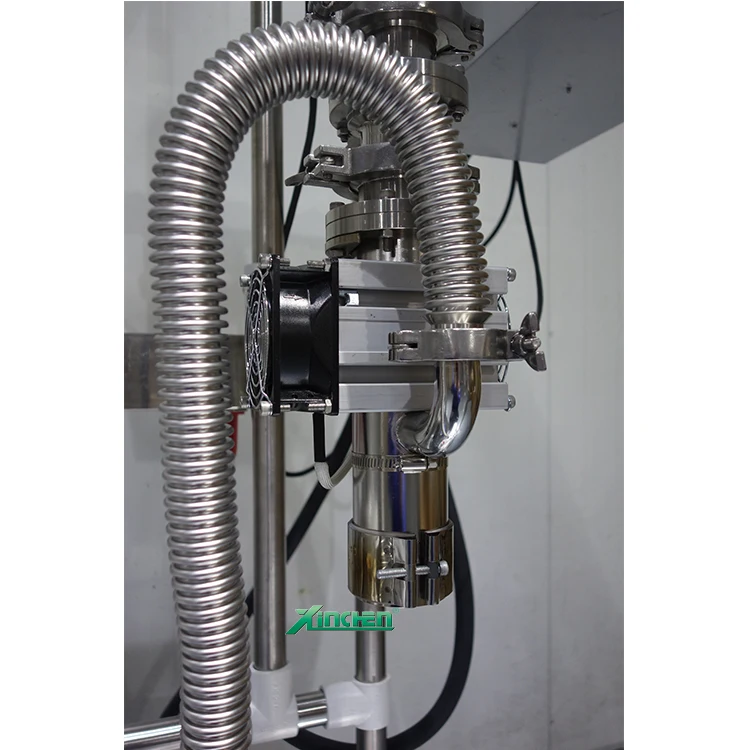

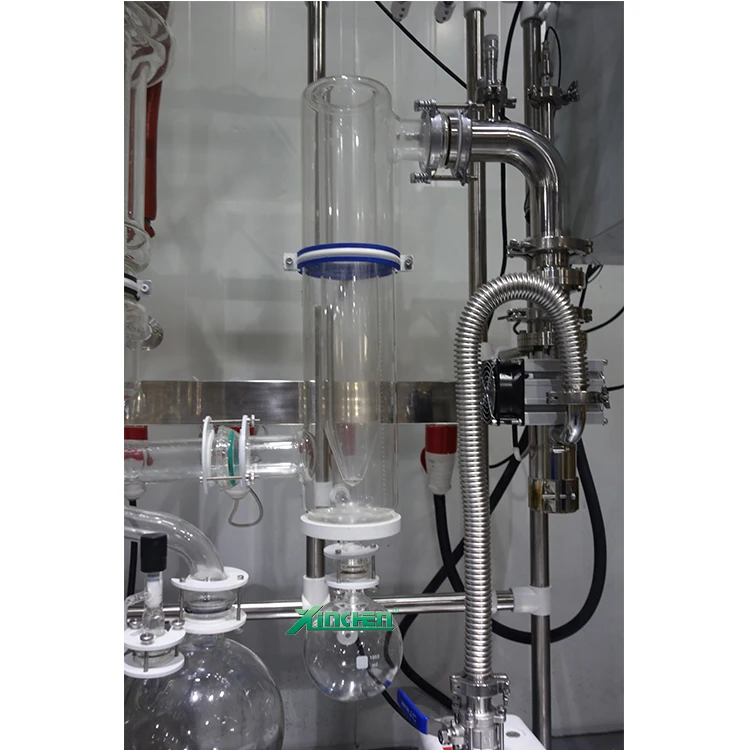

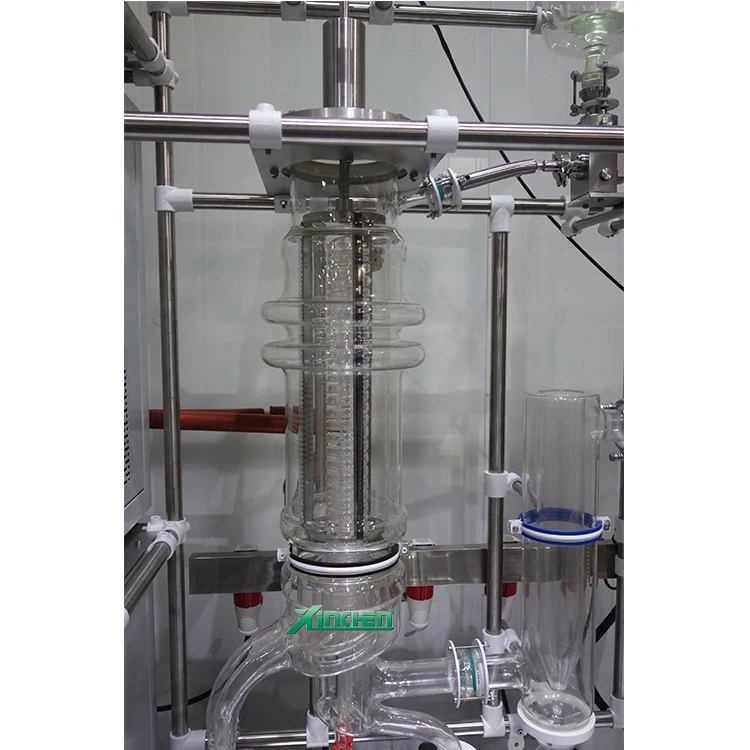

Details Images
Related products

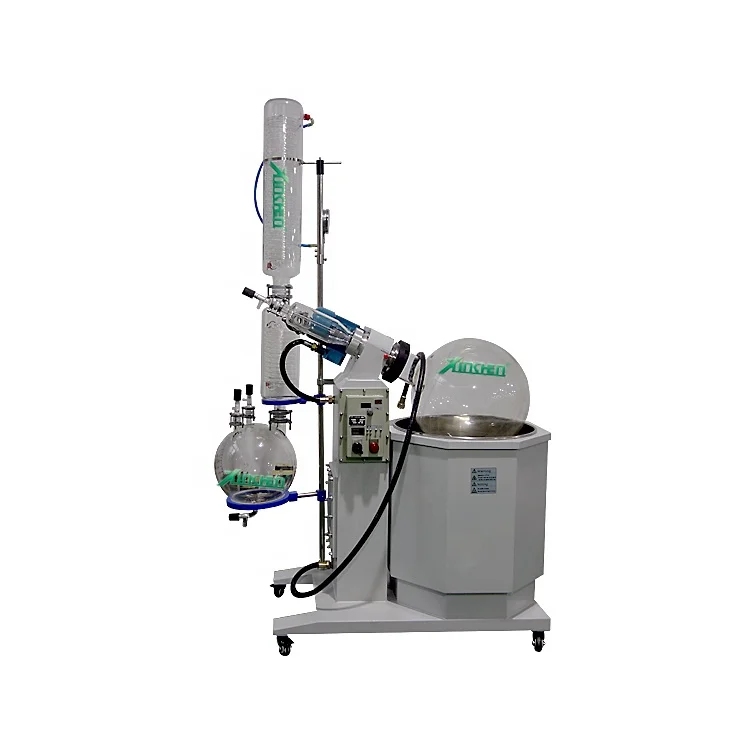

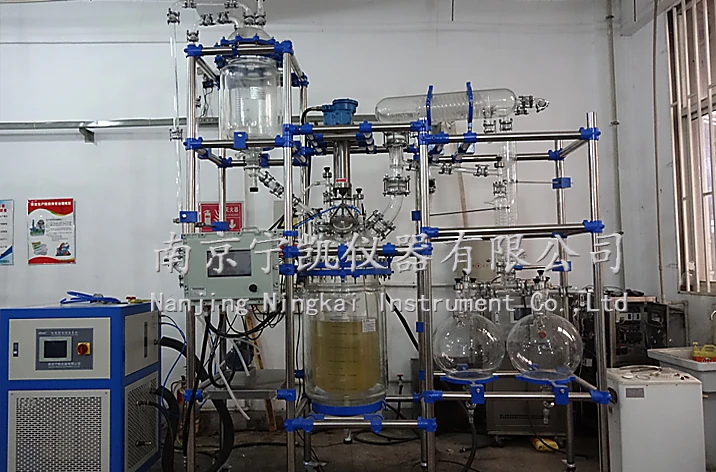

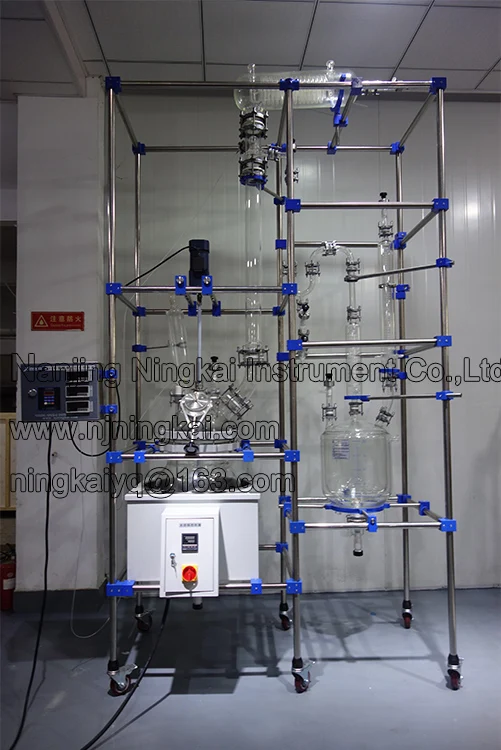

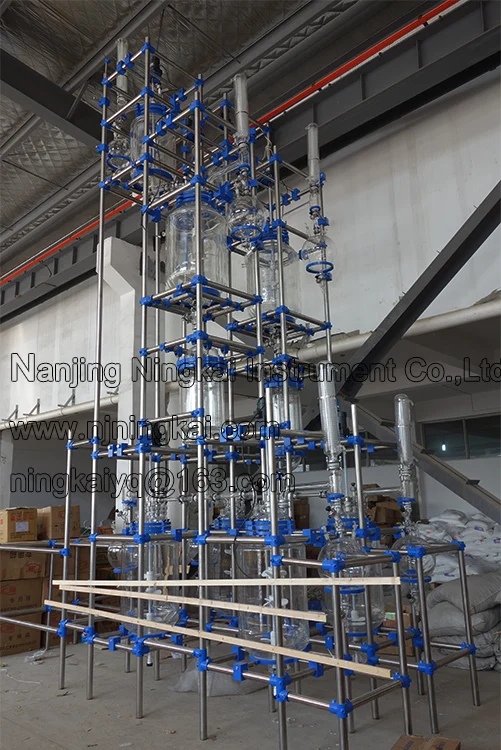

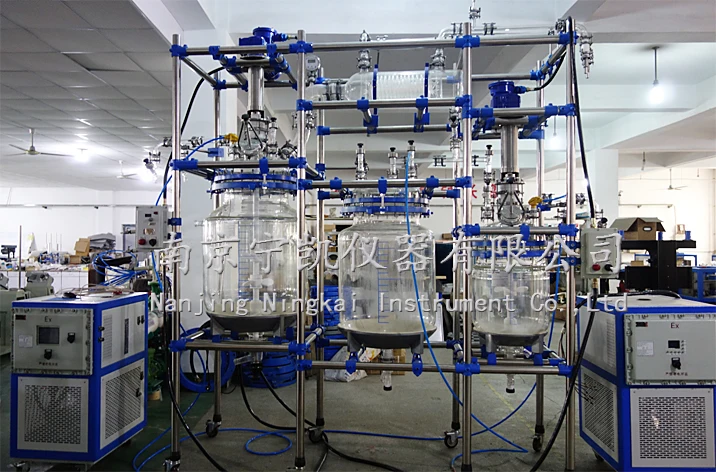

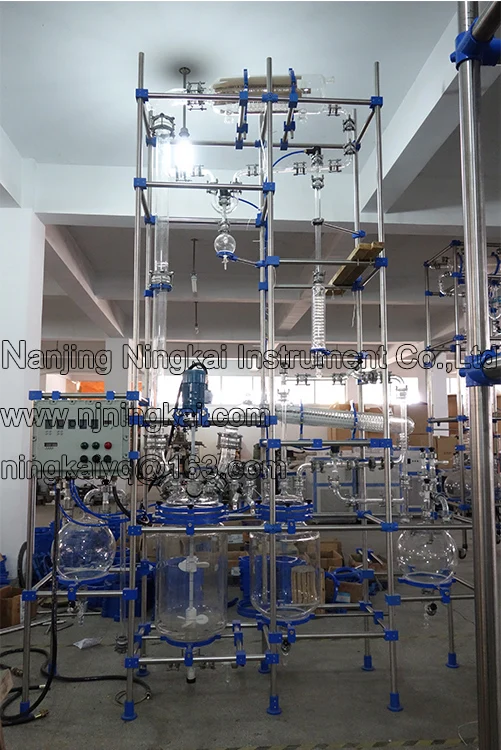

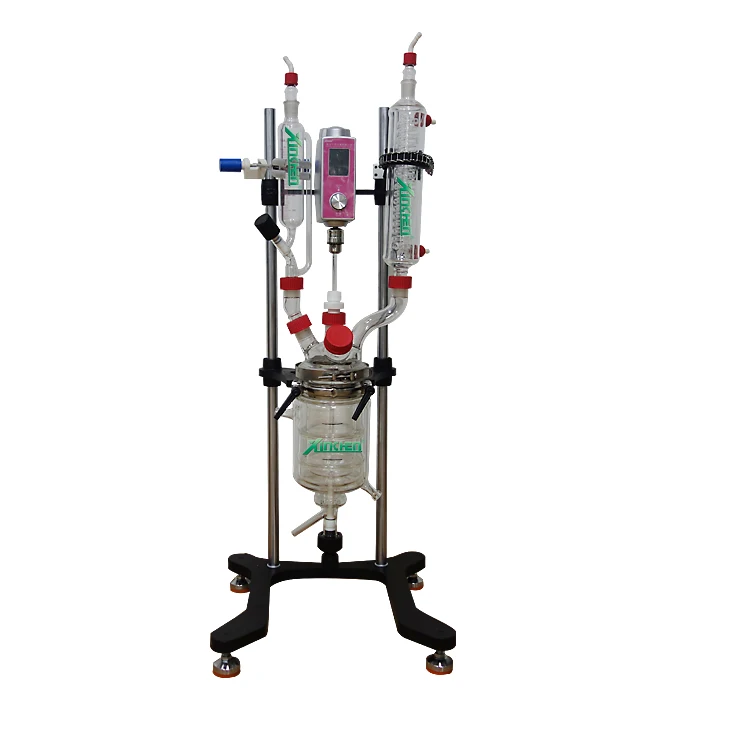

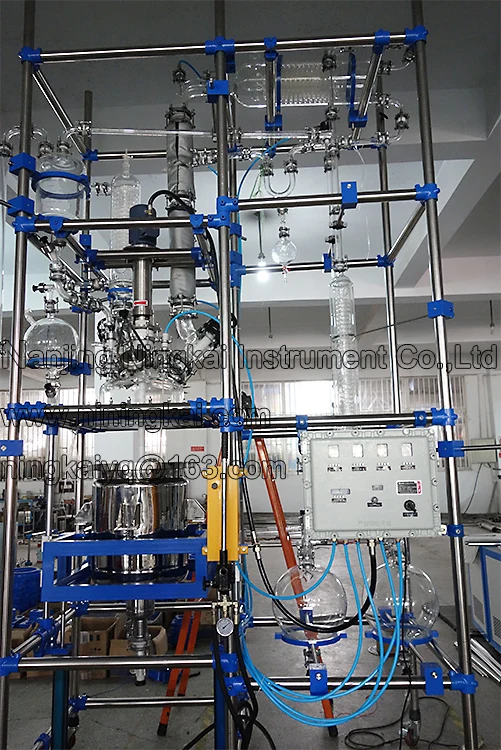

Customized 20L ultrasonic reactor , 80L three layer reactor with chiller , 10L chemical reactor with PLC control , 30L glass
reactor with 2L manual lift filter reactor , explosion proof three layer lifting reactor , glass distillation reaction device ,
50L lifting filter reactor, 50L double wall multifunctional reactor , 100L explosion proof complete of glass reactor , 20L vacuum suction filter , multifunctioal ultrasonic glass reactor , 200L double layer reactor with tail gas absorption device , 50L distillation column , PLC integrated control reaction device , 50L tail gas absorption device , distillation unit with wiped thin film evaporator , 50L single layer reaction kettle , 30L lifting filter , PLC integrated control reaction device , 1L lab grade rotary evaporator , 5L-50L pilot plant rotavapor , 10L-50L explosion proof evaporator , heating circulator , heating refrigeration circulator , low temperature circulator , ultrasonic cell crusher, super thermalstatic , industrial ultrasonic treatment equipment , hybridization oven , UV cross linker , homogenizer , dry bath , etc .
reactor with 2L manual lift filter reactor , explosion proof three layer lifting reactor , glass distillation reaction device ,
50L lifting filter reactor, 50L double wall multifunctional reactor , 100L explosion proof complete of glass reactor , 20L vacuum suction filter , multifunctioal ultrasonic glass reactor , 200L double layer reactor with tail gas absorption device , 50L distillation column , PLC integrated control reaction device , 50L tail gas absorption device , distillation unit with wiped thin film evaporator , 50L single layer reaction kettle , 30L lifting filter , PLC integrated control reaction device , 1L lab grade rotary evaporator , 5L-50L pilot plant rotavapor , 10L-50L explosion proof evaporator , heating circulator , heating refrigeration circulator , low temperature circulator , ultrasonic cell crusher, super thermalstatic , industrial ultrasonic treatment equipment , hybridization oven , UV cross linker , homogenizer , dry bath , etc .
Our factory
Ningkai Instrument Co . Ltd is located in Nanjing , China , where own hundreds of universities and research institutes. And famous as its thousands of years long history culture. Profound culture and strong scientific research strength , provide sustainable and vigorous power for Ningkai development .
Main products include Glass Reactor(single layer, double- layer and three- layer) , Rotary Evaporator , Short Path Molecular
Distillation , Heating Circulators , Heating Refrigeration Circulator , Low Temperature Circulator , Ultrasonic Cell Crusher ,
Industrial Ultrasonic Treatment Equipment , Ultrasonic Cleaning Machine , High(Low) Temperature Constant Temperature Trough , Hybridization Oven , UV Cross-linker , Flap Type Homogenizer , Dry Bath and etc . Ningkai Instrument has exported its products to Europe , South America , North America , Latin America , Asia , Australia , Middle East , Africa and etc . Providing technical support for tens of thousands organizations to solve problems within their research , special for university , research institutes, inspection agencies , industries and etc .
Main products include Glass Reactor(single layer, double- layer and three- layer) , Rotary Evaporator , Short Path Molecular
Distillation , Heating Circulators , Heating Refrigeration Circulator , Low Temperature Circulator , Ultrasonic Cell Crusher ,
Industrial Ultrasonic Treatment Equipment , Ultrasonic Cleaning Machine , High(Low) Temperature Constant Temperature Trough , Hybridization Oven , UV Cross-linker , Flap Type Homogenizer , Dry Bath and etc . Ningkai Instrument has exported its products to Europe , South America , North America , Latin America , Asia , Australia , Middle East , Africa and etc . Providing technical support for tens of thousands organizations to solve problems within their research , special for university , research institutes, inspection agencies , industries and etc .
Our Advantages
1. We have been in this line for about ten years , with rich experience in marketing , develoing , researching , engineering ,
etc.
2. Different categories and series instruments for your selection .
3. You will enoy the complete and good service from the start of order to the end of transaction .
4. Our all products can be suppliable with cusotm made .
5. We have our own glass factory and produce the glass you want .
6. Strict quality control from incoming , assembly , soldering , maintainance , aging to the final shipping .
7. Production ability: 200-300 sets per month , maximum annual output 4000 sets , minimum output 3000 sets .
8. Engineering team presided over by professors level cheif engineer who has more than 10 years proctical working experience .
Our Partners
Peking University , Tsinghua University , Nanjing University , Tianjing University , Qiangyang Chemical Industry Company , AppTec , EYELA , Toption , AUCMA , BT4 , HHitech , etc .
etc.
2. Different categories and series instruments for your selection .
3. You will enoy the complete and good service from the start of order to the end of transaction .
4. Our all products can be suppliable with cusotm made .
5. We have our own glass factory and produce the glass you want .
6. Strict quality control from incoming , assembly , soldering , maintainance , aging to the final shipping .
7. Production ability: 200-300 sets per month , maximum annual output 4000 sets , minimum output 3000 sets .
8. Engineering team presided over by professors level cheif engineer who has more than 10 years proctical working experience .
Our Partners
Peking University , Tsinghua University , Nanjing University , Tianjing University , Qiangyang Chemical Industry Company , AppTec , EYELA , Toption , AUCMA , BT4 , HHitech , etc .

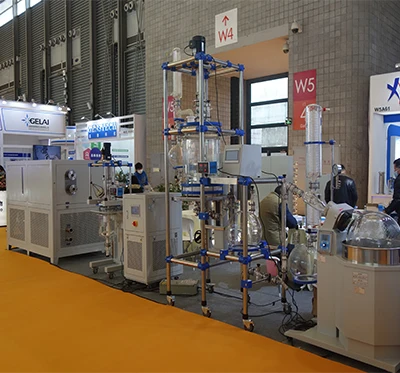

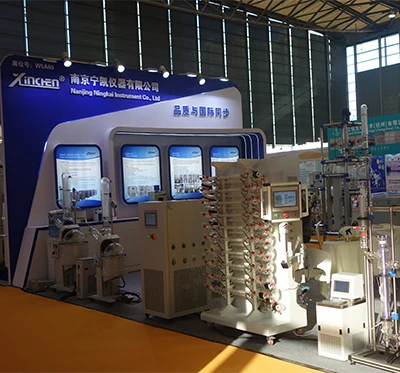

Exhibition and Certification
