Heat pump heat exchanger/water cold condenser/Titanium coil codenser and hydro cooler
- Category: >>>
- Supplier: ET Heat Exchanger Co. Ltd.
Share on (62415751702):
Product Overview
Description
Titanium has the super strong corrosion proof ability.And the titanium heat exchanger use seamless pure titanium tube as heat conductor,can ensure the titanium heat exchanger can be used for a long time ,without some charge in the service.Due to its good properties,the titanium heat exchanger widely used in swimming pool,marine central air conditioning unit,aquaculture,cool water irrigation,pharmacy,the food industry,electroplating industry and some heat recovery from the waste water or exhaust gas.
Model | MHTA-2 |
Titanium tube | 12.7*9000 |
Heating capacity | 7KW |
water flow | 3m3/h |
water inlet | 1.5inch |
Max.pressure | 5.2MPa |
Working condition
Refrigerant side(outside of tube) | Water side (in the tube) | ||||||
Max.pressure | 5.2MPa | 0.6MPa(default)0.6~2.1MPa(optional) | |||||
Temp.range | -50~150℃ | 0~50℃ | |||||
Refrigerant tybe | R22/R407C/R134a/R404a/R410a/ R600a etc. | Swimming pool water/groundwater/sea water etc. | |||||
REMARKS | 1.Please drain off when the machine stopped during the cold season to avoid freezing. 2.Please purge air from water system,and ensure the work pressure not exceed the max pressure. 3.Keep the water clean,suggest to install filter and clean the system regularly. | ||||||
Click contact customer service

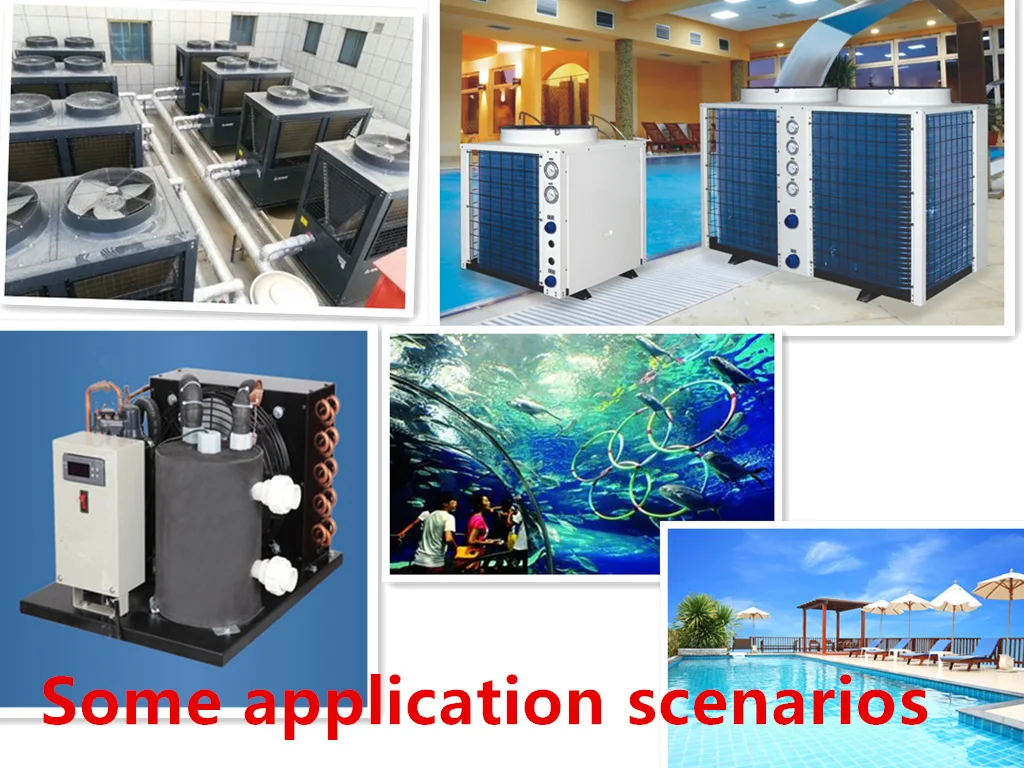

Titanium heat exchanger widely used in swimming pool,marine central air conditioning unit,aquaculture,cool water irrigation,pharmacy,the food industry,electroplating industry and some heat recovery from the waste water or exhaust gas.
* Products can be customized according to customer size requirements

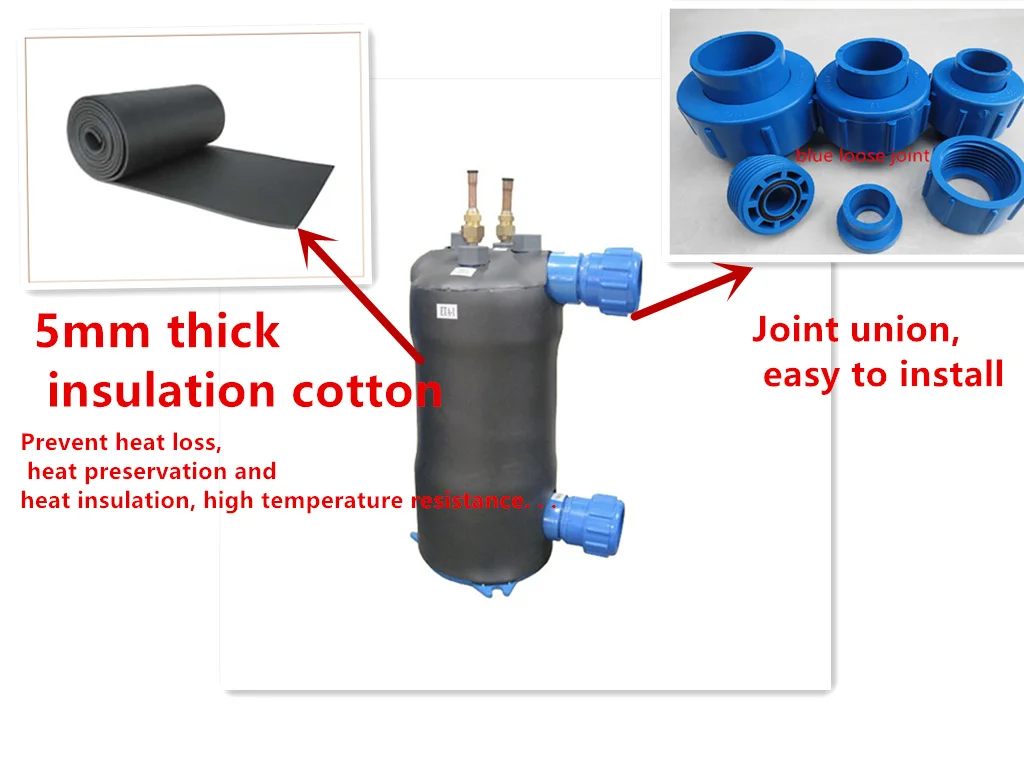

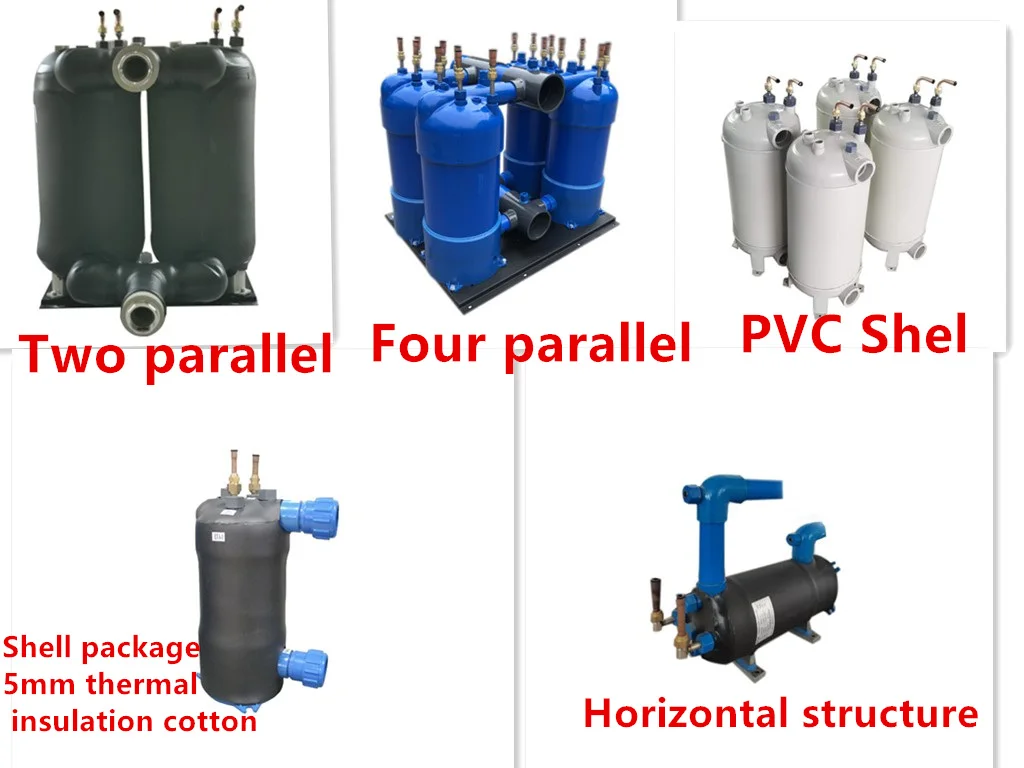

Detailed Images
Main Material and Property
1.The cups molding by high quality PVC material.RoHS conformance.
2.Due to its perfect structure design,it can stand high work pressure.Max pressure 2.5MPa.
3.Its loading capacity can pass the CE.UL,ETL requirement,10000times alternating pressure test shows it can be use more than 15 years.
4.Good appearrance,more safe in using,high efficient of heat transfer,easy for installation.It must be your best choice.

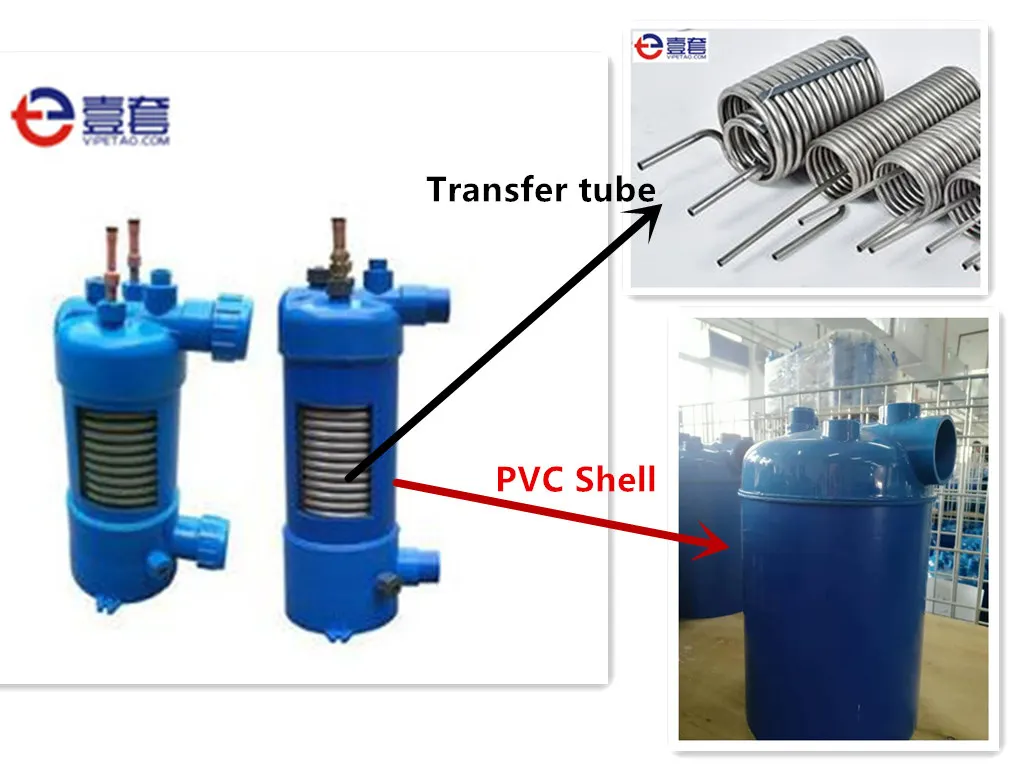

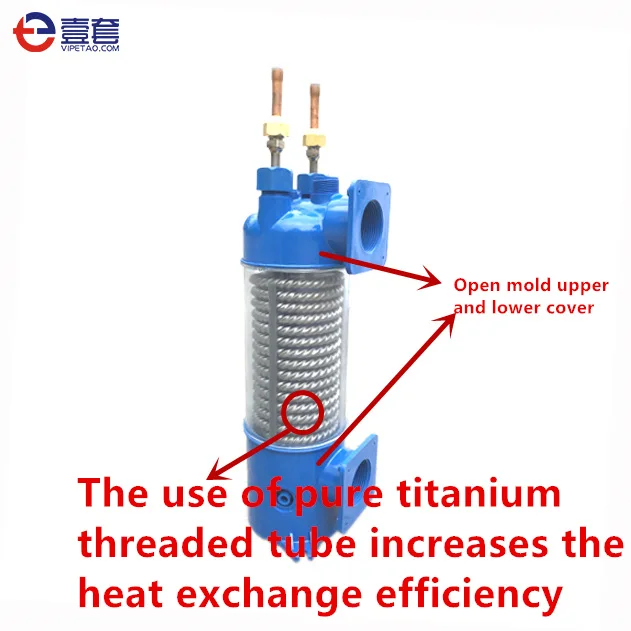

The heat transfer tube-aeamless pure titanium tube .The grade is TA1,made according to standard GB/T3625-1995.There are 52 bar high pressure test and precise halogen leaking test in the production,make sure they are not leak. shell-high quality PVC,acidproof,alkaliproof,anticorrosion,good resistance to pressure,RoHS conformance,environmentally friendly.
The heat transfer tube-aeamless pure titanium tube .The grade is TA1,made according to standard GB/T3625-1995.There are 52 bar high pressure test and precise halogen leaking test in the production,make sure they are not leak. shell-high quality PVC,acidproof,alkaliproof,anticorrosion,good resistance to pressure,RoHS conformance,environmentally friendly.
* Click to view the store
Size Information

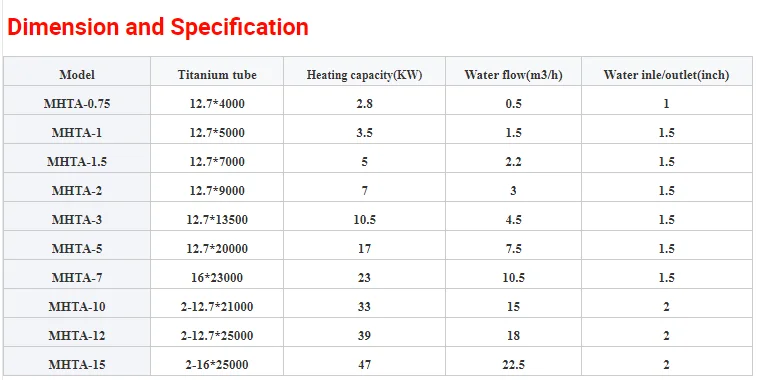

Dimension and Specification
Related Products
Packing&Shipping
Wooden case packing fixation.The stocking period is 15 days.
If you need customized packaging, please contact us.
If you need customized packaging, please contact us.
After Sales Service
Afer sales service:
After-sales service is one year.Provide video installation services
Afer sales service:
After-sales service is one year.Provide video installation services
Company Introduction
Guangzhou ET Heat Exchanger Co.,Ltd starts in 2015,and is a professional manufacturer of titanium heat exchanger,coaxial heat exchanger,tube in shell heat exchanger,titanium shell water to water heat exchanger ,air heat exchanger etc.ET has excellent production base(cover 13000square meter,equipped with advanced production and inspection machines.ET owns an professional team of R&D,manufacture and sales to keep innovation,which has been dedicated for decades.ET has established a long-term and stable cooperation with the famed companies from domestic and oversea in HVAC,which promotes ET to gain strong experience and high-level in the field. "Satisfy you with high-efficient and energy-saving heat exchanger "Is our commitment to clients and the pursuit of forever.
Quality Policy and Objectives
Quality policy:Satisfy clients' requirements,exceed customers expectation.
Business philosophy:Quality-oriented,service-available,credibility-first.
Corporate honor
Some cooperative partners
FAQ
