New design mobile stone crusher,used mobile crusher,mobile rock crusher
- Category: Crusher >>>
- Supplier: Zhengzhou Zhuomiao Import & Export Trading Co. Ltd.
Share on (62415806602):
Product Overview
Description
Stone mobile crusher,mobile jaw crushing plant,wheel type jaw crusher
Mobile Crushing Plant Usage and Application
The mobile crushing plant is not limited by the crushing place, and reduces high material transportation cost. It can crush materials on site or working nearly. It is widely used in the industry of mining, metallurgy, building materials, traffic, water conservancy and so on.
Mobile Crushing Plant Features
1.Move easily. It can go to the crushing place directly. It can move not only on the smooth road, but also on the bumpy road.
2.Compact structure and simple operation. Integrative equipment group with trailer save the working area. With generator,
motor and control box on the trailer, it can work outdoor easily. Equipped with supporting facilities, it can be installed quickly
and conveniently.
3.Save the cost. By crushing the materials on site, the transportation cost is reduced.
4.Wide applicability. The crushing plant can work as independent unit or work with other units to form a primary-secondary crushing system or primary-secondary-fine crushing system. It can also work as a production line with the screening equipment according to the requirement of customers (firstly screening then crushing, or firstly crushing then screening.)
5.Stable performance and convenient maintenance. Equipped with crushers, vibrating feeders, and vibrating screens designed by Great Wall Heavy Industry Machinery, the mobile crushing plant shows high quality and reliable performance. Materials are delivered by belt conveyors, which is simple to operate and easy to maintain. The machine is featured by low investment and high production efficiency.
6.Flexible configuration. It can be customized according to customers’ requirement on working site, materials and particle shape. Examples of customized machines include single units, combined units, units with self-discharged belt conveyors.
Jaw Crusher Specification:
Jaw crusher size | Tons/Hour | Feed Size | Discharge Size | Electric Hp | Weight(lbs) |
5’’*6’’ | 0.5-1.5 | 4’’ | 3/8’’-1.5 | 5 | 750 |
6’’*10’’ | 1-3 | 5.5’’ | 1/2’’-2’’ | 7.5 | 1,600 |
8’’*12’’ | 2-6 | 7’’ | 3/4-2.5’’ | 10 | 2,400 |
10’’*16’’ | 5-20 | 9’’ | 3/4-3.5’’ | 20 | 5,600 |
16*24’’ | 15-60 | 14’’ | 1’’-3.5’’ | 45 | 14,000 |
20*30’’ | 40-110 | 18’’ | 1’’-4’’ | 75 | 24,000 |
24*30’’ | 50-180 | 22’’ | 1’’-4’’ | 75 | 32,000 |
24*36’’ | 80-240 | 22’’ | 2’’-6’’ | 75 | 34,000 |
The main technical parameters:
| Model | Feed opening | Max feed size(mm) | Adjustable range (mm) | Capacity (t/h) | Eccentric shaft speed | Motor power (kw) | Total weight | Overall dimensions (L*W*H)(mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 90-110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 160-220 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200×3300×3500 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |

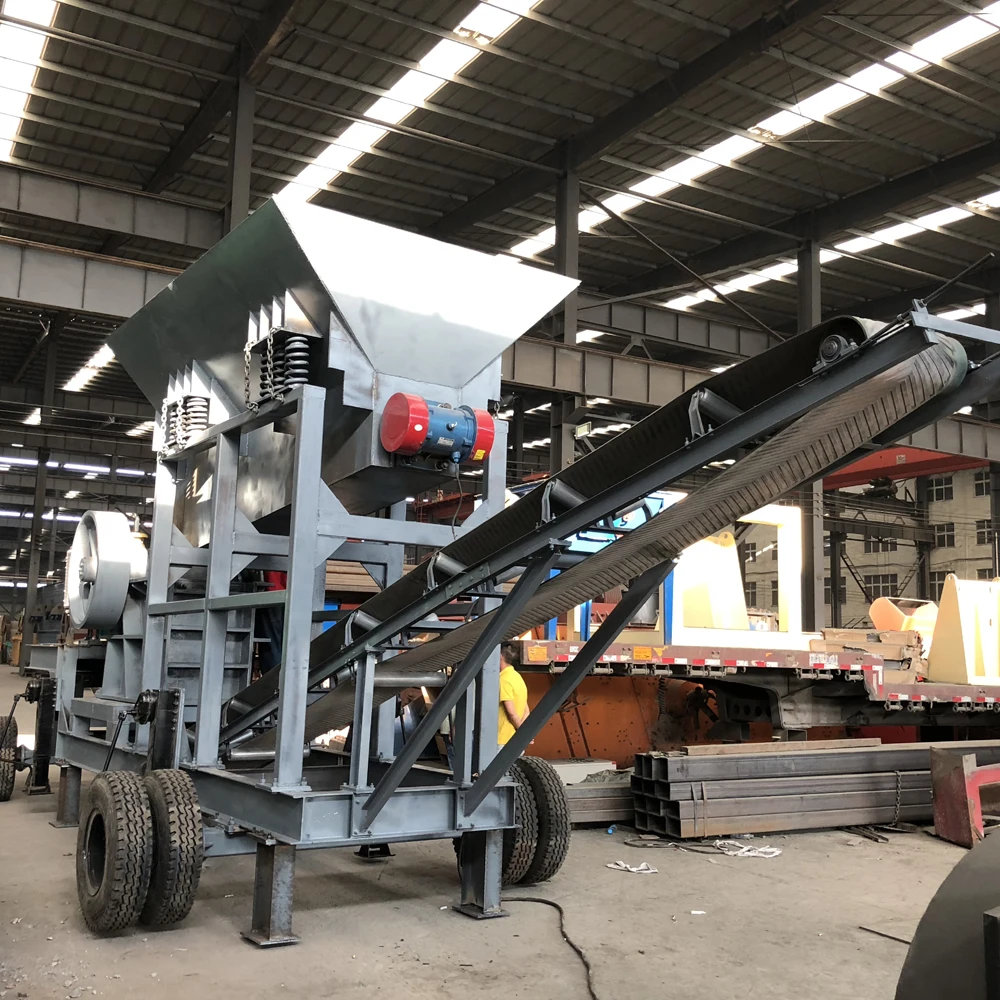

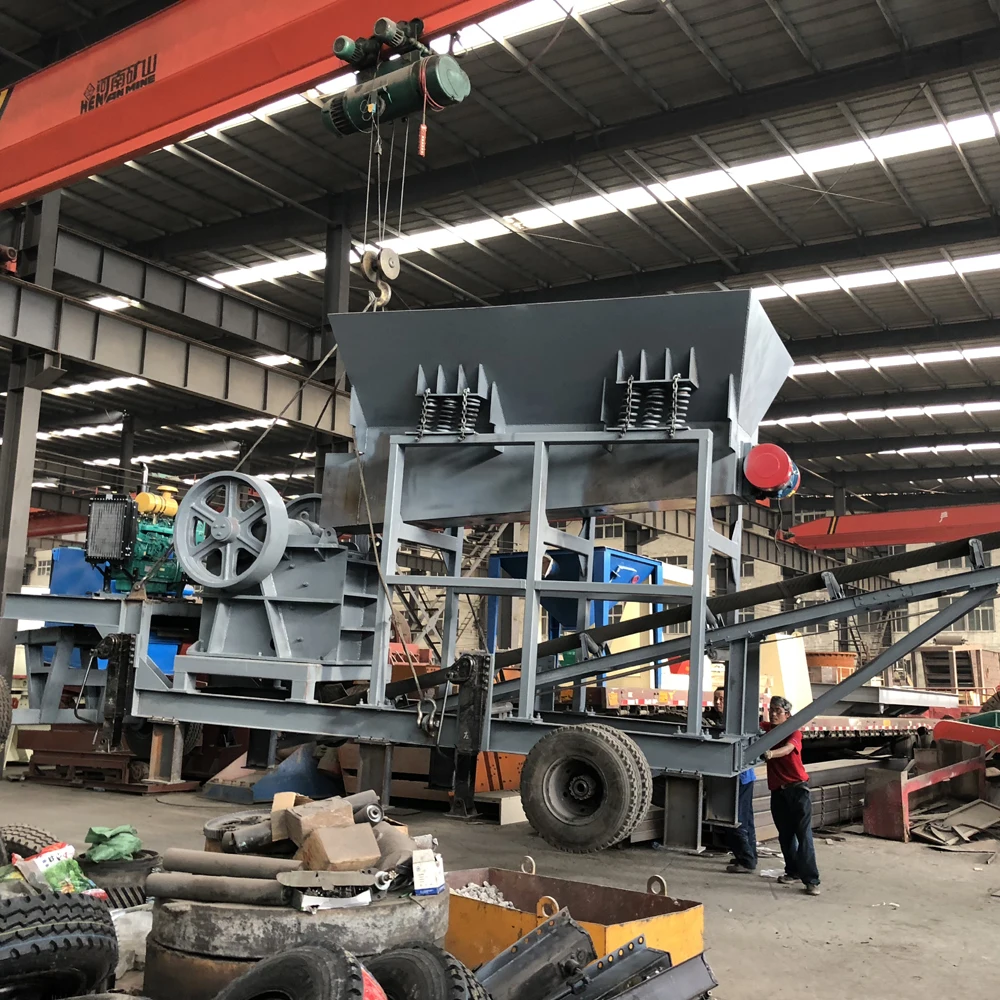

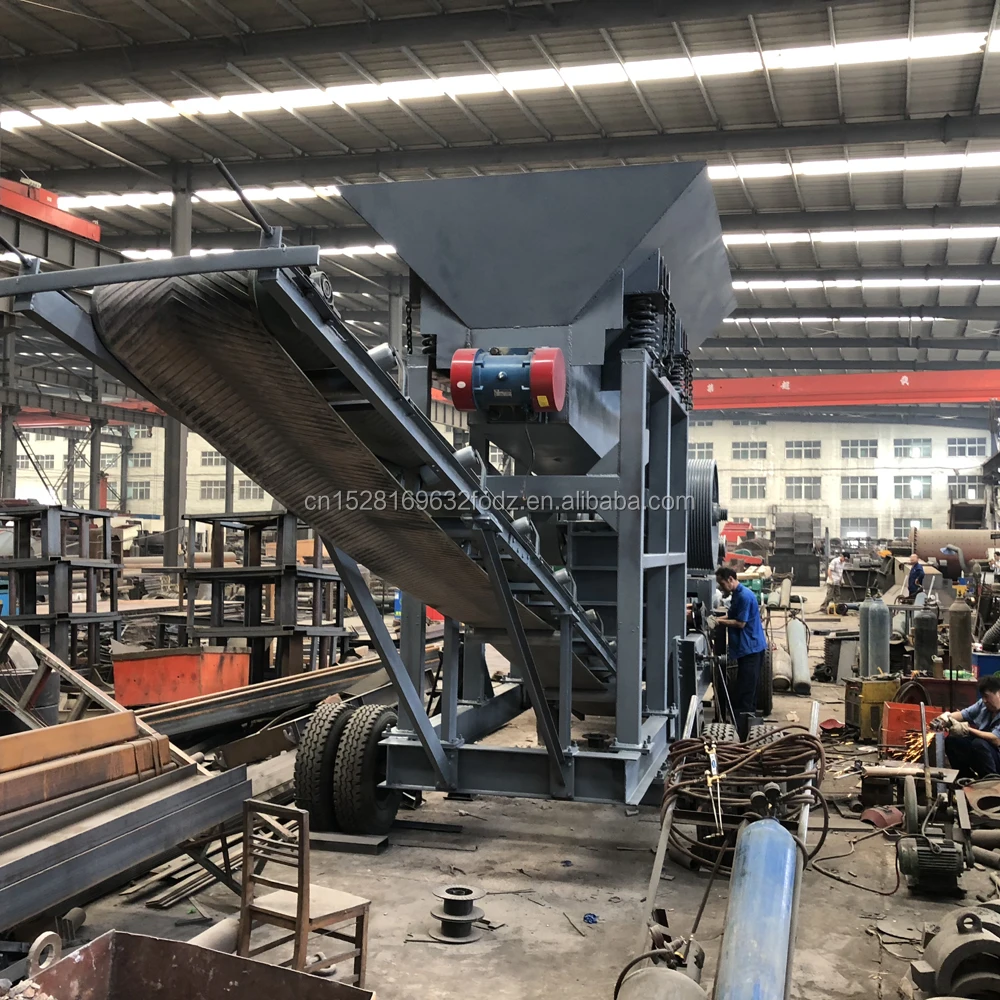

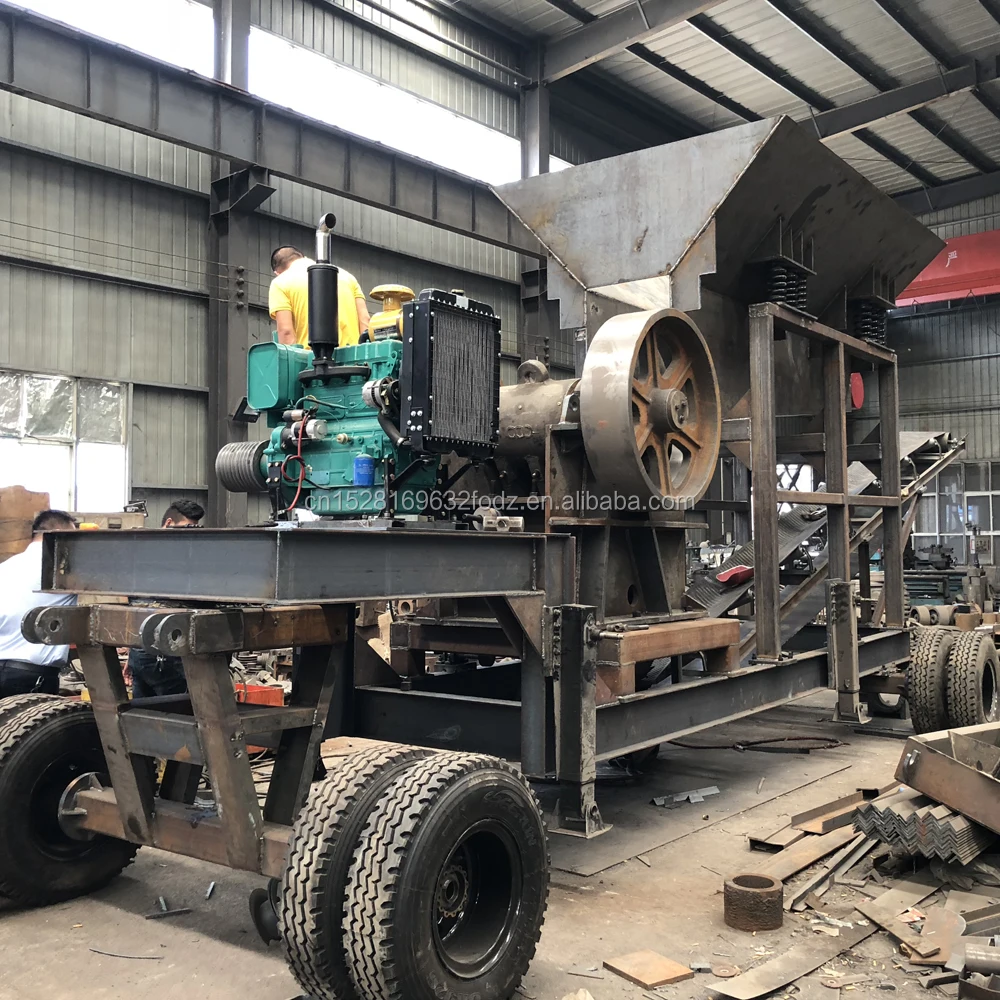

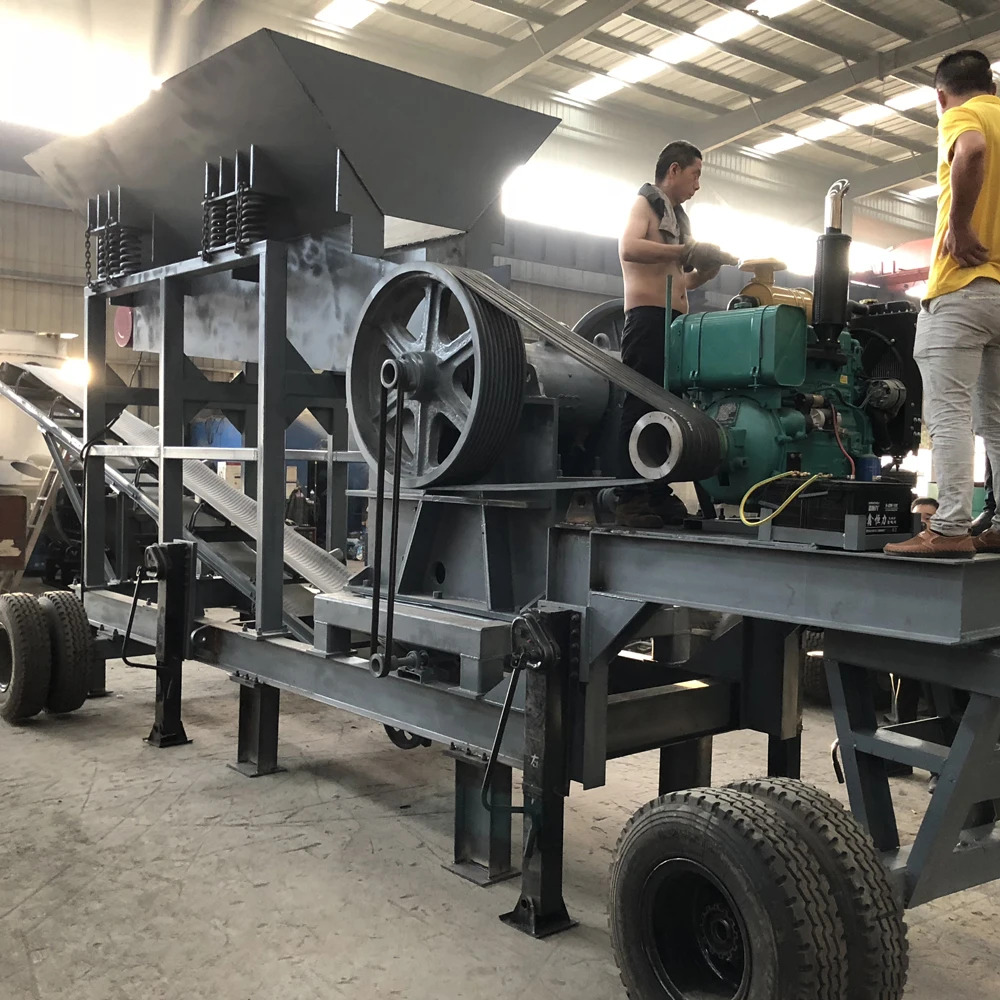

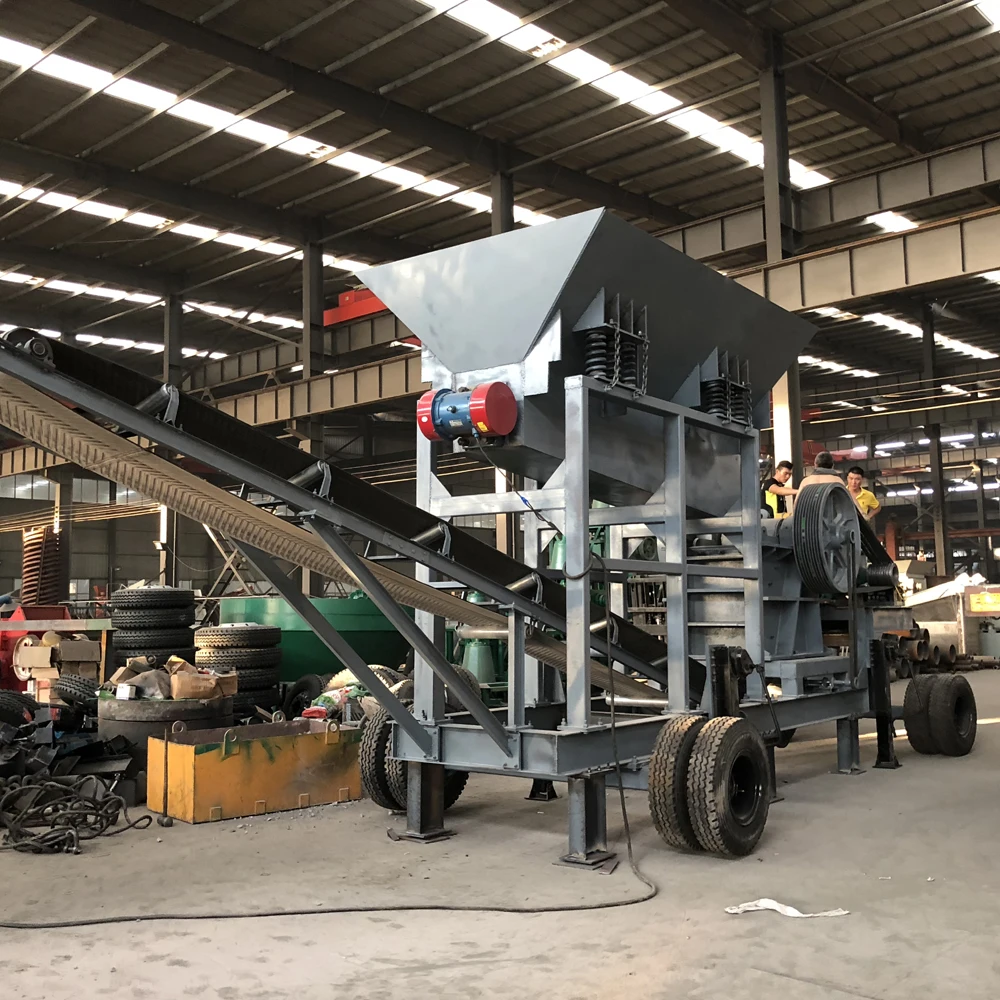

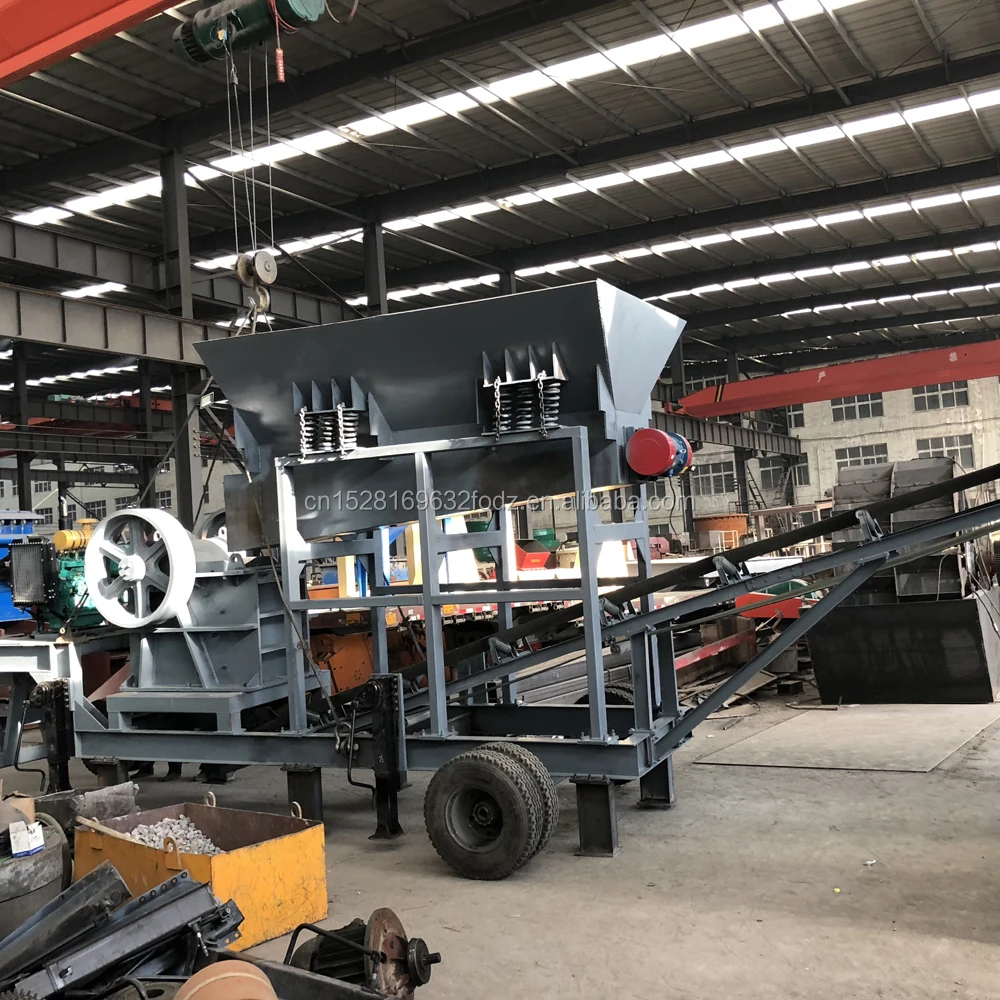

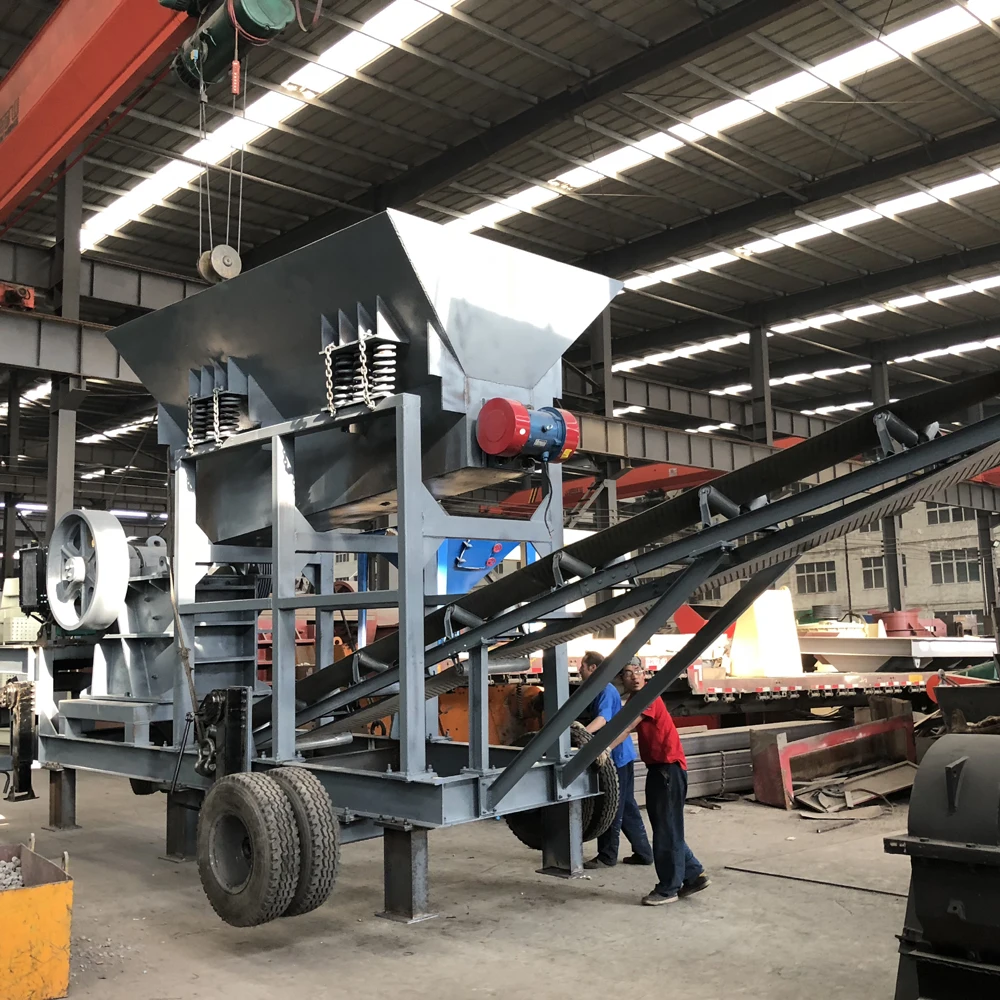

This is our mobile crushing plant:
