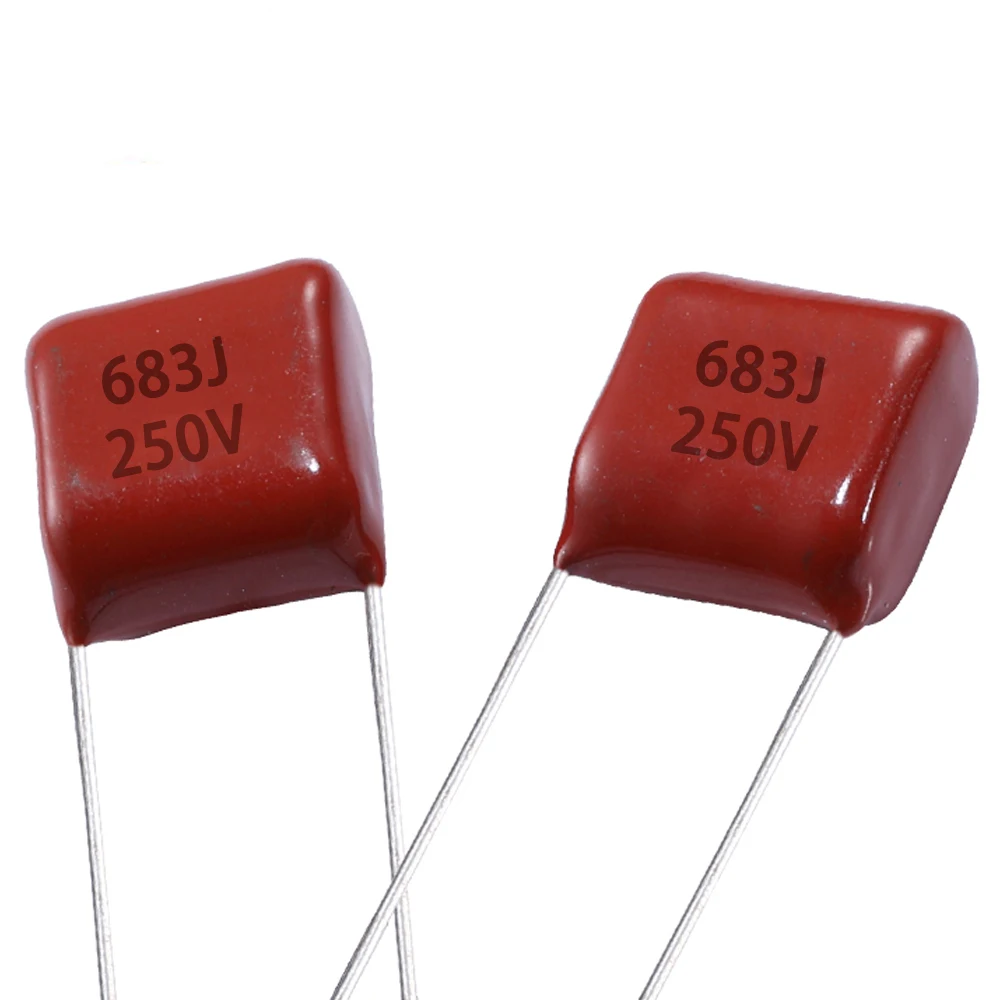

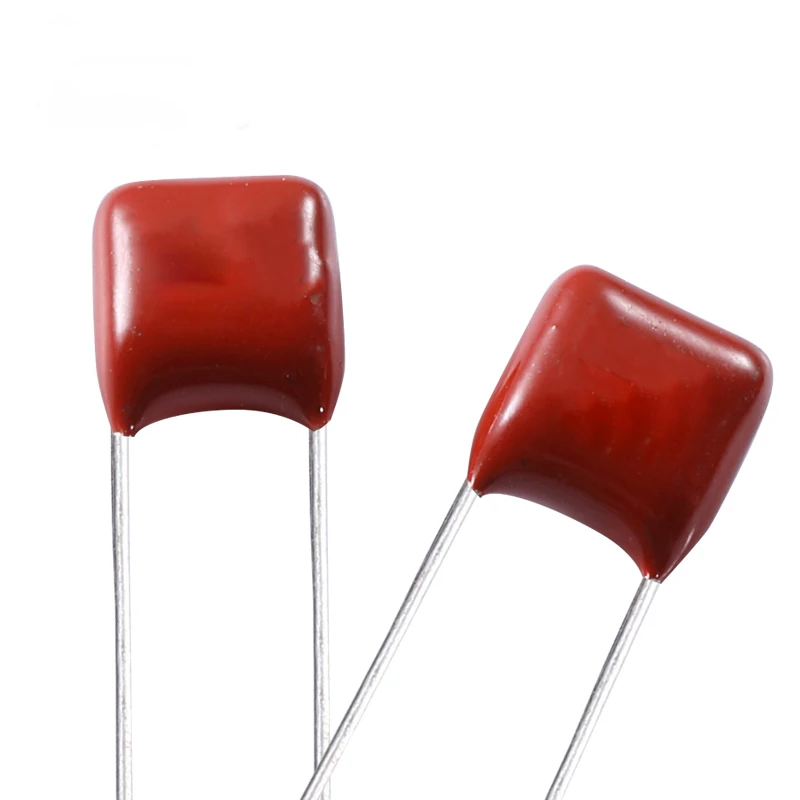

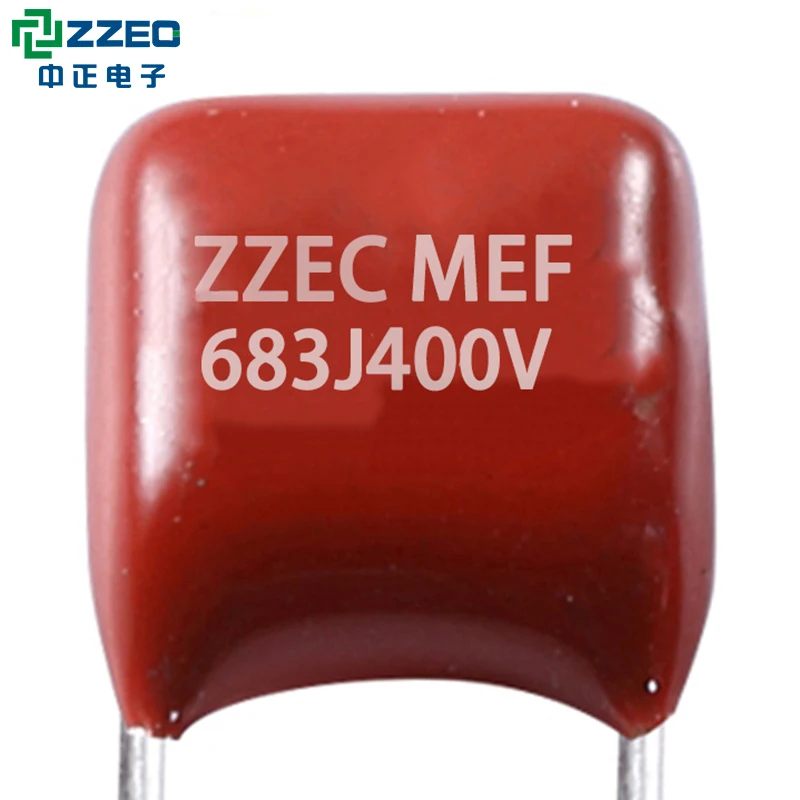

683j 0.068uf Mef Cl21 683j 0.068uf 400v Metallized Polyester Film Capacitor
- Category: >>>
- Supplier: Guangzhou Zhongzheng Electronic Development Co. Ltd.
Share on (62415873986):
Product Overview
Description
683j 0.068uf Mef Cl21 683j 0.068uf 400v Metallized Polyester Film Capacitor
683j 0.068uf Mef Cl21 683j 0.068uf 400v Metallized Polyester Film Capacitor
Our Services
The largest manufacturer of ultra small size film capacitors in china
Company Information
Product Description

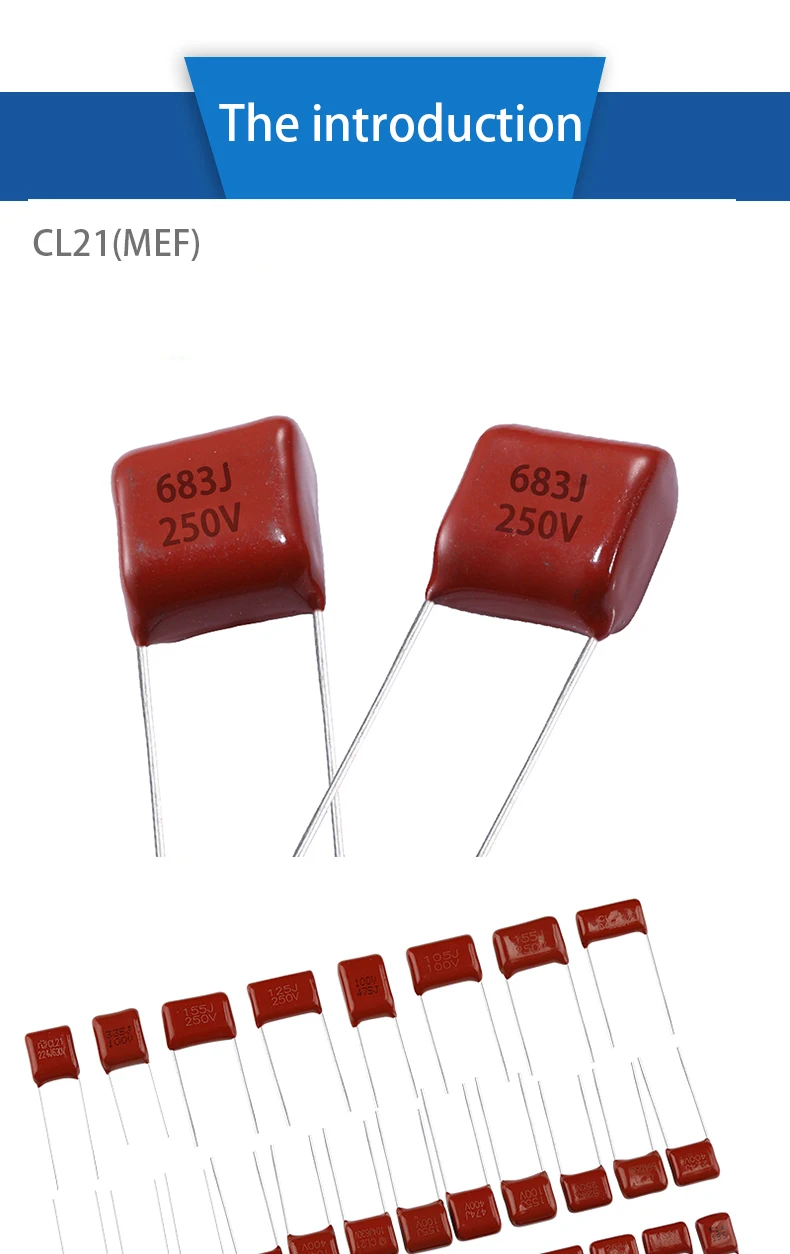

CL21(MEF)FEATURES
Ø Ultra-small, low noise, good appearance consistency.
Ø Metallized polyester film, small inherent temperature rise.
Ø High voltage resistance, high temperature wax sealed, flame retardant epoxy powder coating.
Ø Moisture-proof, flame retardant.
Ø Low dissipation factor.
Ø Good self-healing property, good stability and reliability.

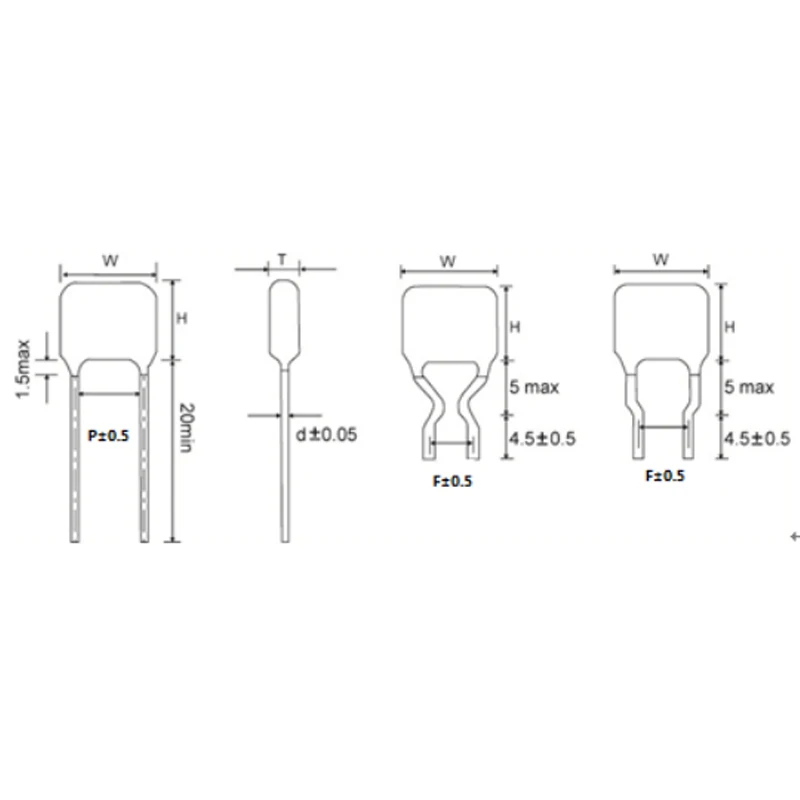

* Outline Drawing:
* Specification:
Climatic Category | 40/100/21 |
Rated Voltage | 100v 250v 400v |
Capacitance Range | 0.0010uf~6.8uf |
Voltage Proof | 1.6 UR |
Insulation Resistance | ≥3 0000MΩ, CR≤0.33μF |
≥10000S, CR>0.33μF | |
(20℃, 1min) | |
Disspation Factor | ≤0.008(20℃, 1kHz) |
Capacitance Tolerance | ±5%(J), ±10%(K) |

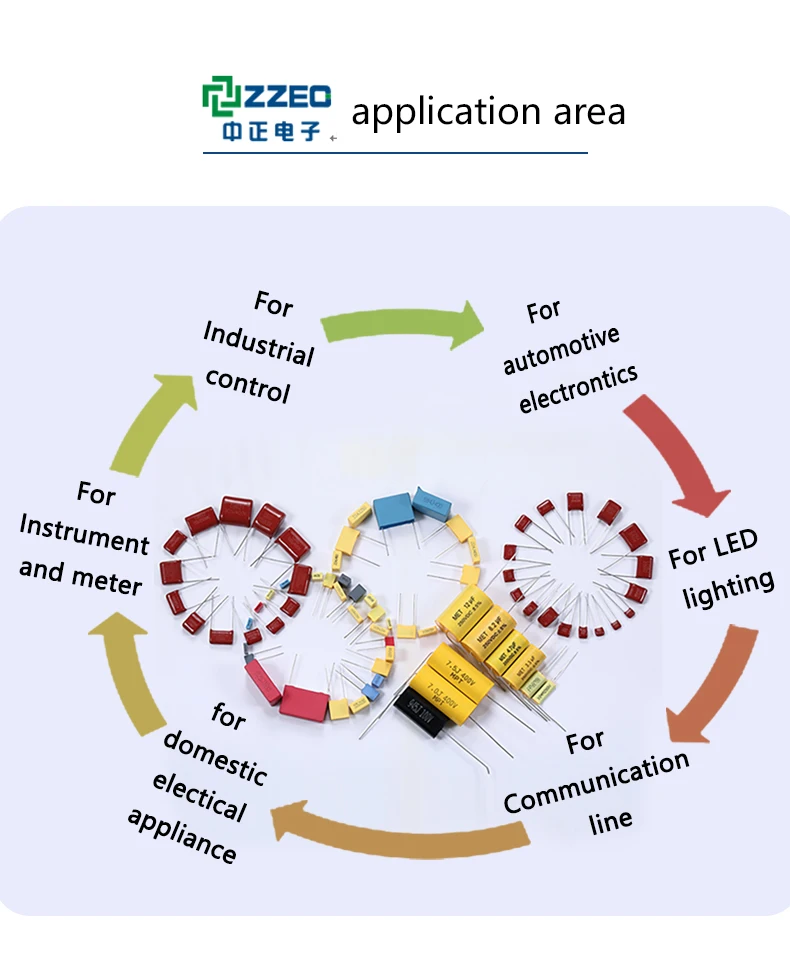

* Usage:
Suitable for DC and lowpulse occasions, forthe amplifier, TV, communications, power supply, LED drivers and other requirements of the small size of the circuit.

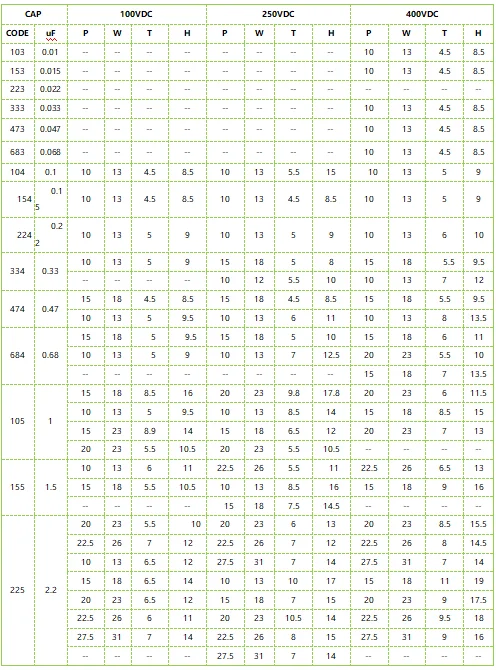

CL21(MEF) Capacitor STANDARD SIZE
Dimensions(mm) and special specifications can product according to your demand.
FAQ
Q:Are you a trading company or a manufacturer?
A:This's GUANGZHOU ZZEC Electronic. It's a professional manufacturer in the field of Subminiature Metalized Polyester & Polypropylene Film Capacitor
Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?

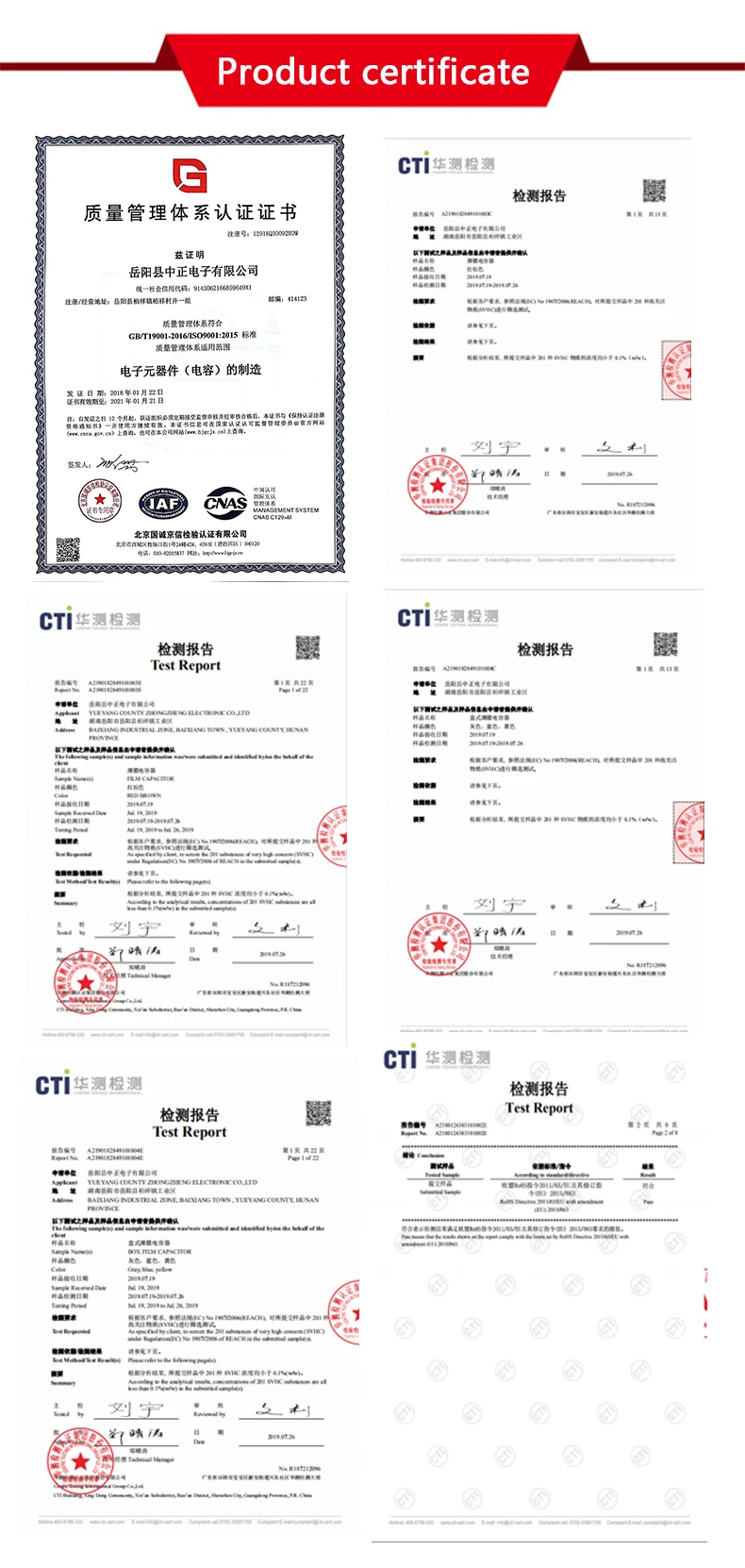

A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.
Q:Delivery time?
A;7-15 working days
