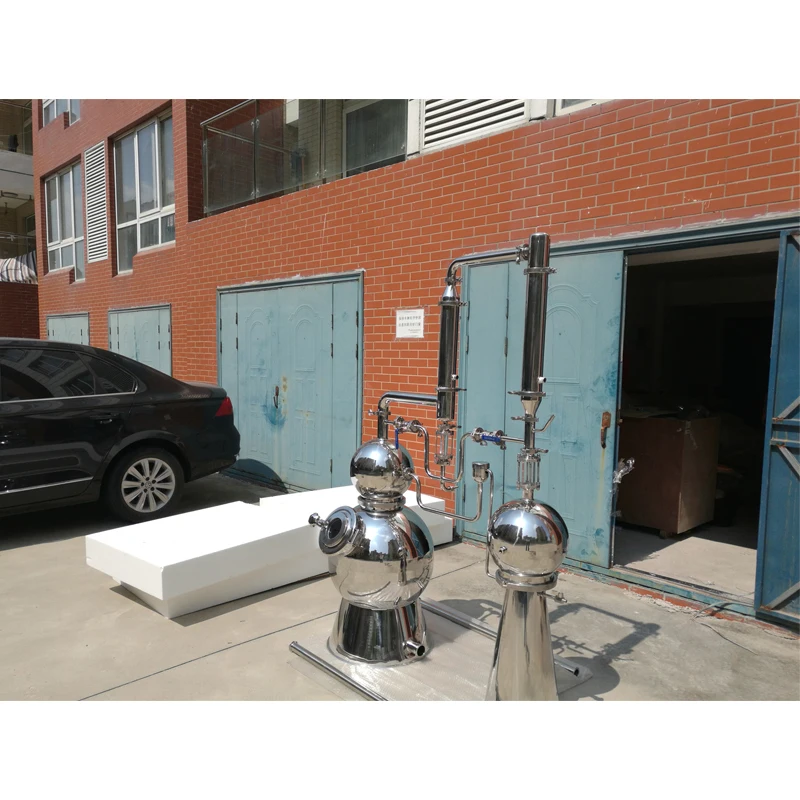

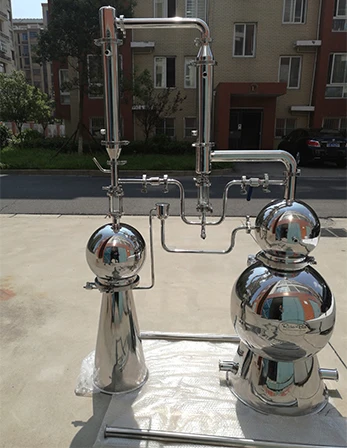

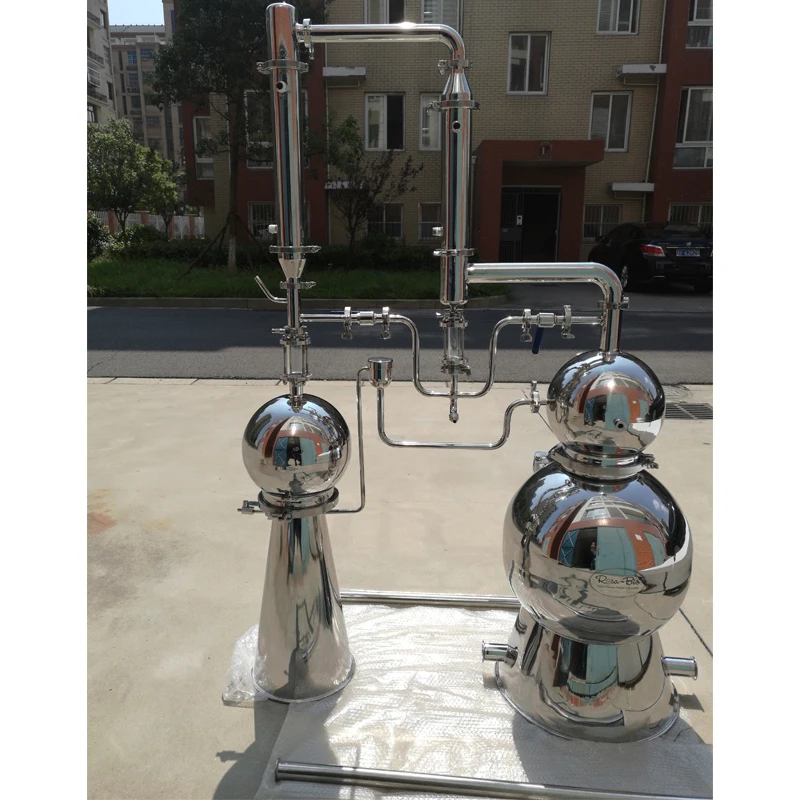

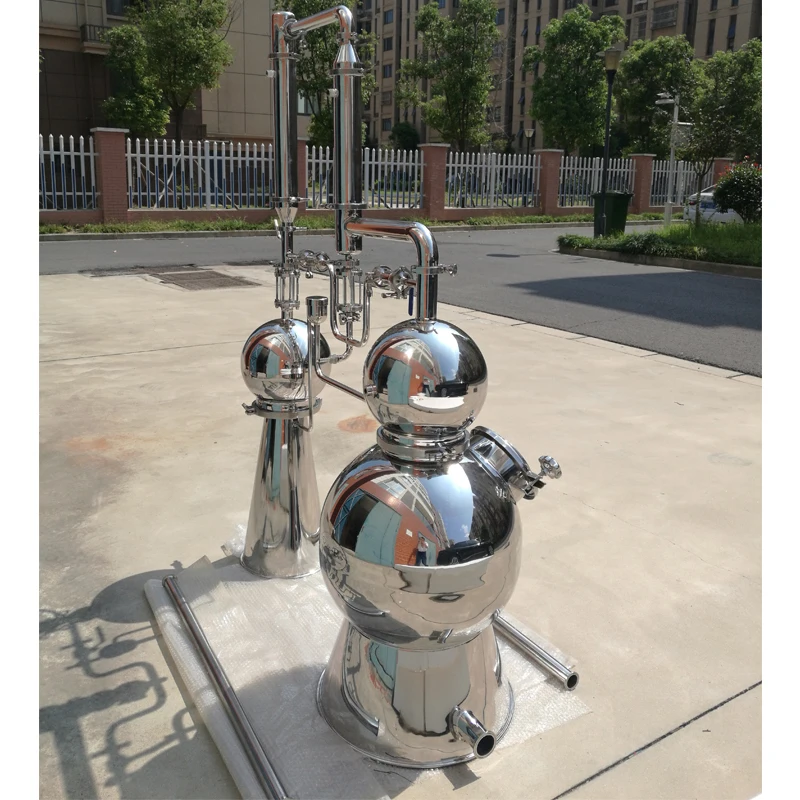

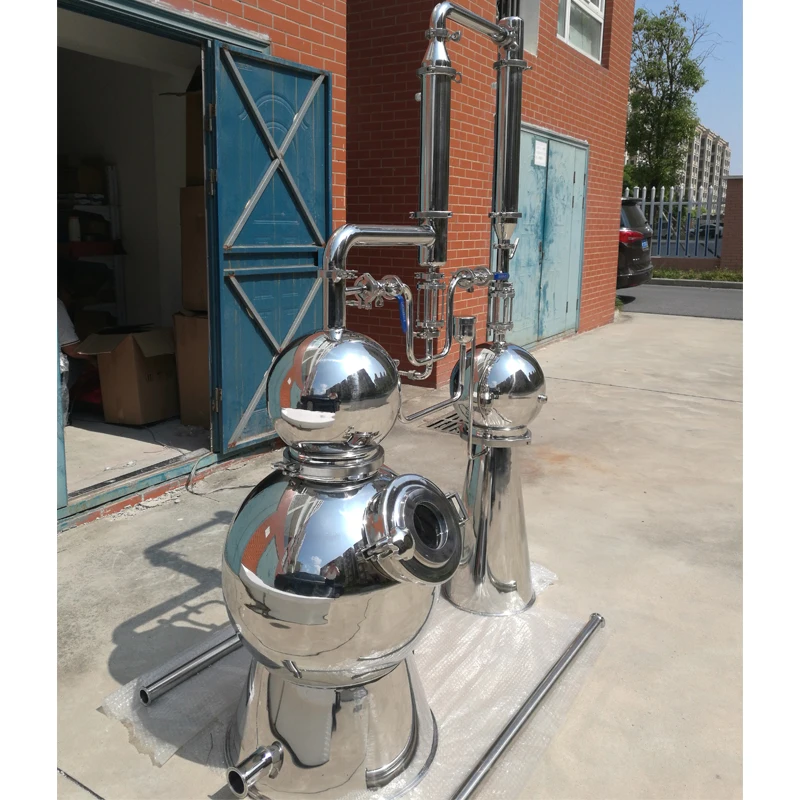

50L alembic still price distillation equipment essential oil distiller
- Category: >>>
- Supplier: Wuhan HDC Energy Co. Ltd.
Share on (62415979391):
Product Overview
Description
Product Description

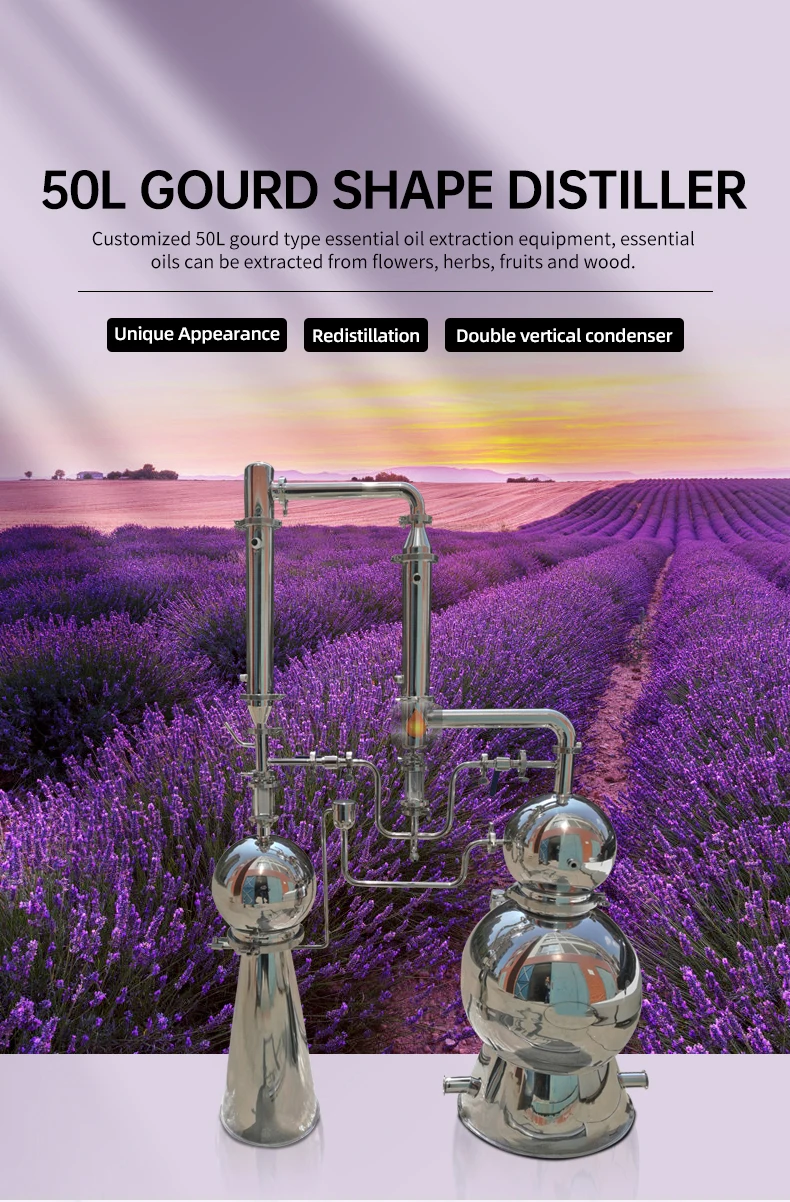

This excellent and multifunctional 50L gourd shape essential oil distillation equipment can be a fabulous gift for beginners who interests in the art of distilling essential oil and hydrolat in small batches from plants in the garden .
Detailed Images

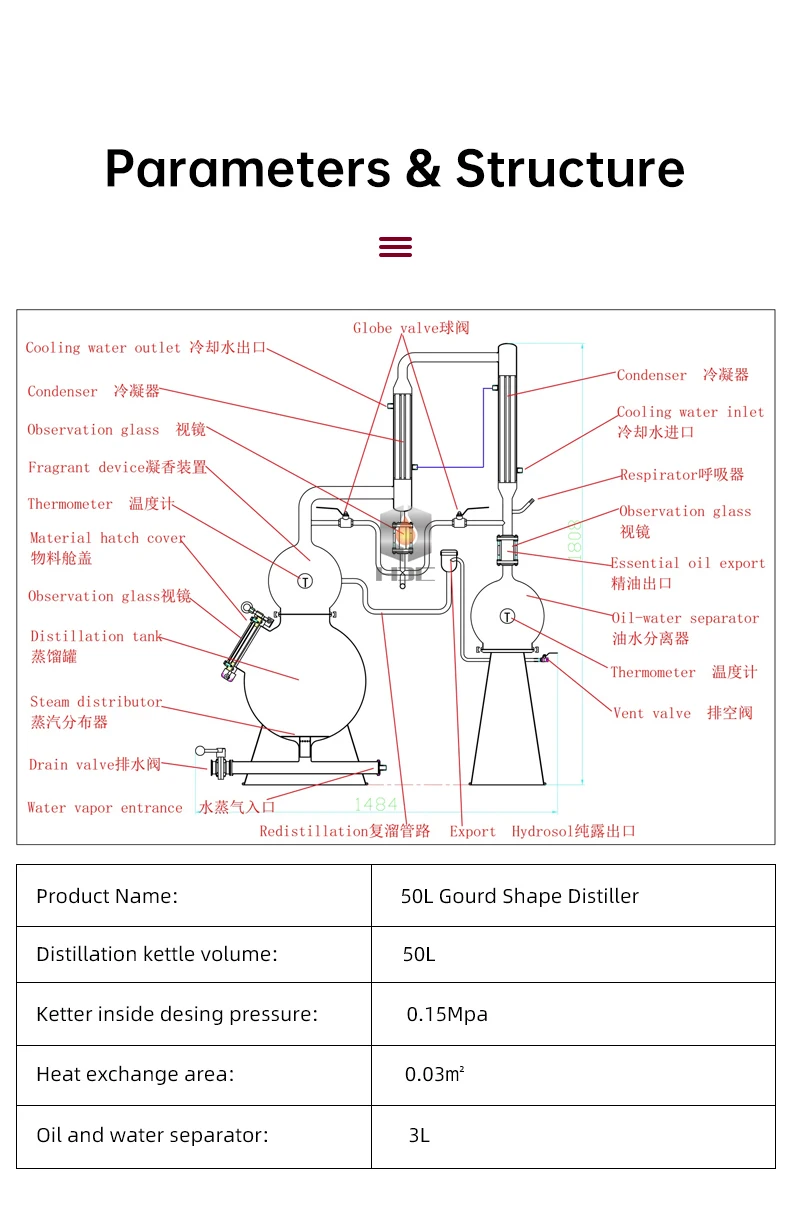

Product structure
Main technical parameter |

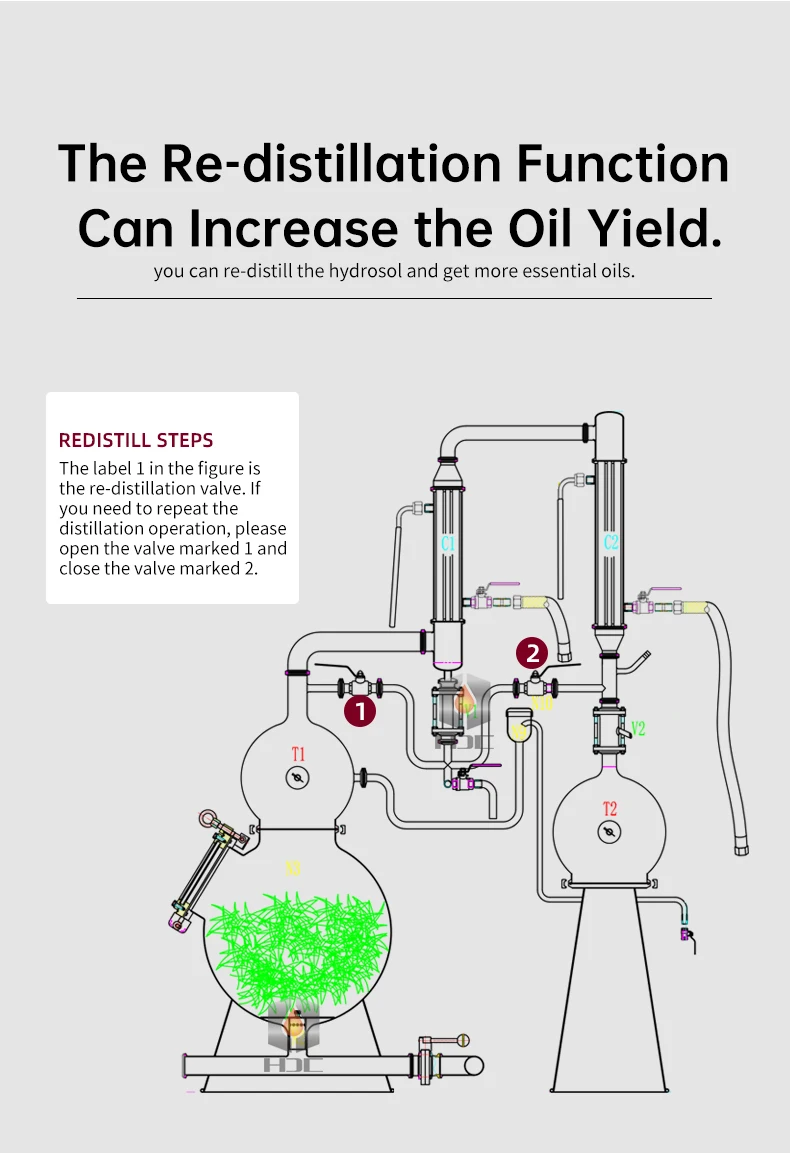

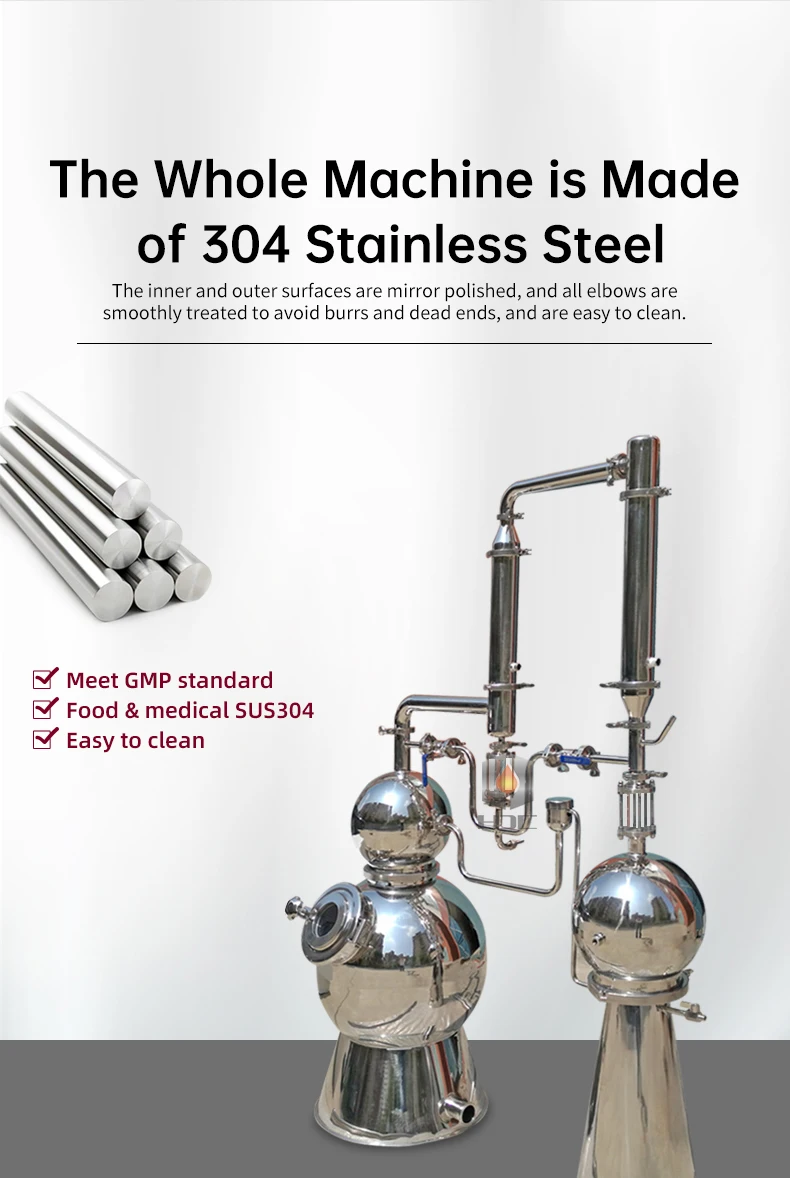

1. Structure : The equipment is made of distillation kettle, condenser, cooler, oil and water separator, re-distillation device, coagulate fragrance device and related pipes. Distillation equipments are all made of SUS304 stainless steel. The inner surface of the equipment is polished with Ra ≤ 0.6μm and the mirror surface treatment with Ra ≤ 0.8μm to ensure that there is no dead corner and meet the GMP requirements. |
2. Distillation kettle: effective volume: 50L, direct heating with tank bottom.Kettle inside: Design pressure: 0.09 Mpa; Working pressure: atmospheric pressure; Design temperature: 180 ℃; Working temperature:≤ 100 ℃; Working medium: water; Barrel = 2.0mm/SUS304;Upper oval head= 2.0mm/SUS304;Pipeline hole: thermometer connector, reflux inlet, liquid outlet, related pipe joints etc. |
3. Condenser: vertical condenser, heat exchange area> 0.03 square meter.Tube pass: Design pressure: atmospheric pressure; Working pressure: atmospheric pressure; Design temperature: 100 ℃; Working temperature ≤ 100 ℃; Working medium: secondary steam. Tube pass: Φ 19 x 1.5; Material :SUS304;Shell pass: Design pressure: 0.3 Mpa; Working pressure:atmospheric pressure; Working temperature: 15 ~ 40℃. Working medium: cooling water. |
4. Oil and water separator: tank material: δ1.5mm/SUS304, top glass; Tank volume: 3L; |
5. Electric ceramic stove: working voltage 220V/50HZ triphase. Maximum heating power: 3kw, 22-speed adjustable. |
6. Accessories: 1pcs electric ceramic boiler , 1pcs thermometer, pressure gauge |
Features

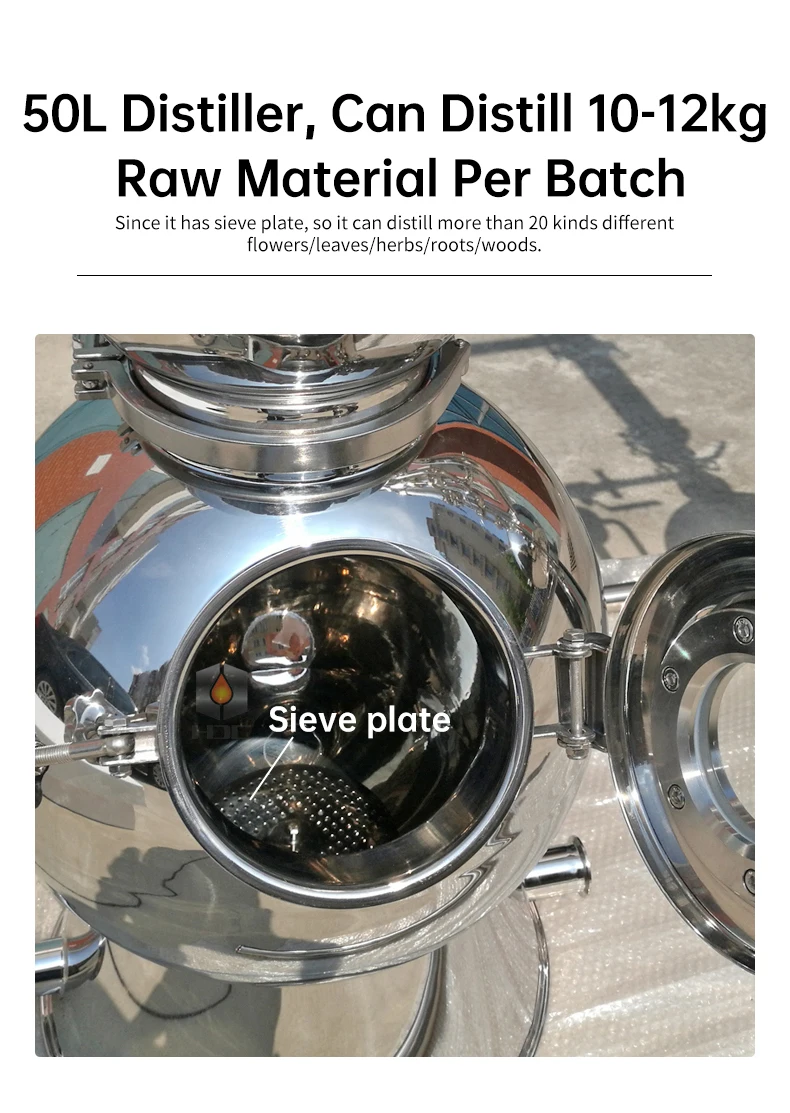

Raw materials

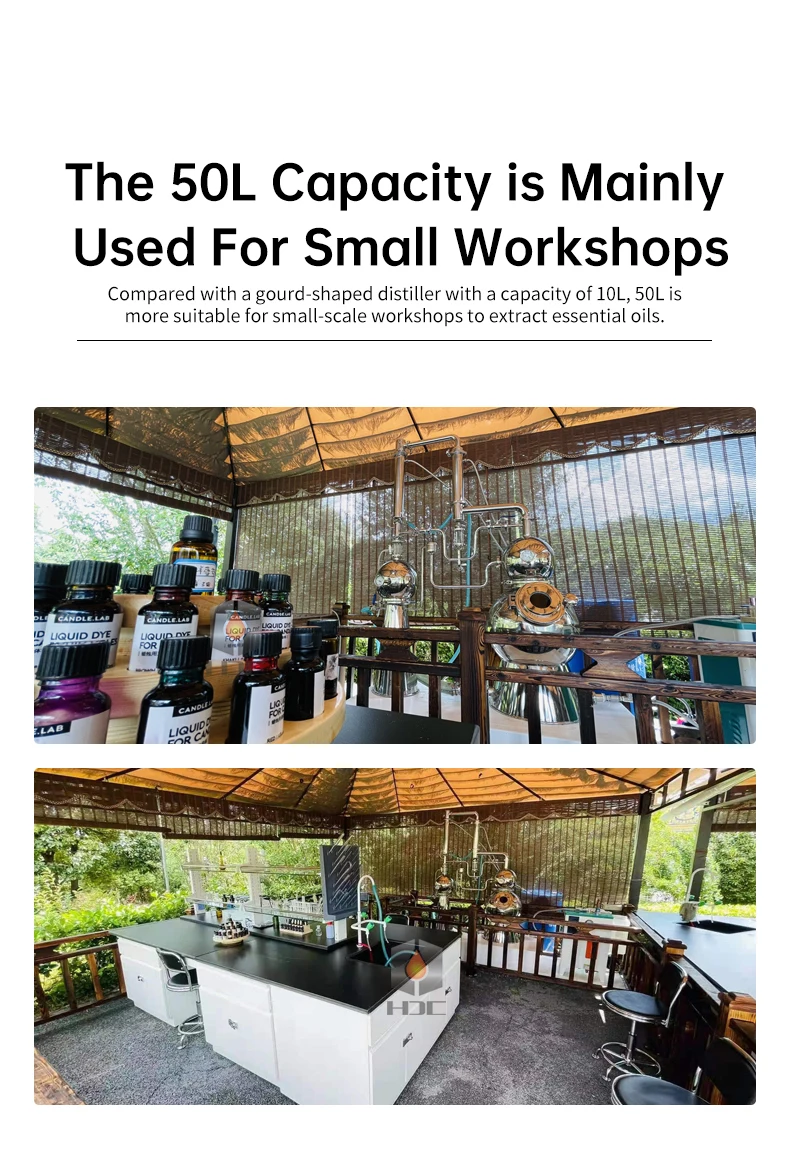

This fully stainless steel energy-saving essential oil distillation pot suitable for extract essential oil and hydrosols from
plants .It is widely used in agritourism,ecological agriculture garden,botanical gardens,tourist attractions,essential
oils,hydrosols and aromatherapy products stores,SPA clubs
plants .It is widely used in agritourism,ecological agriculture garden,botanical gardens,tourist attractions,essential
oils,hydrosols and aromatherapy products stores,SPA clubs
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Introduction
Wuhan HDC is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research,manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil
pretreatment,prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions. With more than 30 years of experience on oil making machine, we provide a comprehensive range of
products We are proud to guarantee that, with our strong technical background and communication capability, our sales/supportengineers are
able to answer your most complicated technical questions over the phone in English. That would save a lot of time for
communication.

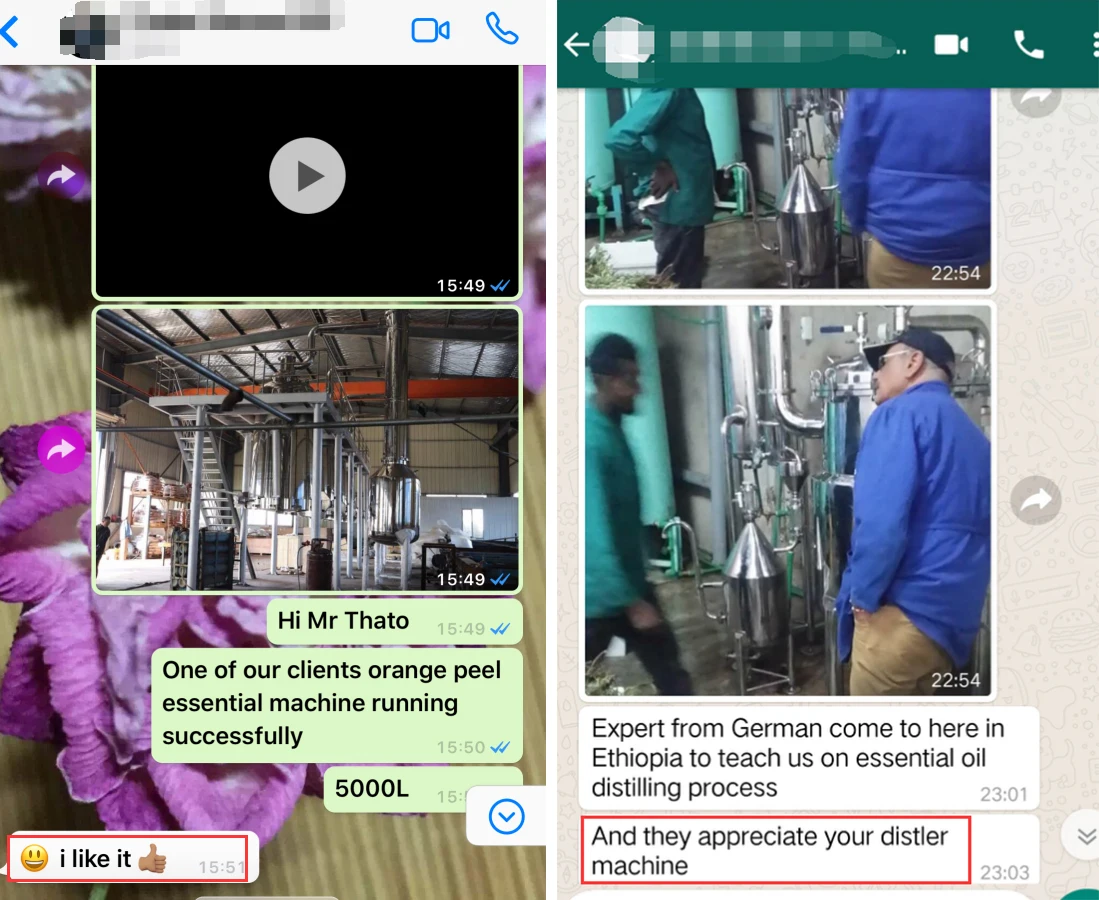

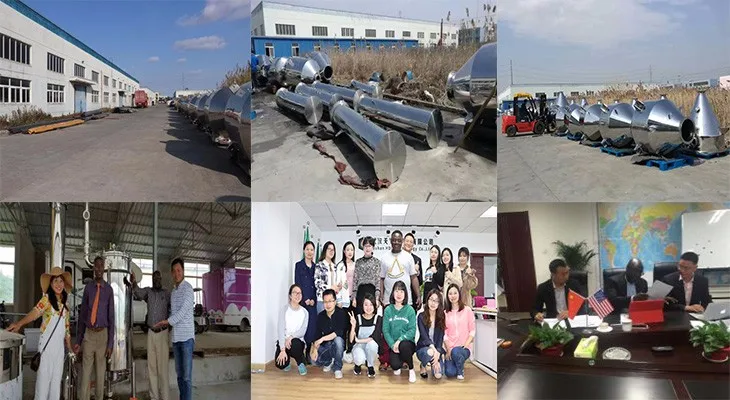

The following pictures show our factory and customers in our workshop.
Q1: What is the Warranty for the machines?
A1: 1 year for free.
Q2: What is the Material?
A2: Stainless steel.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately
give you a little discount.
Q5: How to ask quotation?
A5: Please note us what type of raw materials , and how many kgs of raw materials you want to treat per batch, then we will send
you quotation as soon as we can.
Q6: Can we ask the oil plant for different types of oil?
A6: Yes, but we recommend no more than 3 different types.
Q7: Essential oil plants require how large of a workspace?
A7: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given
specifications, or, can design the oil plant in-house specifically to the amount of workspace available.
Q8: How long will it take to receive my products?
A8: As a general rule, it will take one Month for us to produce.
