Customized Electric Industrial Powder Coating Oven for Powder Coating Machine

Product Overview

Description

Industrial Electric  Powder Coating Oven for powder Coating Machine







1.Brief Introduction

The powder curing oven is a most inportant part of powder coating system.
Objective: The workpiece surface of powder coating heating to the specified temperature and heat preservation corresponding time, melting, flow flat, curing.







2.Process steps&Working principle

1. heating curing oven,Start the fan button, the fan start to work, then the burner start to work followed so that the curing oven being heated.
2.set the temperature 200~230 degrees(0-250 degrees),While the temperature up to be the set temperature, the burner stop working. After the heat preservation time being 20 minutes(0-60minutes), the bell alarm. The next, close all control units so that the heating system and fan stop working.
3.open the curing oven door, taking out workpieces.

4.Cooling the workpiece.

According to the customer's requirement,We can made all kinds size of  curing oven.
Heating System: Diesel/oil/Natural gas/LPG/electricity







3.Specification of Powder coating Oven

TEMPERATURE	RT~250°C	(customized for higher temperature)
CURING TIME	15-20min	normal requirement
Energy	Electric	gas/oil burner oven are also OK
material	inside layer	T120/150mm rock wool plate
	inside wall	1.0/1.2/1.5mm galvanized sheet
	outside wall	T1.0mm steel
	outside arc	outside using aluminium production angle
	bottom wrap	T2.5mm steel
Heating system	heating style	heating exchanger and hot air circulation
	burner	ITALY RIELLO/ELECTRIC
	quantity	1 piece
	hot air fan	China NANFANG/NUOFANG
	quantity	1/2 piece
	power	different kinds
	burner room	heat-resistant stainless steel
	isolation layer	T120/150mm rock wool
	outside wall	T1.0/1.2/1.5 coated steel
	Inlet hoot air pipe in the oven	1.2mm galvanized sheet
	waste air pipe	1.0mm galvanized sheet
strong exhaust system	fan	1 piece/dependent on workpiece

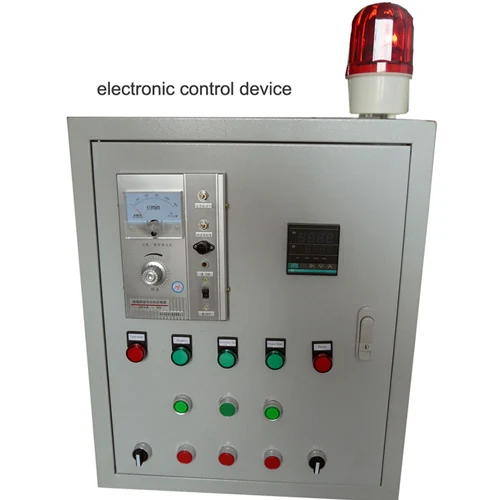

Temp	sesor&meter	independent on oven

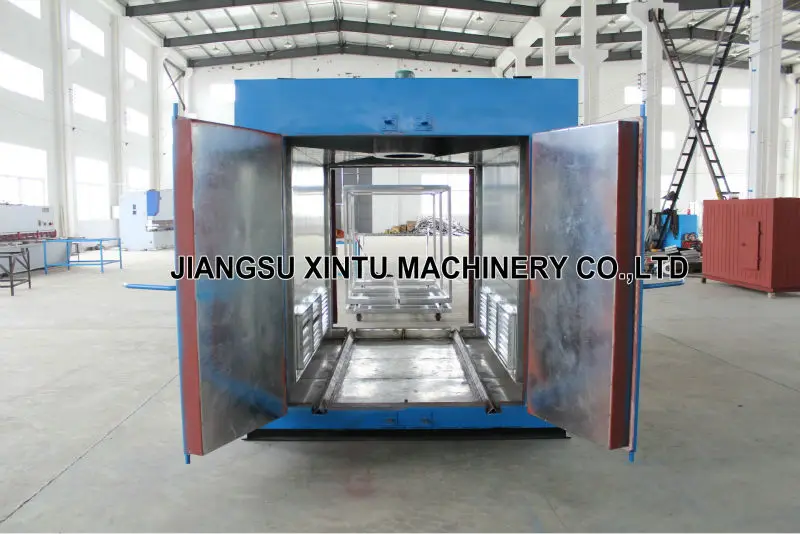

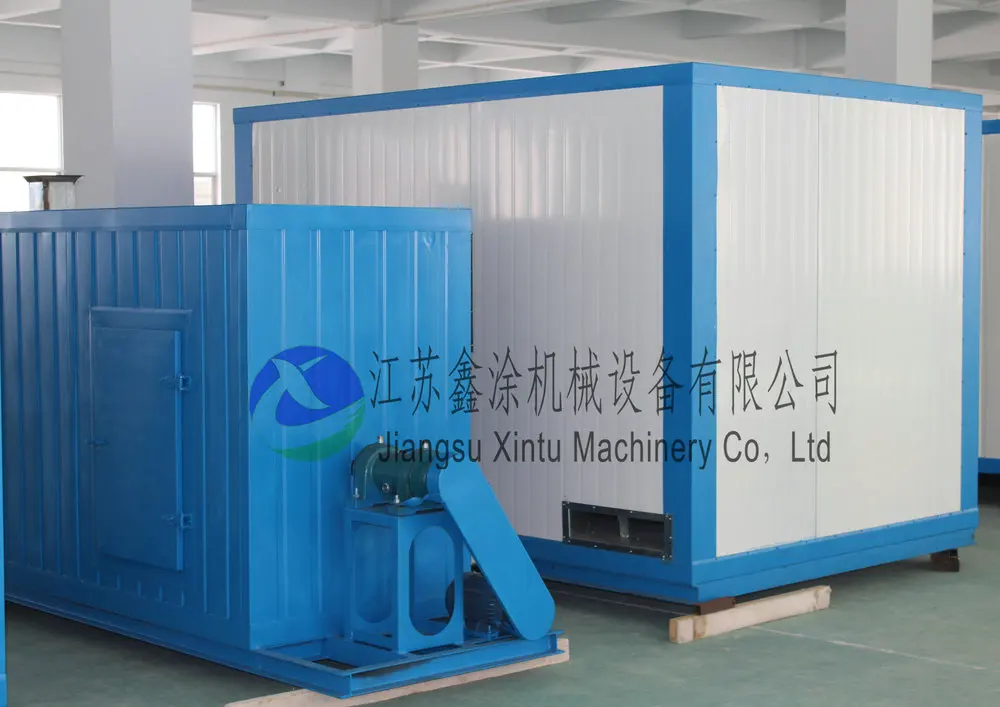

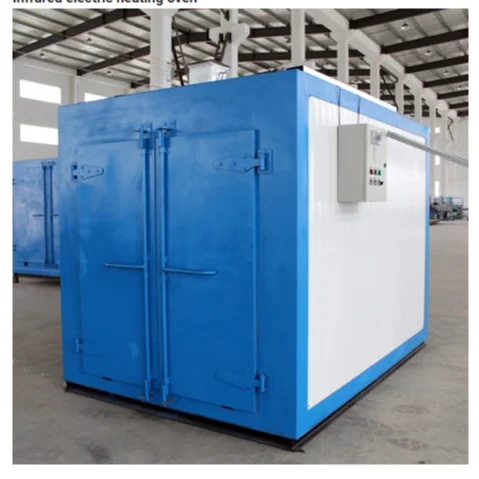

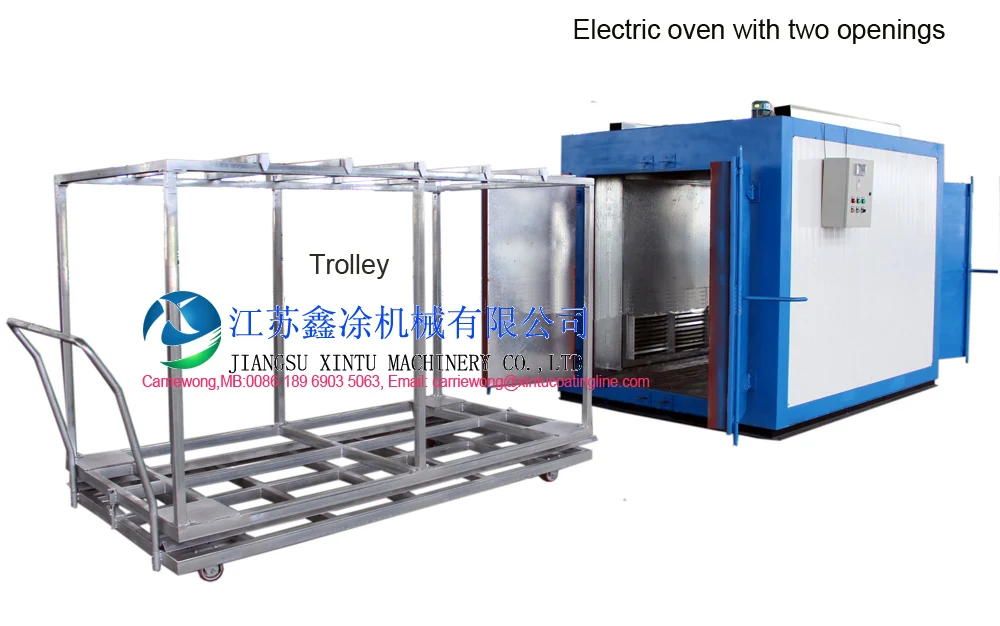

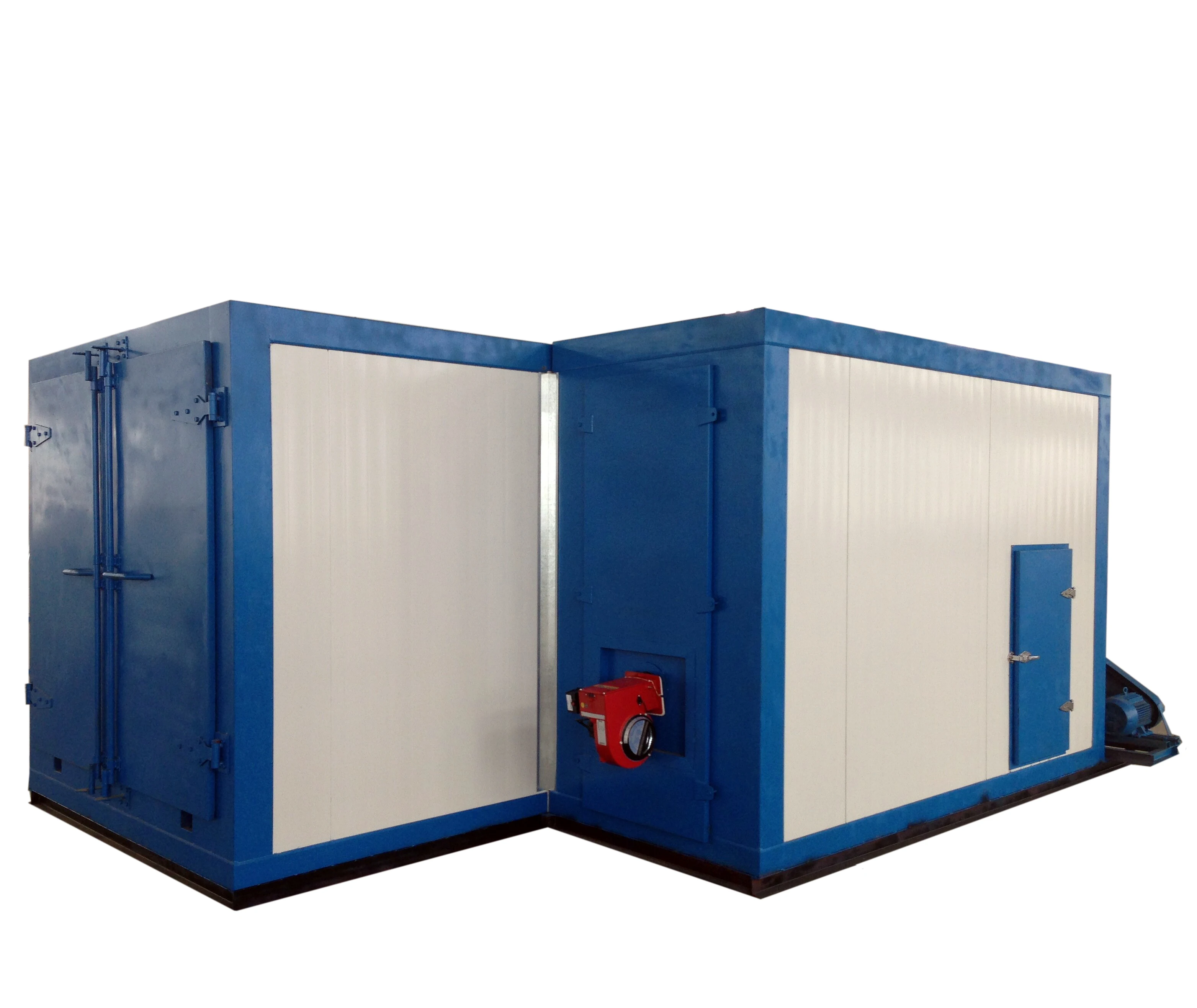

5.PROJECT PICTURE

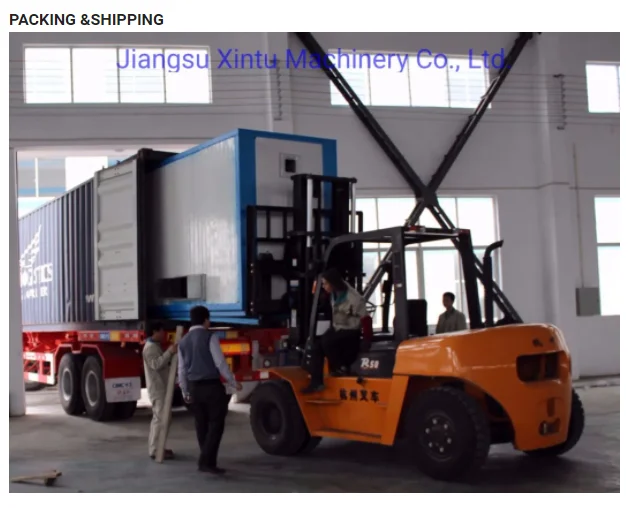

6.DELIVERY AND PACKAGE

  DELIVERY WAY:NORMALLY BY SEA(ANOTHER SHIPPING WAY IS CUSTOMIZED)

  (REMARKS:IF THE OVEN SIZE IS LARGER THAN THE CONTAINER, it should be shipping separately)

  DELIVERY DATE: Normally it will be shipped within 15 days after receiving the payment

  PACKAGE: SEA-WORTHY PACKAGE(SUCH AS WRAPPING FILM OR CARTON AND WOODEN CASE)
