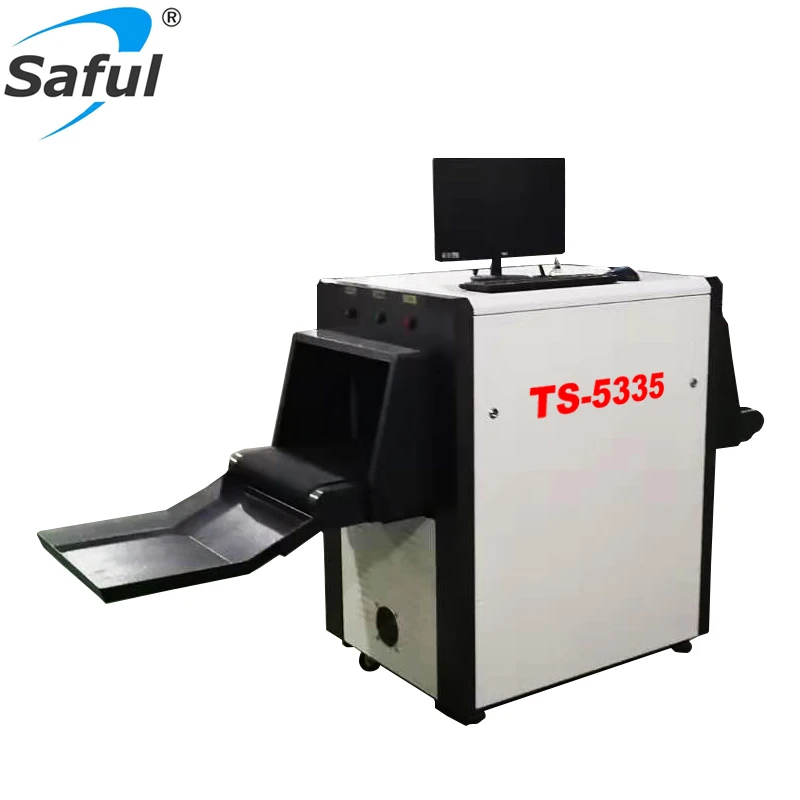

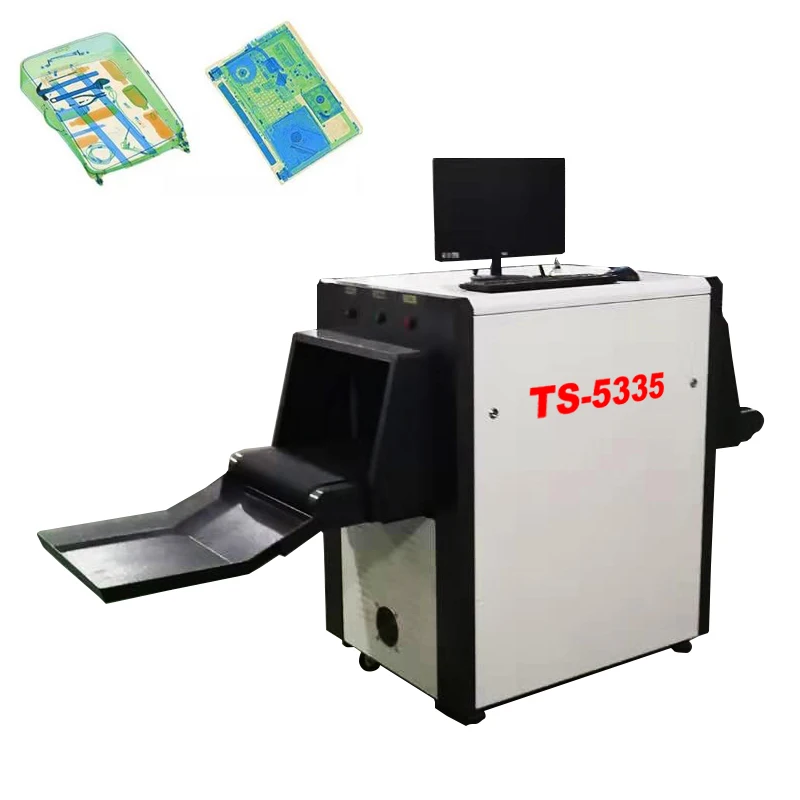

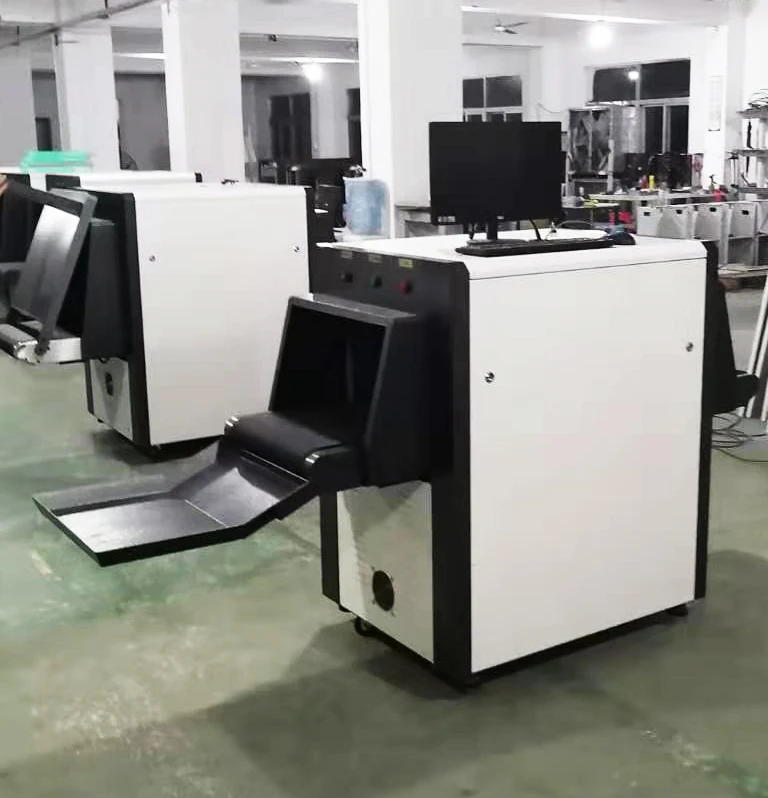

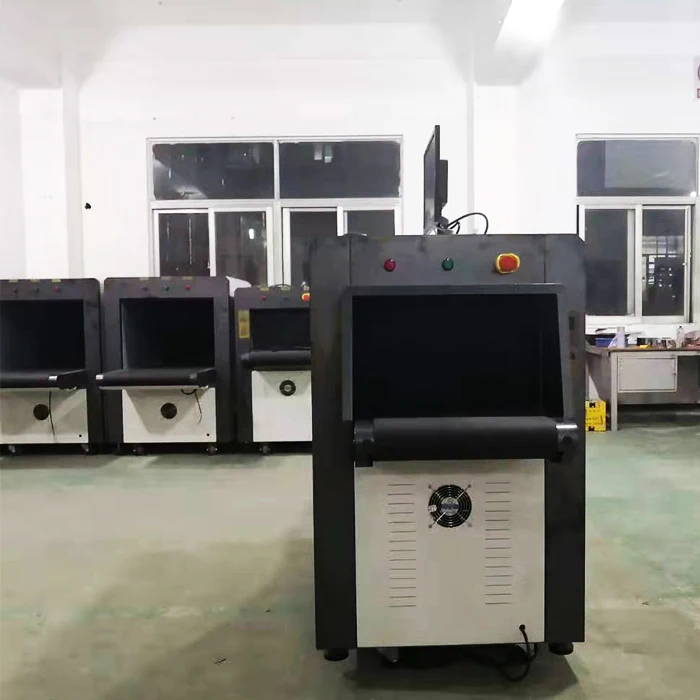

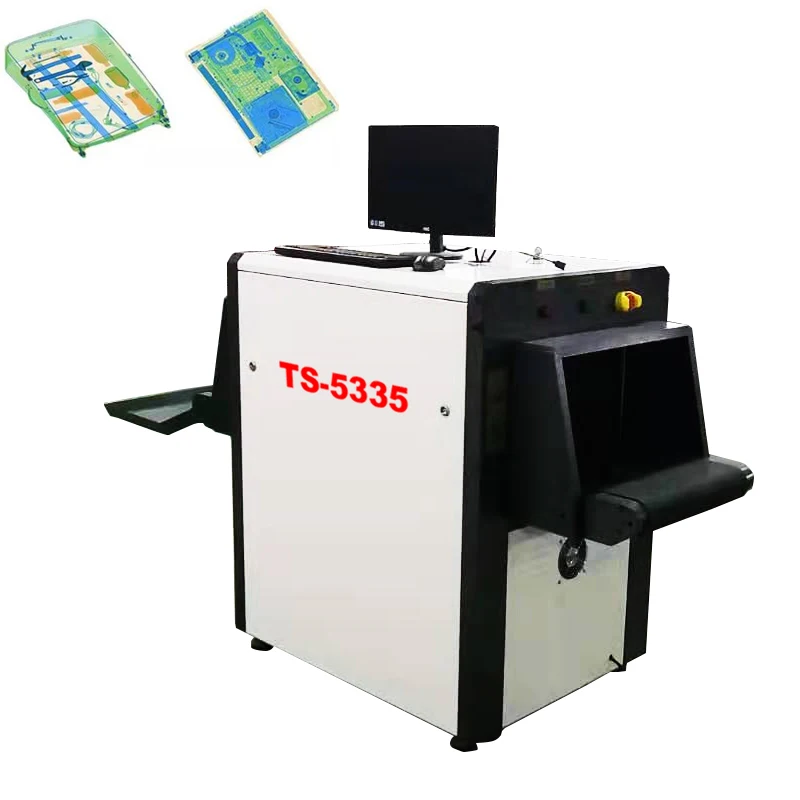

5335 x ray baggage luggage scanner for hotel metro lobby security checking

X-ray security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.Model characteristics and configuration: All parts imported , clear image, strong penetrating power, long service life, using the latest international standards

Work Principle

Equipment complete the examination by means of that belt making the baggage into the X-ray inspection lanes.  Luggage into the X-ray checkpoint to stop the package detection sensor,the detect signal was sent to the system control part to generate X-ray trigger signal,.  After a bunch of X-ray fan-shaped collimator beam passing through the items on the belt, X-rays were absorbed by seized items, finally, Bombarding dual-energy semiconductor detectors installed in the channel.  The X-ray into the signal through detector, these weak signals are amplified and sent to the signal processing box for further processing.

1.display:19 inch(or bigger size) large industry screen display

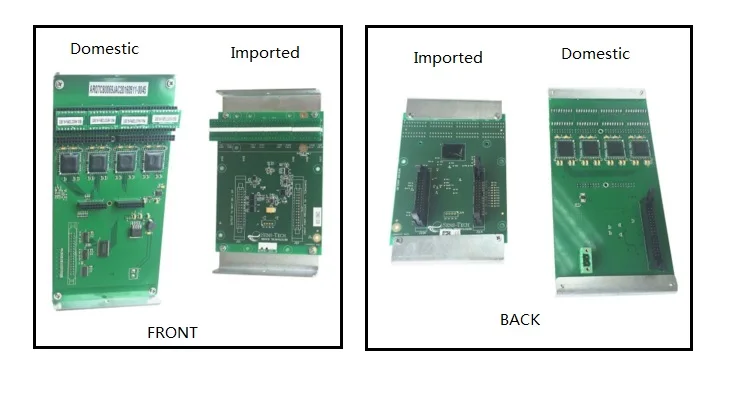

2.the detector: bin song,Japan imported detector

3.X-ray source: the kernel is the America imported tube

4.the drum: linear Germany Yintono drum

5.belt: green belt of low noise

6.color: black and white, color, black and white contrast reversal

7.processing system: industrial grade DSP embedded processor

8.operation interface: floating, soft touch button operation

9.toolbox: one special toolbox

10.button keyboard and mouse: each one

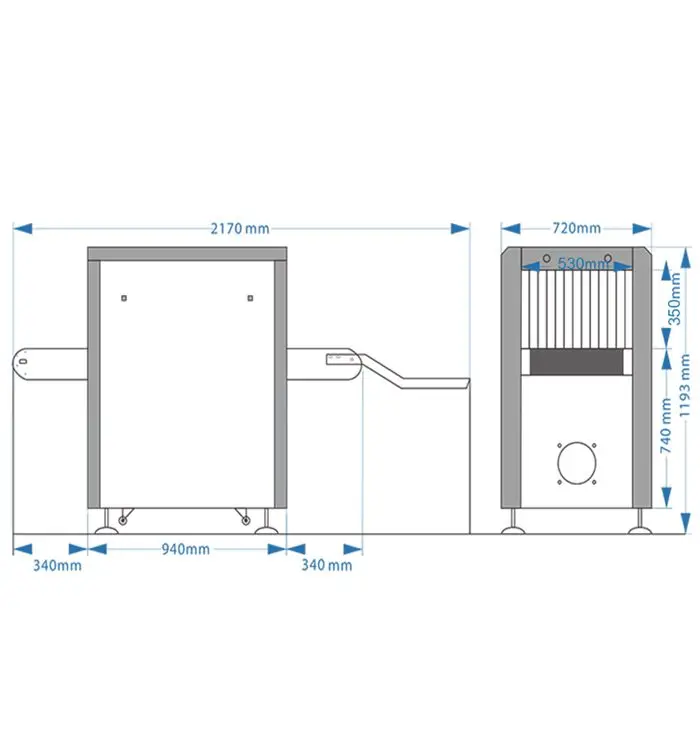

Tunnel Size: 530(W)×350(H)mm (±5mm)

Conveyor Speed: 0.22m/s

Conveyor Max Load: 150kg

Xray dose per each inspection: 1.5µGy

Wire Resolution: 0.0787mm metal line

Penetration: >34MM steel

Penetration Resolution: dia 0.202mm copper wire (AWG32)

under three-step aluminum wedge 9.5mm,15.9mm,22.2mm

Film Safety: Guarantee ASA/ISO1600 Film

Maximum leakage radiation: <0.01 µGy/h

Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 4096

  We support OEM and ODM service, can print your logo according to your demand.
