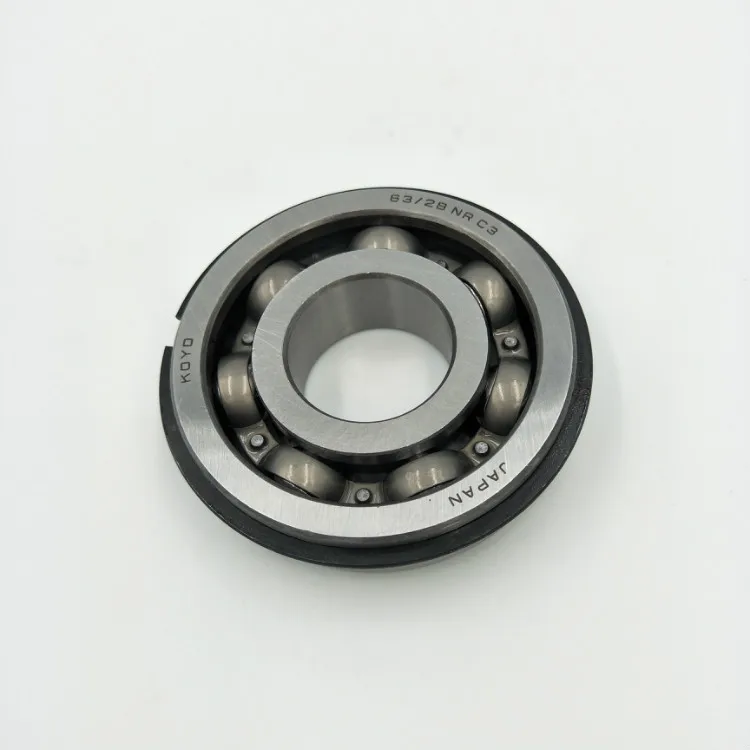

Japan deep groove ball bearing ZNR C3 bearing 63/28NR 63/28ZNR 28X68X18

Product Overview

Description





New code		Bearing 63/28 NR
Bearing type		Deep groove ball bearings
Brand		OEM, BQB
Business type		Manufacturer
Id (mm)		28
OD (mm)		68
B (mm)		18
Cr(KN)		23.5
Cor(KN)		13.1
Speed for grease lubrication (r/min)		10000
Oil lubrication speed (r/min)		12000
Weight(kg)		0.328
Material		Chrome steel or Stainless steel
Delivery time		2-3 days of stock, 15-30 days for OEM
Packing		industrial packing or commercial packing
Payment terms		T/T, Western Union, Paypal
Gurantee		1 years





  Single row radial deep groove ball bearings are rigid and non-separable in design. They incorporate deep running grooves on their inner and out rings creating a ball path that accepts axial and radial loading. The balls are separated by a cage that permits high speed operation. Their ability to accept misalignment is very limited however. In normal operation they  can't handle misalignment any greater than 10 angular minutes from their centre position. Single Row Deep Groove Ball Bearings have the highest speed capacity of all rolling element bearings, and are by far the most popular bearing type in use today.



• Bearings are supplied in an open, shielded (ZZ), or sealed (2RS) design.


• Many sizes are also available with a snap ring installed on the bearing's outer ring.


• Open bearings are supplied with a light oil coating and are used in oil bath and oil misting applications.


• Sealed bearings are supplied with a contacting lip seal that excels in protecting the bearing from liquids and other foreign contaminants. The inherent design creates friction, drag, and in turn heat; factors that require consideration in high speed applications.


• Shielded bearings are provided with non-contacting metal shields that protect against larger particles entering the bearing, but do not protect against liquids. They add no friction during operation and therefore do not generate heat build-up.
