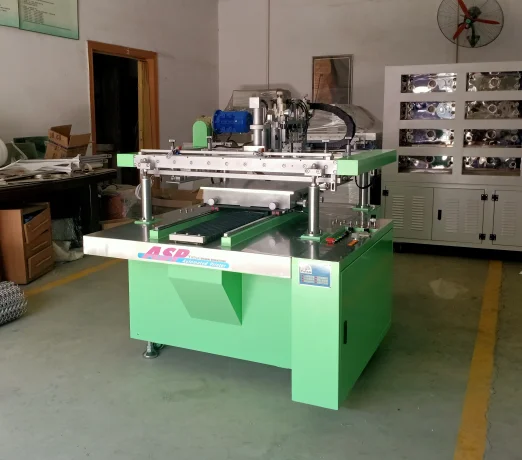

PCB PVC PET F PC Semi-automatic screen printer
Product Information
Product Information
Machine type: aps-34 (fourth from left) machine name: semi-automatic screen printer
Application: PCB, PVC/PET, FPC
One machine instructions
(1) use resistance sheet substrate, carbon ink jumper substrate, silver glue perforation, carbon ink perforation and other printing processes
(2) Tact time: 10 PCS /min
Specification for two substrates
(1) substrate size: 300*400mm
(2) substrate thickness 0.4 ~ 3.0mm
Three location area
(1) feeding and feeding by hand
(2) base plate positioning self-made fixture or hand-attached PIN or telescopic PIN of specified size
Iv. Conveying platform plate part (printing platform)
(1) printing table specification: 400*540mm
(2) table movement X.Y ± 4mm manual adjustment
(3) the stop position accuracy is within ± 0.005mm
(4) base plate fixed vacuum suction
Five network department
(1) screen size: 400*580mm(min) ~ 700*900mm(Max)
(2) screen plate fixed four point mechanical fixed
(3) the screen frame is fixed manually
(4) the lifting chain drive of the net seat rises 250mm
(5) drive space distance 0 ~ 12mm manual adjustment, scale display
Six printing department
(1) printing speed 600mm/ SEC (Max) knob adjustment
(2) the printing pressure is adjustable from 0 to 6 kg f/cm2
(3) adjustable horizontal Angle ± 15°
(4) manual adjustment of the verticality of scraper + 30°
(5) scraping stroke 680mm(Max) manual adjustment
(6) length of scraper 400mm(Max)
(7) scraper drive frequency conversion motor control + timing belt drive
(8) return to ink mode ink
(9) return ink knife Angle ± 30° adjustable
Mechanical setting conditions
(1) power supply AC220V / 380V, 60/50hz, 3 kv 4W, 3KW
(2) use air pressure of 5 ~ 7 kg f/cm2, 30 l/min
(3) working face height: 960 ± 20mm
(4) the outside diameter of the body is 1425(L)*1190(W)*1400(H)mm
(5) the body weight is about 1100 kg
Eight machine characteristics
(1) the printing table can be moved in and out horizontally, and materials can be placed and taken out for convenience and safety.
(2) the positioning of the printing table is accurate and the accuracy error is less than ±0.005mm.
(3) the two-axis scraping knife moving mode, in the scraping process, so that the scraping knife applied to the press, more uniform, and can achieve high precision printing effect.
(4) careful research and development of the printing constant-voltage institutions, ball bearing induction method, different from general air pressure constant pressure device, can overcome the barrier of internal friction, in India trip, very keen to make the knife scraping seal and print linear contact closely, and not affected by print surface smoothness, and maintain the stability of the printing press, and meet the requirements of the ink is consistent.And the new generation of blade pressure adjustment, also changed from the spring to pneumatic adjustment, easier to adjust and stable.
(5) the advanced screen tension automatic complement system, can avoid the occurrence of sticky plate, shadow, but not the general synchronous out of the shortcomings of the plate, because this kind of direct stretching of the net cloth, let the net cloth away from the printing, may lead to the deformation of the net cloth increased resulting in the ink distortion or displacement of the trouble.
(6) adopt drive control of frequency converter, stable and easy to adjust the scraping speed.
(7) the net frame can be lifted vertically up to 250mm, convenient for washing and unloading.
(8) precision X and Y table fine-tuning system 1/100mm fine-tuning code table, version, overprint simple and accurate operation.
(9) positioning method: 5 point PIN(4 point movable, 1 point fixed, PIN moving up and down).
(10) PIN dimensions: bottom 6mm, top 2.5mm, chamfering shall be based on 60°.
(11) the platform PIN shall be moved to prevent dumbness. If the PIN is not lowered, the frame seat shall not be lowered.
(12) scraping transmission: linear slide rail + slider transmission.
1. For domestic use, we guarantee one year of free after-sales service (except natural and man-made factors).
2. For those who need to provide overseas service after the machine is delivered to the machine for acceptance in China, the customer shall provide transportation, accommodation and other expenses.
Product Display
Product Display
Machine characteristics:
1:The printing platform is horizontal in and out, and the material are safe;
2:Printing plate positioning standard accuracy error 0.005mm below ;
3:Double axis squeegee ,In the process of scraping, the pressure applied to the print by the squeegee is more uniform, and the printing effect is high and close ,Carefully developed squeegee constant pressure mechanism adopts ball pumping and weighing induction mode,Different from general air pressure type constant voltage device ,More able to over come the internal friction force ,Very keen to scrape printing cutter and printing as linear enemies close ,Not affected by the smoothness of the printed surface , And maintain steady print pressure ,The amount of ink reached consistency requirements , A new generation of squeegee pressure adjustment, from spring to air pressure adjustment, makes it easier to adjust J and stability
