Factory direct 10 kwh lithium battery storage lifepo4 48v 200ah
- Category: >>>
- Supplier: Shenzhen Cyclen Technology Co. Ltd.
Share on (62416750010):
Product Overview
Description
Product Description

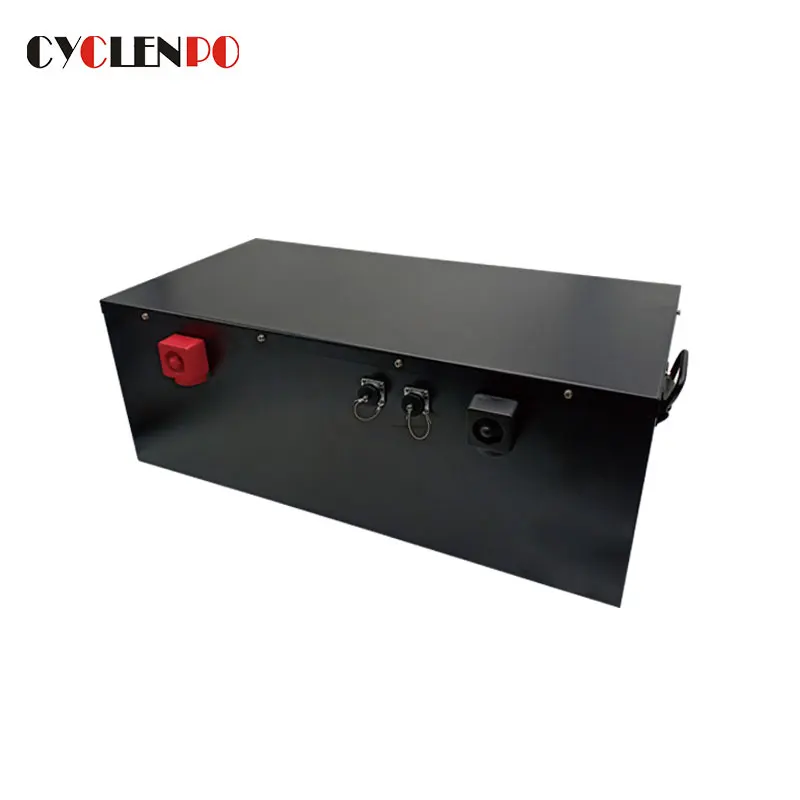

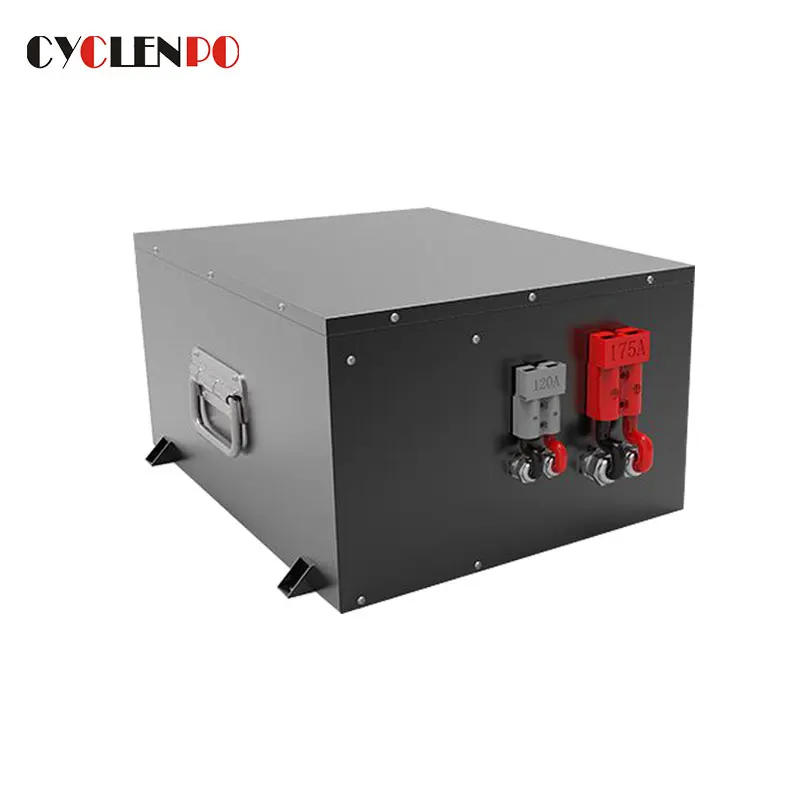

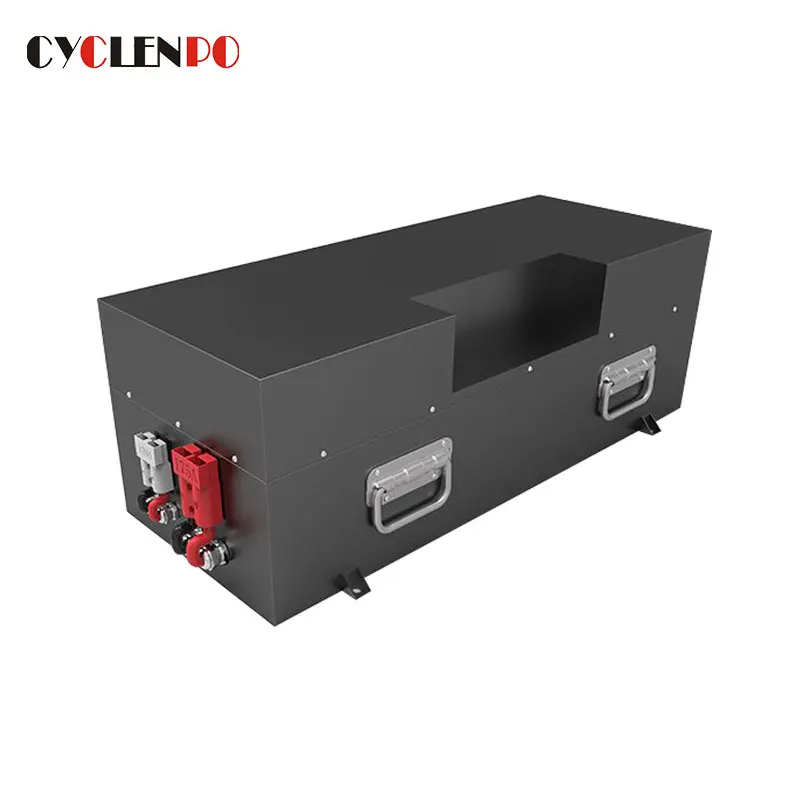

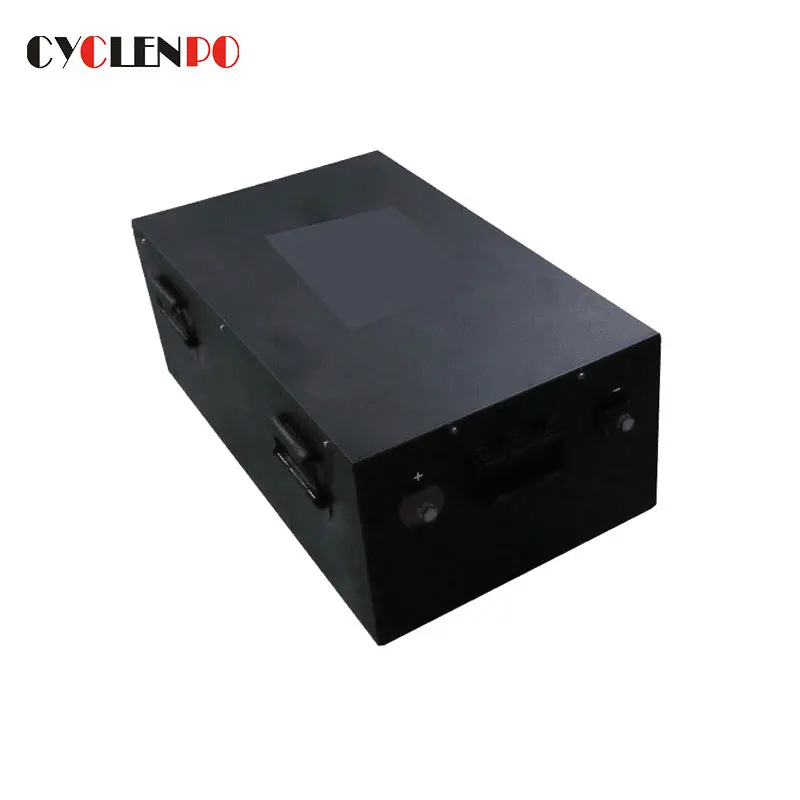

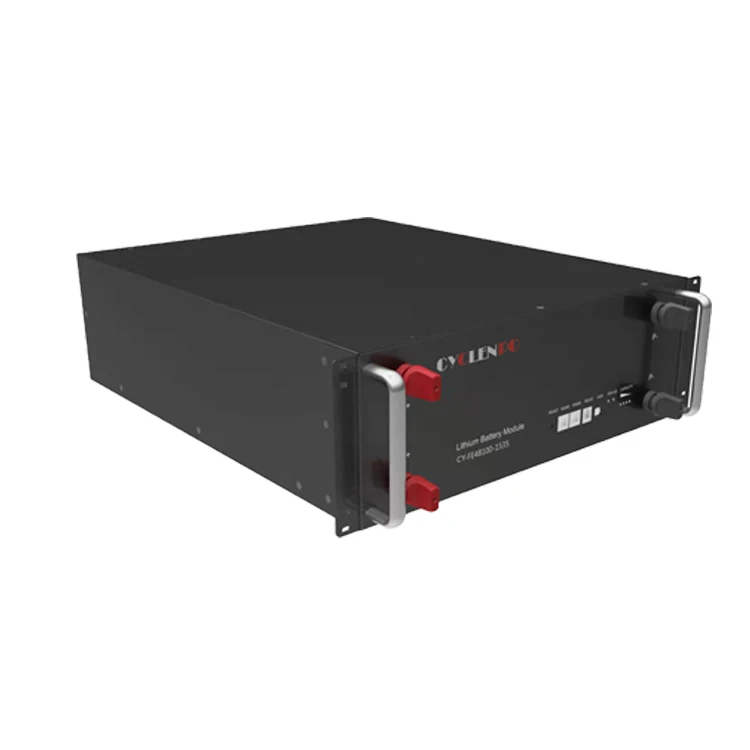

Deep cycle lithium-batterie lifepo4 battery 48v 200ah pack for power and electric vehicles
Cyclen provides one-stop services and fully-integrated battery solution to meet your specific needs. The products we display don't represent the limitation of us.
In addition to the battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.
Item | General Parameter | Remark |
Model | IFR 32650-5Ah | Single |
Casing material for single cell | Nickel plated steel | |
Standard capacity（0.2C5A） | 200Ah | |
Rated voltage | 48V | Work voltage：3.20V |
Standard Charge voltage | 54.75V | (Single Ave. charge Voltage) |
Cut-off voltage | 37.5V | Single Ave. Discharge Voltage |
Standard charge current | 80A | 0.4C |
charging Time | About2.5h | |
Max Continuous discharge current | 100A | 0.5C |
Peak discharge current | 210A | 1.05C 5seconds |
Battery dimension | 710±1*412±1*268±1mm | |
Total weight（Approx.) | About 115 kg | |
Impedance（Max, at 1000Hz.） | ≤ 8 0 mΩ | |
Working Temperature | Standard | 0℃～45℃ |
discharge | -20℃～60℃ | |
storage | 0℃～45℃ |
Key Features
1.Nearly 100% efficient in both charge and discharge
2.Long cycle life >3000 times
3.Ultra safe lithium iron phosphate material
4.Smaller in size and lighter in weight
5.Modular and plug design makes easy to use
1. over charge protection
2. over discharge protection
3. short circuit protection
4. cell balancing
5. over heat protection
Application
AGV, electric wheelchair, forklift, sightseeing car, e-rickshaw, electric vehicles, ups, solar storage, backup battery etc
Company Profile
Our Factory
Strict production precedures to make sure of the safety and long cycle life of lithium ion battery.
Certifications
Our products have passed several safety certifications.For other special certifications,we can provide product for testing to get the certification.
With Our Customers
Our products are mainly exported to abroad market like Europe,North America and Oceania.and we build good relationship with our clients.
Packaging and Delivery
We pack the battery in safe and standard way
One battery in a carton,filled with EPE foam at the bottom and on the top, then safely delivered by air or sea. Package can customized based on your requirement.
FAQ
1.Q:Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please call us or tell us in your inquiry priority.
2.Q:How can I get a sample to check your quality?
A:After price confirmation,you can require for samples to check our quality.
3.Q:What about the lead time for mass production?
A:It depends on your order quantity and the season you place the order.
4.Q:What is your term for payment?
A:We accept T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.
5.Q:What is accepted payment currency?
A:We accepted USD,EUR,CAD,AUD,HKD,GBP,JPY,NZD,SGD,CHF,THB,etc.
6.Q:What is full charged?
A:With charging voltage 4.2v,current 0.2C continued to charge the battery pack ,when charging current drops to 0.02C charging is terminated,shall be full charged.
7.Q:What is full discharged?
A :Standard discharge current 0.2C for continuous discharge is terminated,shall be full discharged.
