Product Overview

Description

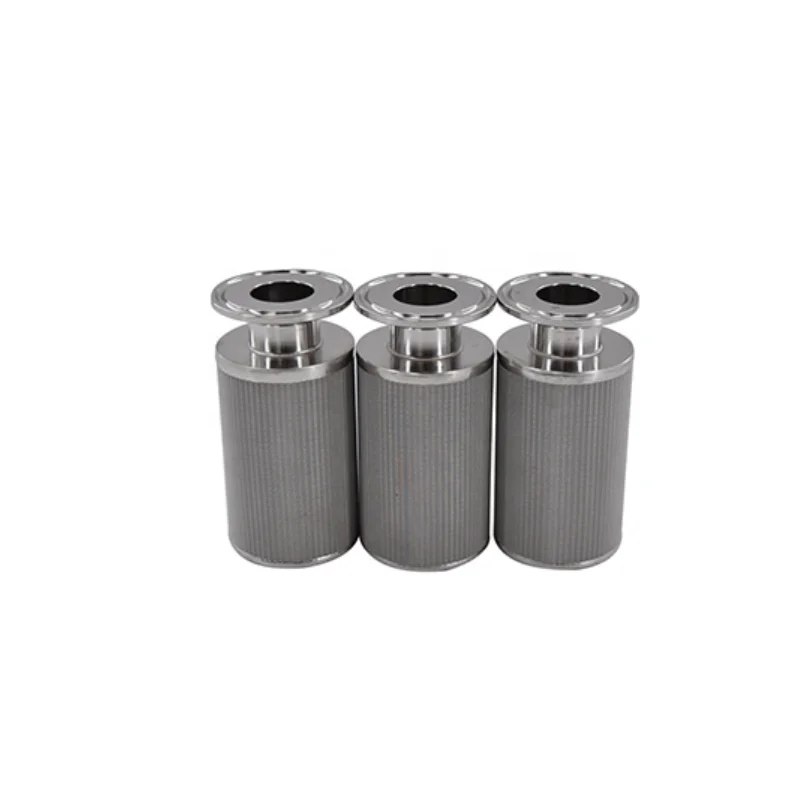

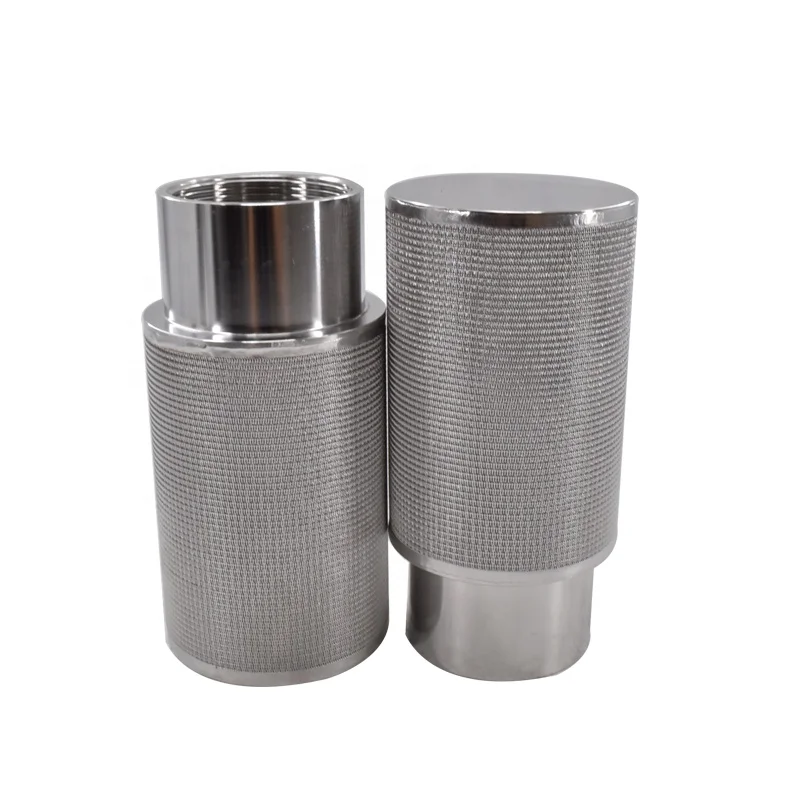

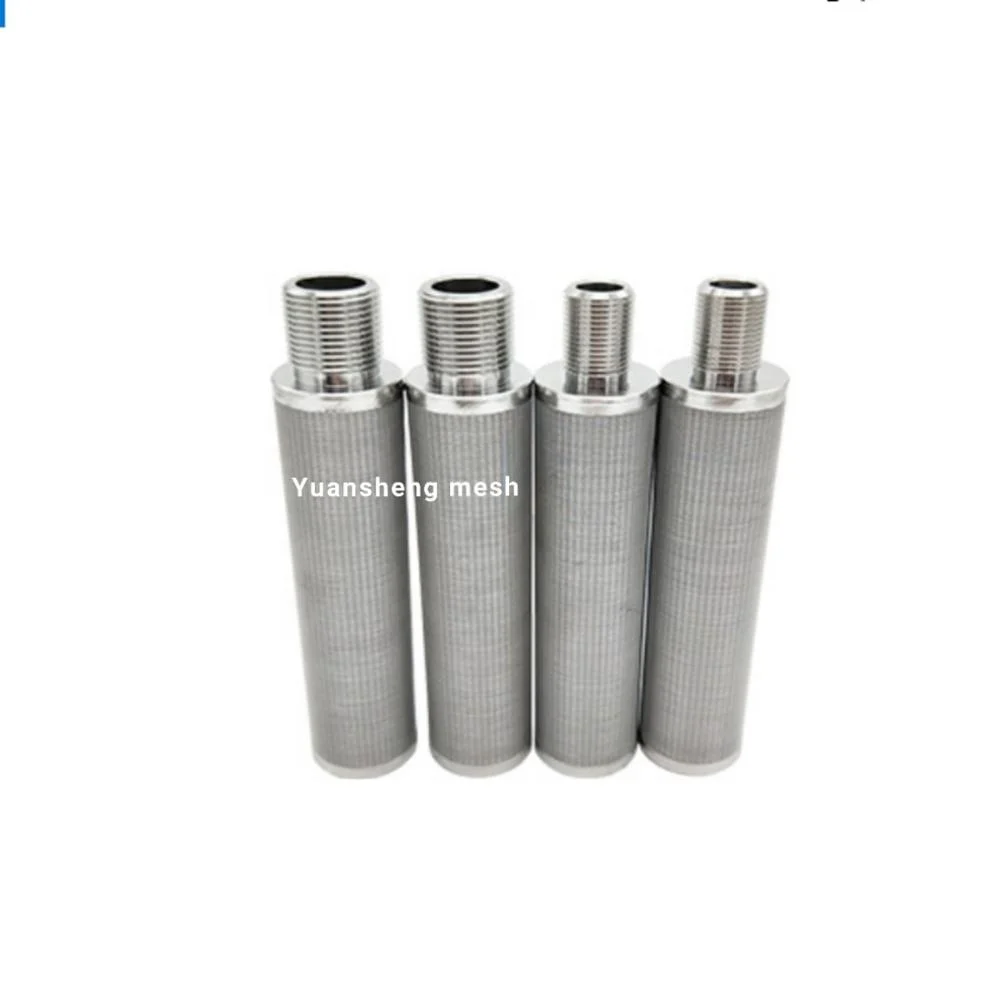

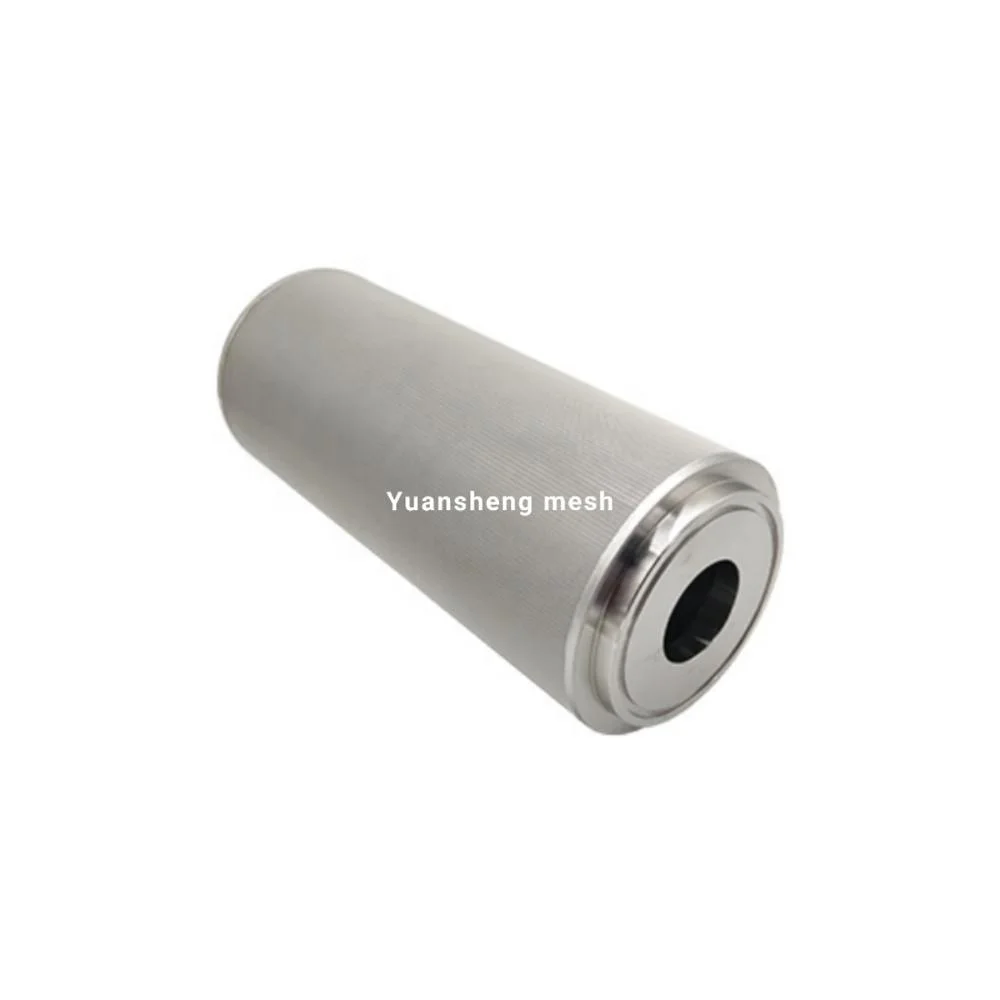

Ultra fine 1 micron sintered metal filter/ sintered woven wire mesh

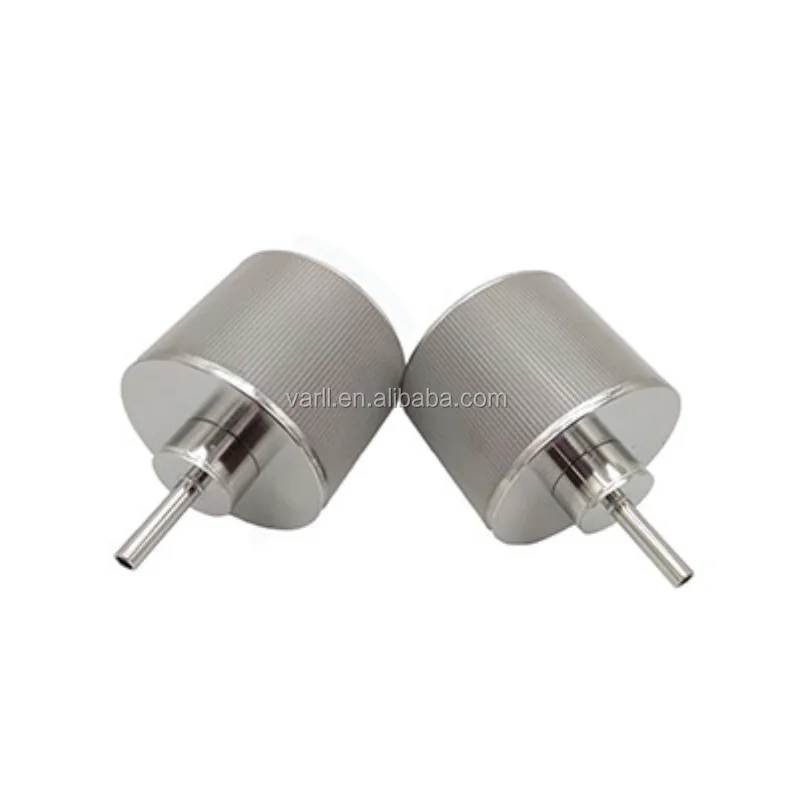

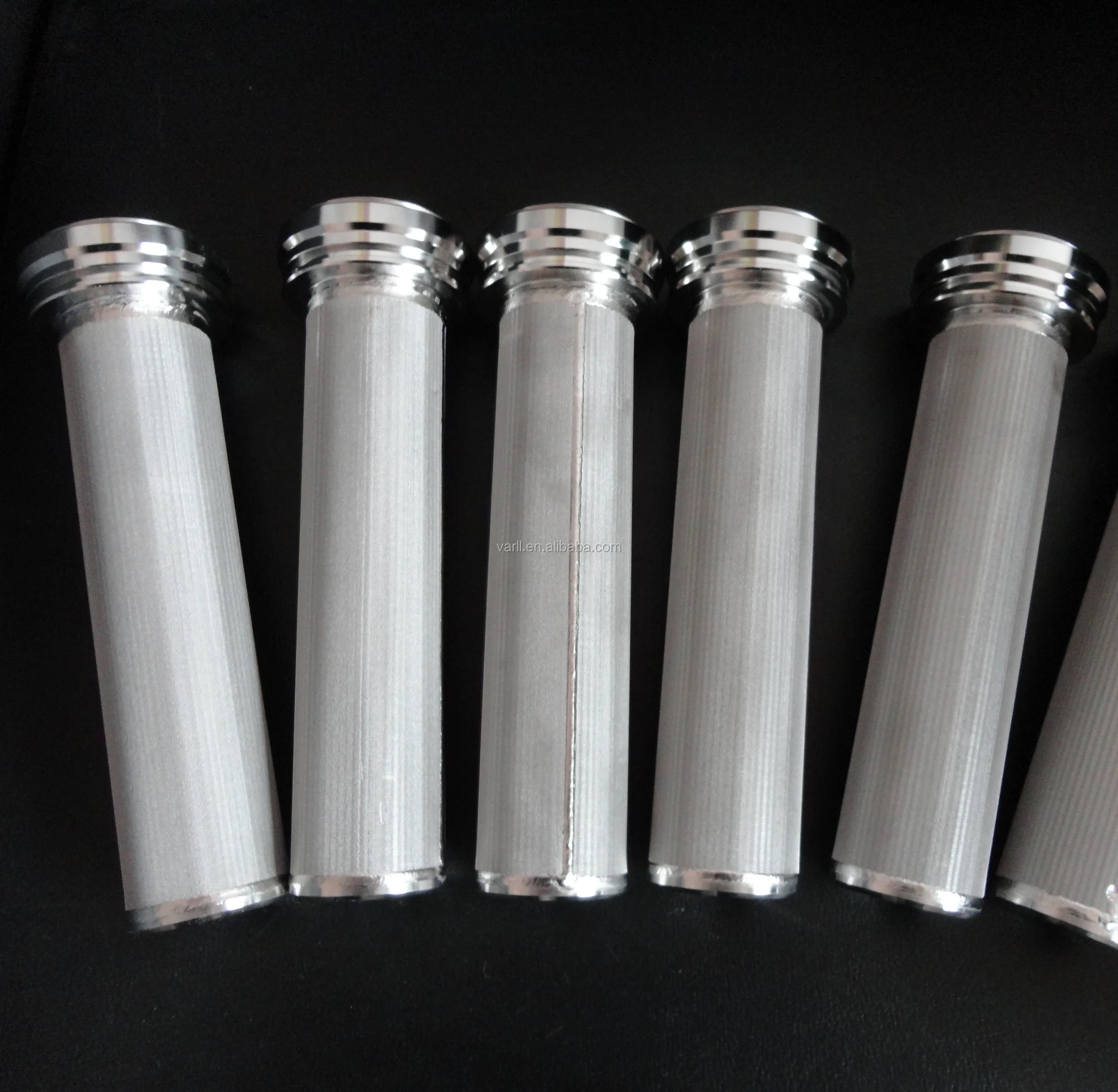

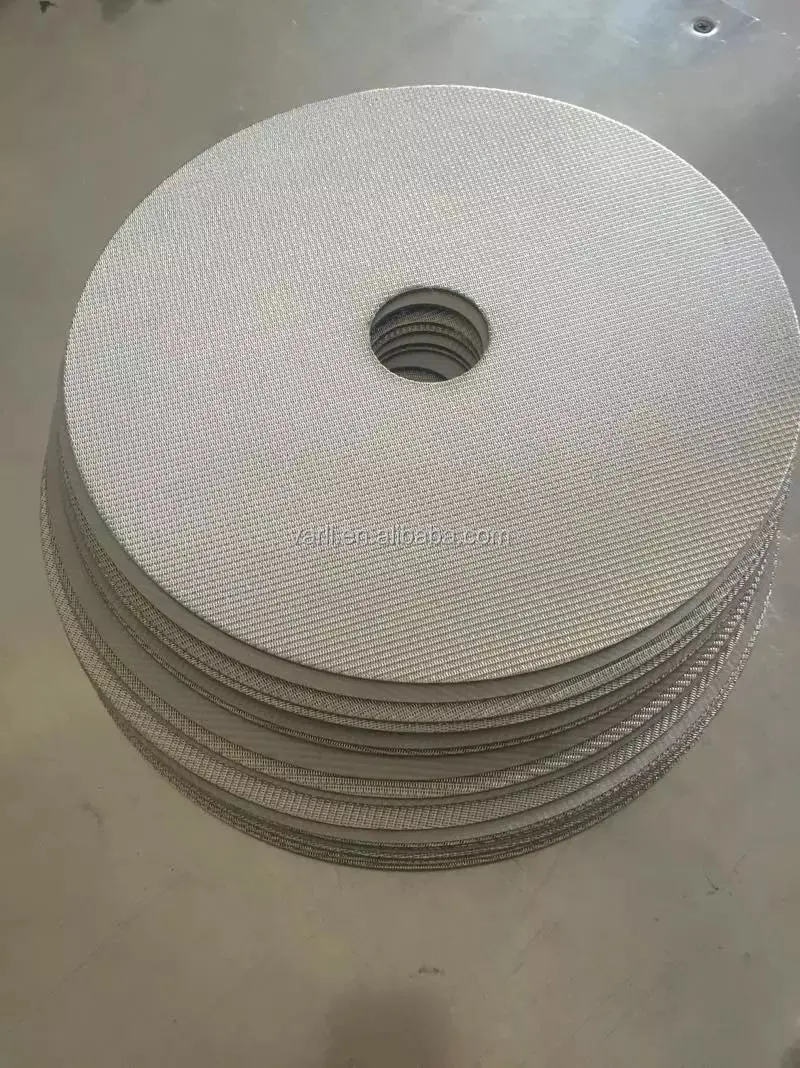

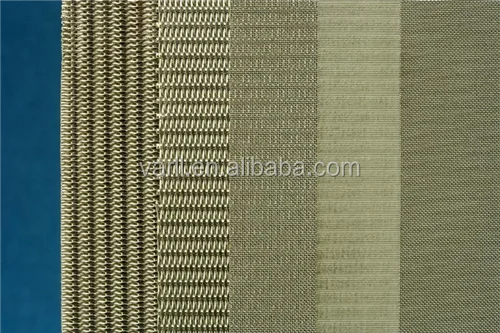

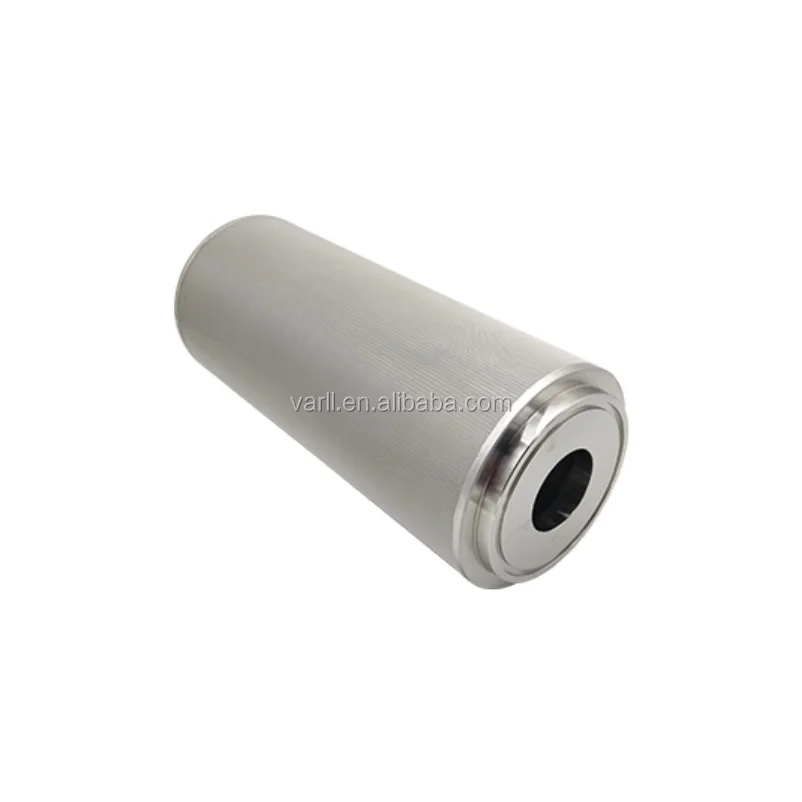

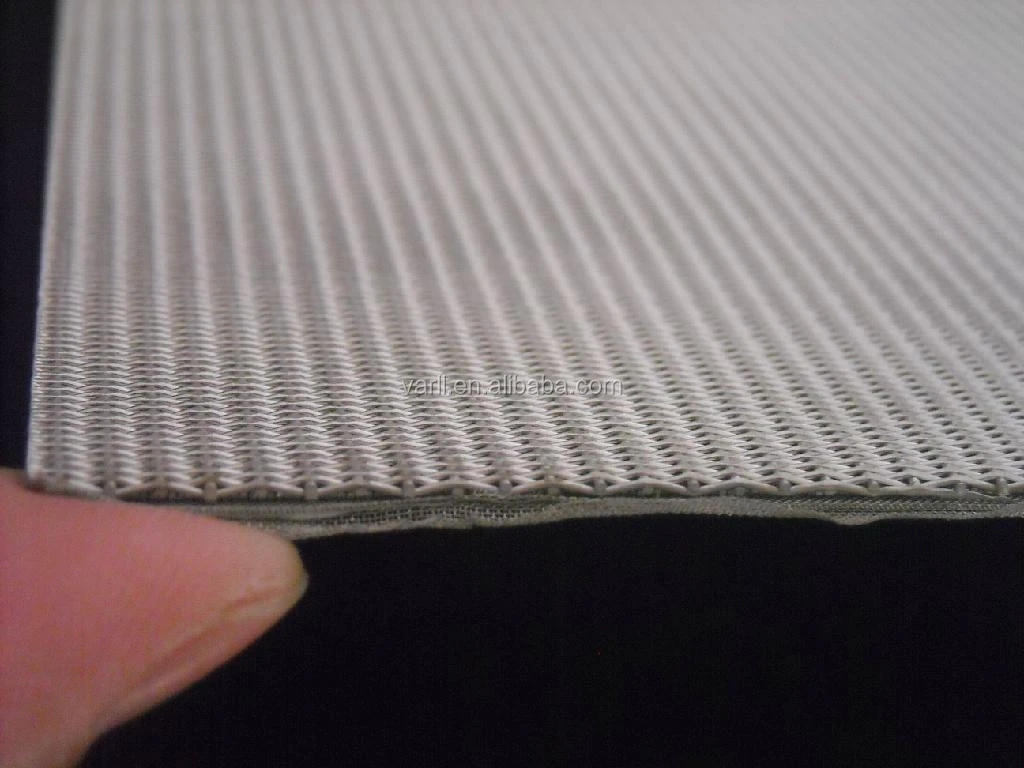

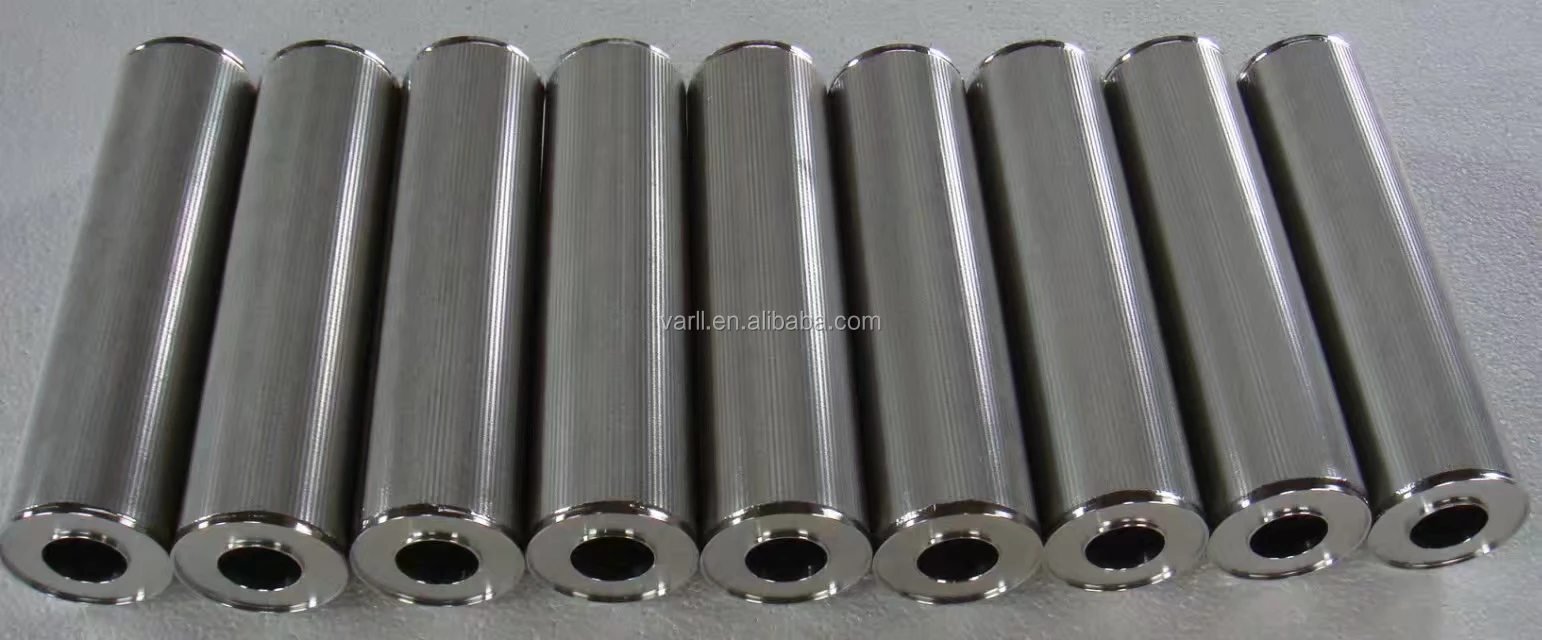

The standard five-layer sintered filter mesh structure is divided into four parts: a protective layer, a filter layer, a distribution layer, and two strength layers. The filter material has stable filtration precision and high strength and rigidity. It is ideal for high compressive strength and uniform filtration accuracy. This material is easy to shape, process and weld, and can be processed into various types of filter elements such as circular shape, cylindrical shape, and cone shape, etc.





Filtration precision	Protective layer	Filter layer	Distribution layer	Strengthening layer	Strengthening layer	Thickness	Permeability	The bubbling pressure	Weight	Poriness
(μ)						(mm)	(L/min/cm2)	(mmH2O)	(kg/m2)
1	200	400×3000	200	12×64	64×12	1.7	1.81	380~620	Five layers sintered mesh(8.4)	About 37%
2	100	325×2300	100	12×64	64×12	1.7	2.45	320~610
5	100	200×1400	100	12×64	64×12	1.7	2.52	280~570	Six layers sintered mesh(14.4)
10	100	165×1400	100	12×64	64×12	1.7	3.1	240~520
15	100	165×1200	100	12×64	64×12	1.7	3.51	220~500
20	100	165×800	100	12×64	64×12	1.7	4.6	190~470
25	100	165×600	100	12×64	64×12	1.7	6.12	170~430
30	100	400	100	12×64	64×12	1.7	6.96	140~410
40	100	325	100	12×64	64×12	1.7	7.2	120~370
50	100	250	100	12×64	64×12	1.7	8.51	110~320
75	100	200	100	12×64	64×12	1.7	8.8	100~270
100	100	150	100	12×64	64×12	1.7	9.2	90~210
150	50+100+50+30+30+100+50					2	25.1
200	40+80+40+20+40+80+40					2	26.1	70~170







Sintered Filter Mesh - Multi-layer Filter Material

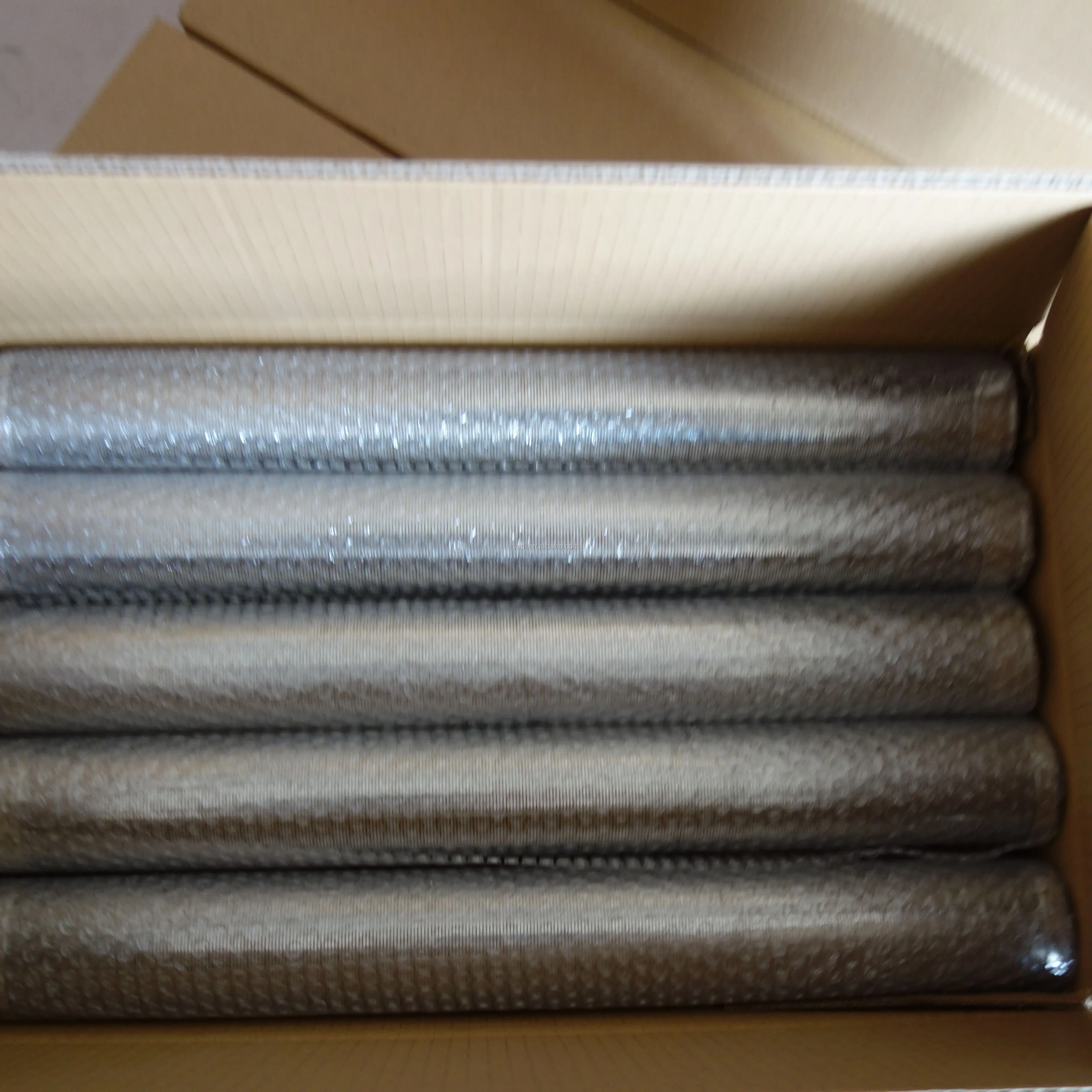

Package:
