Dongfeng 6m3 compression garbage truck

Share on (62417151122):


Price:RUB 1,601,432.04

Quantity:


Product Overview

Description

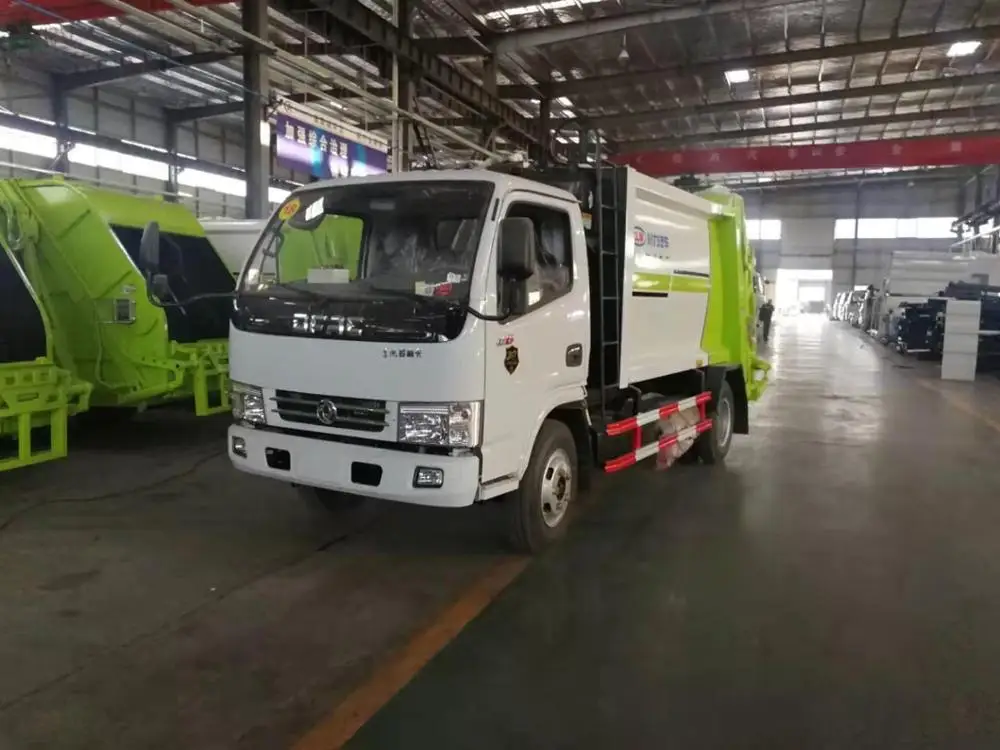

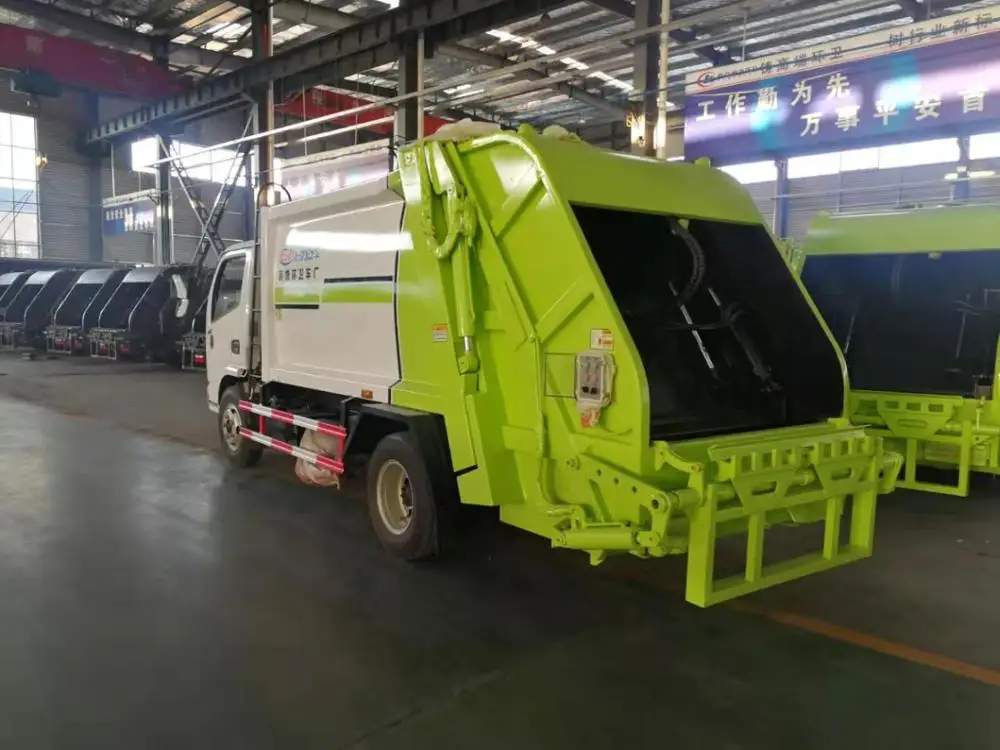

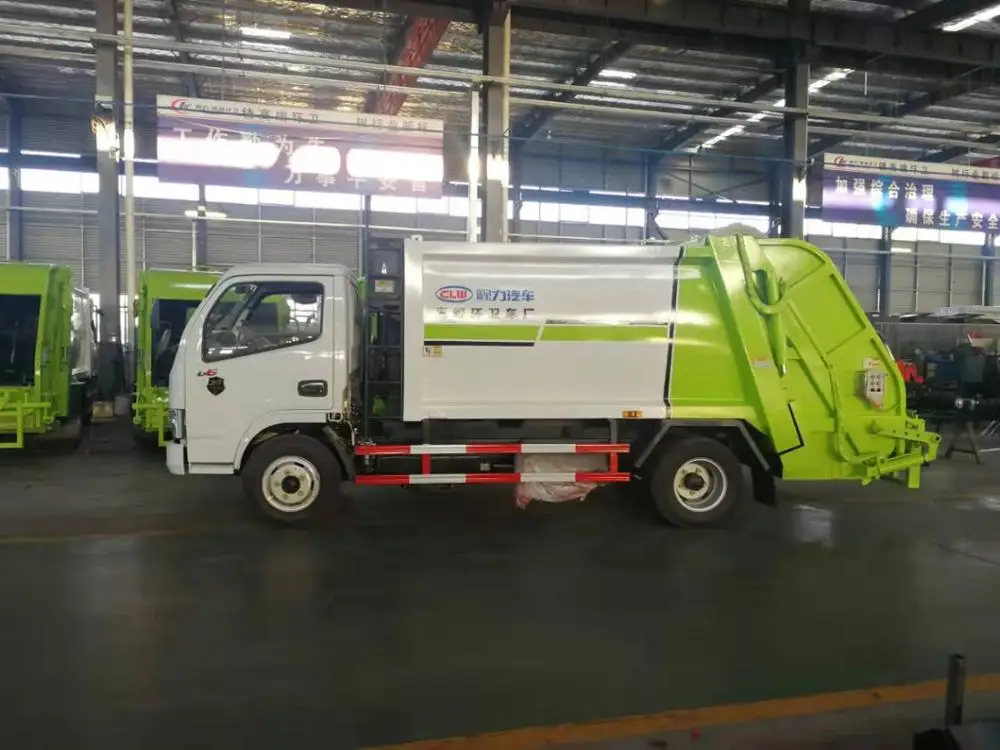

Dongfeng 6m3 compression garbage truck

Specifications
Item Specifications Item Specifications
Truck
Name Dongfeng 6m3 compression garbage truck
Model CLW5070ZYSD5 Gross Weight 7360kg
Overall dimensions 6470*2050*2570mm Curb Weight 5400kg
Wheelbase 3308mm Approach angle 20°
Front Track 1503mm Departure Angle 18°
Rear Track 1494mm Front Overhang 1040kg
Number of axles 2 Rear Overhang 2122kg
Max speed 99km/h Number of Tyres 6
Traction system 4×2 Tyre 7.00R16 14PR
Transmission manual Allowable Cab Passengers 2
Chassis
Model EQ1070SJ3BDF Leaf Spring 6/6+5
Engine (Motor)
Brand Yuchai Type Diesel
Model YC4FA115-50 Displacement 2982ml
Horse power 115hp Emission standard Euro 5
Equipment
Tanker Capacity 6CBM Tanker Material Stainless steel
Gearbox 5 forwards & 1 reverse Steering Gear Power steering
Clutch Reinforced diaphragm clutch Brakes Dual circuit compressed
air brake







1. Optional cab with chassis;

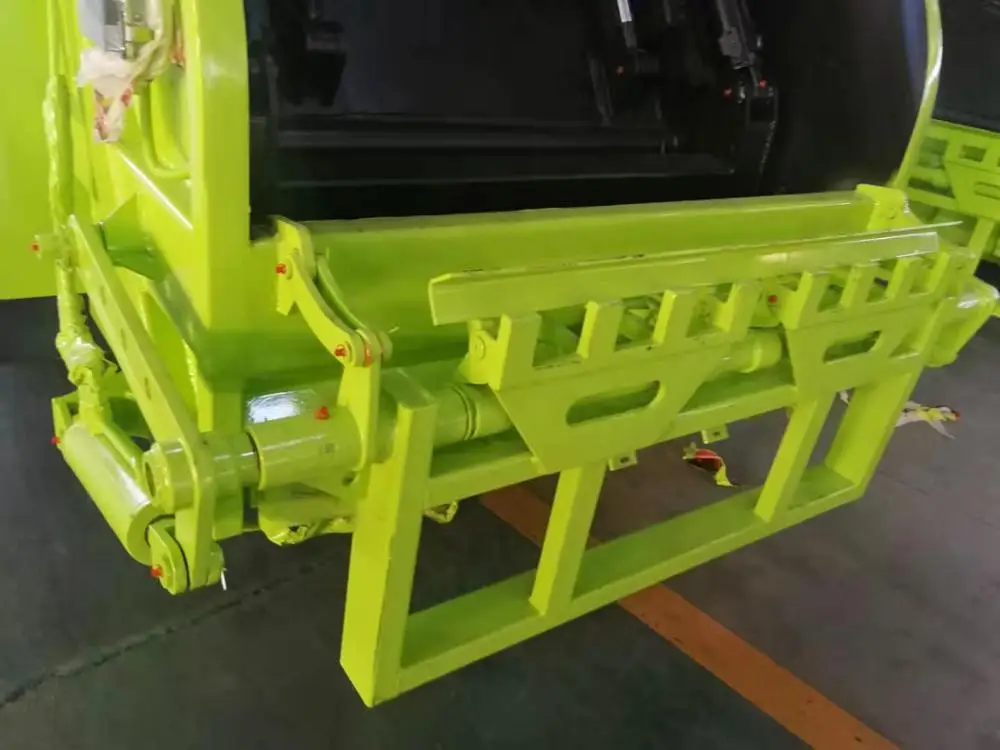

2. The rear overturning mode can be equipped with the garbage hopper device and the can hanging overturning device, as well as the no rear overturning machineStructure. Only 3308mm wheelbase is selected. When no rear turning mechanism is selected, the total length of the car is 6220mm, and the corresponding rear suspension is 1872mm. When the garbage hopper mechanism is selected, the total length of the car is 6470mm, and the corresponding rear suspension is 2122mm;



3. Protection material: Q235 carbon steel, connection mode: the left and right side protection are welded to the auxiliary beam, and the rear protection is replaced by special device instead of exemption;



4. ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd. / ABS / asr-24v-4s / 4m;
