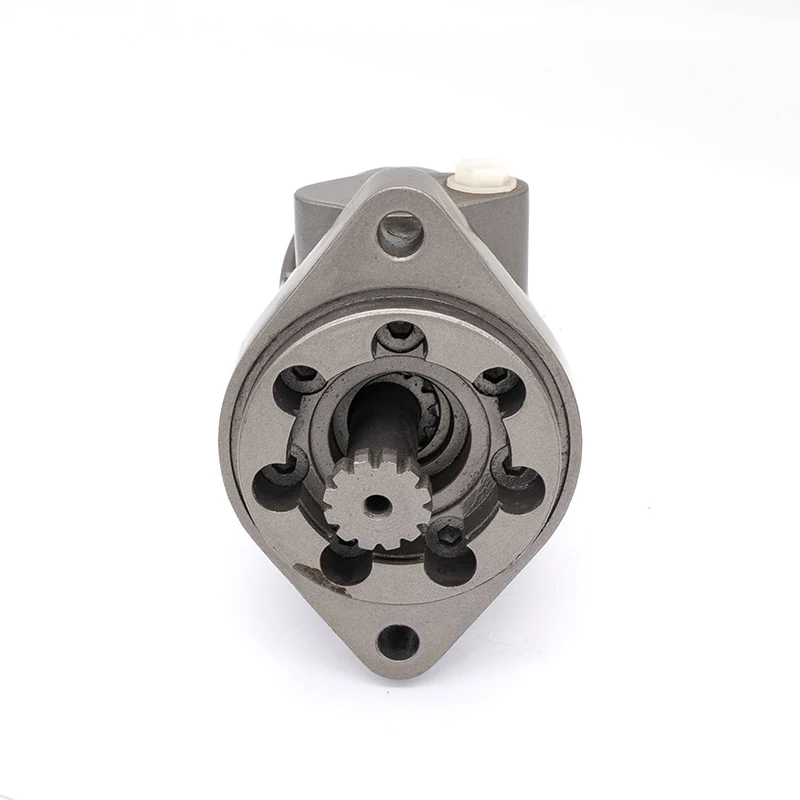

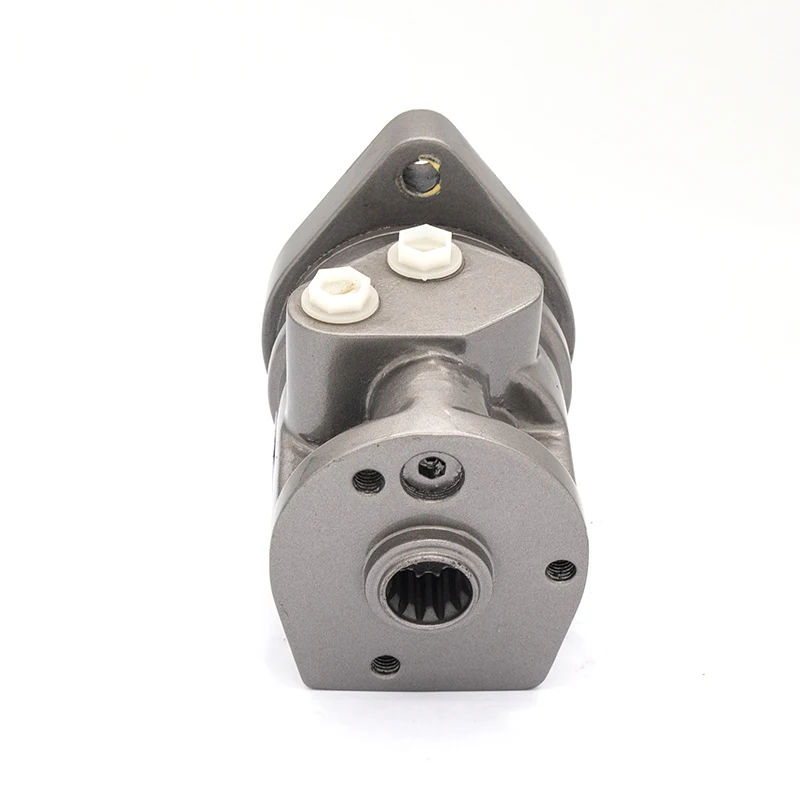

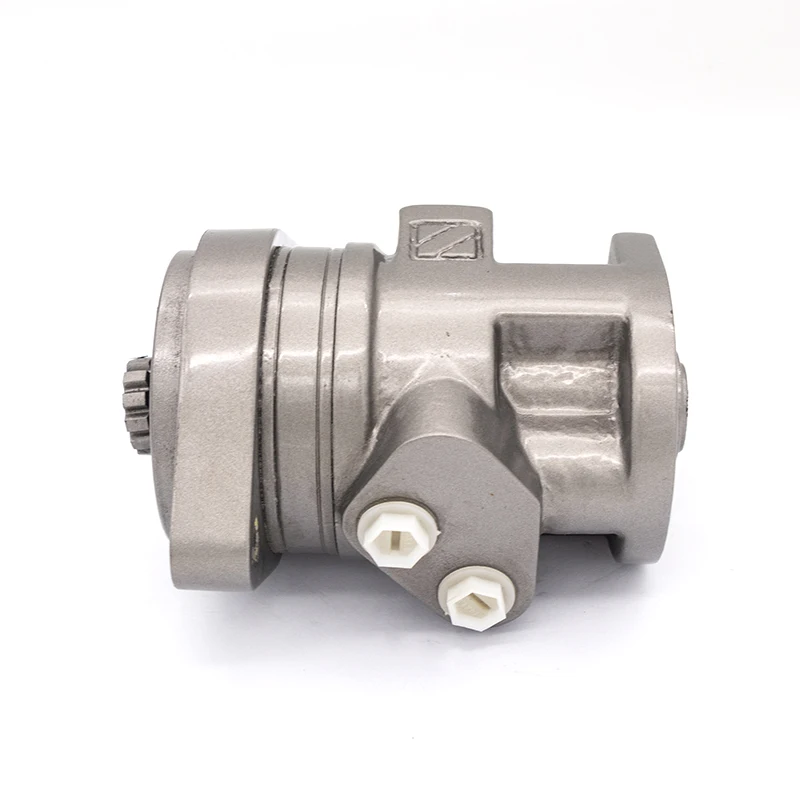

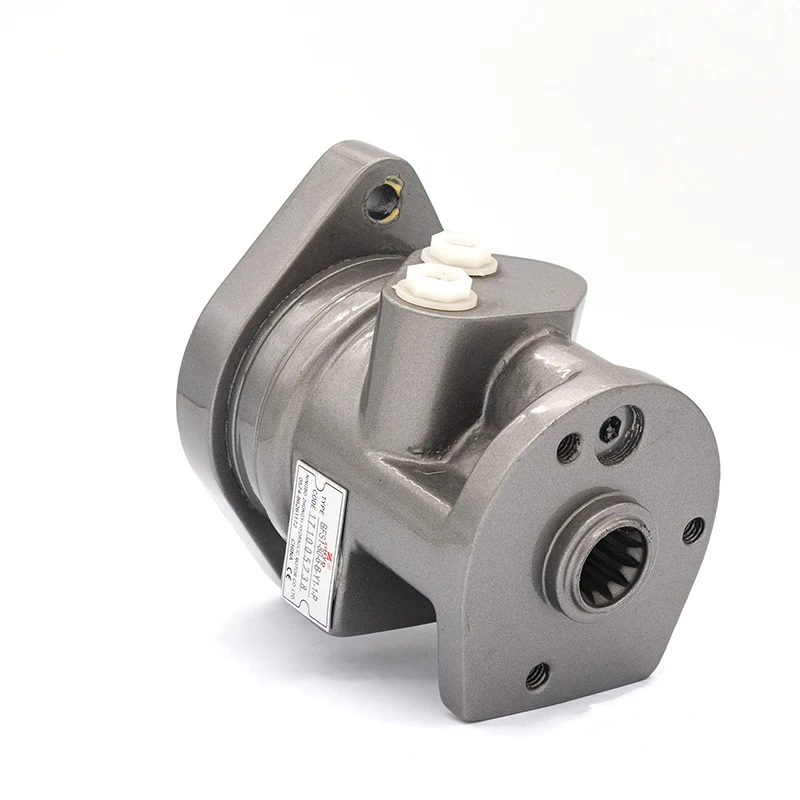

Hydraulic wheel loader steering valve control units 401112240

Product Overview

Description

Type	Displacement (mL/r)	Flow (L/min)	Max. Pressure in Oil			Power Steering Torque(N.m)	Max.Manual Steering Torque(N.m)	Relief Valve Pressure Settings(MPa)	Length (mm)	Weight (Kg)
			IN	EF	DRAIN
BFS1-63	63	9.5~15.1	17.2	10.3	0.3	1.6~2.4	60	5~10	122	4.3
BFS1-80	80	9.5~15.1	17.2	10.3	0.3	1.6~2.4	76	5~10	124	4.4
BFS1-100	100	9.5~15.1	17.2	10.3	0.3	1.6~2.4	96	5~10	126.5	4.5
BFS1-125	125	9.5~15.1	17.2	10.3	0.3	1.6~2.4	118	5~10	129.5	4.8
