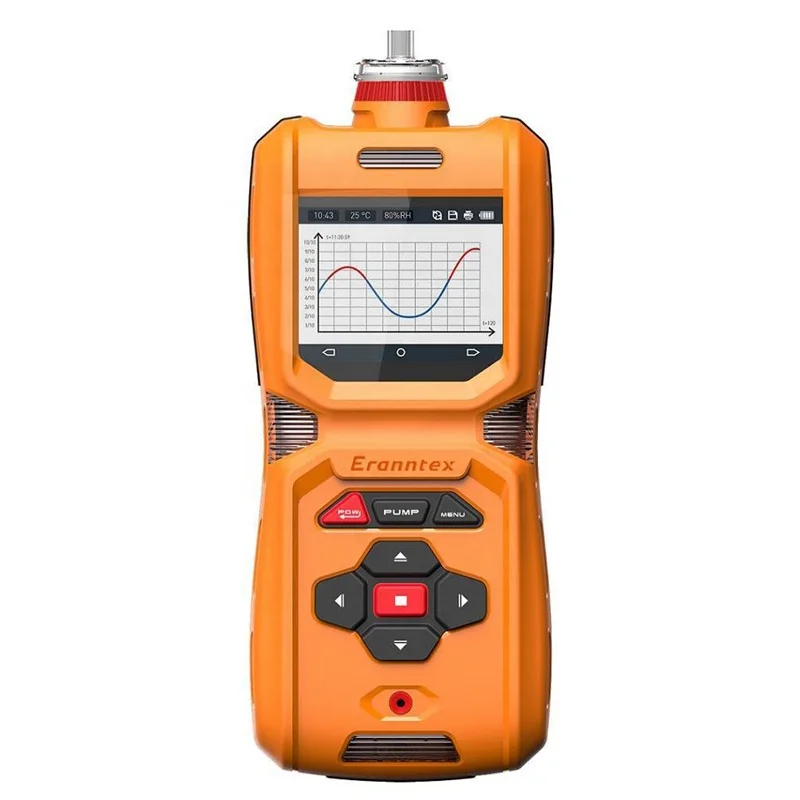

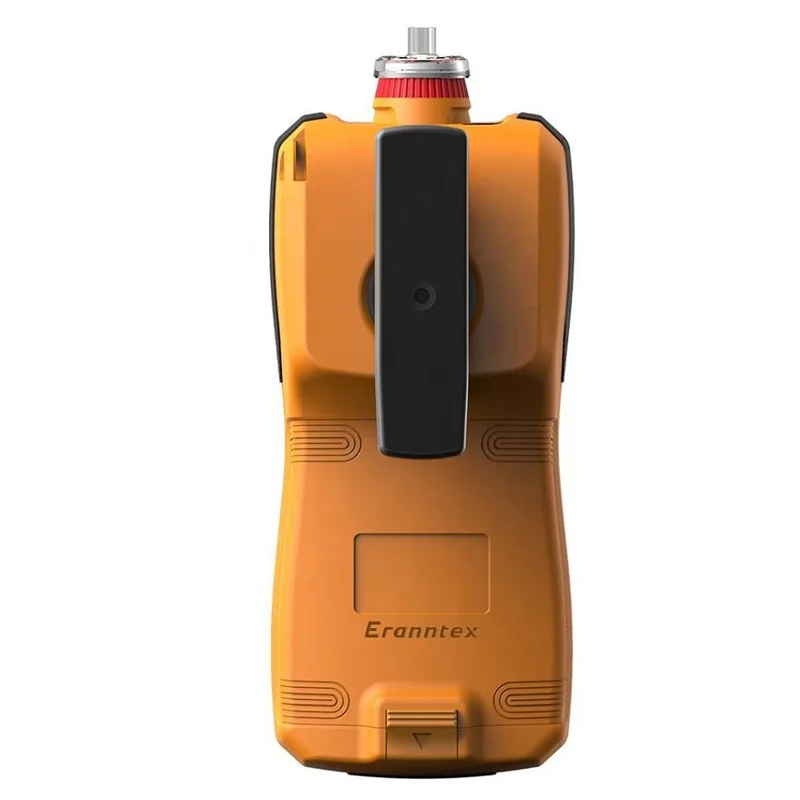

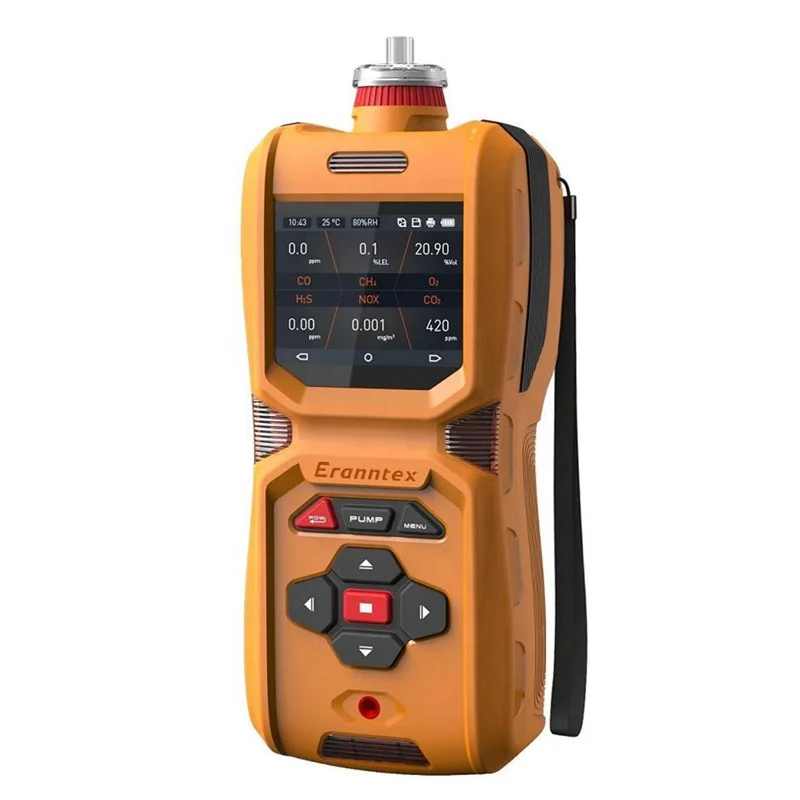

High Precision Portable 6 Gas Detector CO H2S O2 Ex CO2 NOX Nitrogen oxides gas analyzer with inner pump
- Category: >>>
- Supplier: Shenzhen Pulitong Electronic Technology Co. Ltd.
Share on (62417424414):
Product Overview
Description
Product Description
The PLT600 Portable Six-In-One Gas Detector Introduced
The PLT600 portable six-in-one gas detector is used to quickly and accurately detect the concentration, temperature and humidity of various gases on site and give alarm when exceeding the standard.
PLT600 portable six-in-one gas detector using a 2.5 -inch high-definition color screen real-time display concentration, choose the best brand in the industry of electrochemical or infrared light, catalytic combustion, thermal conductivity, PID ion of the principle of gas sensors, Swiss precision capacitive digital temperature and humidity sensor, PLT600 advanced circuit design, mature kernel algorithm processing, made a number of software patents and appearance.
The PLT600 can detect gas concentrations in pipelines, confined Spaces and atmospheric environments, as well as gas leakage. It can detect more than 500 types of gas, as well as the purity of high concentration single gas with various background gases as nitrogen or oxygen.
PLT600 general Six-In-One Gas Parameter Table
Gas composition | Test range | Rate respectively | Inspection principle | Note |
Carbon monoxide(CO) | 0-1000PPM | 0.1PPM | Nitrogen oxides | |
Hydrogen sulphide(H2S) | 0-100PPM | 0.01PPM | Nitrogen oxides | |
Oxygen(O2) | 0-30%VOL | 0.01%VOL | Nitrogen oxides | |
Combustible gas(Ex） | 0-100%LEL | 0.1%LEL | Catalytic combustion | |
Carbon dioxide(CO2) | 0-5000PPM | 1PPM | Infrared principle | |
Nitrogen oxides(NOX) | 0-1000PPM | 0.1PPM | Infrared principle |

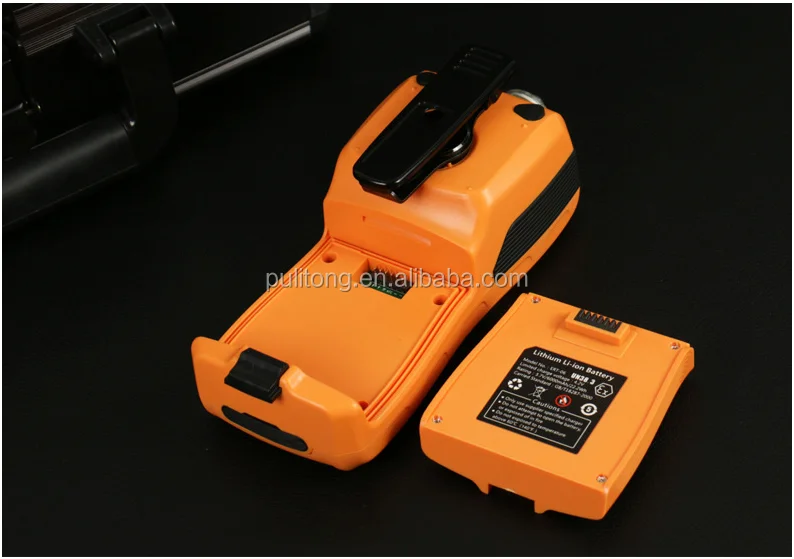

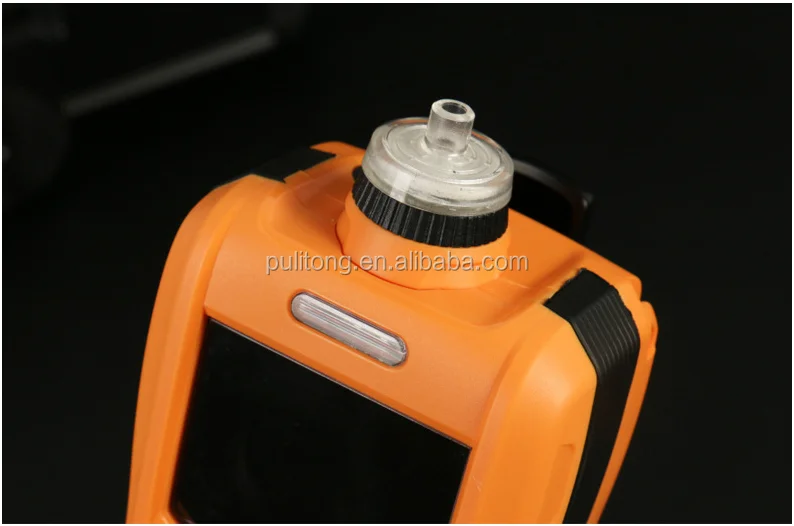

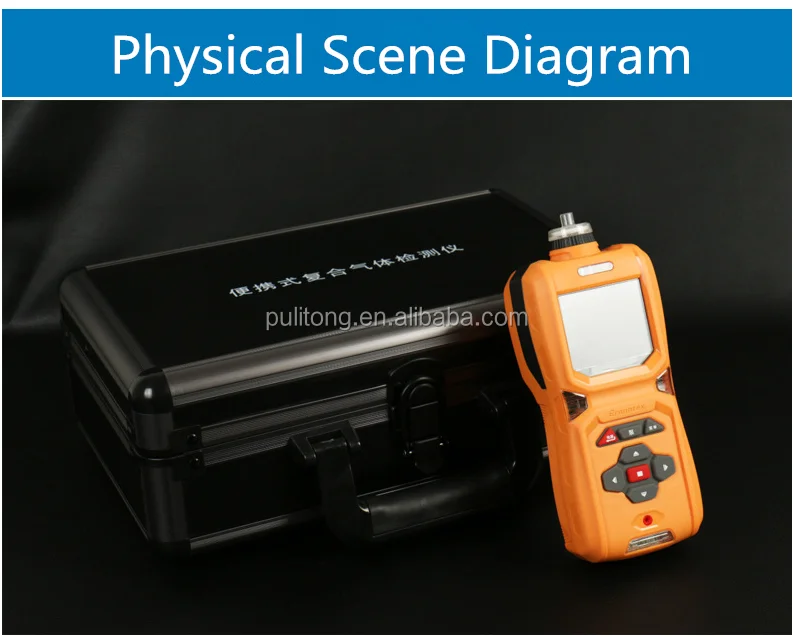

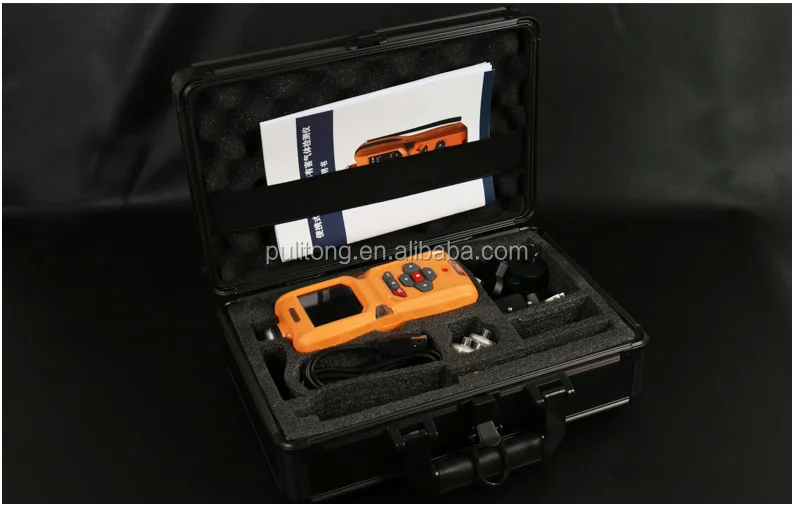

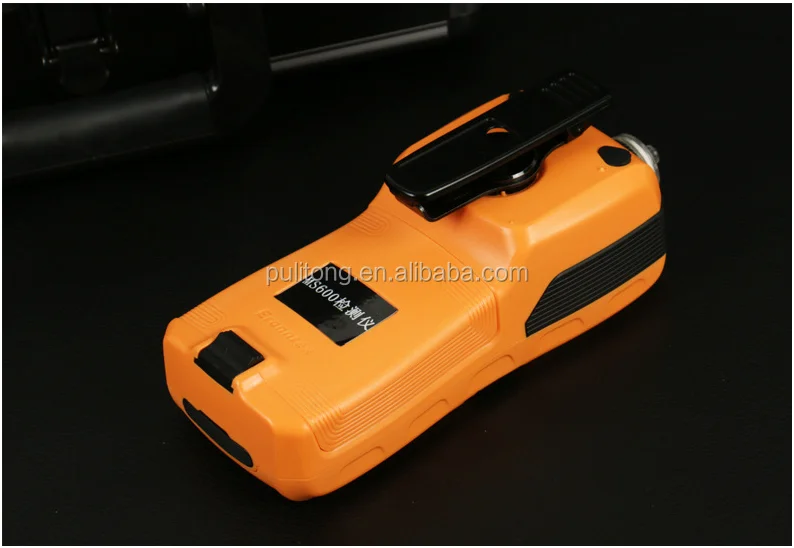

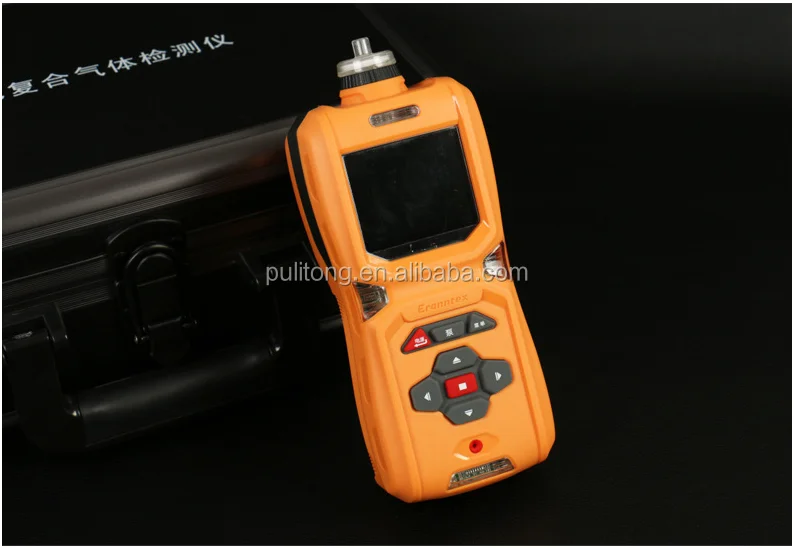

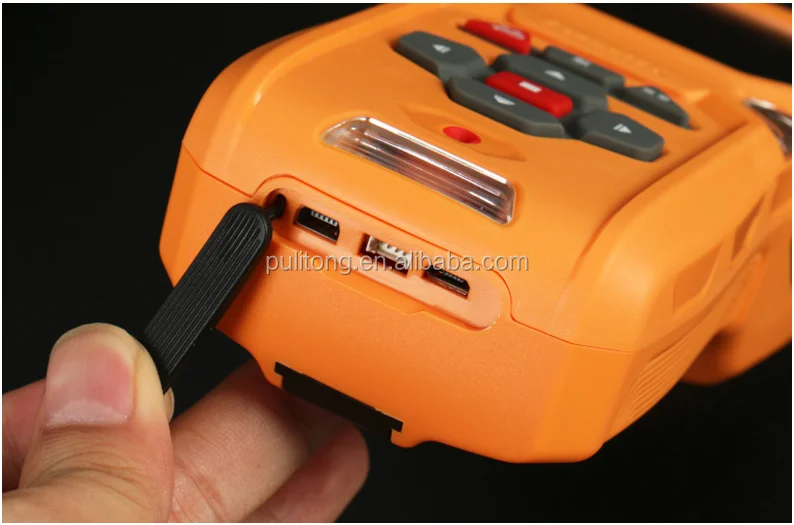

Details Images
Product Paramenters
Technical parameter list
Detect gas | Composite gases (carbon monoxideCO, hydrogen sulfideH2S, oxygenO2, combustible gas,Ex carbon dioxideCO2, nitrogen oxideNOX), optional: can detect any six gas concentrations and temperature and humidity, up to 8 gases, depending on the sensor and field environment. | ||||||
Detection range | CO(0-1000PPM),H2S(0-100PPM),O2(0-30%VOL),Ex(0-100%LEL),CO2(0-5000PPM),NOX(0-1000PPM).Other ranges can be customized | ||||||
Resolution | CO(0.1PPM),H2S(0.01PPM),O2(0.01%VOL),Ex(0.1%LEL),CO2(1PPM),NOX(0.1PPM).Higher resolution customizable | ||||||
Inspection principle | Electrochemical, catalytic combustion, infrared, thermal conductivity, PID light ions, depending on gas, range, field environment and user needs. | ||||||
Detection method | Built-in pump suction type, flow rate of 500 ml per minute. | ||||||

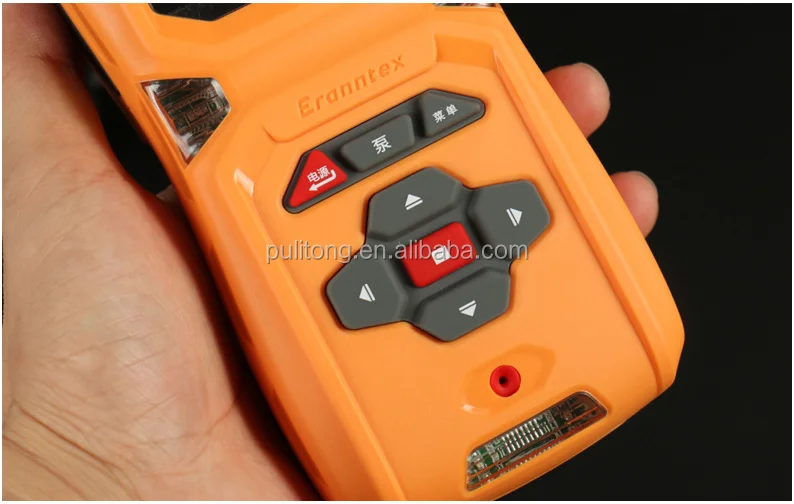

Display mode | 2.5 "320*240 hd color screen display, 8 button operation. | ||||||
Detection accuracy | ≤±1%(F.S) | ||||||
Linearity | ≤±1% | ||||||
Repeatability | ≤±1% | ||||||
Alarm mode | Sound-light alarm, vibration alarm, visual alarm, sound-light + vibration + visual alarm, close alarm. | ||||||
Response time | T90≤20S | ||||||
Recovery time | ≤30S | ||||||
Operating power supply | DC3.6V | ||||||
Product Processing
About Puliton
Certifications
Transport
FAQ
1.Q:Can I have a sample order to test quality?
A: Yes, we re commend and welcome sample order to test and check before order.
2. Q: What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order<=5000pcs.
3. Q: Do you have any MOQ limit?
A: We don't have a MOQ limit, 1 pc are also welcome.
4. Q: Do you offer guarantee for the products?
A: Yes, we offer 1 or 2 years guarantee for the products.
5. Q: If I order big quantity, Can I have a cheaper price?
A: We will reduce the price according to the specific quantity and your requirements for the product.
6.Q: How does your I factory do regarding the quality control?
A: Quality is priority, Our factory has passed ISO 9001 with annual audit.Established a procedure to check products at all stages of the manufacturing process-raw materials, in process materials.validated or tested materials, finished goods.etc.
