Product Overview
Description
High Efficiency Tube in Shell Heat Exchanger can be widely use in water-source air conditioner/industry chiller and heat pump etc.
Direction for use
Model | GADD01-CMF |
Heating capcity | 4.0KW |
Water flow | 0.7m3/h |
Liquid nozzie | 9.52mm |
Gas nozzie | 12.7mm |
Water let | 15.88mm |
Direction for use
High Efficiency Tube in Shell Heat Exchanger can be widely use in water-source air conditioner/industry chiller and heat pump etc.
* Products can be customized according to customer size requirements
Detailed Images

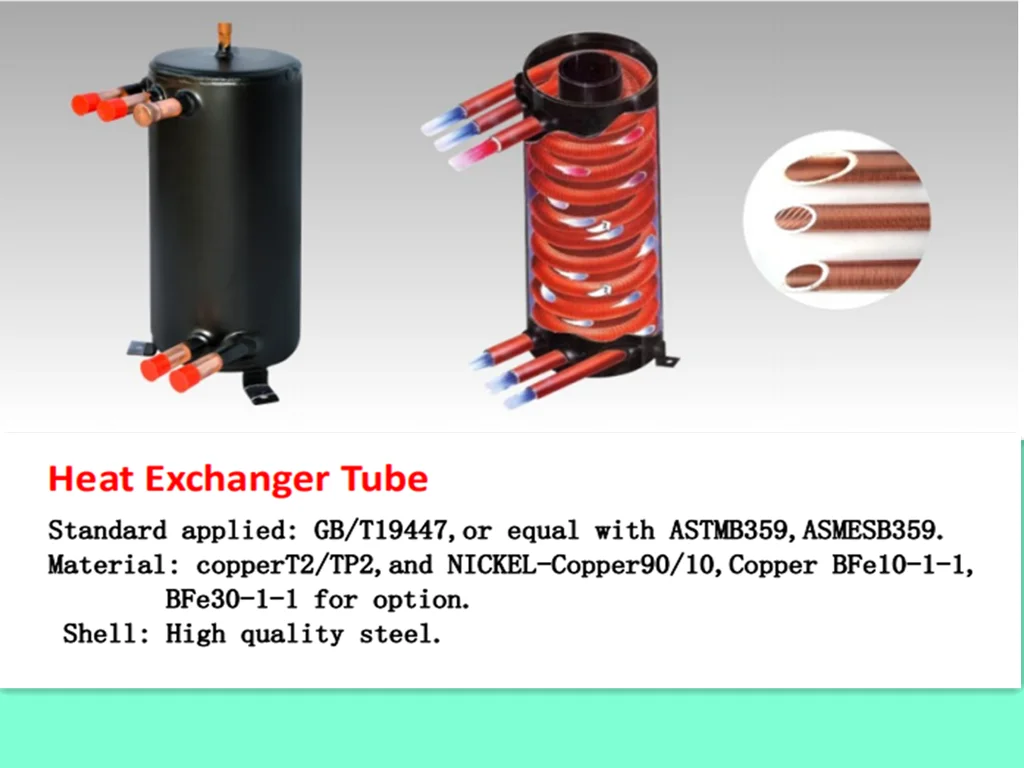

MATERIAL
Features:
High Efficiency of Heat Exchanger:

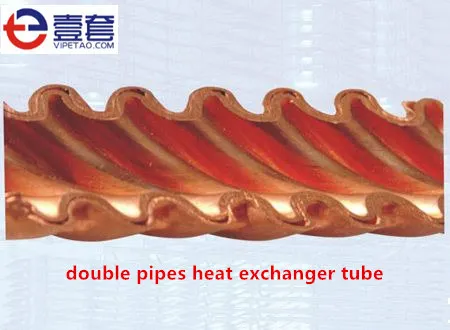

1. Using high efficiency rifle tube ,heat exchanger area is 3.6time than the smooth type.
2. Fins inside & outside tube induce turbulence flow of freon and water .It's one cause of high efficiency.

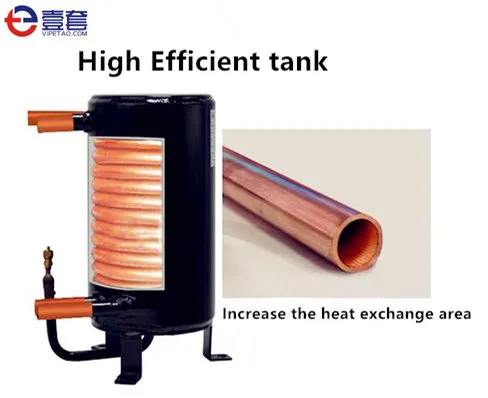

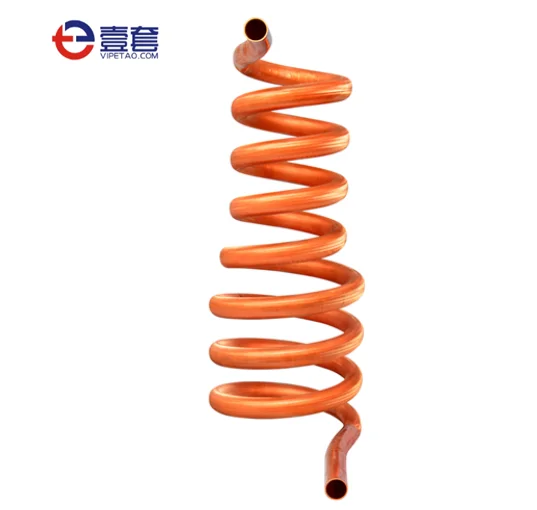

3. The compact helix structure of the coil ensures sufficient heat exchanger between the gas and water.
Safety:
1) Whole tube inside shell has no internal jionts ,That' means no welding bug.
2) The copper is fully shaped and then installed into the shell thus free from curedamage.
3) There is not block on water loop and the water flow is smooth ,thus keep it free from ice and dirty.
4) The drain is on the lowest poin of the heat exchanger and easy for drainage in cold season.
Small volume:
Compact size is helpful to save the space for the heat pump and thus reduce the volume of the unit.
* Click me to view the store

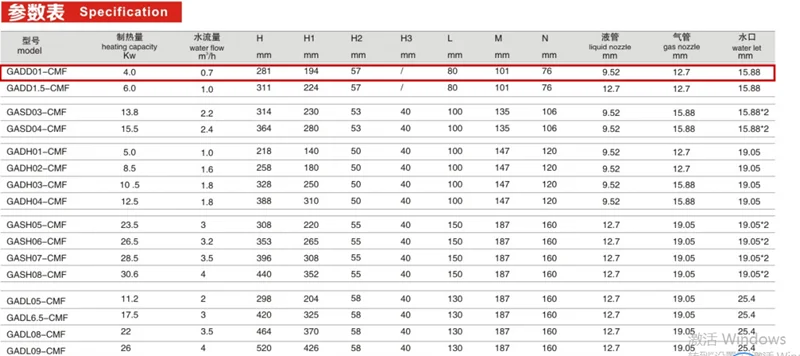

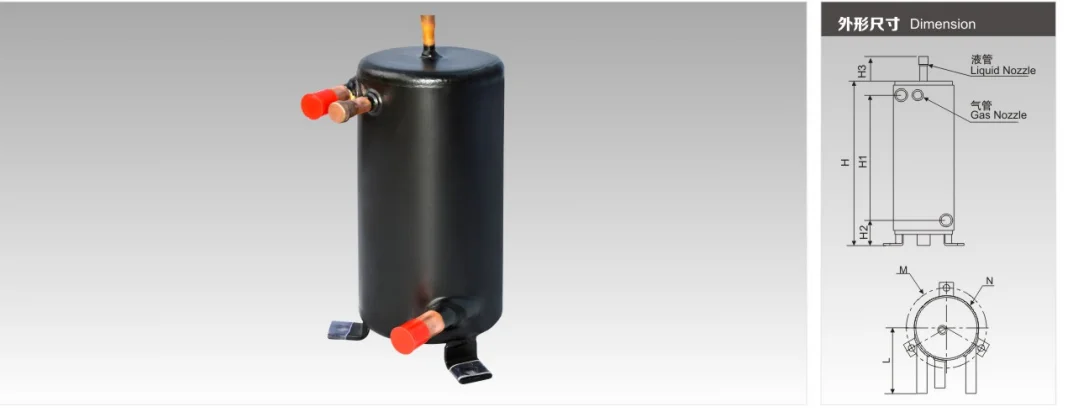

Size Information
Size Chart of This Design
Working Condition
Refrigerant side(outside of tube) | Water side (in the tube) | ||||
Max.pressure | 5.2MPa | 3.2Mpa | |||
Temp.range | -50~150℃ | -30~90℃(Must be higher than the freezing point) | |||
Refrigerant tybe | R22,R134a,R407c,R410aEtc. | Nature water,sea water,antifreeze(glycol water) | |||
Remarks | Keep the water clean,recommend to use filter and clean regularly. Corrosion proof material must be used for sea water or salty water. When there is ice on the tube,the heat exchanger will be damagde,so it is necessary to avoid freezing. | ||||
Structure:
When there is accumulator included,the gas pressure of the heat pump
can be reduced obviously,thus enhance the heat exchanger efficiency.
Related Products
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing&Shipping
Wooden case packing fixation.
The stocking period is 15 days.
If you need customized packaging, please contact us.
If you need customized packaging, please contact us.
After Sales Service
Afer sales service:
After-sales service is one year.Provide video installation services
Afer sales service:
After-sales service is one year.Provide video installation services

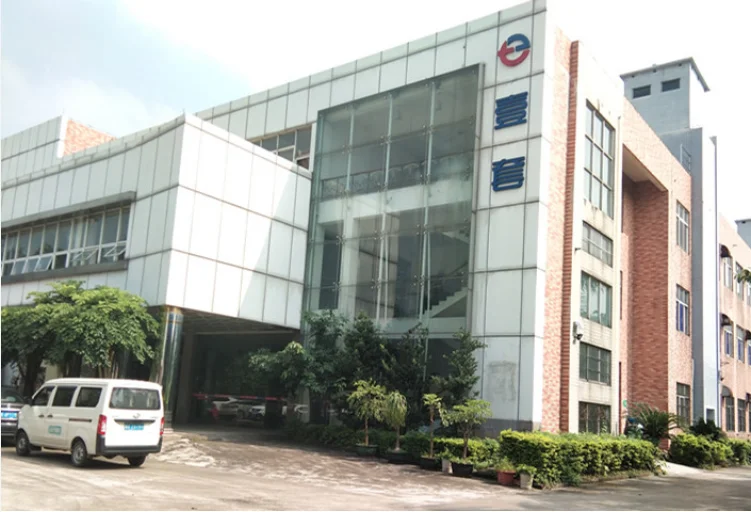

Company Introduction
