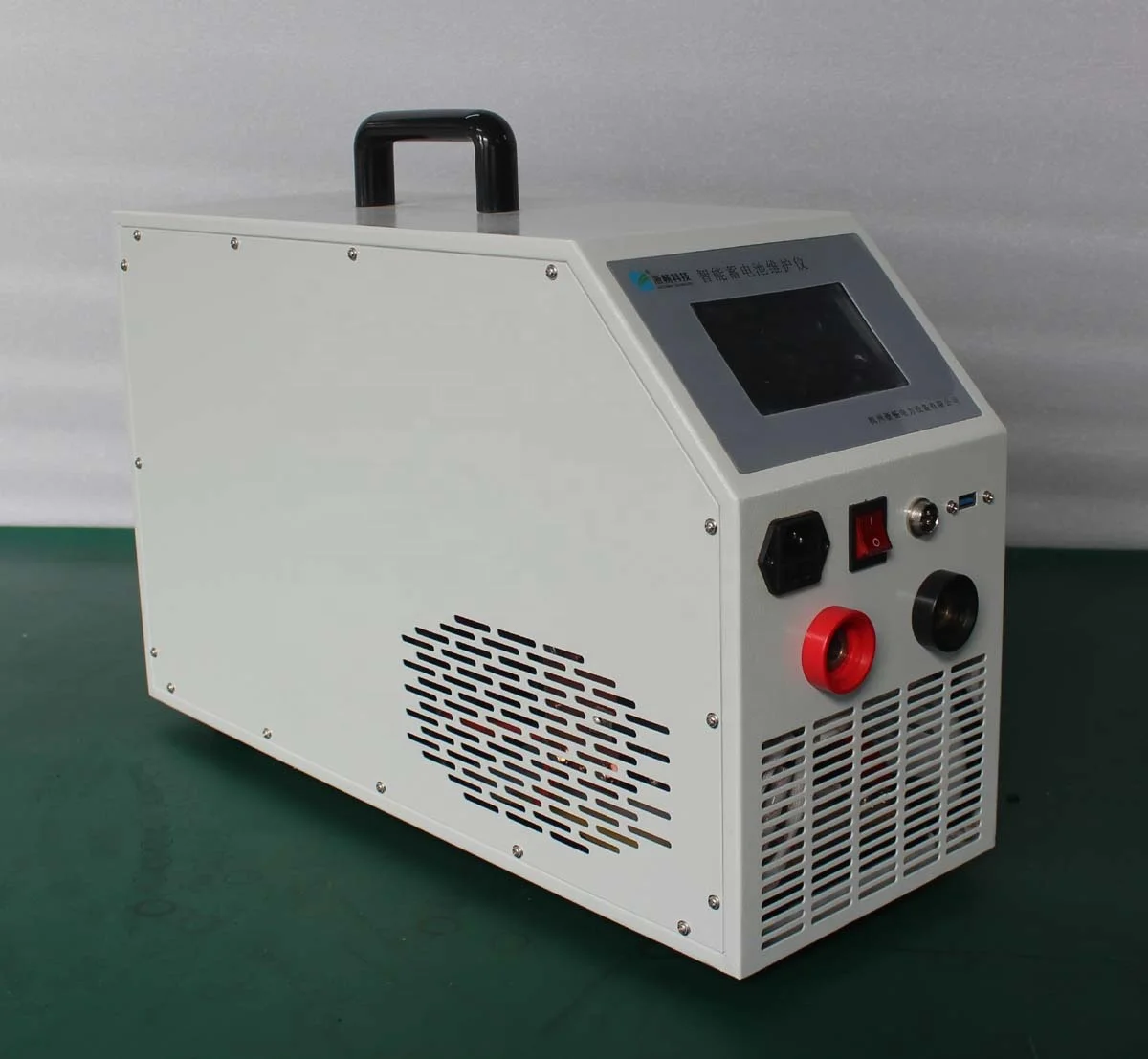

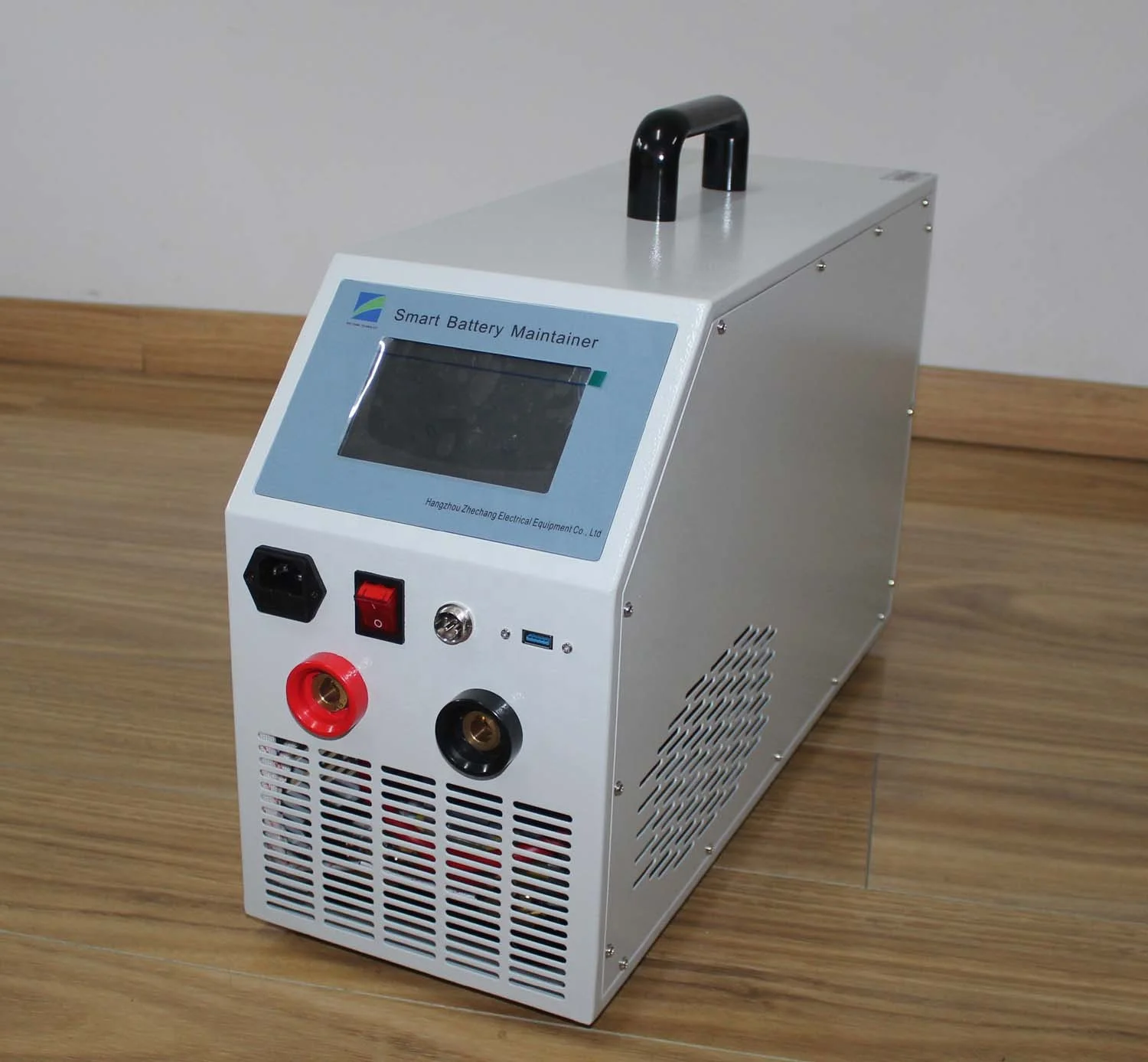

12V 20A Auto Digital Charging And Discharging Battery Activator
- Category: >>>
- Supplier: Hangzhou Zhechang Power Equipment Co. Ltd. [Zhejiang China]Hangzhou
Share on (62417599581):
Product Overview
Description
Professional manufacturer Activator Charge Discharge Machine Activation Digital Load 12v Auto Battery Tester
Application:
It widely used for the capacity testing of large, industrial battery banks commonly found in electrical power sub-stations,
telecom facilities and computer data center UPS systems.
telecom facilities and computer data center UPS systems.
Feature
1.Three functions of charging, discharging and activation. It can used online and offline;
2.Parameters such as charge-discharge current, upper and lower limits of charge voltage can be set freely;
3.Charging: adopt standard three stage charge method “constant current, voltage limiting →constant voltage, current limiting → floating charge”;
4.Discharging: according to set discharge, it carries on fixed constant-current discharge;
5.Activation: adopt the unique “impulse type” activation mode, effectively eliminate the sulfuric acid phenomenon of storage battery, maximum recover battery performance;
6.2V/12V compatible design;
7.Use LCD screen display in English, operation is simple and easy to use;
Product Name | Battery Maintenance Instrument |
Applicable battery type | 12V |
Charge &discharge current | 0-20A |
Current setting step | 0.1A |
Precision of constant current | ±0.5% |
Precision of constant current | ±0.5% |
Communication interface | USB |
Power | 220V |
Software | The operating system：Win2000 / XP / 7 |

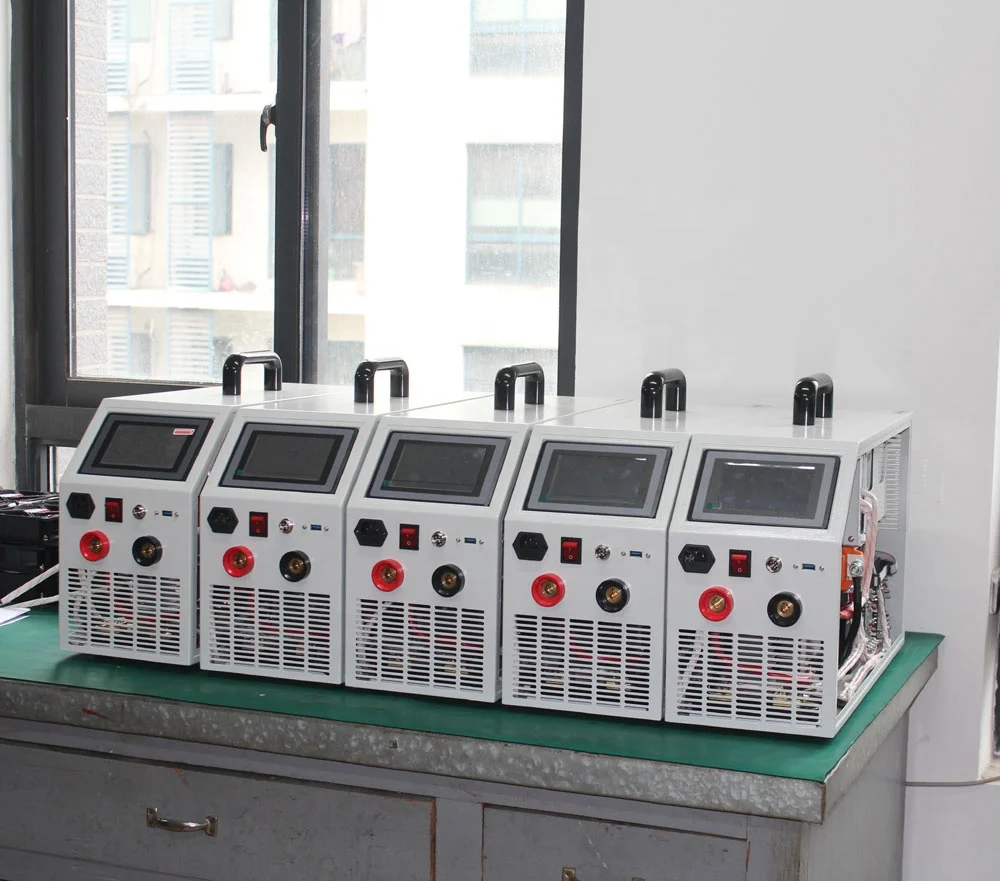

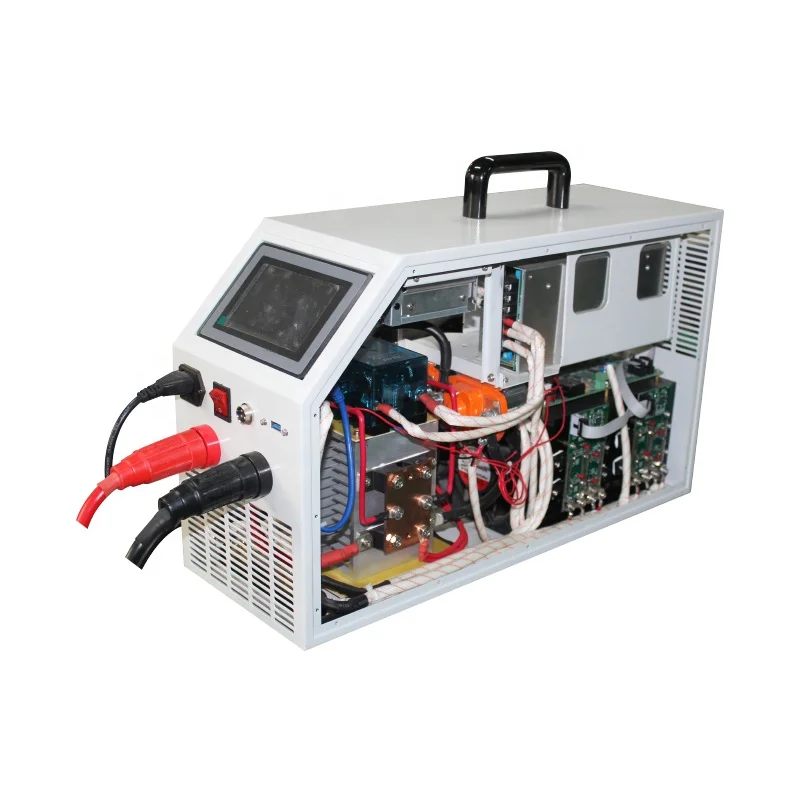

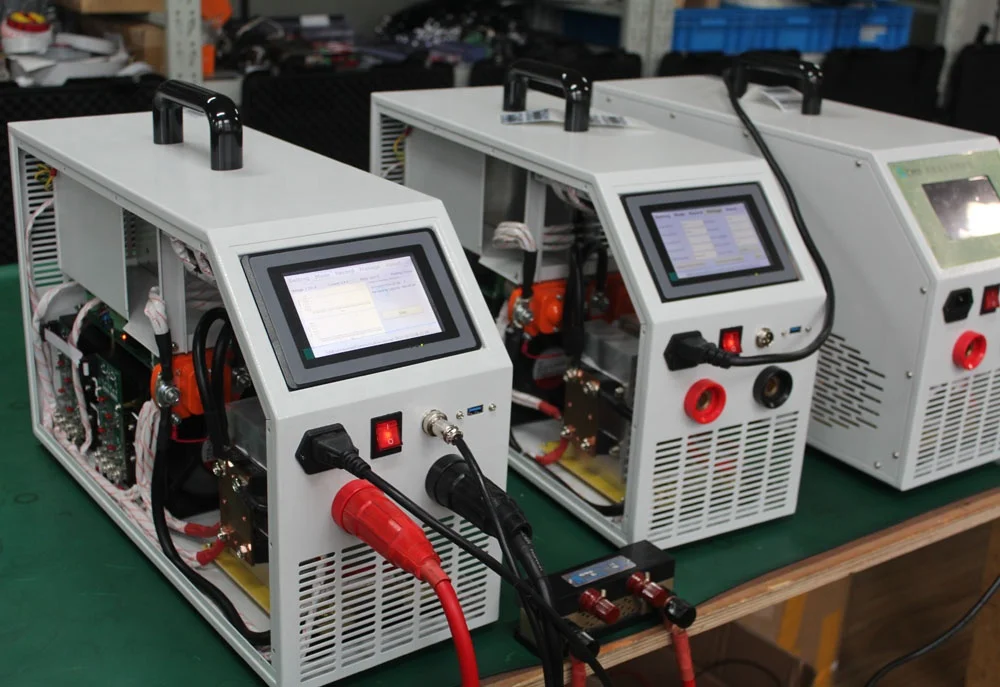

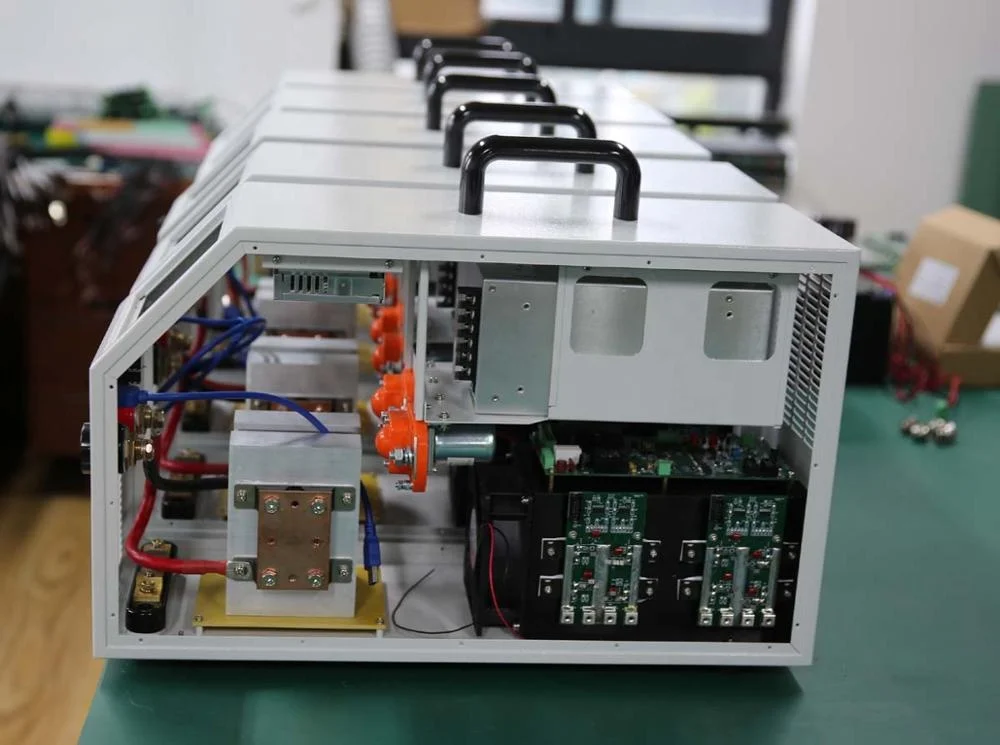

Details Images
Our Advantages

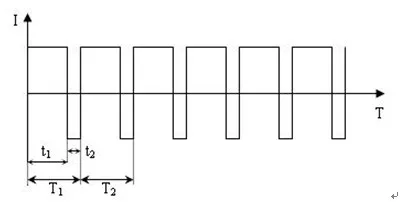

The pulse activation mode of the battery activitor
PbSO4 particles were decomposed and restored by charging and discharging cycle at a certain frequency. In each large "fill → discharge → fill" period, there are more than N small pulse periods, T, and each pulse period includes charge t1 and discharge t2. In the charging process, instead of continuous charging, the "charging → releasing" "pulse" mode is adopted.

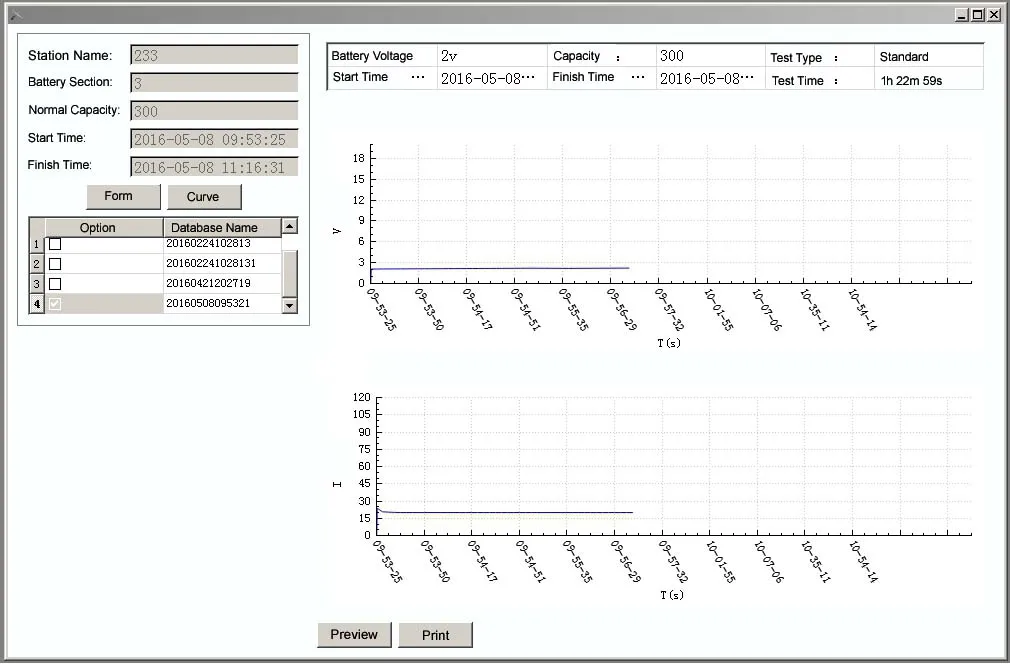

Click “Curve” button and it will display as shown
The Schematic diagram of three-stage charging Process
Stage I: Constant-current limit voltage charge.
Stage II: Constant-voltage limit current charge.
Stage III: Floating charge.
