27 inch interactive touch foil multi touch screen foil film for tempered glass
Product Description
What is Interactive Touch Foil?
You can turn any standard piece of glass into an interactive touch screen.No matter it is Acrylic or tempered glass. Interactive touch foil are made up of a clear polymer material with a micro-wire sensor grid.These sensors use capacitive technology to accurately track up to 10~40 points of input via your body's electric signal.
Details Images

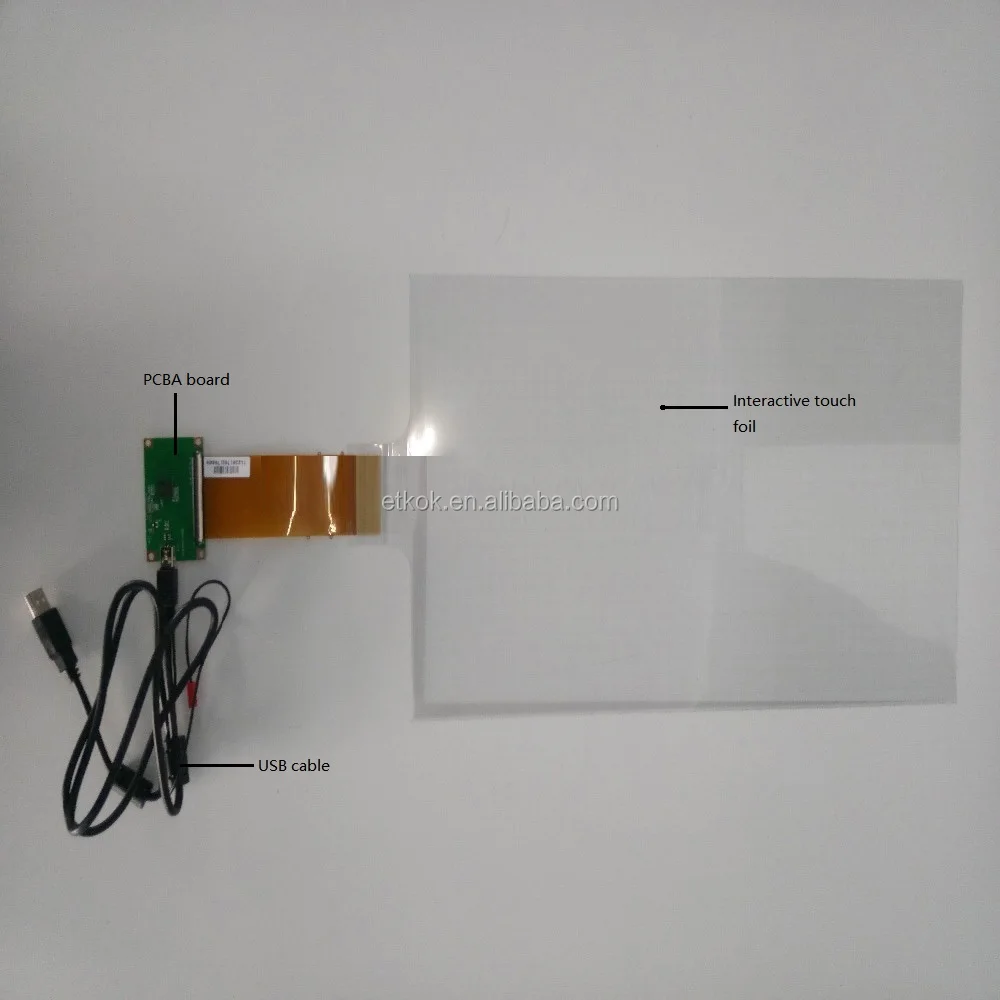

We provide each kit of interactive touch foil with USB cable and PCBA board.Here is the real photo for 43 inch interactive touch foil.
We provide each kit of interactive touch foil with USB cable and PCBA board.Here is the real photo for 17 inch interactive touch foil.
Installation Instructions

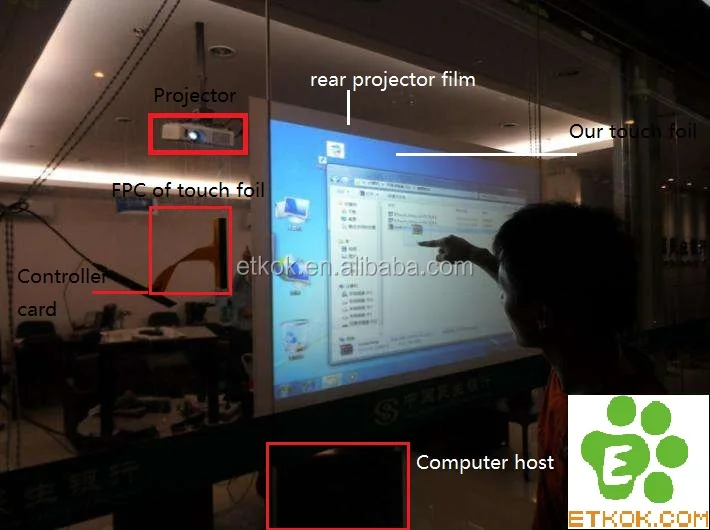

Interactive smart window
If you want to do smart interactive window,you need to prepare a projector,rear projection film,interactive touch foil and computer.

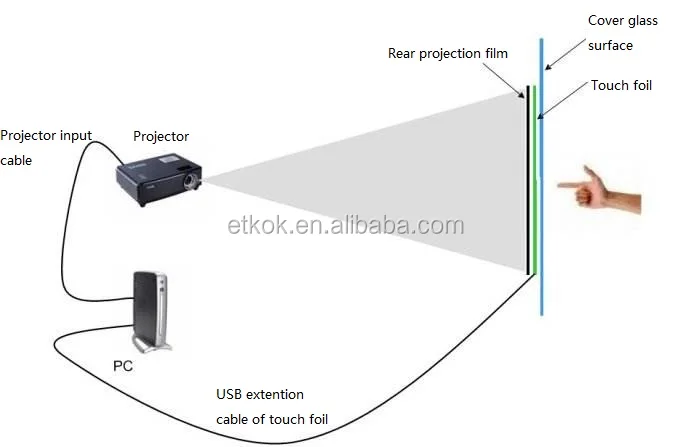

When pasted on the back of the glass,connect PCBA board of touch foil to computer in USB 2.0 interface,you can be touched across the glass to achieve finger instead of the mouse effect.The working graph is as below:

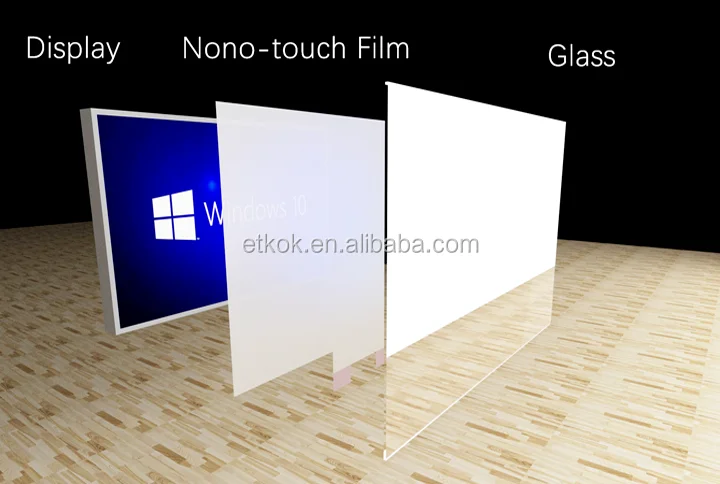

Touch screen kiosk and mirror touch screen
Touch foil is widely used for large size touch screen kiosk and mirror touch screen.It saving cost for you compared to big size capacitive touch glass.55"60"65"70"75"80"86" touch foil is the best choice for interactive whiteboard in smart education equipment.
You should prepare large size LCD display,computer with Windows or Android OS,and touch foil.
The working graph is as below:
Product Paramenters
Size | 27 inch(17"-86" are for optional) |
Part Number | ETK-MTF270 |
Touch Point | 10 touch points |
Touch deviation | 0.5mm |
Film thickness | Almost 100um |
Light transmittance | 95% |
Safe distance | 3mm/the distance between the LCD screen and the film |
Working Temp | -20 ℃ to + 70 ℃ |
Working Humidity | 0-95% |
Transmission mode | Full speed USB 2.0 |
Supply voltage | 5V USB |
Drive Type | Plug and play for Windows,For Android or Linux system,we can provide calibration software |
Touch support | Click, drag, zoom, rotate |
Packing list | 1 * Touch film circuit control board * 1 USB cable * 1 |
Touch foil with side model.
The wires connection comes from side.You can choose touch foil with side model if it is better for you to install it.
Touch foil with bottom model
The wires connection comes from bottom.You can choose touch foil with bottom model if it is better for you to install it.
FAQ
Q:It is very difficult to paste the touch foil on my glass?
A:The installation process is similar to that of a window tint material, Very easy and simple do paste it on your glass.We have video and PDF file to explain to you how to do it,Please send inquiry to our salesman,She will send you back within 30 ministes later.
Q:If I pasted the touch foil on my glass,but I did some mistake,Can I remove it?
A:Yes,you can,You can remove it.
Q:How thickness of the glass it is working?
A:Touch foil works very good for tempered glass with 3-4mm,but maximum the glass thickness no more than 20mm.
Q:Do you have stock for touch foil?How can I place order?
A:Yes,we have stock for it.You can place order on Alibaba directly,Please ask help from our salesman.
Q:What payment term do you support?
A:Paypal,Western Union,T/T,Alibaba trade assurance.
