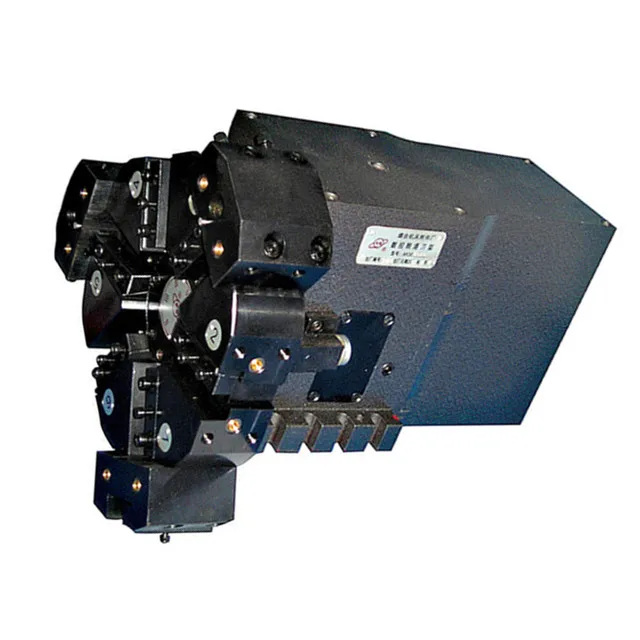

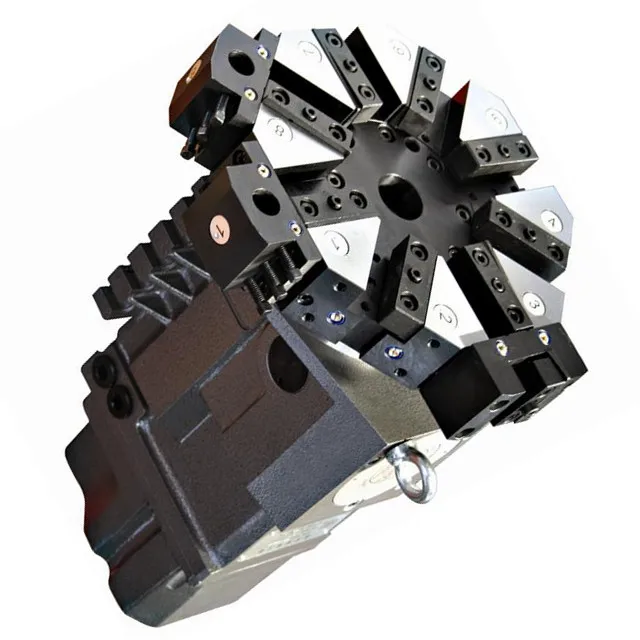

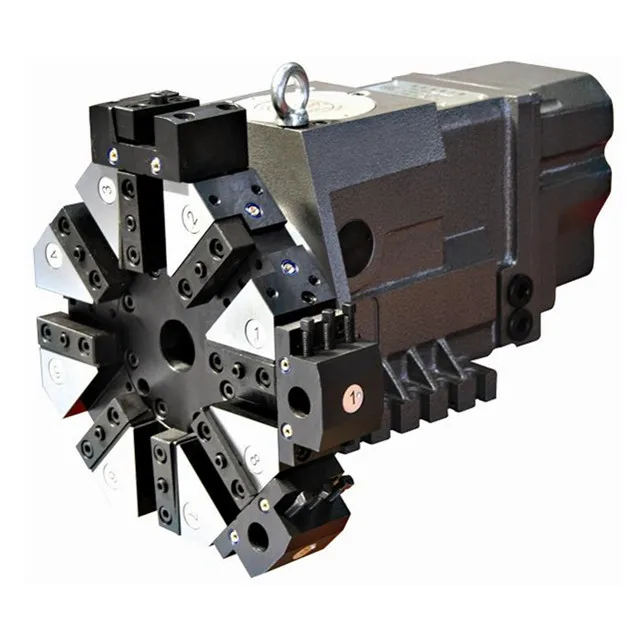

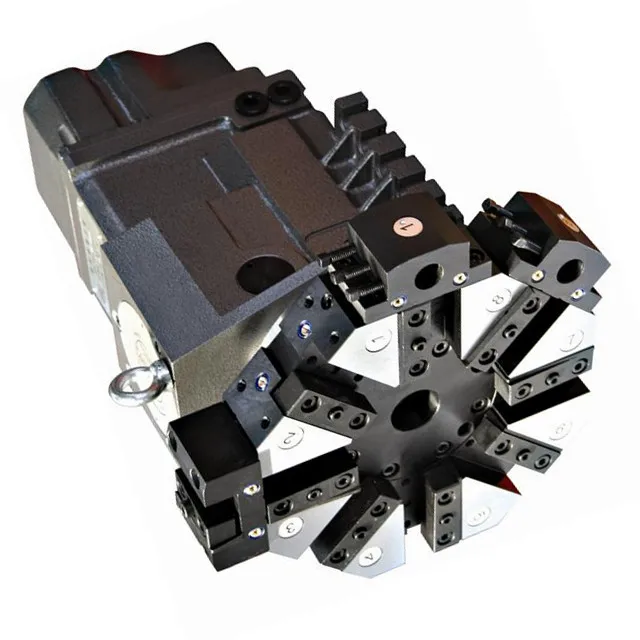

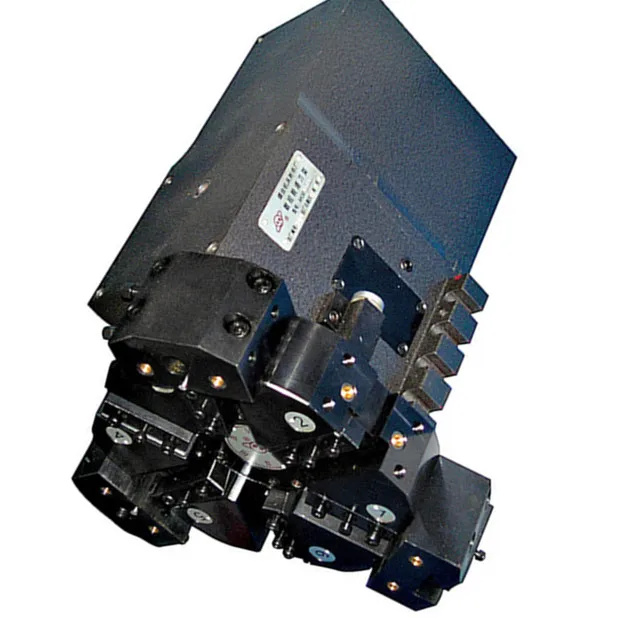

famous brand Universal High precision 12 stations nc turret AK31 NC TURRET cnc turret holder

Items

AK3180X8

             X12

AK31100X8

                   X12

AK31125X8

              X12

AK31160X8

                   X12

AK31200X8

                  X12

Center height mm

80

100

125

160

200

Max inertia kgm2

1.30

0.80

4.50

3.00

7.50

4.50

32

15

70

22

Time for 30 rotation   s

0.19

0.16

0.27

0.22

0.32

0.27

0.50

0.30

0.62

0.34

Time for 30 rotation&clamping   s

0.58

0.50

0.80

0.68

0.95

0.80

1.50

0.90

1.80

1.02

Time for 45 rotation   s

0.29

0.25

0.40

0.34

0.47

0.40

0.75

0.45

0.90

0.50

Time for 45 rotation&clamping   s

0.67

0.58

0.95

0.79

1.10

0.95

1.75

1.06

2.10

1.19

Time for 180 rotation&clamping   s

1.54

1.33

2.15

1.80

2.50

2.15

4.0

2.44

5.23

2.70

Max unbalanced load torque

15

40

60

160

470

Angular indexing accuracy

±6”

Repeatability

±2”

Max load capacity  kg

40

120

160

380

500

Indexing frequency  n/h

750

750

750

600

600

Start-off power  KWA

1.1

1.6

1.6

2.8

2.8

N.W  kg

Without disc

65

103

136

366

480

With disc

95

149

210

486

593

G.W  kg

Without disc

84

130

171

466

600

With disc

115

178

245

586

713

Packing dimension mm

610x450x465

710x550x535

710x623x575

1013x760x750

1010x940x900
