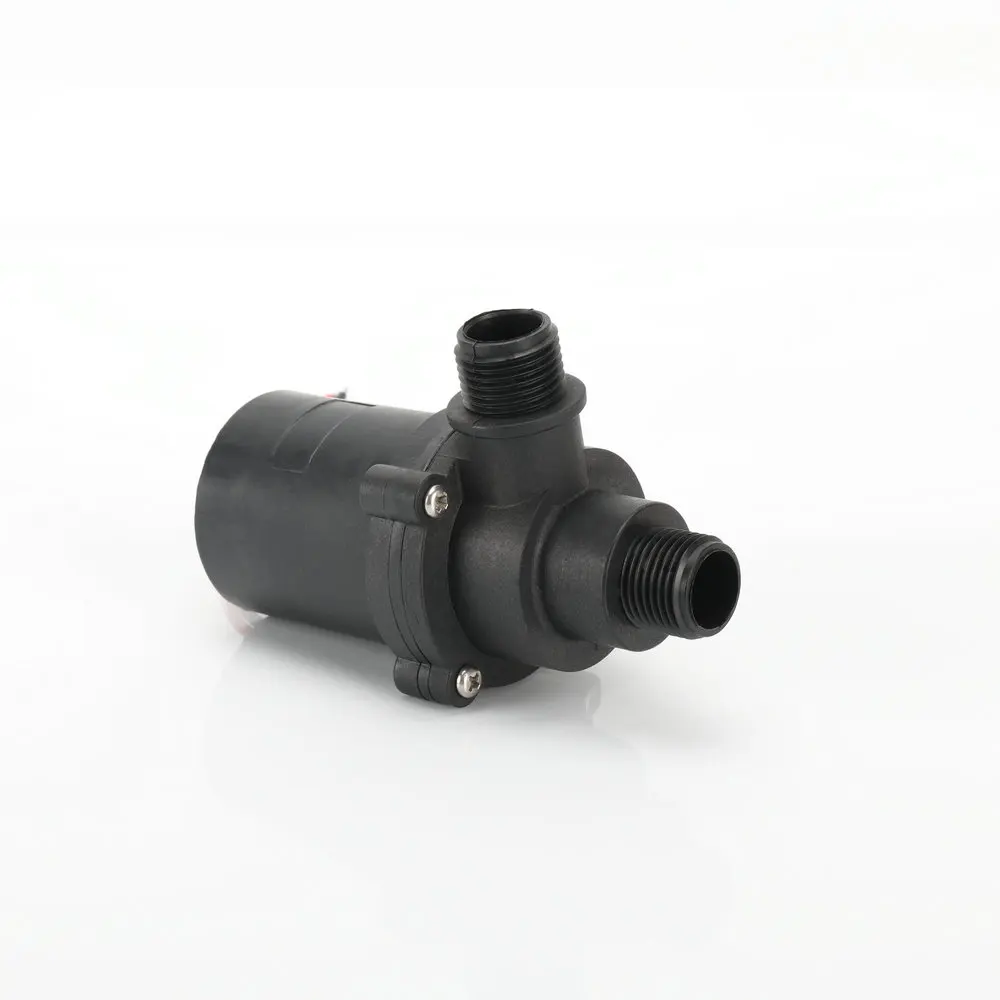

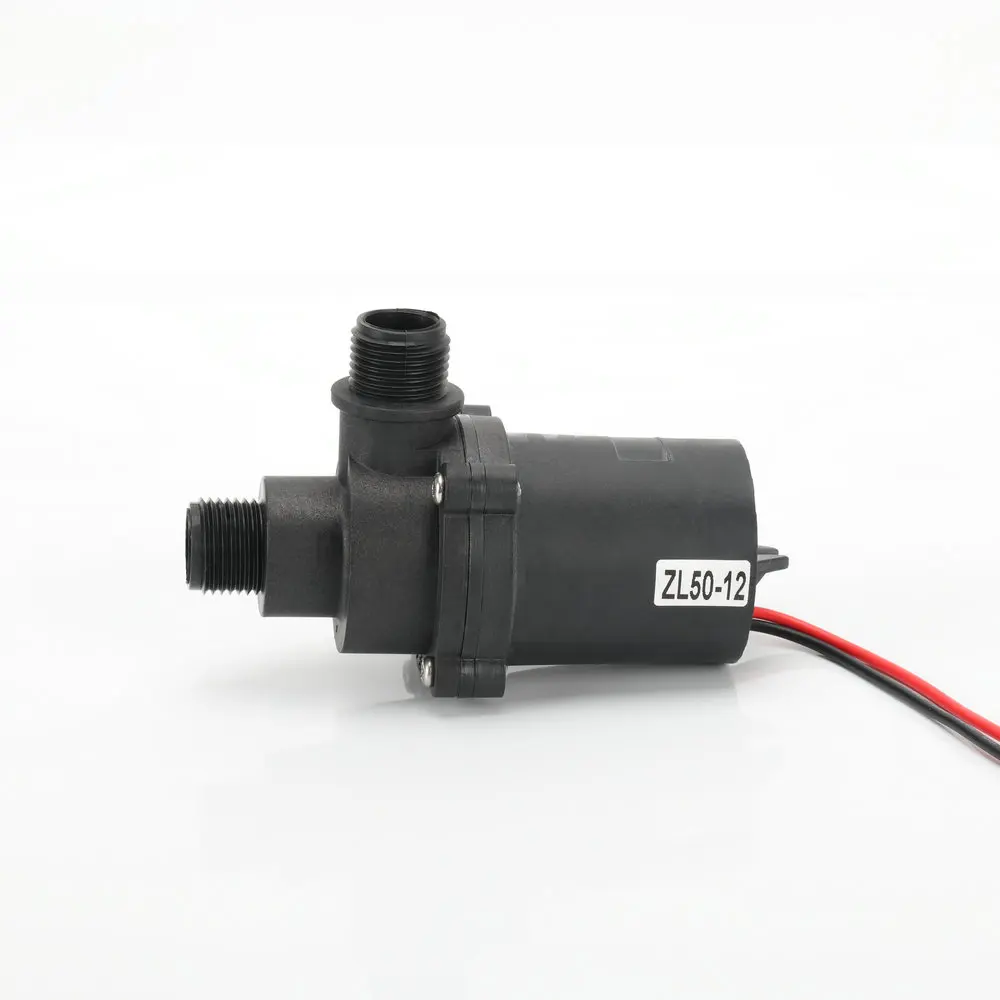

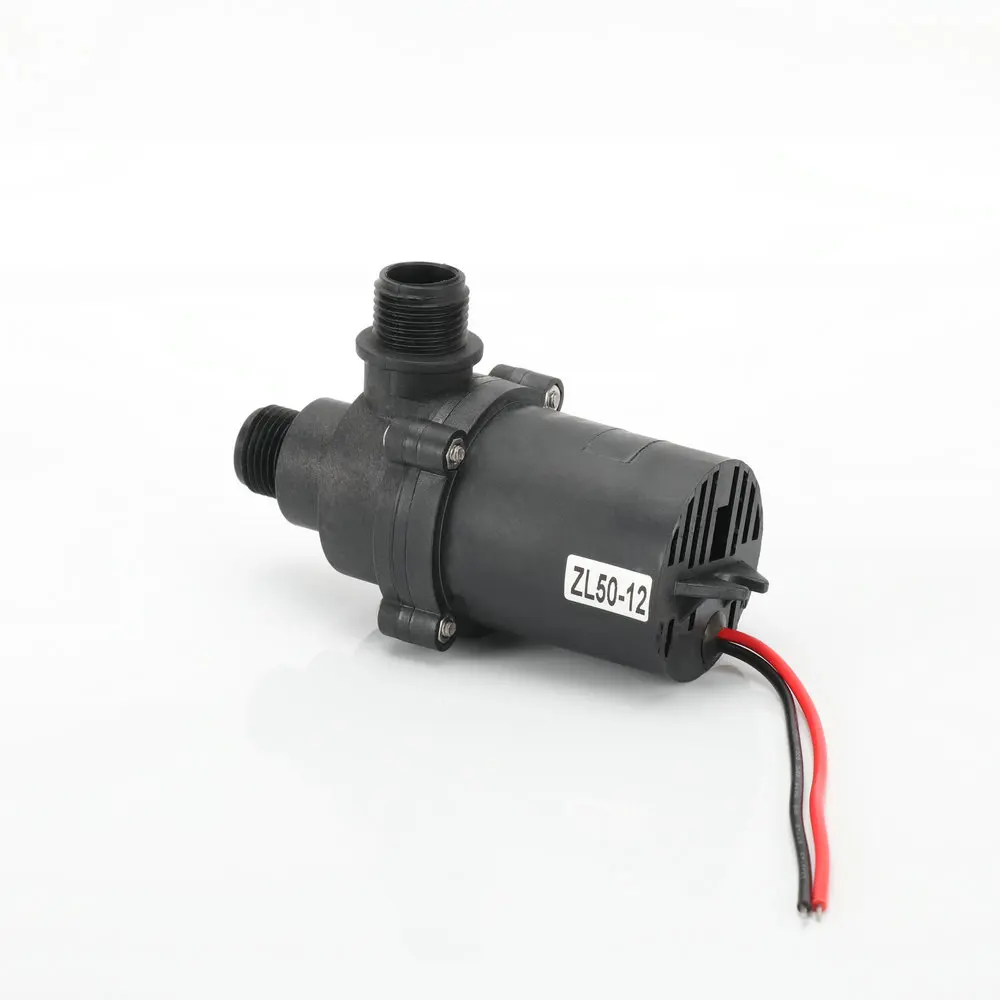

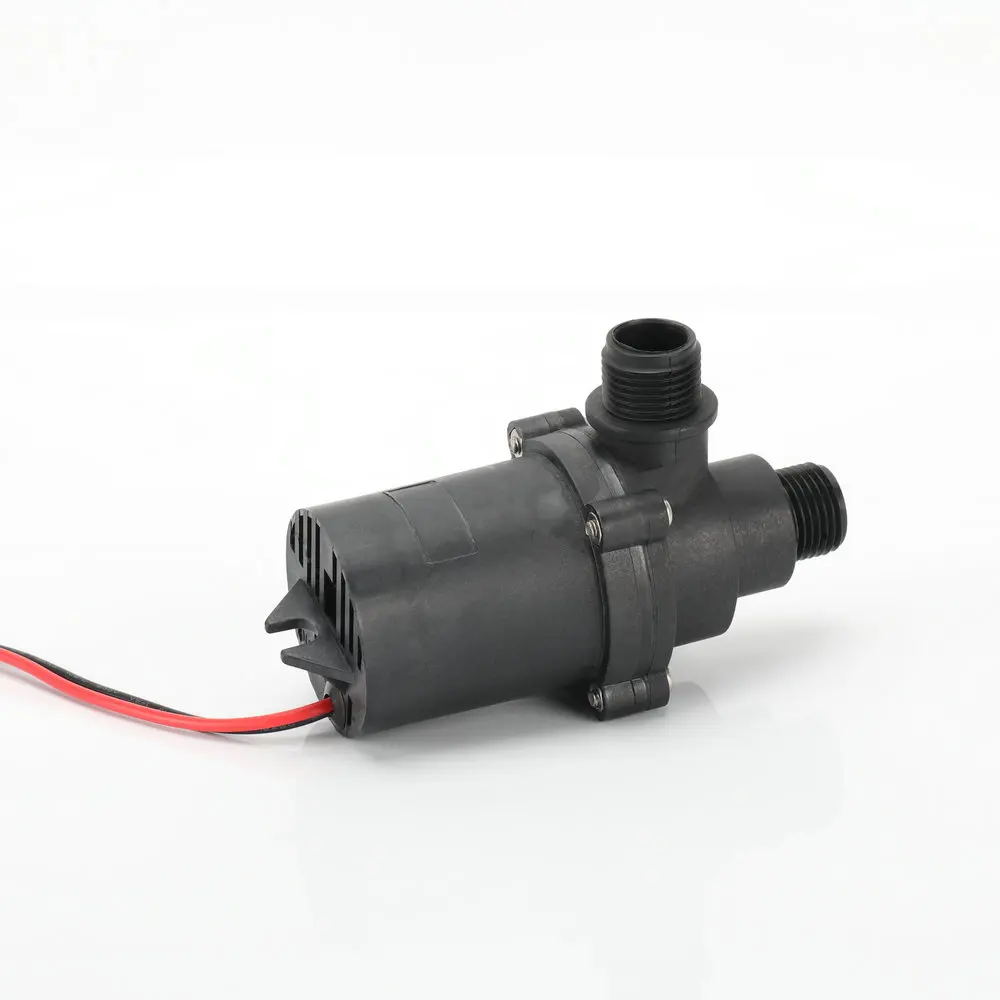

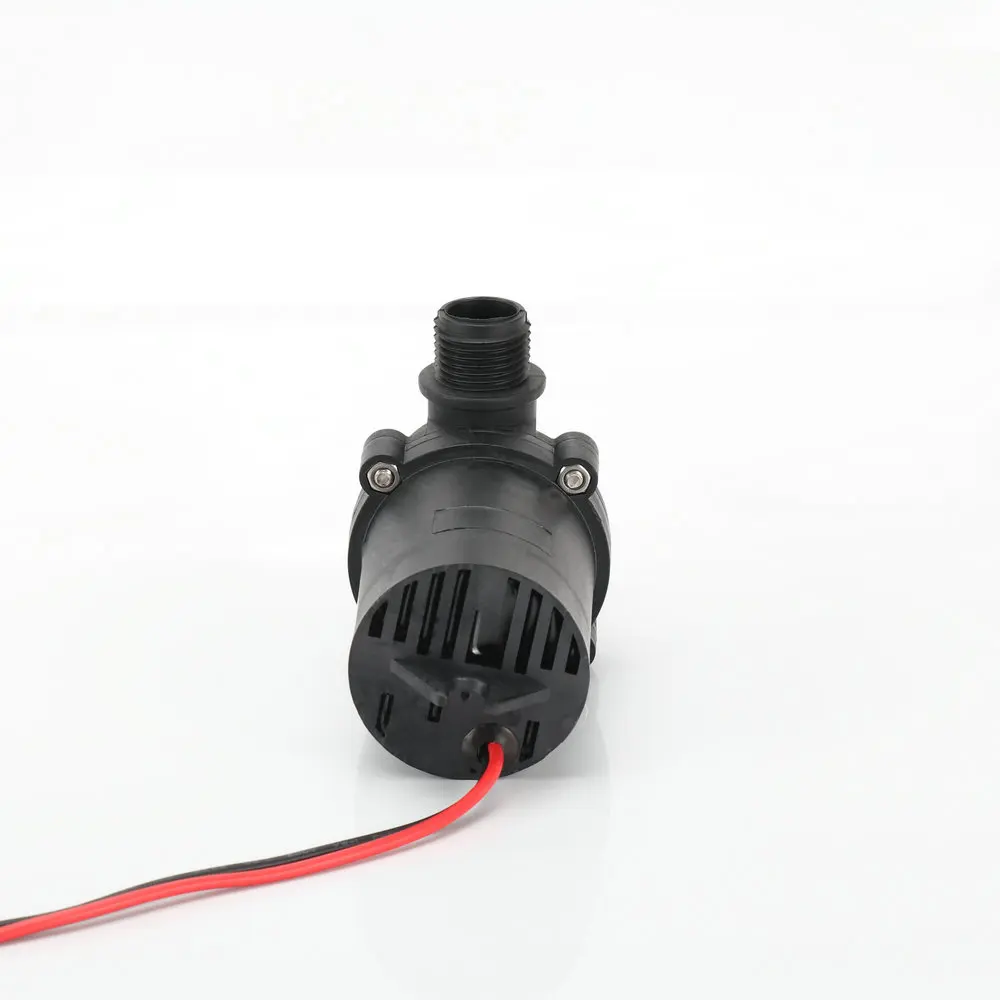

12V or 24V Brushless hot water booster pump brushless 24v dc mini water pump high flow rate
| Character/model | ZL50-12 | |||||||
| Working Voltage Range | DC: 6V-24V | |||||||
| Rating Power | 6V: 10-18W / 12V: 10-40W / 24V: 20-60W | |||||||
| Static Water Head | 1-6 M | |||||||
| Static Flow Rate | 11-40 L/min | |||||||
| Lifespan | Continuous operation under normal working surrounding >20000hrs | |||||||
| Working Environment | Liquid: From weak acid to weak base, workable on land (Non submersible) | |||||||
| Max Noise | Under normal working status, 1M distance over test instrument <45dB | |||||||
| Max Working Temperature | Under normal surroundings, fluid medium temperature≤70℃ | |||||||
| Application | Sewage,milling machine,drilling machine,turning lathe,water heater heat dissipation,oil and water separation,etc. | |||||||
| Size | IP Grade | Inlet | Outlet | Remark | ||||
| Lengt(mm) | Width(mm) | Height(mm) | OD(mm) | ID(mm) | OD(mm) | ID(mm) | Inlet and outlet with standard pipe thread | |
| 79 | 57 | 129 | IP66 | G1/2"stanard pipe thread | φ15 | G1/2"stanard pipe thread | φ15 | |
